Help with replacing heater core on my 01 Jeep grand chreokee

So i have the instrument panel off..... can someone help me with getting to the actual heater core and replacement......first time workng on hvac systems....,. first thing i guess would be getting it out

neodamonkey is offline
Sponsored Links
Advertisement

post #2 of 11 Old 01-06-2009, 04:01 PM Thread Starter
neodamonkey
Registered User

Join Date: May 2008
Location: houston
Posts: 148
When i say i have the instrument panel off i am down to this......do i need to take this piece off as well?

neodamonkey is offline
post #3 of 11 Old 01-06-2009, 04:29 PM
merlinTec
Registered User

merlinTec's Avatar

Join Date: Jul 2007
Location: England
Posts: 2,944
O.M.G you have well over stripped this, the dash comes out complete you didn’t have to strip it like that but too late now, any way that’s not helping you sorry. Yes you need to take the rest out. Bolt up behind where the steering shaft was, 3 bolts down each side A pillar, 2 bolts where the glove box was, bolt in the trans tunnel. Hole dash should then come out. And leave behind the heater. Looks like you have unplugged all the electrics but just have a look around as the dash comes out under the heater box could still be connected. I also remove the shifter. Will make it easy to rebuild I suppose as you can put the dash mostly back together out of the vehicle.

UK Chrysler Jeep Master Tec.
merlinTec is offline
post #4 of 11 Old 01-06-2009, 05:07 PM Thread Starter
neodamonkey
Registered User

Join Date: May 2008
Location: houston
Posts: 148

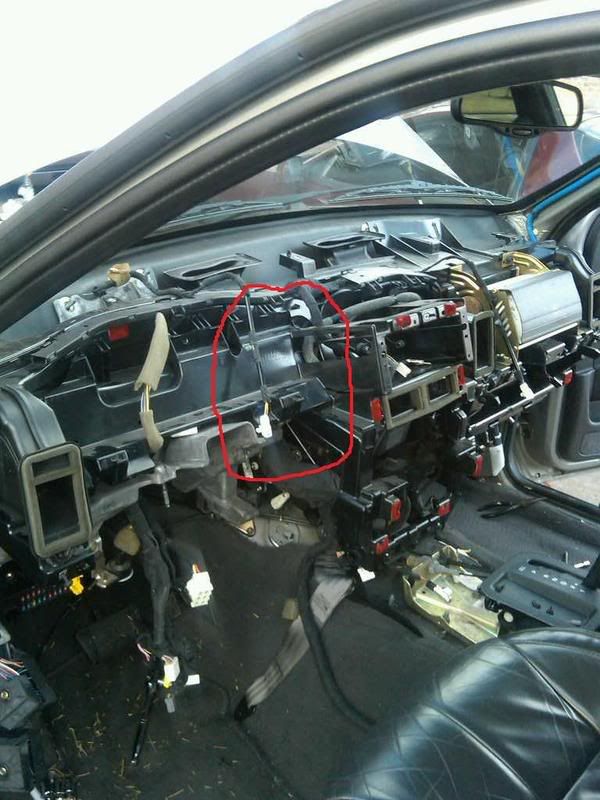

I didnt have the dash cover off until i spent an hour trying to find out what was holding it in....the passanger side is completly free however the driver side is still being held in by something
neodamonkey is offline
post #5 of 11 Old 01-06-2009, 05:11 PM Thread Starter
neodamonkey
Registered User

Join Date: May 2008
Location: houston
Posts: 148


Seems like something is holding it in right around that area....thats why i took the cover off was to try to get a better view of what i could be missing...only i still have not found it lol
neodamonkey is offline
post #6 of 11 Old 01-07-2009, 01:49 AM
merlinTec
Registered User

merlinTec's Avatar

Join Date: Jul 2007
Location: England
Posts: 2,944
yet bolt up under get on you back and look up where the steering was

UK Chrysler Jeep Master Tec.
merlinTec is offline
post #7 of 11 Old 01-07-2009, 02:28 AM
AgitatedPancake
Registered User
2001 WJ

Join Date: Nov 2004
Location: Sac, California
Posts: 3,959
yeah there is a vertical nut you have to remove up above where your brake pedal mounts to the firewall, its definately akward. I actually have mine completely apart right now also

*EDIT* and Merlin, how non-stripped does it have to be? Console stay in? Or do you mean removing the dash pad and that dash plastic peice at the same time?

To contact me, email
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

01 WJ 5 Speed Claytons LA's, 36" Iroks, 35 spline 9" rear, Custom Ruffstuff 60-9" front axle.
Build Thread:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
AgitatedPancake is offline
post #8 of 11 Old 01-07-2009, 08:55 AM
JG_Canuck
Registered User
2000 WJ

Join Date: Mar 2007
Location: Kitchener, ON Canada
Posts: 1,213
Yeah, unless you have your head right at the brake pedal and look up, you won't see the hidden nut that's holding the rest in place.

The console has to come out, and the dash cover and the plastic piece come out as a single unit.

Canadian Jeep Club Member Forty-Two
JG_Canuck is offline
post #9 of 11 Old 01-07-2009, 10:56 AM
merlinTec
Registered User

merlinTec's Avatar

Join Date: Jul 2007
Location: England
Posts: 2,944
Quote:
Originally Posted by AgitatedPancake View Post
yeah there is a vertical nut you have to remove up above where your brake pedal mounts to the firewall, its definately akward. I actually have mine completely apart right now also

*EDIT* and Merlin, how non-stripped does it have to be? Console stay in? Or do you mean removing the dash pad and that dash plastic peice at the same time?
Hi
Consol out yes, but radio, heater panel, dash pad and instrument cluster can all stay in.
Regards,
Merlin

UK Chrysler Jeep Master Tec.
merlinTec is offline
post #10 of 11 Old 04-08-2009, 08:54 PM
little_Jeep
Registered User
1998 TJ Wrangler

Join Date: Nov 2006
Location: Louisville, KY
Posts: 5,960
Is there a good write up on replacing the heater core and/or AC Evap in a 2000 WJ Laredo? I understand that the dash will come out as a unit but that there are some almost impossible bolts/nuts to locate.
little_Jeep is offline
post #11 of 11 Old 04-08-2009, 09:03 PM
jeeposaurus1
Registered User
1993 ZJ

Join Date: Jun 2008
Location: Spring
Posts: 81
Here is a write up on WJJeeps.

Wheeler-'93 ZJ 4.0
Daily Driver- '02 WJ 4.7 Quadradrive
jeeposaurus1 is offline
