Hella 500FFs w/ stock wiring

My stock fog lights on the bumper are trashed, one bulb is blown and the other got ripped off today. Im curious if id be able to hook up some Hella 500FFs on the stock wiring there and just use the fog lamp switch thats already there. I know the bulbs are 55W but I wasnt able to find what amp the fuse in the wiring kit is to see if it matches with the stock fuse.

UTChavok is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 08:30 PM   #2
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 3,005
Shouldn't be a problem...I'm running 3 rock lights off of the stock fog light switch in my WJ.
__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 08:33 PM   #3
madrabbitt
Registered User

Join Date: Feb 2004
Location: Albuquerque
Posts: 8,819
its doable, the hellas are the same wattage as the stocks... however, the stock wiring is thin and crappy, and yours is probably old and rotted anyway.

I'd use the stock wiring as a relay trigger, and use the hella harness for the setup.

Ask me if you want me to expand on that.
__________________
Installing HID's in stock housings is bad. Here is why.

"When you see someone who needs help, help them. When you see someone who needs a hug, hug them... Help those who can't help themselves." -Sgt Andrew Tingwall, NMSP. End of watch 6-10-2009
madrabbitt is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 08:34 PM   #4
UTChavok
Registered User
1998 ZJ

Join Date: Oct 2007
Location: Clemson, SC
Posts: 1,735
Quote:
Originally Posted by madrabbitt View Post
its doable, the hellas are the same wattage as the stocks... however, the stock wiring is thin and crappy, and yours is probably old and rotted anyway.

I'd use the stock wiring as a relay trigger, and use the hella harness for the setup.

Ask me if you want me to expand on that.
That would be great. Just got a check and was thinking about ordering these tommorow.
UTChavok is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 08:40 PM   #5
madrabbitt
Registered User

Join Date: Feb 2004
Location: Albuquerque
Posts: 8,819
wire up the harness from the battery to the light like the included instructions say, except for terminal 85
Run the positive wire from one of your existing fog lights to terminal 85. That way the stock switch triggers the new lights, but you have new wiring carrying the current.

Also, dont buy them from walmart, buy them from an auto parts store, or order them online.
The walmart ones, for whatever reason, have thinner cheaper harnesses.
__________________
Installing HID's in stock housings is bad. Here is why.

"When you see someone who needs help, help them. When you see someone who needs a hug, hug them... Help those who can't help themselves." -Sgt Andrew Tingwall, NMSP. End of watch 6-10-2009
madrabbitt is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 08:42 PM   #6
UTChavok
Registered User
1998 ZJ

Join Date: Oct 2007
Location: Clemson, SC
Posts: 1,735
Yeah Ive been looking for them online with a site with free shipping. Walmart here doesnt carry the FFs anyways.

Edit: im sitting here talking about it with someone, whats terminal 85? is that on the new wiring harness? I need to find a wiring diagram of the new lights.
UTChavok is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 08:44 PM   #7
madrabbitt
Registered User

Join Date: Feb 2004
Location: Albuquerque
Posts: 8,819
try amazon. i've ordered hella lights from there before.
__________________
Installing HID's in stock housings is bad. Here is why.

"When you see someone who needs help, help them. When you see someone who needs a hug, hug them... Help those who can't help themselves." -Sgt Andrew Tingwall, NMSP. End of watch 6-10-2009
madrabbitt is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 09:04 PM   #8
UTChavok
Registered User
1998 ZJ

Join Date: Oct 2007
Location: Clemson, SC
Posts: 1,735
Does anyone have any pics of the brackets theyve made or bought for the 96+ grands that dont have stock ones? Or should I just go to the yard and try to find some.
UTChavok is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 09:09 PM   #9
madrabbitt
Registered User

Join Date: Feb 2004
Location: Albuquerque
Posts: 8,819
look at the bottom of the relay (obviously, when you HAVE a relay in your possession)
The terminals are numbered
30 is supply
85 is trigger
86 is ground
87 is output
__________________
Installing HID's in stock housings is bad. Here is why.

"When you see someone who needs help, help them. When you see someone who needs a hug, hug them... Help those who can't help themselves." -Sgt Andrew Tingwall, NMSP. End of watch 6-10-2009
madrabbitt is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 09:10 PM   #10
madrabbitt
Registered User

Join Date: Feb 2004
Location: Albuquerque
Posts: 8,819
Quote:
Originally Posted by UTChavok View Post
Does anyone have any pics of the brackets theyve made or bought for the 96+ grands that dont have stock ones? Or should I just go to the yard and try to find some.

dunno how much it helps, but:

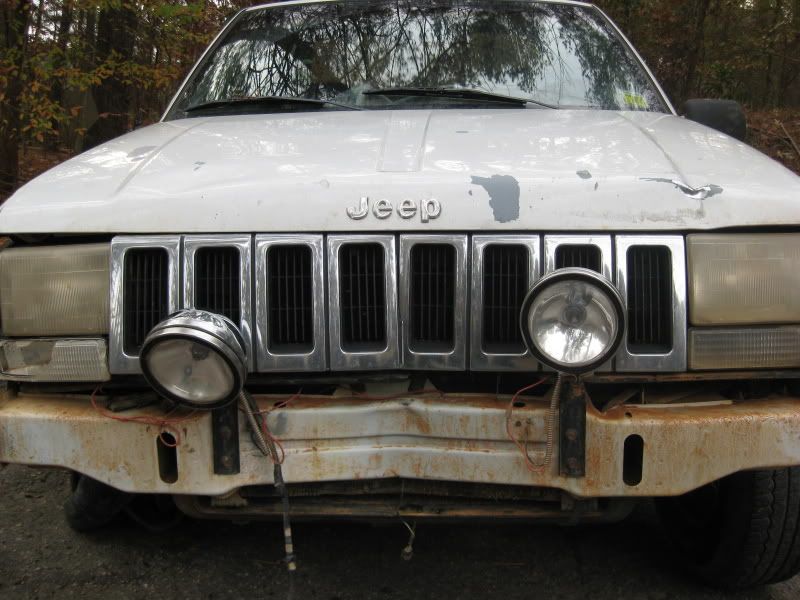

Just happened to see what you needed in darthteddy's thread
__________________
Installing HID's in stock housings is bad. Here is why.

"When you see someone who needs help, help them. When you see someone who needs a hug, hug them... Help those who can't help themselves." -Sgt Andrew Tingwall, NMSP. End of watch 6-10-2009
madrabbitt is offline   Reply With Quote Quick reply to this message
Unread 12-02-2008, 09:17 PM   #11
UTChavok
Registered User
1998 ZJ

Join Date: Oct 2007
Location: Clemson, SC
Posts: 1,735
Thats what id need. I think I may hit up a yard or two on thursday and look for some of those brackets.
UTChavok is offline   Reply With Quote Quick reply to this message
Unread 12-03-2008, 12:39 AM   #12
Chris93zj
Registered User
1993 ZJ

Join Date: Nov 2008
Location: Appleton WI
Posts: 192
good luck getting them off...better bring some PB blaster and/or a torch to heat the bolt that holds them on. if, that is, you are in an area that sees any salt.

mine, after 3 years of being installed have completely corroded and even with an impact, all i can do is bend the brackets...
Chris93zj is offline   Reply With Quote Quick reply to this message
Unread 12-03-2008, 09:04 AM   #13
Clayton00grand
Registered User

Join Date: Jun 2004
Posts: 117
Walmart does carry them I bought a set there but just used the lights only. I definlately like the look of the FF vs, the standard ones.
__________________
Your PM's are full, clean out some so I can reply to your message.

Ken
Clayton00grand is offline   Reply With Quote Quick reply to this message
