Halogen Reverse Light Mod

Ever out on the trail at night and need to back up, but you can't see where you're going? Then this mod is for you!
Materials:
I used the clear lense halogen lamps from Harbor Freight because they are cheap ($9.99) and they are low profile so they dont block the turn signal.
Electrical ring connectors
Bolts for the connectors

First open your tailgate. Then locate the 3 bolts that hold in the taillight assembly, there are 2 on the side and 1 on top. Remove them and remove the tail light assembly. Remove all the lights from the tail light lense by twisting and pulling the sockets. Find the reverse light, it will have a black wire and a brown wire with green tracer.

Cut the brown wire and install ring connectors on both ends (optional to put one on the bulb socket end, I did in case I ever want to return the reverse lights to stock)

Now attach a ring connector to another piece of wire, this will go to the positive on your light.

Attach a ring connector to the ground wire from your light. I had to extend mine so I used a butt splice:

I decided to ground the lights to one of the bolts that holds the tail light on.
This is what you should have at this point:

Next, drill a hole in your bumper for the light to mount in. Make sure the tail gate can open and close with the light in this position, I had to re-drill once because I forgot this.
Depending on how your light mounts, you may have to remove the bumper cover and access the bolt from the bottom. I was able to stick a rachet in between the bumper cover and the body and tighten the bolt up.


Thats it!

If you have any questions or comments, feel free to post in this thread or PM me. Happy Wrenching!

EDIT: Forgot to mention, you have to take out the original reverse light bulb, because if you leave it in, the circuit draws too much power and blows the fuse. Not to mention it will dim both lights greatly.

dnuccio is offline   Reply With Quote Quick reply to this message
Unread 09-05-2012, 11:00 PM   #2
Airborn
Registered User
1998 ZJ

Join Date: Jul 2011
Location: Horton, Michigan, University of Northwestern Ohio
Posts: 361
Just curious, can you take a picture close up and lights off?
__________________
1998 Jeep Grand Cherokee Laredo 4.0L : 172,xxx miles, IRO 3.5" F>R lift, IRO Adjustable Control Arms, IRO Adjustable Track Bars, 31" Goodyear Wrangler Authority on Cragar V5's, Pavement Pounder until I get out of college :( ...Built Not Bought #650
Spend the Time and the Money the 1st Time, You'll End Up Doing it Anyway.
Airborn is offline   Reply With Quote Quick reply to this message
Unread 09-05-2012, 11:11 PM   #3
zander21510
Lord of Retro Machines

zander21510's Avatar
2015 KL Cherokee

Join Date: Jun 2011
Location: Dallas, TX
Posts: 1,839
Thats pretty awesome. Love the MS Paint diagrams lol!

Honestly I dunno why they don't have bright reverse lights standard on all vehicles...it sure would help at night backing out of a parking lot with dozens of college morons on their phones not paying attention to people backing out...
zander21510 is offline   Reply With Quote Quick reply to this message
Unread 09-05-2012, 11:37 PM   #4
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
Quote:
Originally Posted by Airborn View Post
Just curious, can you take a picture close up and lights off?
yes sir I will take one tomorrow when its light out
dnuccio is offline   Reply With Quote Quick reply to this message
Unread 09-05-2012, 11:43 PM   #5
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
Quote:
Originally Posted by zander21510 View Post
Thats pretty awesome. Love the MS Paint diagrams lol!

Honestly I dunno why they don't have bright reverse lights standard on all vehicles...it sure would help at night backing out of a parking lot with dozens of college morons on their phones not paying attention to people backing out...
Thanks! They probably dont do it factory because of cost. Even though they could probably get decent lights for like $5 more, say you make 500,000 cars, you saved alot of money
dnuccio is offline   Reply With Quote Quick reply to this message
Unread 09-06-2012, 01:19 AM   #6
phbrown
Registered User
1994 ZJ

Join Date: Nov 2010
Location: kansas city, kansas
Posts: 148
Quote:
Originally Posted by dnuccio View Post
yes sir I will take one tomorrow when its light out
Thanks! cause that was going to be my question also


needless to say but subscribing now
__________________
1994 Jeep Grand Cherokee Laredo| stock| 231 transfer case| 4.0L
phbrown is offline   Reply With Quote Quick reply to this message
Unread 09-06-2012, 09:18 AM   #7
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
Went out and took some pictures.

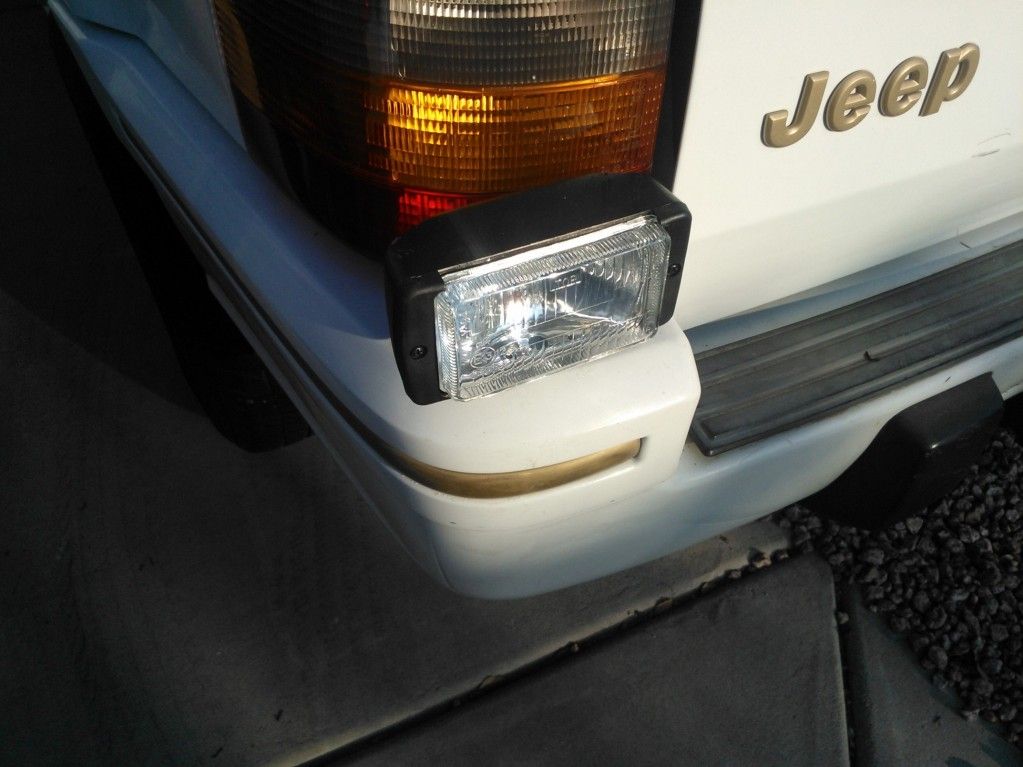

Here is the light mounted:

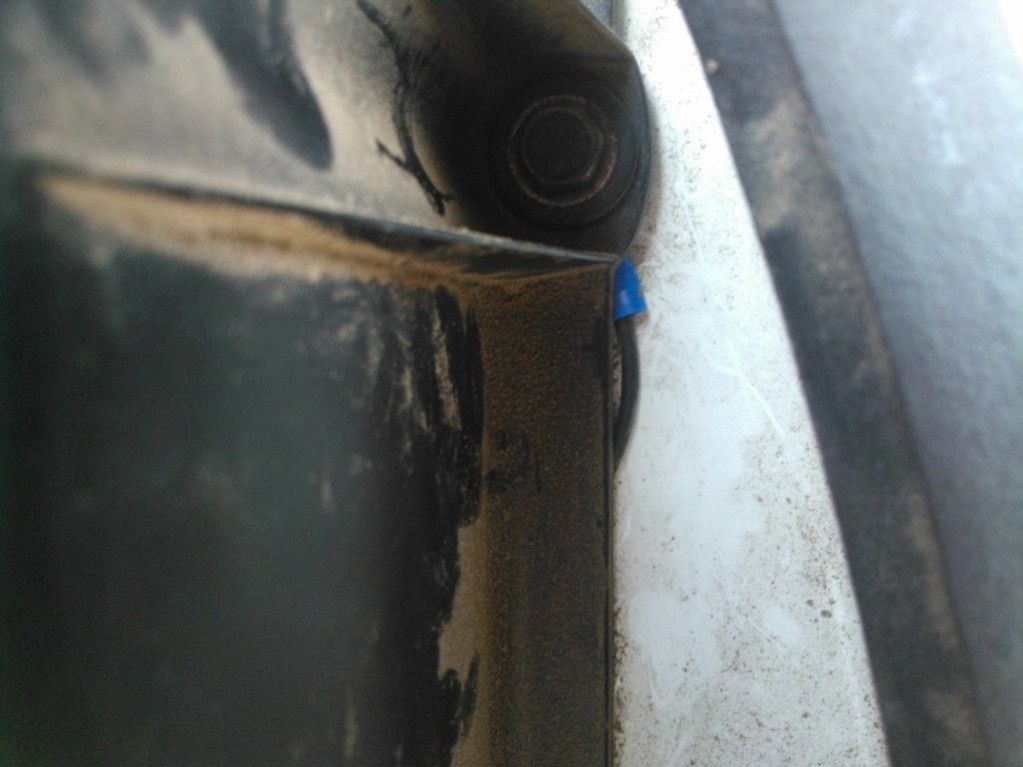

Here is the ground connection, you can just barely see the blue end from the connector:


Here is the ground connector unbolted:

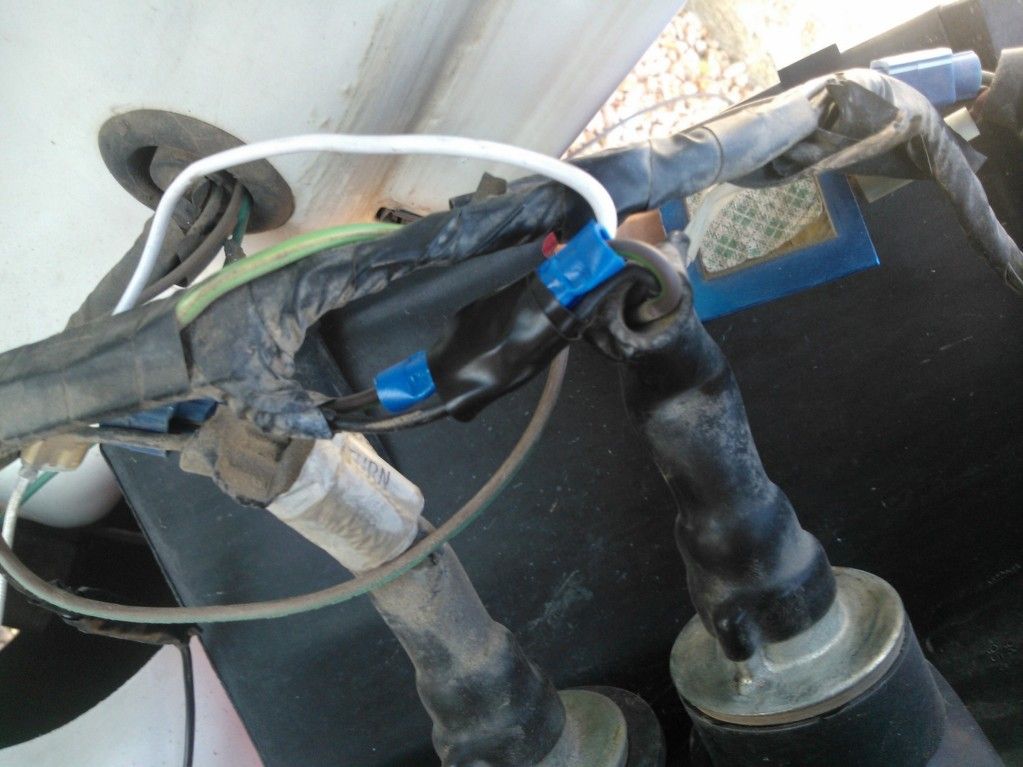

And here is the positive connection, it is the blue cluster with electrical tape around it. The white wire is the positive wire to the halogen light:
