Gauge Cluster and Speakers not working

Both my instrument gauge cluster and speakers stop working at the same time, intermittently. Although my radio works all the time (it behaves normally, just no sound comes from my speakers when gauge cluster stops working). It appears to be a loose connection, perhaps a bad ground, which affects both the speakers and gauge cluster at the same time. How would the speakers and the gauge cluster be connected?

Rockeater is offline   Reply With Quote
Unread 11-03-2013, 09:05 PM   #2
Speedymcracer01
Registered User

Join Date: Feb 2013
Posts: 663
That's definitely a interesting problem. I would check into your fuses.look for loose fuse housings and faulty wiring . Look into some wiring diagrams on your model jeep to see if any power wires or grounds are tied into your gauge cluster and radio. Also pull your radio and gauge cluster check your wire connections, check for and nicks,or any type of wear and tear on the wiring
Speedymcracer01 is offline   Reply With Quote
Unread 11-03-2013, 09:07 PM   #3
Speedymcracer01
Registered User

Join Date: Feb 2013
Posts: 663
I only have access to this site threw my phone, so I can't view profile details. What year/ model do you have?
Speedymcracer01 is offline   Reply With Quote
Unread 11-03-2013, 10:25 PM   #4
CGlaser
Registered User
1998 ZJ

Join Date: Jan 2013
Location: Columbus, Kansas
Posts: 303
Have you had issues with your dimmer switch for your dash lights? Is it blowing fuses? Make and model would definitely help (on my phone app as well) is it stock or aftermarket radio?
__________________
http://www.jeepforum.com/forum/f22/98-zj-slow-build-1484672/
CGlaser is offline   Reply With Quote
Unread 11-03-2013, 10:46 PM   #5
Speedymcracer01
Registered User

Join Date: Feb 2013
Posts: 663
Quote:
Originally Posted by CGlaser View Post
Have you had issues with your dimmer switch for your dash lights? Is it blowing fuses? Make and model would definitely help (on my phone app as well) is it stock or aftermarket radio?
The illumination light for my head light and dimmer switches goes on and off ,my fuel gauge light does it too. When I have my subwoofers turned up it tends to turn on and off more frequently. Could that be a faulty connection or a bad bulb housing?
Speedymcracer01 is offline   Reply With Quote
Unread 11-03-2013, 11:06 PM   #6
CGlaser
Registered User
1998 ZJ

Join Date: Jan 2013
Location: Columbus, Kansas
Posts: 303
Quote:
Originally Posted by Speedymcracer01 View Post

The illumination light for my head light and dimmer switches goes on and off ,my fuel gauge light does it too. When I have my subwoofers turned up it tends to turn on and off more frequently. Could that be a faulty connection or a bad bulb housing?
My dimmer switch in my zj went on and off intermittently. When when driving at night it would go from full illumination to dim. Especially if I hit a bump or the base hit hard. It blew the fuse to the cluster panel. Replaced the switch (105 greenbacks at O'reillys here) new fuse. And my cluster panel has been golden since.
__________________
http://www.jeepforum.com/forum/f22/98-zj-slow-build-1484672/
CGlaser is offline   Reply With Quote
Unread 11-03-2013, 11:18 PM   #7
Speedymcracer01
Registered User

Join Date: Feb 2013
Posts: 663
Mine just goes on and off then flickers sometimes. Which fuse cost that much? Was it in the PDC under the hood?
Speedymcracer01 is offline   Reply With Quote
Unread 11-03-2013, 11:22 PM   #8
CGlaser
Registered User
1998 ZJ

Join Date: Jan 2013
Location: Columbus, Kansas
Posts: 303
Quote:
Originally Posted by Speedymcracer01 View Post
Mine just goes on and off then flickers sometimes. Which fuse cost that much? Was it in the PDC under the hood?
It wasnt the fuse. It was the switch. The switch that turns on the headlights and dims the dash lights. I replaced that switch because it shorting out which is what was causing the dash lights to flicker and eventually blow the fuse to my cluster panel. The fuse should be a normal 10 amp mini fuse
__________________
http://www.jeepforum.com/forum/f22/98-zj-slow-build-1484672/
CGlaser is offline   Reply With Quote
Unread 11-03-2013, 11:53 PM   #9
Muzramp
Registered User
1997 ZJ

Join Date: May 2013
Location: West Palm Beach, Florida
Posts: 93
If I remember correctly. The radio ampilifer and the guage cluster use the same fuse in the kickpanel under passenger dashboard.
Its one of the fuses on the right. Like third row second to last fuse. Number 17 or 20? I havent looked at the fuse diagram in a while so my memory is a little off.
Muzramp is offline   Reply With Quote
Unread 11-04-2013, 12:33 AM   #10
Rockeater
Registered User
1998 ZJ

Join Date: Jul 2013
Location: Superior, Arizona
Posts: 12
I have a Grand Jeep Cherokee ZJ 98 with 5.2L engine. I have a stock radio. The vehicle has had a collision history with past owner doing moderate wiring modifications. I have extensively checked all the fuses, and all are good. When my cluster panel and speakers do work, I have no other electrical issues. My radio system always works. My question being; how or where would the cluster panel and speakers be connected? What do they have in common, for this is the source of the problem.
Rockeater is offline   Reply With Quote
Unread 11-04-2013, 03:34 AM   #11
Speedymcracer01
Registered User

Join Date: Feb 2013
Posts: 663
Quote:
Originally Posted by Muzramp View Post
If I remember correctly. The radio ampilifer and the guage cluster use the same fuse in the kickpanel under passenger dashboard.
Its one of the fuses on the right. Like third row second to last fuse. Number 17 or 20? I havent looked at the fuse diagram in a while so my memory is a little off.
It's #20 15A. Its one of the small micro fuses
Speedymcracer01 is offline   Reply With Quote
Unread 11-04-2013, 03:55 AM   #12
Muzramp
Registered User
1997 ZJ

Join Date: May 2013
Location: West Palm Beach, Florida
Posts: 93
Quote:
Originally Posted by Speedymcracer01 View Post

It's #20 15A. Its one of the small micro fuses
Ah! I had it right then. Yeah. Definitely try that. Just replace that fuse. Sometimes one fuse can cause other fuses to not function.
Muzramp is offline   Reply With Quote
Unread 11-04-2013, 04:53 AM   #13
Speedymcracer01
Registered User

Join Date: Feb 2013
Posts: 663
Yes they will my cigar lighter quit working when I checked my fuse it was good. I was just now looking over my fuse panel and I noticed it has cigar twice on the info panel #2 says cigar, and #14 also says it.
Speedymcracer01 is offline   Reply With Quote
Unread 11-04-2013, 04:53 AM   #14
Speedymcracer01
Registered User

Join Date: Feb 2013
Posts: 663
Anybody know which fuse the sunroof is powered by?
Speedymcracer01 is offline   Reply With Quote
Unread 11-04-2013, 10:46 PM   #15
Muzramp
Registered User
1997 ZJ

Join Date: May 2013
Location: West Palm Beach, Florida
Posts: 93

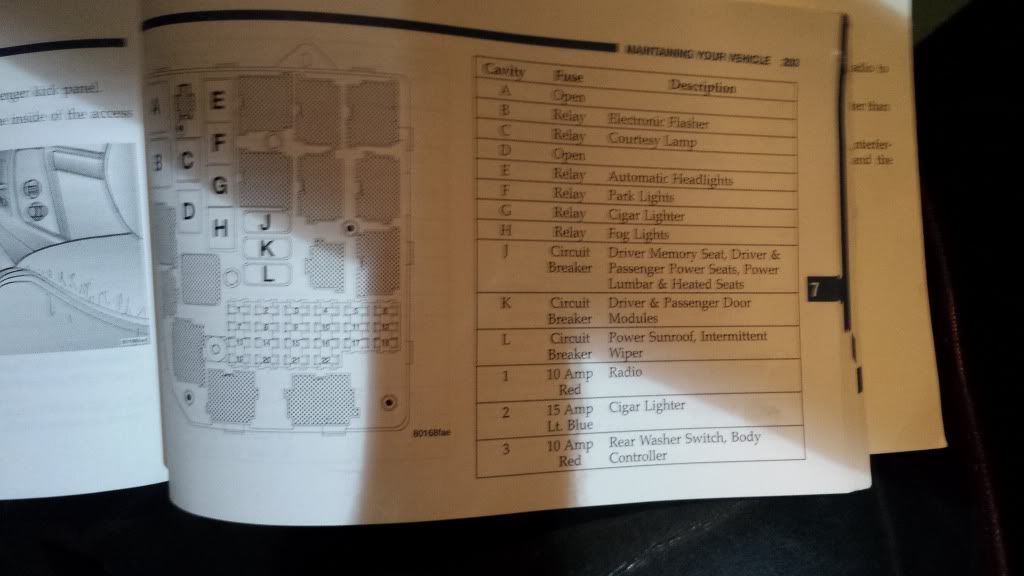

First page of fuse

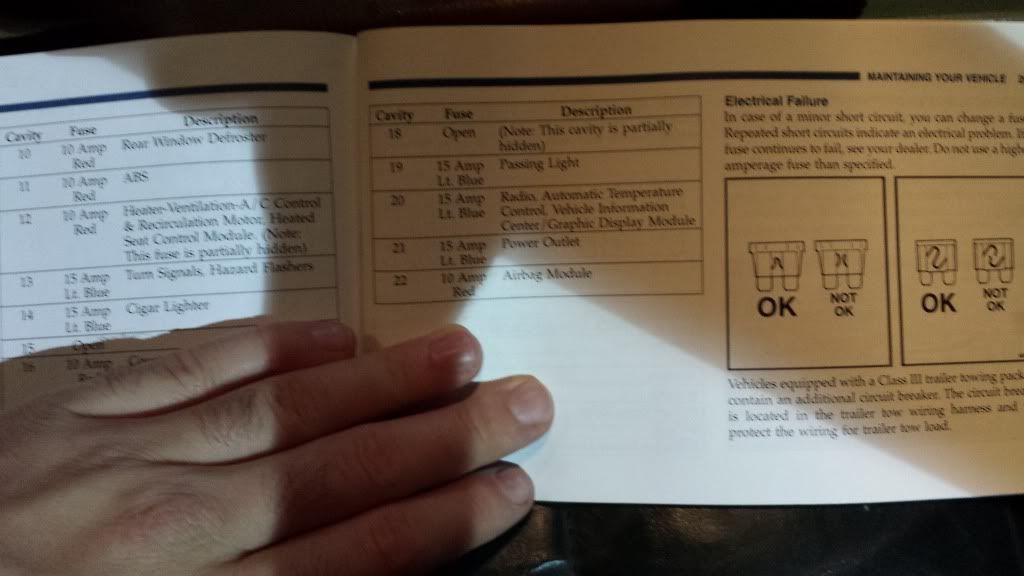

Second

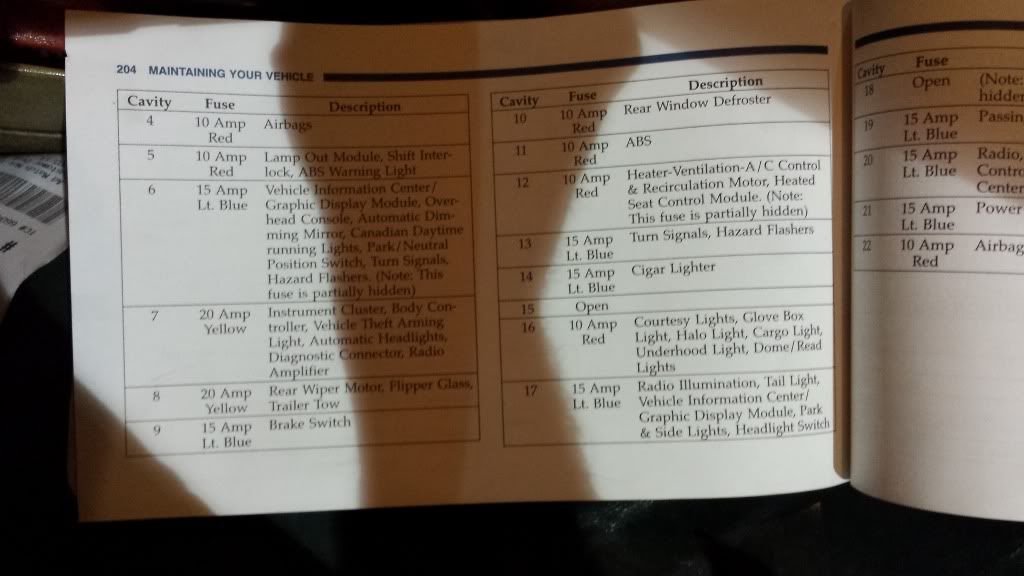

Last
