Front wheel well Trimming

I just got my Atlas TC installed I need to get the front ds shortened, but need to decide axle position first. Here is my problem. I've just put 35" KM2s on with steel wheels that have a 4.5" BS. I should have gotten 3.75 BS, but 17" wheels w/5X4.5 BP and 3.75 BS are scarce. I tried 1 1/4" spacers, but they would require too much cutting and pounding to get it to work. I can get custom 3/4" spacers made which would get the BS down to 3.75". I would like to hear from someone that is running 35s on a ZJ with a 5-6" lift. Pictures of what you did to get the clearance would be great. I can lengthen the front Clayton arms to get the tire forward an inch, but that will mean cutting a "LOT" out of the wheel well in front of the tire.

I think the only other option is to get 7" springs and add another inch of bumpstop. I have added 5" to the stock bumpstop already. I would prefer not to go any higher than I am now.

Thanks for suggestions

__________________
97 ZJ 5.2, 3.8 Atlas TC, 488s, 8.8 rear w/ARB locker, hp30 w/Oxlocker, Alloys F&R, 35" KM2s, 7" Clayton L A, ARB Bull Bar/Warn, ProtoFab w/ tire carrier, Clayton skid, rock sliders, ORO dual rate Swaybar, Redneck steering assist

97 TJ Juggy, 350 V8, 700R4, D60, 14 bolt, locked, 14" ORI Struts, 113" wb, 42" Pit Bulls, Stazworks beadlocks, F&R winches, caged, Anti-Rock, PSI full hyd steering,
Crasher is offline   Reply With Quote
Unread 07-27-2011, 03:15 PM   #2
97 ZJ Steve
Registered User
1995 ZJ

Join Date: Apr 2006
Location: Brick, NJ
Posts: 701
Take a look here for a ZJ fender trimming guide. As far as pictures I do not have any yet but I will be doing Iron Rock Off Road's 5.5 front long arm kit but I'm doing there rear long arms as well with 35's.

Enjoy,

-Steve
97 ZJ Steve is offline   Reply With Quote
Unread 07-27-2011, 04:22 PM   #3
Crasher
Registered User
1997 ZJ

Join Date: Feb 2008
Location: WI & AZ
Posts: 596
Quote:
Originally Posted by 97 ZJ Steve View Post
Take a look here for a ZJ fender trimming guide. As far as pictures I do not have any yet but I will be doing Iron Rock Off Road's 5.5 front long arm kit but I'm doing there rear long arms as well with 35's.

Enjoy,

-Steve
Thanks. I've already trimmed the front fender similar to what this shows, but inside the fender well is where the real problem is. Everything is fine until you are flexed up and need to turn. The outer fender is not a problem. The problem is making room for that big 35" tire to turn inside the wheel well.
__________________
97 ZJ 5.2, 3.8 Atlas TC, 488s, 8.8 rear w/ARB locker, hp30 w/Oxlocker, Alloys F&R, 35" KM2s, 7" Clayton L A, ARB Bull Bar/Warn, ProtoFab w/ tire carrier, Clayton skid, rock sliders, ORO dual rate Swaybar, Redneck steering assist

97 TJ Juggy, 350 V8, 700R4, D60, 14 bolt, locked, 14" ORI Struts, 113" wb, 42" Pit Bulls, Stazworks beadlocks, F&R winches, caged, Anti-Rock, PSI full hyd steering,
Crasher is offline   Reply With Quote
Unread 07-27-2011, 07:43 PM   #4
gothchick
Registered User
1998 ZJ

Join Date: Jul 2010
Posts: 702
Need... more... COWBELL!! I mean lift. Lolz.
__________________
Don't fear the regear.

Finished 4x2 --> 4x4 conversion.
gothchick is offline   Reply With Quote
Unread 07-27-2011, 08:34 PM   #5
1stblack97ZJ
Registered User
1997 ZJ

Join Date: Sep 2010
Location: Augusta, Maine
Posts: 4,935
Start cutting sheetmetal.

Talk to biggoofy, I'm sure he can give you tips on cutting LOTS and LOTS of sheetmetal aha
__________________
1997 ZJ Laredo
4" Lift
32s
Plenty of lights
1stblack97ZJ is offline   Reply With Quote
Unread 07-28-2011, 08:46 AM   #6
97 ZJ Steve
Registered User
1995 ZJ

Join Date: Apr 2006
Location: Brick, NJ
Posts: 701
In the front fender there is a pinch seem. For that I cut every 1-1.5 inches and banged that flat with a mini sledge. For any other part that contacted the 35" tire on my buddy's ZJ we used a regular sledge and banged it back. It isn't much if you have the right amount of bump stops.

Have fun

-Steve
97 ZJ Steve is offline   Reply With Quote
Unread 07-28-2011, 04:29 PM   #7
Crasher
Registered User
1997 ZJ

Join Date: Feb 2008
Location: WI & AZ
Posts: 596
Quote:
Originally Posted by 97 ZJ Steve View Post
In the front fender there is a pinch seem. For that I cut every 1-1.5 inches and banged that flat with a mini sledge. For any other part that contacted the 35" tire on my buddy's ZJ we used a regular sledge and banged it back. It isn't much if you have the right amount of bump stops.

Have fun

-Steve
I've done all of what you mentioned, but I would need to move the axle forward and cut a bunch of metal out of the front of the well for the tire to clear when stuffed in a tight turn. What size of lift does your friend have and how much bumpstop is used? I'm thinking I will have to go to 7" springs and add another 1" of bumpstop unless I cut a lot out of the well. It seems that no one is running 35s on a 5.5" lift and doing serious rock crawling.
__________________
97 ZJ 5.2, 3.8 Atlas TC, 488s, 8.8 rear w/ARB locker, hp30 w/Oxlocker, Alloys F&R, 35" KM2s, 7" Clayton L A, ARB Bull Bar/Warn, ProtoFab w/ tire carrier, Clayton skid, rock sliders, ORO dual rate Swaybar, Redneck steering assist

97 TJ Juggy, 350 V8, 700R4, D60, 14 bolt, locked, 14" ORI Struts, 113" wb, 42" Pit Bulls, Stazworks beadlocks, F&R winches, caged, Anti-Rock, PSI full hyd steering,
Crasher is offline   Reply With Quote
Unread 07-28-2011, 07:12 PM   #8
lateralus3
Registered User
1994 ZJ

Join Date: Jul 2009
Location: El Dorado, Kansas
Posts: 3,335
perfect timing on this thread. ive been working on trimming things in my front wheel well for my 35s, im just not sure how crazy i can go on the trimming. what are you running for bumpstops?
__________________
[CENTER][B]Jacob[/B]

1994 grand cherokee laredo 4.0 IRO 5.5 critical path long arm kit and OTK steering 35x12.50x15 BFG KM2's

high pinion dana 30 and 8.8 in garage
[URL="http://www.jeepforum.com/forum/f197/lateralus3s-slow-build-thread-1042086/"]my build thread[/URL][/CENTER]

[CENTER][SIZE="5"][COLOR="Red"]FOR SALE ONE SET OF ZJ D44A AXLE SHAFTS $150 SHIPPED[/COLOR][/SIZE][/CENTER]
lateralus3 is offline   Reply With Quote
Unread 07-28-2011, 07:40 PM   #9
Crasher
Registered User
1997 ZJ

Join Date: Feb 2008
Location: WI & AZ
Posts: 596
Quote:
Originally Posted by lateralus3 View Post
perfect timing on this thread. ive been working on trimming things in my front wheel well for my 35s, im just not sure how crazy i can go on the trimming. what are you running for bumpstops?
I have a 2" extension to the stock BS plus three 1" hockey pucks bolted to the spring perch for a total of 5" additional.
__________________
97 ZJ 5.2, 3.8 Atlas TC, 488s, 8.8 rear w/ARB locker, hp30 w/Oxlocker, Alloys F&R, 35" KM2s, 7" Clayton L A, ARB Bull Bar/Warn, ProtoFab w/ tire carrier, Clayton skid, rock sliders, ORO dual rate Swaybar, Redneck steering assist

97 TJ Juggy, 350 V8, 700R4, D60, 14 bolt, locked, 14" ORI Struts, 113" wb, 42" Pit Bulls, Stazworks beadlocks, F&R winches, caged, Anti-Rock, PSI full hyd steering,
Crasher is offline   Reply With Quote
Unread 07-28-2011, 07:51 PM   #10
lateralus3
Registered User
1994 ZJ

Join Date: Jul 2009
Location: El Dorado, Kansas
Posts: 3,335
i just got done with the pinch seam and fender itself but im not sure how crazy i can go with trimming this
__________________
[CENTER][B]Jacob[/B]

1994 grand cherokee laredo 4.0 IRO 5.5 critical path long arm kit and OTK steering 35x12.50x15 BFG KM2's

high pinion dana 30 and 8.8 in garage
[URL="http://www.jeepforum.com/forum/f197/lateralus3s-slow-build-thread-1042086/"]my build thread[/URL][/CENTER]

[CENTER][SIZE="5"][COLOR="Red"]FOR SALE ONE SET OF ZJ D44A AXLE SHAFTS $150 SHIPPED[/COLOR][/SIZE][/CENTER]
lateralus3 is offline   Reply With Quote
Unread 07-28-2011, 07:54 PM   #11
lateralus3
Registered User
1994 ZJ

Join Date: Jul 2009
Location: El Dorado, Kansas
Posts: 3,335

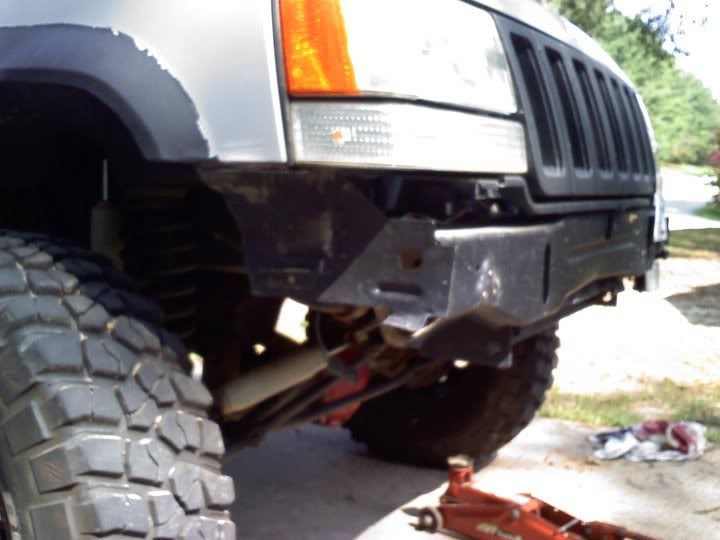

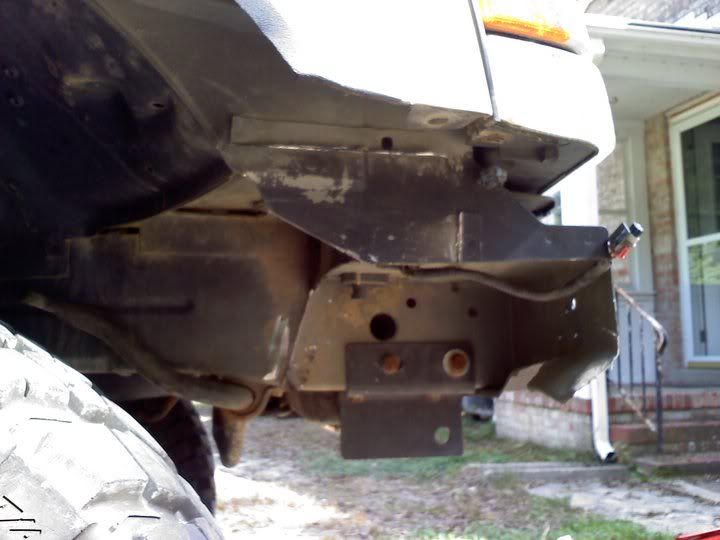

heres a pic thats not cut off, i really want to trim in there but i dont know how structural it is
__________________
[CENTER][B]Jacob[/B]

1994 grand cherokee laredo 4.0 IRO 5.5 critical path long arm kit and OTK steering 35x12.50x15 BFG KM2's

high pinion dana 30 and 8.8 in garage
[URL="http://www.jeepforum.com/forum/f197/lateralus3s-slow-build-thread-1042086/"]my build thread[/URL][/CENTER]

[CENTER][SIZE="5"][COLOR="Red"]FOR SALE ONE SET OF ZJ D44A AXLE SHAFTS $150 SHIPPED[/COLOR][/SIZE][/CENTER]
lateralus3 is offline   Reply With Quote
Unread 07-28-2011, 08:16 PM   #12
Crasher
Registered User
1997 ZJ

Join Date: Feb 2008
Location: WI & AZ
Posts: 596
I think I'm going to move my front axle forward enough to clear the back of the well and see how much cutting is needed in the front as long as the coils aren't curved. I don't think there is much needed structual strength outside of the unibody. My front ARB bumper and the Clayton rail stiffeners take care of that. If that doesn't work, I'll have no choice but to go higher and add bumpstop.
__________________
97 ZJ 5.2, 3.8 Atlas TC, 488s, 8.8 rear w/ARB locker, hp30 w/Oxlocker, Alloys F&R, 35" KM2s, 7" Clayton L A, ARB Bull Bar/Warn, ProtoFab w/ tire carrier, Clayton skid, rock sliders, ORO dual rate Swaybar, Redneck steering assist

97 TJ Juggy, 350 V8, 700R4, D60, 14 bolt, locked, 14" ORI Struts, 113" wb, 42" Pit Bulls, Stazworks beadlocks, F&R winches, caged, Anti-Rock, PSI full hyd steering,
Crasher is offline   Reply With Quote
Unread 07-28-2011, 09:11 PM   #13
biggoofy
Registered User
1996 ZJ

Join Date: Nov 2009
Location: Troy, NC Uwharrie
Posts: 4,183
Take a look here.

http://pirate4x4.com/forum/showthread.php?t=920130
__________________
[CENTER]Zack

96 ZJ HP44 / 9"
90 XJ on 33s
RIP Troy aka BigBlueZJ94

FroBot Fab FTW

[URL="http://www.mallcrawlin.com/forum/showthread.php?22776-Biggoofy-s-96-ZJ-build!-**Building-axles**"]My Build[/URL]


Need quality parts call Andy at Ironman4x4fab!!!!!
[url]http://ironman4x4fab.com/index.html[/url]
[/CENTER]
biggoofy is offline   Reply With Quote
Unread 07-28-2011, 09:16 PM   #14
lateralus3
Registered User
1994 ZJ

Join Date: Jul 2009
Location: El Dorado, Kansas
Posts: 3,335
from the looks of that thread i can trim that crap all the way down to the frame rail. sweet deal
__________________
[CENTER][B]Jacob[/B]

1994 grand cherokee laredo 4.0 IRO 5.5 critical path long arm kit and OTK steering 35x12.50x15 BFG KM2's

high pinion dana 30 and 8.8 in garage
[URL="http://www.jeepforum.com/forum/f197/lateralus3s-slow-build-thread-1042086/"]my build thread[/URL][/CENTER]

[CENTER][SIZE="5"][COLOR="Red"]FOR SALE ONE SET OF ZJ D44A AXLE SHAFTS $150 SHIPPED[/COLOR][/SIZE][/CENTER]
lateralus3 is offline   Reply With Quote
Unread 07-29-2011, 04:49 AM   #15
PeriwinkleZJ
Registered User
1993 ZJ

Join Date: Sep 2008
Location: Mooresville, North Cackalacky
Posts: 1,411

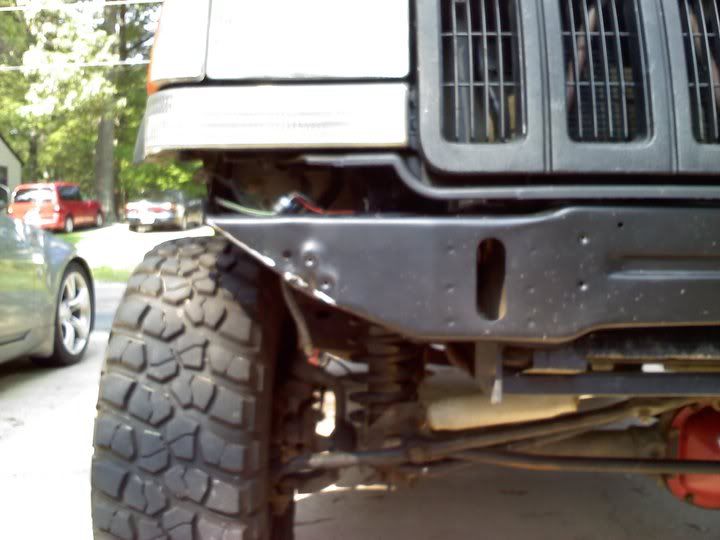

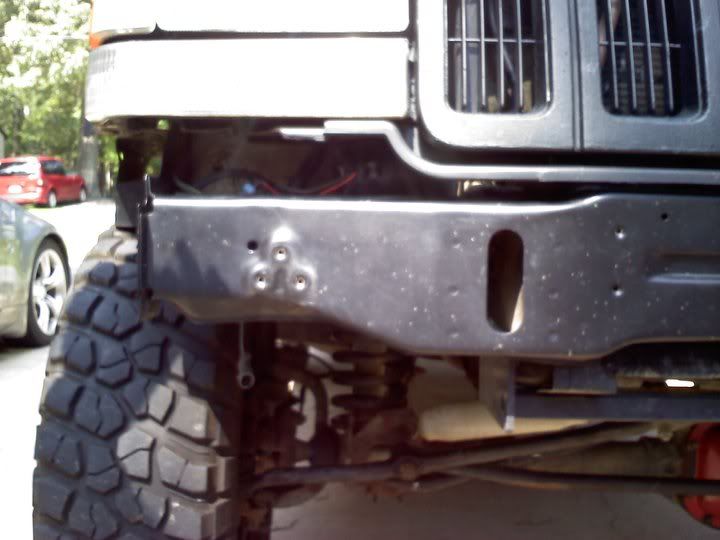

That front bumper has no structure what so ever. Keep the center piece running between the two 'frame' rails. Everything else can go. What I did was left the front part, and cut everything that's in front of the tire on my brothers.







__________________
-1993 Grand Cherokee Laredo V8 5.2, Mopar CAI, Borla headers, Borla Y-pipe, Turn down exhaust, 4" RC SA, 33x12.50r15 BfGoodrich Km2, Crown extended brake lines, IRO Double Shear Track bar, IRO HD tie rod, Home made Quick discos, E-fan, Heavy duty harness/9007 bulb conversion, HP30 WJ knuckles lockrite solid cover.

BUILD THREAD:http://www.jeepforum.com/forum/f197/...-jeep-1133312/
PeriwinkleZJ is offline   Reply With Quote
