Front Door Hinge Fix (10 pics)

So the other day outside the grocery store (really it was ) the wind caught my driver door and I lost my grip. The door flung open with quite a lot of force. Fortunetly I was not parked near any other cars to damage. Nothing happend immediately that day. About a week later I was shutting my door and it would not shut. Futher inspection revealed that the welds had broken on the hinge bracket that is on the door and the hinge bracket was jamming not allowing the door to close.

I had my tools (even my air wrench) with me so I gunned off the bolts, unclipped the wiring harness and worked the the hinge bracket back and forth and it broke off rather easily. I put the door back on only using the top hinge untill I could come up with a solution. (it was 10pm at night and I didn't feel like MacGyvering untill later when I had to.)

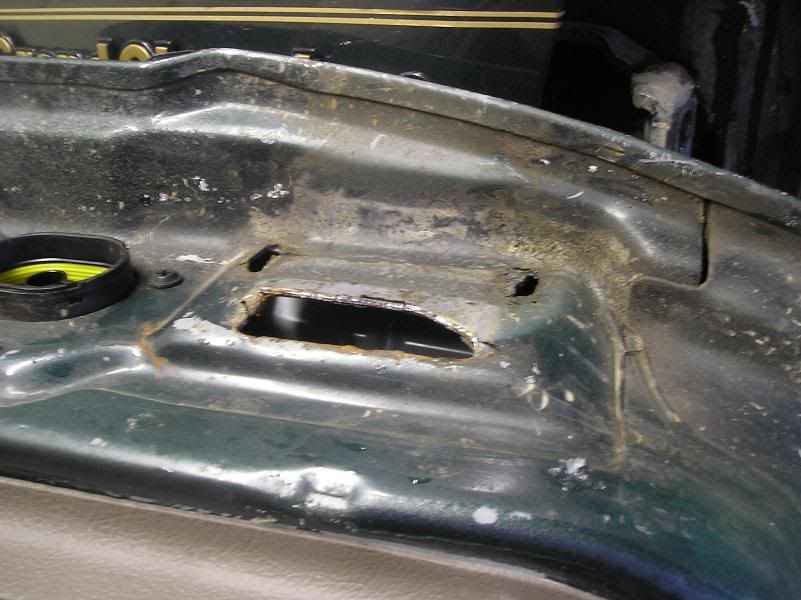

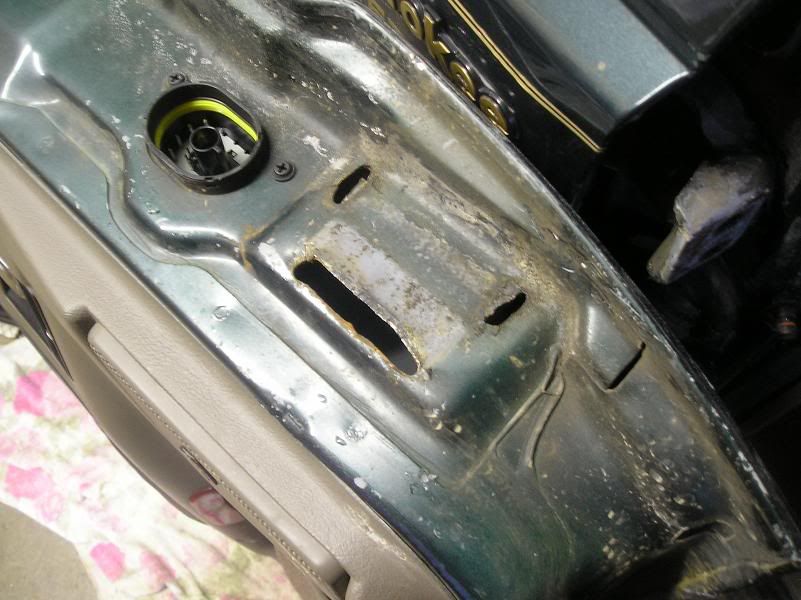

So here is the damage with the door off...


Another Shot of the door...

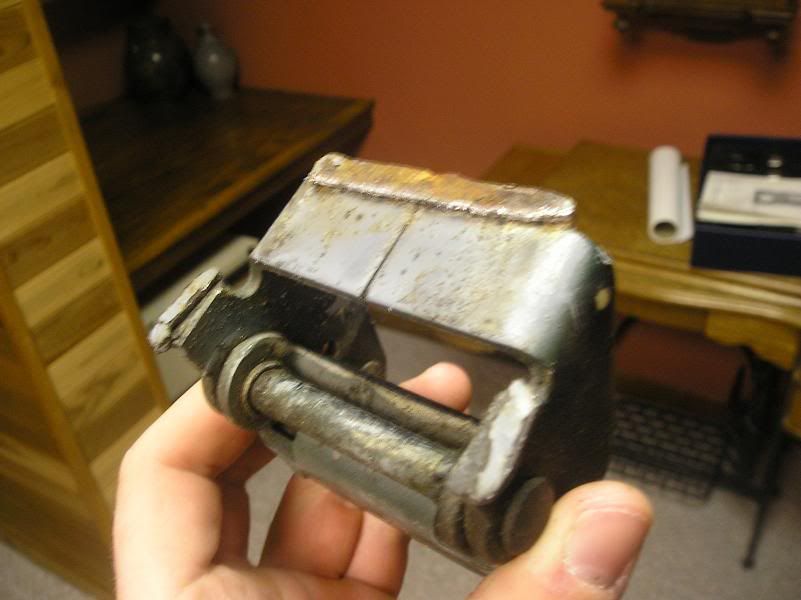

Here is a picture of the hinge bracket...

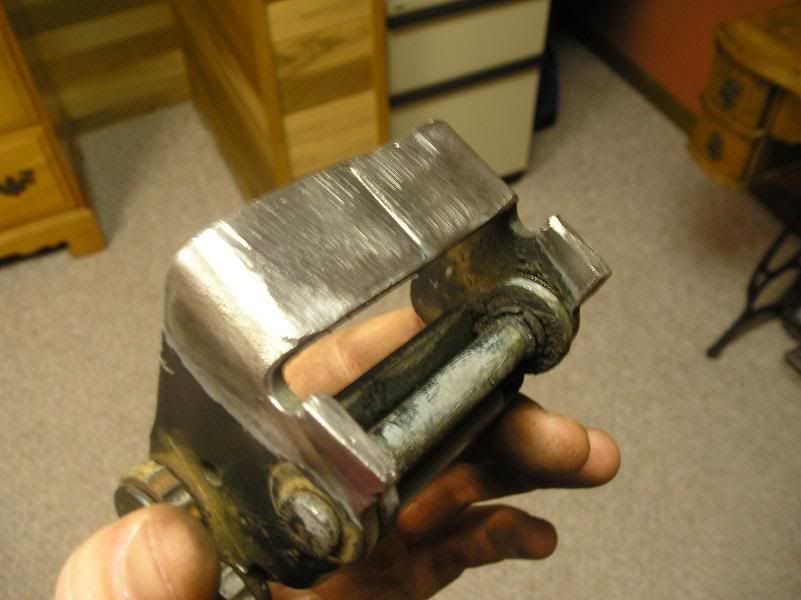

Hinge bracket after a visit from the angle grinder w/ grinder disk, wire wheel, and 60 grit paper... (psst, always use eye protection!)


EMTimZJ is offline
Sponsored Links
Advertisement

post #2 of 18 Old 12-04-2005, 08:29 PM Thread Starter
EMTimZJ
GSMW!

EMTimZJ's Avatar
1994 ZJ

Join Date: Jan 2005
Location: West Michigan
Posts: 4,016

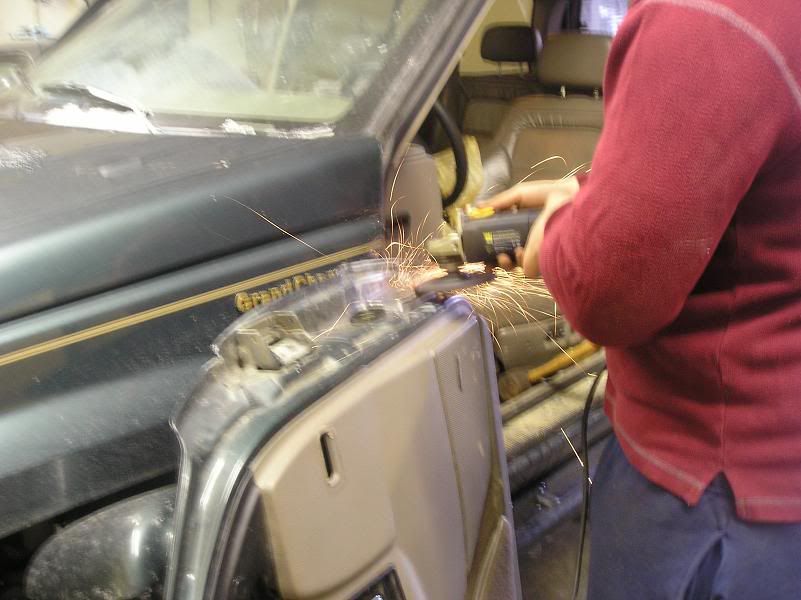

Action shot of grinding the door surface...

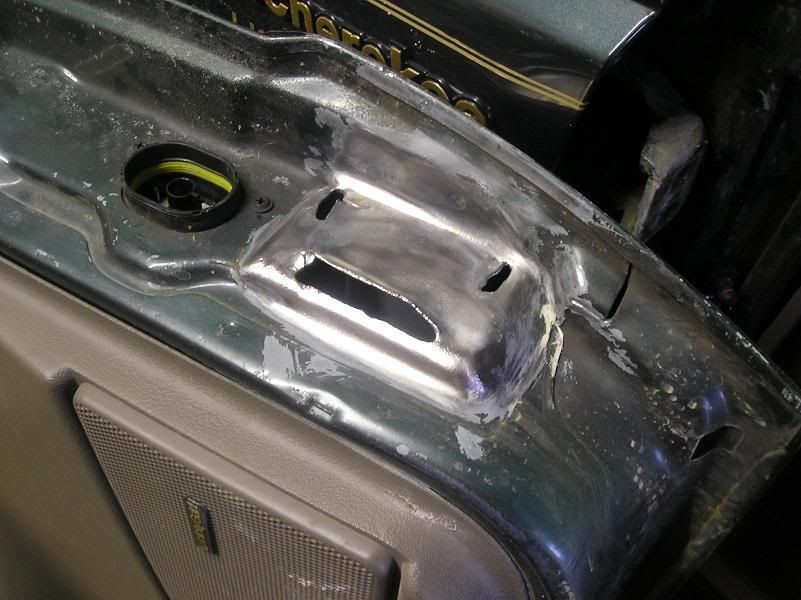

Damaged area after a visit from angle grinder w/ grinder disk, wire wheel, and 60 grit paper... (don't forget eye protection!)

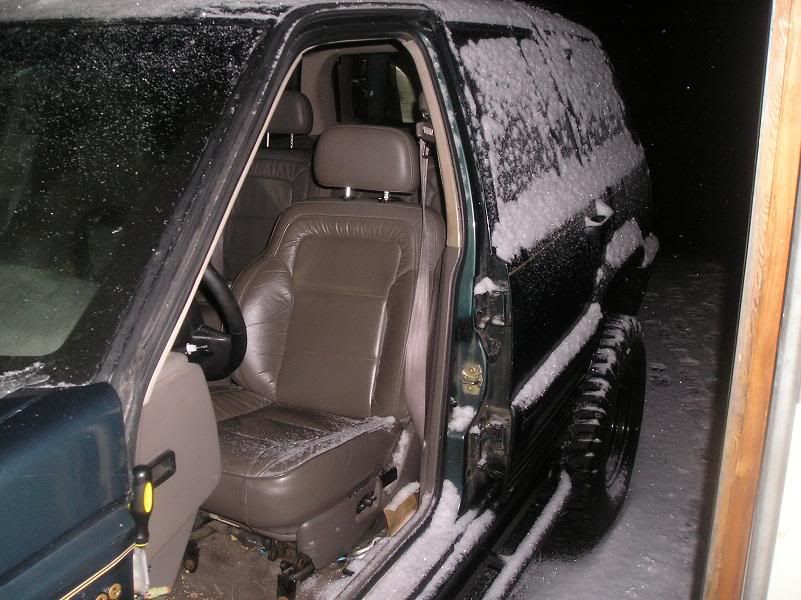

She sat outside a little bit like this before I realized it was snowing. (I'm sure Woody is a little jelous!)

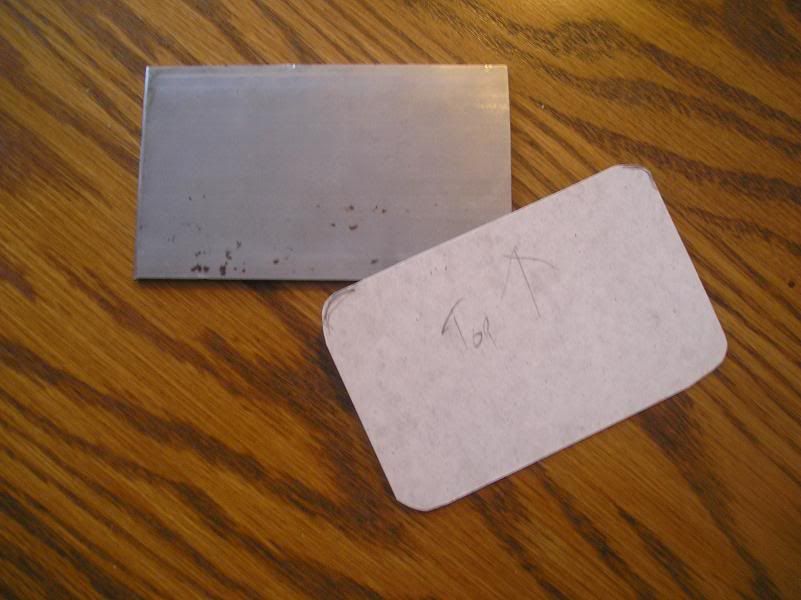

I got a hold of some 1/8" plate (dimensions in picture are 2.5" x 4") I made a template out of thin cardboard to match the area of the door...


Next, I ground plate to match the template...

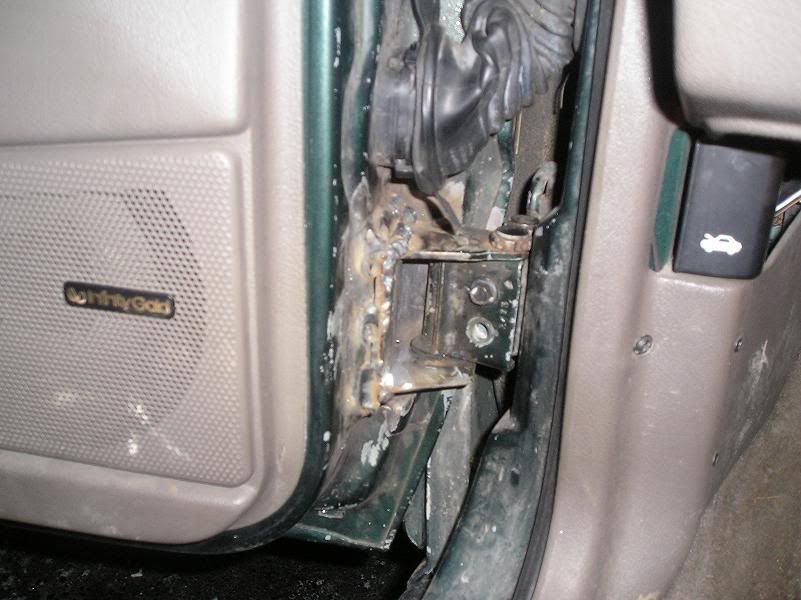

Then the plate was welded to the door and then the hinge bracket to the plate. A huge thanks to my friend Craig for helping with the welding. (Yes I know I only have one bolt in, I stripped one while I was trying to put the door on by myself before I drove over to Craig's. It is harder than you think to hold the door and gun the bolts in! Thankfully Blaine could come over and gun the bolts in for me while I held the door in place, Thanks Blaine!)


I'll post some more pictures after I clean the welds up some more and paint it.

Once the door was bolted back up, It was a little high since the extra space was added to the bottom bracket. It still closed fine if I applied a little bit of pressure to the door handle when closing. On the drive home I was thinking of ways to correct this or just live with it. I figured that if I added two washers inbetween the hinge bracket on the door and the bracket on the Jeep it would correct the small difference. As soon as I got home I did it and it works fine.

Sorry for the book!
EMTimZJ is offline
post #3 of 18 Old 12-04-2005, 08:32 PM
PumaZJ
Registered User

Join Date: Jan 2005
Location: San Diego
Posts: 1,437
nice booger welds.

1998 ZJ - 36's & bent unibody - RIP
2004 WJ - Expedition build
2011 A4 - DD
PumaZJ is offline
post #4 of 18 Old 12-04-2005, 08:40 PM Thread Starter
EMTimZJ
GSMW!

EMTimZJ's Avatar
1994 ZJ

Join Date: Jan 2005
Location: West Michigan
Posts: 4,016
Quote:
Originally Posted by PumaZJ
nice booger welds.
Like I said I am going to clean them up a bit

But hey it worked!
EMTimZJ is offline
post #5 of 18 Old 12-04-2005, 08:46 PM
10achik
I ate what?

10achik's Avatar
1999 WJ

Join Date: Sep 2003
Location: STL (IL side)
Posts: 8,341
Your tha man, most would have been crying all the way to the stealership

Ken

99 GC Limited - 4.7L HO V8, 6.5" IRO HC LA lift, F&R D44s locked & trussed, 242HD, IRO TC Skid, KMA Bumper, 35's
2006 Saturn Redline -2.0L Eaton supercharged I4, GMPP Stage 2, Custom Tune, AEM CAI, Ebiach Pro Kit w/ swaybars, EVO Ventus V12s (13.76 @ 103.85)
2006 Pontiac G6 GTP
2012 Nissan Juke - (hers)
2000 SV650 - naked, integrated tail light, sliders, corbin, pilot roads, RK chain & sprokets, D&D full exhaust, FactoryPro Stage I jet kit, +4 Ignition Advancer, Barnett race clutch
2006 Triumph America 900 - Full Dresser

January 2009 Grand Cherokee of the Month (GCOTM)
10achik is offline
post #6 of 18 Old 12-04-2005, 09:45 PM
BlaineWasHere
BecauseRacecar

BlaineWasHere's Avatar

Join Date: Nov 2004
Location: NorCal
Posts: 13,321
Glad that worked for you Tim! I was unsure of how accurate if was going to be but I'll say I am impressed with your enginering skills!

2013 FR-S
BlaineWasHere is offline
post #7 of 18 Old 12-04-2005, 09:50 PM
BlaineWasHere
BecauseRacecar

BlaineWasHere's Avatar

Join Date: Nov 2004
Location: NorCal
Posts: 13,321
Quote:
Originally Posted by EMTimZJ
It is harder than you think to hold the door and gun the bolts in! Thankfully Blaine could come over and gun the bolts in for me while I held the door in place, Thanks Blaine!)

Yea too bad I stripped one of them for you... opps... I guess I owe you 13 cents or so... We should have made sure it was all the way lined up before going full bore on the air wrench...

2013 FR-S
BlaineWasHere is offline
post #8 of 18 Old 12-04-2005, 10:09 PM
oct7brian
Registered User

oct7brian's Avatar
1998 TJ Wrangler

Join Date: Sep 2004
Location: Near St Louis,MO
Posts: 1,066
I had that happen to my 93 Limited but it wasn't from the wind but more from a drunk buddy running into my open door while camping. Yea i know very interesting. I took off the whole panel and wiring plug at the door jam and welded a plate on the inside of the door and then welded the hinge back on. It matched up perfectly. You might want to think about cutting off what you welded on and put the plate on the inside and the hinge back where it was so everything matches up perfectly. By the way how didn't you melt the door panel or wiring plug by you welds? Either you had a lot of water on hand or got damn lucky

1998 Grand Cherokee 5.9 Limited Edition, Upcountry Suspension for Now, Infinity Sound, NP 242 Swap

2002 Jeep Liberty Sport 4x4 3.7L Auto

1998 TJ 4.0 Auto Sahara Package 4" Suspension Lift 33 BFG Hard & Soft Top
oct7brian is offline
post #9 of 18 Old 12-04-2005, 10:18 PM
ZJenvy
Registered User
1998 ZJ

Join Date: May 2005
Posts: 295
I've been through this one myself. Fun stuff. Now i'm positive there was a slight engineering fault in that area, its just simply too thin and weak.
ZJenvy is offline
post #10 of 18 Old 12-05-2005, 05:27 AM
CinciSurWJ
Registered User

CinciSurWJ's Avatar

Join Date: Jul 2005
Location: Cincinnati,OH
Posts: 546
Good Job there Tim!!!

2000 WJ 4.0 I6 --> Daily Driver for past 7 year and love it.
BridgeStone Revos 265/70 R16
Kevin's Rock Slider - LP1 model
Kevin's 2.5"BB, DT3000, OME SS, Addco Rear Sway bar
Front Skid & Transfer Case Skid.

CinciSurWJ is offline
post #11 of 18 Old 12-05-2005, 06:08 AM
GroundClearance
Registered User

GroundClearance's Avatar
2004 TJ Wrangler

Join Date: Jul 2004
Location: San Diego CA / Roanoke VA
Posts: 1,445
Nice clean metal working

'02 Wrangler TJ
'04 Rubi
'88 Wrangler YJ
'94 Grand Cherokee ZJ RIP FEB 25 2006
'47 CJ2A
Quote:
Originally Posted by knatdog55
matt, you are a dirty hooker, deal with it....
U.S. NAVY JEEP HULL # 41

TGC4x4 NOW WORKING
GroundClearance is offline
post #12 of 18 Old 12-05-2005, 09:58 AM
PlatinumZJ
Senior Moment Member

PlatinumZJ's Avatar
1997 ZJ

Join Date: May 2004
Location: Nashville, TN
Posts: 2,274
Good Job, Thanks for the write up and pictures. I am now enlightened.

Doug
When all is said and done, more is said than done.
Platinum '97 ZJ LTD, I6 (see profile) Paid for!
Links: Kevin (AKA KOR) for ZJ & WJ stuff,
Kolak for performance stuff. I6 performance info at Dino's jeep 4.0 performance site
Other stuff: Kevin's Roof Rack. KOR sliders, Bored 62mm TB, Blaupunkt Bermuda w/ ipod, Brembo Slotted rotors,
OME steering stabilizer, H4 headlight upgrade...
PlatinumZJ is offline
post #13 of 18 Old 12-05-2005, 12:04 PM
Texas ZJ1
Jeep Jedi Master

Texas ZJ1's Avatar
1994 ZJ

Join Date: Mar 2003
Location: Omaha
Posts: 20,323
Nice safety lessons.


Nicely fixed too.


However, if you need safety glasses for your face, shouldn't you at least cover the leather seats while grinding three feet from them?



Hunter

04 4.7 HO, limited

08 Z71 Suburban, front leveling kit with rear spacers. 285/65 18s Nitto TerraGrappler G2s

94 5.9 Laredo 6.5 RE lift with 35 Maxxis Bighorns
and 33 Bridgestone Duelers
Detroit and true trac
Red Jeep Club Member
REDNECK JCM
Texas Jeep Owner #6
USN Jeep Club #4
http://www.kevinsoffroad.com/
602.841.3355

For your performance needs:

kolak@kolakperformance.com
480.998.366
Texas ZJ1 is offline
post #14 of 18 Old 12-05-2005, 12:16 PM
CBlakeNS
Registered User

Join Date: Feb 2005
Location: Va
Posts: 1,310
Nice work!
CBlakeNS is offline
post #15 of 18 Old 12-05-2005, 01:30 PM Thread Starter
EMTimZJ
GSMW!

EMTimZJ's Avatar
1994 ZJ

Join Date: Jan 2005
Location: West Michigan
Posts: 4,016
Thanks for the comments and suggestions!

Brian, there are often many solutions to a problem. I like the idea of welding to the inside face of the damaged area, good thinking. However, this solution worked as well and was easier to get to for me. You are correct that a lot of heat is generated during the welding, however, no water was needed. (I'll post a better pic later) You can sort of see that the plate is stitch welded to the door. This way not a single long bead was laid (to decrease the heat affected zone) and you can wait a few moments for the area to cool before continuing to the next area. So no wires, plastic or bling bling infinity gold speakers were damaged Also, all welding was done with the door off incase there was any confusion.

Saftey is key! (yeah yeah I know I had the gaurd off of the angle grinder )

Leather smeather! fortunetly I didn't get any burn marks!
EMTimZJ is offline
