DIY: Retaining Steering Wheel Audio Controls

Note: I'm putting this in here instead of the audio forum because it's specific to a WJ.

I recently installed an Alpine radio in the Jeep with Sirius and iPod connections. Even with the great new features, Trish has been complaining because the steering wheel controls don't work anymore. I would normally tell her to just use the buttons on the radio itself, but she's 9 months preggo and can't lean forward... So I got the steering wheel adapter from PAC.

I couldn't find any detailed information on this project, so I thought I'd make a tutorial. Each installation is different depending on your make/model of radio, and specific instructions can be found on the PAC website here. This tutorial just offers a few extra details that these instructions don't. I tend to forget to take pictures when I do a project like this, so forgive me if it's kinda vague.

Tip: READ THE DAMN DIRECTIONS. TWICE. THEN, attempt the installation. It would've been straightforward if I'd taken my time.

Requirements: Obviously you need factory steering wheel controls, and the aftermarket deck has to have a 3.5mm jack on the back. This isn't for audio, but specifically for steering wheel controls. The exception is some kenwood decks that just have a wire, and the PAC adapter has a provision for that.

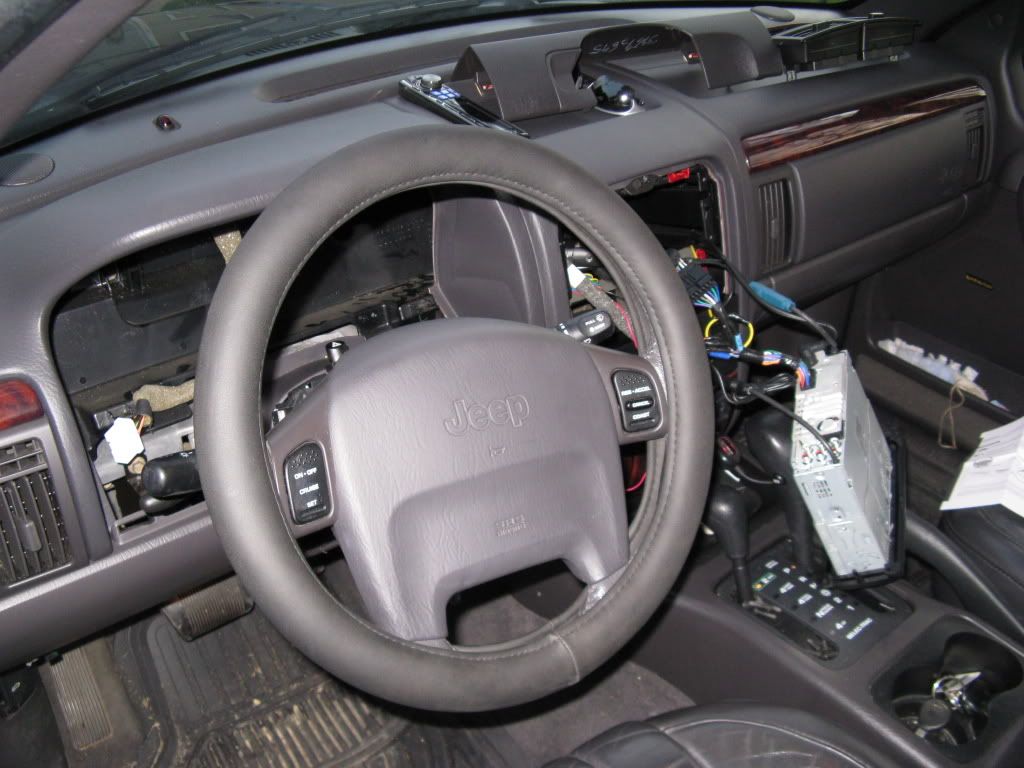

1.) Pull the radio out of the dash, then pop off the trim panel above the steering column and below the gauges. Remove the gauge cluster. This gives you a lot more room to route the wires.



2.) Connect the red wire to the switch +12v wire on the radio harness, then connect the black wire to ground. Leave the 3.5mm jack disconnected until after you program the unit.

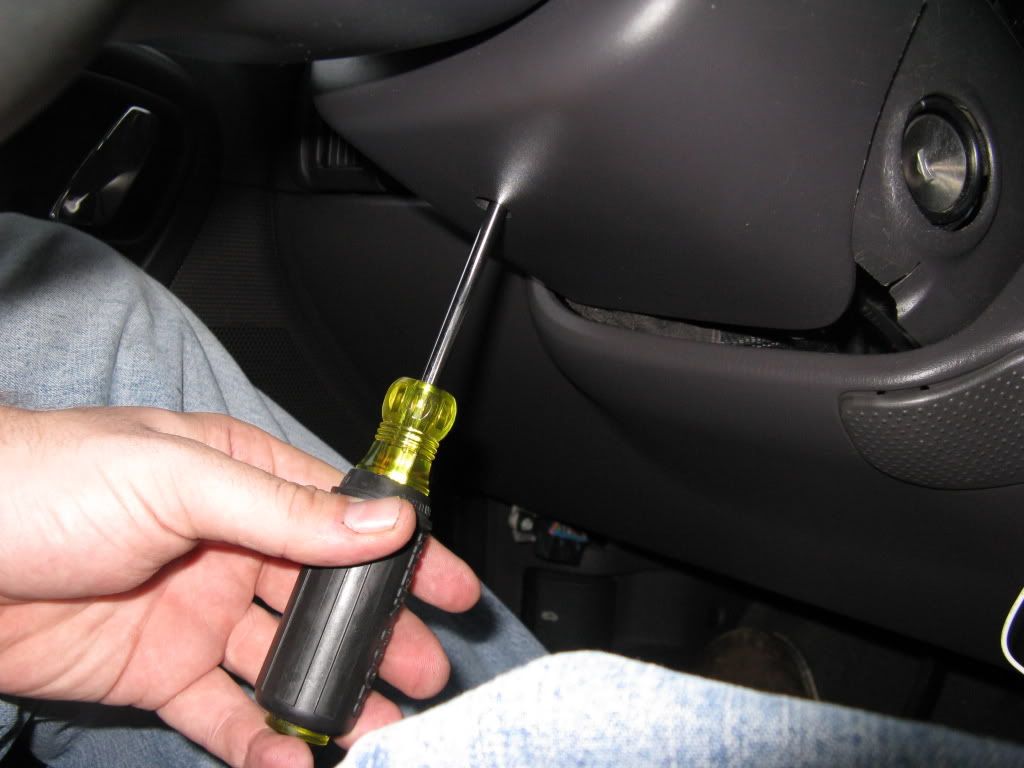

3.) Now it's time to connect the control wire. The wire you need is in the column itself. Remove the casing directly behind the steering wheel by first prying it apart gently with a flat screwdriver, then removing the phillips screw on the bottom.





4.) Locate the wiring harness on the clock spring assembly. it's a gray plug on the bottom.

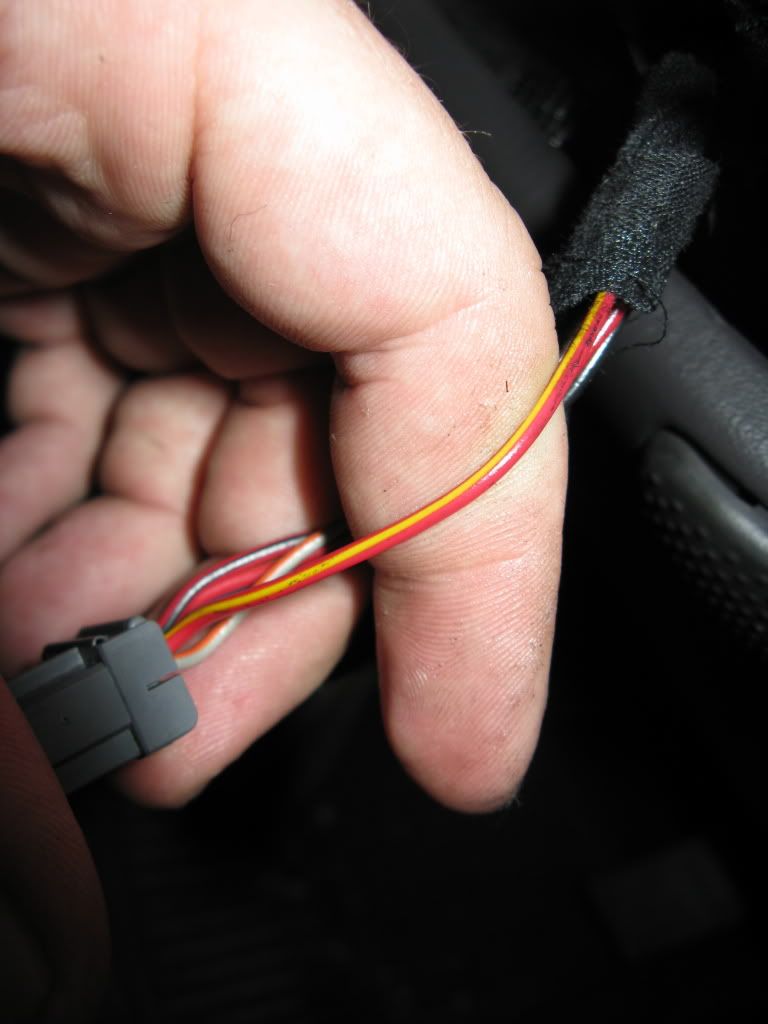

5.) Isolate the red/yellow wire. This is the control wire from the steering wheel's audio buttons.

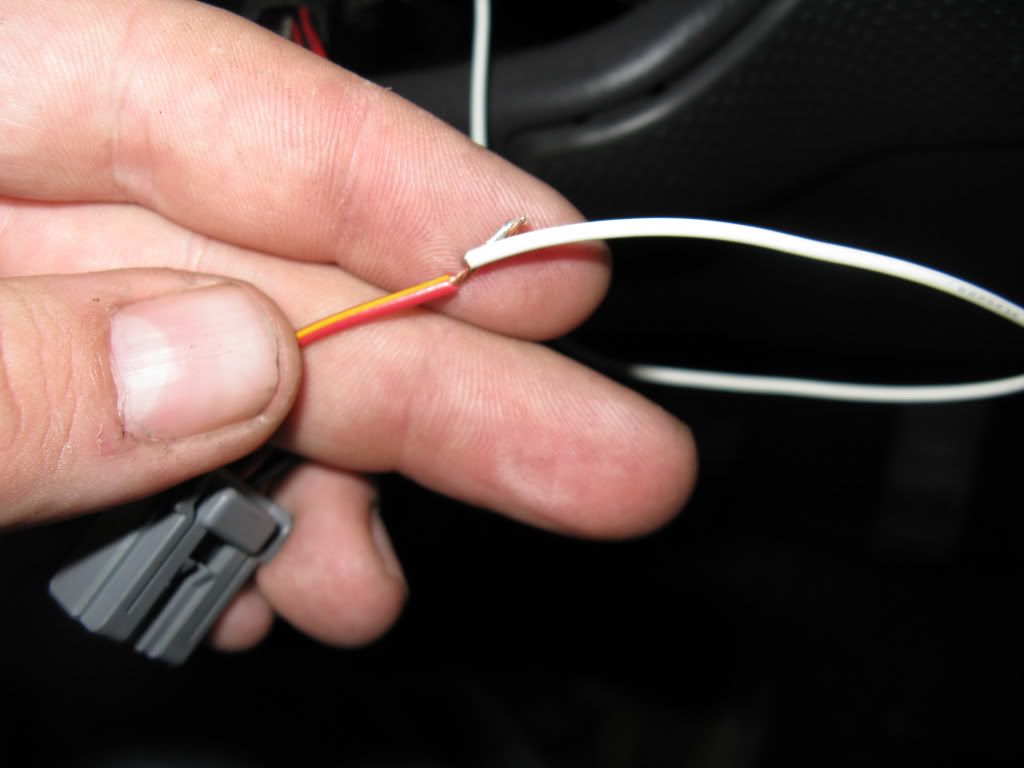

6.) Route the white wire through the dash and into the steering column. Cut the red/yellow wire, tape up the vehicle side of it, and splice the steering wheel side into the white wire.

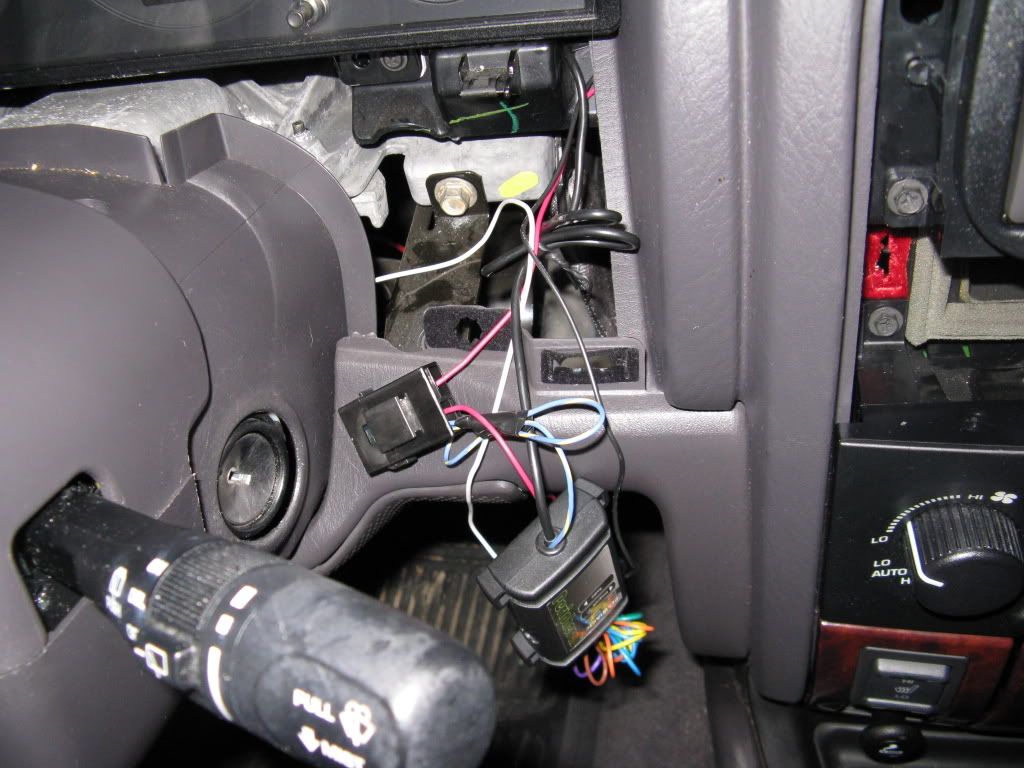

7.) I put the control unit in the space under the gauge cluster. There's plenty of room, and if you ever need to reprogram it, it's easy to get to. Just remove one panel.



8.) Follow the programming instructions on the website listed above, then connect the 3.5mm jack on the radio. Make sure everything works the way you want, and you're done!

My only complaint is the response time. There's about a half second lag when you press a button, and the volume seems to shoot up and down pretty quick when you hold the button up or down. Ultimately, it's a minor inconvenience and I'm starting to get used to it.

I hope this helps!
