The Definitive Injector Swap HOW TO - Page 23 - JeepForum.com

Reply

LinkBack Thread Tools
post #331 of 675 Old 12-27-2012, 08:25 AM
BoostinChick
Registered User
1998 ZJ

Join Date: Mar 2012
Location: West Chester
Posts: 385
Edit


1998 Jeep Grand Cherokee 5.9L
BoostinChick is offline
Sponsored Links
Advertisement

post #332 of 675 Old 12-28-2012, 05:55 PM
veritechc
Registered User
1995 ZJ

Join Date: Jun 2012
Location: Oroville
Posts: 21
when I went to the junk yard I got mine off two dodge neons. Make sure the last numbers are 703.

By the way how do you test to make sure the injectors are working as advertized. I think I might have a slight miss after installing them.
veritechc is offline
post #333 of 675 Old 12-28-2012, 07:42 PM
Football47
Registered User
1998 ZJ

Join Date: Jan 2012
Posts: 416
Well, gonna attempt to get 5 more on Monday.... if someone could post a link to a rebuild video for the injectors that would be awesome! FYI the caravan injectors are so fricken hard to get out, you basically have to take then entire engine apart lol go for the cars!
Football47 is offline
post #334 of 675 Old 12-29-2012, 10:48 AM
nickhay13
Registered User
1998 ZJ

Join Date: Dec 2012
Location: Santa Clarita
Posts: 108
Quote:
Originally Posted by Black_Metal_Jeep View Post
+1 for sticky. Thanks Zander for making this how to, I've been wanting to swap the injectors for a while, but haven't seen a decent write up on it til now.

Stealing your idea with painting the fuel rail, just btw.

One last thing, where'd you get the k&n filter for your valve cover?
I know this is a little late, not sure if it was answered anywhere else in the thread. However, in case anyone else was wondering about the crankcase breather I believe it's K&N P/N Part #: 62-1220, because that is the only push on one they make.
nickhay13 is offline
post #335 of 675 Old 01-01-2013, 11:04 AM
ozzy_2_me
Registered User
1994 ZJ

Join Date: Jan 2011
Location: Lansing
Posts: 387
+1 for sticky
ozzy_2_me is offline
post #336 of 675 Old 01-01-2013, 11:23 AM Thread Starter
zander21510
Registered User
1995 ZJ

Join Date: Jun 2011
Posts: 2,138
Quote:
Originally Posted by nickhay13 View Post

I know this is a little late, not sure if it was answered anywhere else in the thread. However, in case anyone else was wondering about the crankcase breather I believe it's K&N P/N Part #: 62-1220, because that is the only push on one they make.
I've always wondered what exactly is the advantage there vs stock?
zander21510 is offline
post #337 of 675 Old 01-01-2013, 03:41 PM
nickhay13
Registered User
1998 ZJ

Join Date: Dec 2012
Location: Santa Clarita
Posts: 108
Quote:
Originally Posted by zander21510 View Post
I've always wondered what exactly is the advantage there vs stock?
To be honest I have no idea, I think that some people use the K&N style filter when they move their air intake or install an aftermarket air intake.
nickhay13 is offline
post #338 of 675 Old 01-02-2013, 09:13 AM
Donnyd21
Registered User
1998 ZJ

Join Date: Sep 2012
Location: Moore
Posts: 165
Quote:
Originally Posted by BoostinChick View Post
If anyone has an incomplete set, I have 2 extras.

I have 4 tested/working ones to make a set
Donnyd21 is offline
post #339 of 675 Old 01-02-2013, 04:33 PM
98GCLimited
Registered User
1998 ZJ

Join Date: Jun 2009
Location: LHC
Posts: 512
Im about to clean and put the new filter baskets, o-rings, and pintle caps on the injectors and I wanted to make sure if it is ok to clean then using the carb cleaner method with the syringe manifold.

I picked up some syringes at CVS and a can of carb cleaner and read a couple things about not using carb cleaner or using one with no methanol and now am second guessing the process.

So carb cleaner ok or no good?
98GCLimited is offline
post #340 of 675 Old 01-02-2013, 07:48 PM
Donnyd21
Registered User
1998 ZJ

Join Date: Sep 2012
Location: Moore
Posts: 165
Carb cleaner is what i used and no probs here
Donnyd21 is offline
post #341 of 675 Old 01-03-2013, 01:59 PM
98GCLimited
Registered User
1998 ZJ

Join Date: Jun 2009
Location: LHC
Posts: 512
Quote:
Originally Posted by 98GCLimited View Post
Im about to clean and put the new filter baskets, o-rings, and pintle caps on the injectors and I wanted to make sure if it is ok to clean then using the carb cleaner method with the syringe manifold.

I picked up some syringes at CVS and a can of carb cleaner and read a couple things about not using carb cleaner or using one with no methanol and now am second guessing the process.

So carb cleaner ok or no good?
Quote:
Originally Posted by Donnyd21 View Post
Carb cleaner is what i used and no probs here
Ya I just went for it today. Sprayed carb cleaner through them and put new orings, baskets, and pintle caps from the rebuild kit I bought that is linked in the first post of this thread.



My exhaust manifold is being delivered tonight by UPS to replace the cracked manifold that is on there.

I might pick up a 99+ intake if I can get one for $100 or less.

Ill post up how she runs once I get around to the install.
98GCLimited is offline
post #342 of 675 Old 01-03-2013, 03:24 PM
coralman
USER OF PARTS CATALOGS

coralman's Avatar
1998 ZJ

Join Date: Jul 2010
Location: florida
Posts: 7,196
Please do! On the fence about this,and I have the parts.

Info on projects and repairs categorized by system
http://www.jeepforum.com/forum/f13/c...-faqs-2863665/

Originally Posted by HighLonesome
lol...if life is as a simple as a 5.9 making you happy, I'd say go ahead and buy it on impulse. ZJs are the way of Zen. Wax on, wax off
coralman is offline
post #343 of 675 Old 01-17-2013, 05:05 PM
98GCLimited
Registered User
1998 ZJ

Join Date: Jun 2009
Location: LHC
Posts: 512
I didnt end up getting a 99+ intake manifold I got outbid by $1 on it. Possibly by someone on this forum... lol

My final verdict on the 703s is totally worth it IMO.

I had the injectors and rebuild kit around here for a while and I should have done the swap earlier.

No it doesnt make the 4.slow necksnappingly fast (especially with my 31s and 3:55s).

I did notice a little bit smoother idle, smoother and more throttle response, I think there was a little power increase, and most importantly it can go uphill and feel like it has at least some power and doesnt need to downshift to gain 2mph going uphill. This was HUGE for me since I live on the base of a mountain range basically, 50% of my driving is downhill going and 50% uphill and I hated how gutless my ZJ was going up a grade but now its a bit better and that makes me happy.

I paid $35 for 6 injectors and a pigtail and I think like $18 for the rebuild kit. I say its worth the time and money for the swap. I was in there already replacing the exhaust manifold but if you are just doing the injector swap it could easily be done in under an hour even by an inexperienced wrencher.

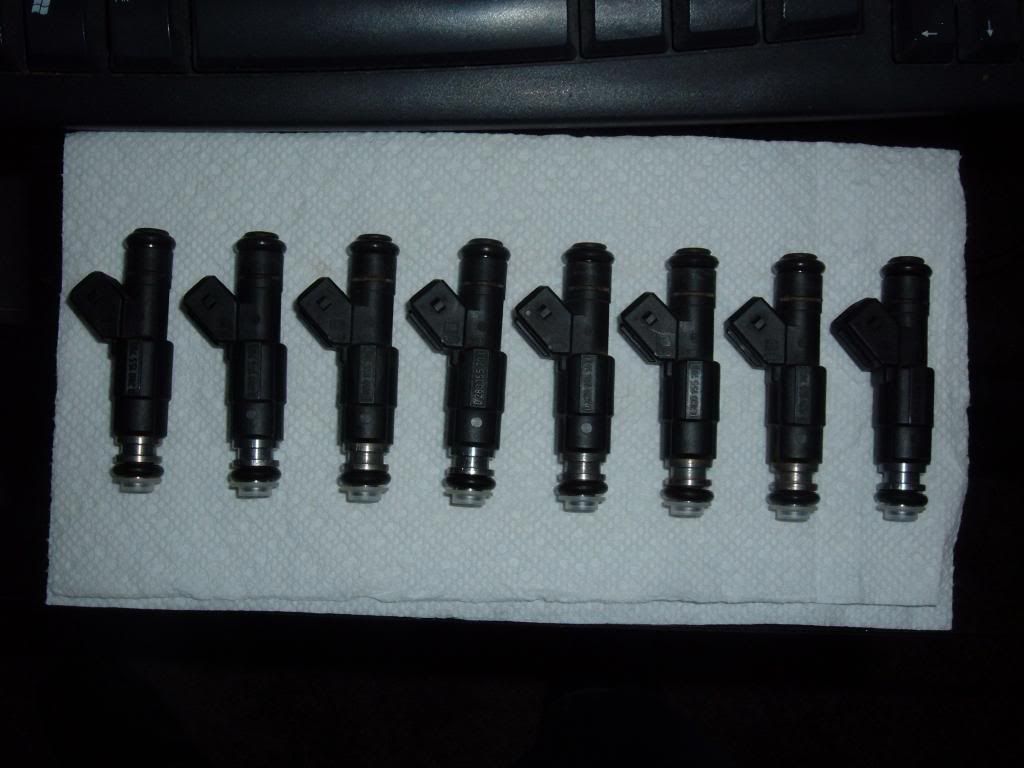

BTW I have 2 extra 703s that have been cleaned and rebuilt with new orings, pintle caps, and filter baskets if anyone needs a couple shoot me a PM.
98GCLimited is offline
post #344 of 675 Old 01-20-2013, 10:38 PM
nickhay13
Registered User
1998 ZJ

Join Date: Dec 2012
Location: Santa Clarita
Posts: 108
I recently swapped in the 703 injectors and I'm happy with it. I got the injectors brand new (all 6) on ebay for $80. The swap was super super easy. I have also noticed a smoother idle, but I also recently cleaned my TB and IAC and replaced plugs, wires, and cap. I just bought a 2000 intake manifold off ebay, so when I get home in May I'll install that which im pretty excited about.
nickhay13 is offline
post #345 of 675 Old 01-21-2013, 08:40 AM
bigcarl
Registered User
2007 JK Wrangler

Join Date: Dec 2010
Location: tarentum
Posts: 61
Quote:
Originally Posted by nickhay13 View Post
I recently swapped in the 703 injectors and I'm happy with it. I got the injectors brand new (all 6) on ebay for $80. The swap was super super easy. I have also noticed a smoother idle, but I also recently cleaned my TB and IAC and replaced plugs, wires, and cap. I just bought a 2000 intake manifold off ebay, so when I get home in May I'll install that which im pretty excited about.
what is up with the intake swap what will that give u and is it worth it
bigcarl is offline
