Unread 05-31-2012, 11:33 PM   #31
94unlimited52zj
Registered User
1994 ZJ

Join Date: May 2012
Location: fargo, nd
Posts: 54

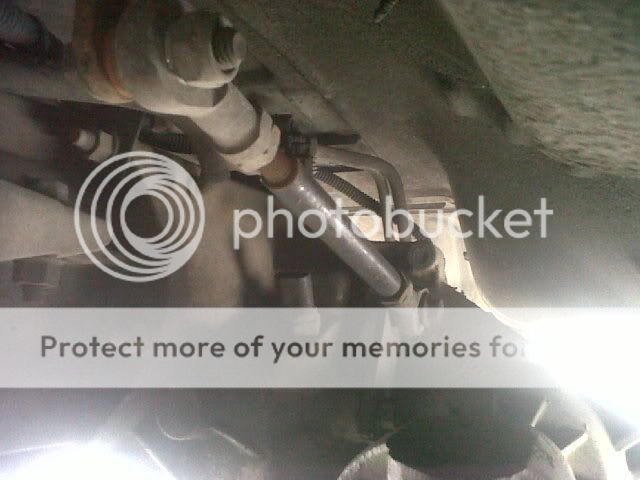

I built new linkage last year, after I put in a 231. I didn't have to lenghten my body side shift arm, I only had to reclock it to parallel the transfer case arm. A gm 231 transfercase range lever was used, one from a dodge 231 may work also. A different range lever is used to keep the same range of motion when shifting from 2hi to 4lo. The new range lever points up to the body now, instead of down as the factory one did.

94unlimited52zj is offline   Reply With Quote
Unread 06-01-2012, 11:57 PM   #32
harwood909
Registered User
1995 ZJ

Join Date: Jun 2010
Location: Stevens Point WI, Wisconsin
Posts: 229
Quote:
Originally Posted by MonkeyInaSuit View Post
So I've been working on the linkage and only have the cup to remove but I can't get the bolts off. I've tried using vice grips but it keeps falling off.
Is there any other way I should try and get them off. thanks for your help.
The heads on those screws are VERY short. I think they are 5/16. I used a nut driver to get them out.
__________________
Custom Machined Budget Boost
http://www.jeepforum.com/forum/f13/custom-machined-budget-boost-1121835/

Literally Built
harwood909 is offline   Reply With Quote
Unread 08-24-2012, 06:04 AM   #33
97flexy
Registered User
1997 TJ Wrangler

Join Date: Nov 2010
Location: Barrington, IL
Posts: 195
Quote:
Originally Posted by 94unlimited52zj View Post

I built new linkage last year, after I put in a 231. I didn't have to lenghten my body side shift arm, I only had to reclock it to parallel the transfer case arm. A gm 231 transfercase range lever was used, one from a dodge 231 may work also. A different range lever is used to keep the same range of motion when shifting from 2hi to 4lo. The new range lever points up to the body now, instead of down as the factory one did.
Do you have anymore pictures of this conversion? with a list of all parts used/ fabricated?
__________________
Check out my LCG build
http://www.wranglerforum.com/f118/my-low-budget-dd-lcg-build-142567.html#post2079244
97flexy is offline   Reply With Quote
Unread 06-05-2013, 03:35 PM   #34
UTChavok
Registered User
1998 ZJ

Join Date: Oct 2007
Location: Clemson, SC
Posts: 1,725
I'm currently in the process of doing this to my ZJ. Got the old linkage completely out. Found a tab off a tcase laying in a junkyard that was next to an old 1500. I cut off the tab on the shift lever and made a new one with a longer throw. I need to figure out how much to clock that tab, weld it up and then install the shifter housing back into the jeep. I bought 7/16ths heims and all thread off mcmastercarr for the linkage. Ill post pics once I get it all done tomorrow... hopefully.
UTChavok is offline   Reply With Quote
Unread 06-08-2013, 07:47 PM   #35
UTChavok
Registered User
1998 ZJ

Join Date: Oct 2007
Location: Clemson, SC
Posts: 1,725
UTChavok is offline   Reply With Quote
Unread 06-11-2013, 10:43 AM   #36
speedbucket
Registered User
1993 ZJ

Join Date: Jan 2011
Location: chesapeake, VA
Posts: 3,434
i finally found a picture of mine, there are nylon washers at the pivot points, it takes a little bit of playing around with the lengths to get the geometry correct but i ended up with at matching up with the full limits of the bezel matching the full shift of the tcase, the direct linkage is also a big advantage because you can actually feel it catching each shift position vs the factory garbage.
__________________
http://www.jeepforum.com/forum/f22/speedbuckets-zj-build-1361322/
V8 zj at 6" . Double tri rear and true 3 link front. Stretched to 108"
speedbucket is offline   Reply With Quote
Unread 09-03-2013, 09:58 PM   #37
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,474
hate to beat a dead horse here, but just had one question. rather than redrilling a hole in the stock tcase tab, can i use the tab off a 249? its longer. and i have a 249 sitting here not doing anything so i could just grab the tab and be done with it.

maybe using a longer tab like that would allow us to not mess with the tab on the shifter?
__________________
Reliability is relative
R.I.P. Ratmonkey
dnuccio is offline   Reply With Quote
Unread 09-04-2013, 03:54 PM   #38
harwood909
Registered User
1995 ZJ

Join Date: Jun 2010
Location: Stevens Point WI, Wisconsin
Posts: 229
Quote:
Originally Posted by dnuccio View Post
hate to beat a dead horse here, but just had one question. rather than redrilling a hole in the stock tcase tab, can i use the tab off a 249? its longer. and i have a 249 sitting here not doing anything so i could just grab the tab and be done with it.

maybe using a longer tab like that would allow us to not mess with the tab on the shifter?
I tried doing that. The plat isn't at the right angle, or something. It's been a while but i have a 249 in the garage as well and i didn't use that plate.
__________________
Custom Machined Budget Boost
http://www.jeepforum.com/forum/f13/custom-machined-budget-boost-1121835/

Literally Built
harwood909 is offline   Reply With Quote
Unread 09-07-2013, 10:34 PM   #39
farmerjohnson
Registered User
1985 FSJ Wagoneer

Join Date: Jul 2011
Location: Palmdale, CA
Posts: 83
Quote:
Originally Posted by harwood909 View Post
I tried doing that. The plat isn't at the right angle, or something. It's been a while but i have a 249 in the garage as well and i didn't use that plate.
Hey would you be able to send me the dwg file? I want to do this for my ZJ and the gfs XJ
farmerjohnson is offline   Reply With Quote
Unread 09-08-2013, 04:11 AM   #40
harwood909
Registered User
1995 ZJ

Join Date: Jun 2010
Location: Stevens Point WI, Wisconsin
Posts: 229
Quote:
Originally Posted by farmerjohnson View Post
Hey would you be able to send me the dwg file? I want to do this for my ZJ and the gfs XJ
its been a while and since ive got a new computer i deleted a bunch of stuff. i forgot to edit th post sorry
__________________
Custom Machined Budget Boost
http://www.jeepforum.com/forum/f13/custom-machined-budget-boost-1121835/

Literally Built
harwood909 is offline   Reply With Quote
Unread 09-08-2013, 08:48 AM   #41
farmerjohnson
Registered User
1985 FSJ Wagoneer

Join Date: Jul 2011
Location: Palmdale, CA
Posts: 83
Quote:
Originally Posted by harwood909 View Post

its been a while and since ive got a new computer i deleted a bunch of stuff. i forgot to edit th post sorry
Darn alright no problem then
__________________
1985 Grand Wagoneer - The family wagon now
1996 Grand Cherokee - Parting out
1993 Cherokee - For sale
1991 Comanche - Being built as a street truck
farmerjohnson is offline   Reply With Quote
Unread 10-03-2013, 06:21 PM   #42
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,474
beating a dead horse again, but can you fix the pictures? theyre not showing up for me. finally going to attempt this now that i got my front driveshaft put back together and back in. i remember now how much of a PITA the stock linkage is LOL
__________________
Reliability is relative
R.I.P. Ratmonkey
dnuccio is offline   Reply With Quote
Unread 10-10-2013, 08:20 PM   #43
harwood909
Registered User
1995 ZJ

Join Date: Jun 2010
Location: Stevens Point WI, Wisconsin
Posts: 229
Pictures are back up
__________________
Custom Machined Budget Boost
http://www.jeepforum.com/forum/f13/custom-machined-budget-boost-1121835/

Literally Built
harwood909 is offline   Reply With Quote
