post #16 of 73 Old 01-25-2012, 09:46 PM
1stblack97ZJ
Registered User
1997 ZJ

Join Date: Sep 2010
Location: Augusta, Maine
Posts: 4,944
very nice


1997 ZJ Laredo
4" Lift
32s
Plenty of lights
1stblack97ZJ is offline
Sponsored Links
Advertisement

post #17 of 73 Old 01-25-2012, 10:13 PM
Dyn0mitemat
Registered User
1998 ZJ

Join Date: Dec 2010
Location: BC
Posts: 1,307
Quote:
Originally Posted by harwood909 View Post
This DOES keep your stock shift pattern.

The angle of the slot is the same as stock, i used the stock shift plate and just re drilled a different hole in it. No need to make your own shift plate especially if you have a spare. I can get the exact angle for you tomorrow when i'm back at school if your dead set on making your own.

The shift handle was kept at it's original angle, just lengthened to 4" and holes drilled at 3" and 3 5/8" (that is the one i used). You do need to pull the console and i will take pictures today when i get it all finished off today.
Can you elaborate a bit more on what you had to do with the actual shift level that comes through the console ?

09 Rubi 2dr:MetalCloak2.5", 37"MTZ's/Slabs, EVO Stff, ORFab Cage, Chromo's, Driveshafts etc
Dyn0mitemat is offline
post #18 of 73 Old 01-25-2012, 10:57 PM Thread Starter
harwood909
Registered User
1995 ZJ

Join Date: Jun 2010
Location: Stevens Point WI
Posts: 229
Quote:
Originally Posted by Dyn0mitemat View Post
Can you elaborate a bit more on what you had to do with the actual shift level that comes through the console ?
I hope I don't confuse you more with this little Gem hahaha
Attached Thumbnails

Custom Machined Budget Boost

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Literally Built
harwood909 is offline
post #19 of 73 Old 01-26-2012, 11:29 AM
Dyn0mitemat
Registered User
1998 ZJ

Join Date: Dec 2010
Location: BC
Posts: 1,307
Oh ok i gotcha.


So when in 2wd it needs to point straight down?

09 Rubi 2dr:MetalCloak2.5", 37"MTZ's/Slabs, EVO Stff, ORFab Cage, Chromo's, Driveshafts etc
Dyn0mitemat is offline
post #20 of 73 Old 01-26-2012, 09:43 PM Thread Starter
harwood909
Registered User
1995 ZJ

Join Date: Jun 2010
Location: Stevens Point WI
Posts: 229
Quote:
Originally Posted by Dyn0mitemat View Post
Oh ok i gotcha.


So when in 2wd it needs to point straight down?

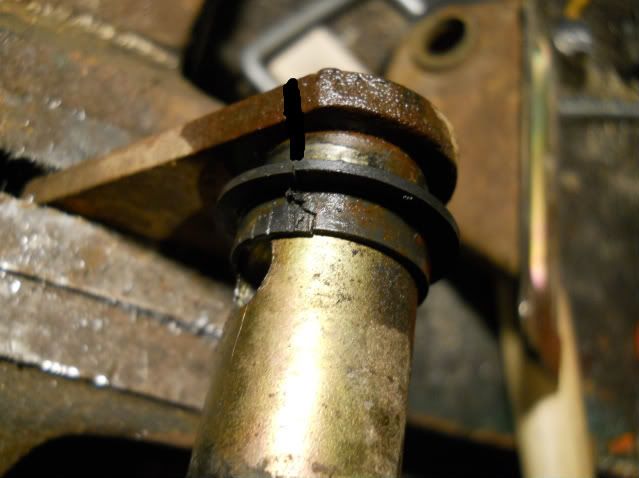

I can't remember exactly what angle it needs to point at but just take a marker and put an alignment dash like this

Custom Machined Budget Boost

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Literally Built
harwood909 is offline
post #21 of 73 Old 02-14-2012, 05:10 PM
Dyn0mitemat
Registered User
1998 ZJ

Join Date: Dec 2010
Location: BC
Posts: 1,307
I was ordering some stuff on mcmaster-carr and I came across these
http://images1.mcmaster.com/Contents...g?ver=23186349
For making turnbuckles, got me thinking of this mod.

So I checked out my subscribed thread history, click it, and what do you know, I NEVER saw you updated the first page on how to do the modifications to the shifter handle itself. I just wanna thank you again, helps out a bunch. After the thread went to two pages I didn't check the first as I didn't know you updated it.

I'll be doing this here shortly, I'll let you know how it turns out.
Thanks!

09 Rubi 2dr:MetalCloak2.5", 37"MTZ's/Slabs, EVO Stff, ORFab Cage, Chromo's, Driveshafts etc
Dyn0mitemat is offline
post #22 of 73 Old 02-15-2012, 10:11 PM Thread Starter
harwood909
Registered User
1995 ZJ

Join Date: Jun 2010
Location: Stevens Point WI
Posts: 229
Good to hear I'm helping a couple jeepers out here

Custom Machined Budget Boost

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Literally Built
harwood909 is offline
post #23 of 73 Old 02-21-2012, 07:35 PM
kbktulsa
Registered User
1987 YJ Wrangler

Join Date: Apr 2009
Location: tulsa
Posts: 38
i am using a cherokee shifter in my YJ I am in the process of using your ideal to make it shift better, thanks for the information

1987 jeep wrangler, 1999 LS1, 4l60E. 231j transfercase, D30 front, Ford 8.8 rear, 4 inch rc lift, tj top,tj fender flares
kbktulsa is offline
post #24 of 73 Old 02-21-2012, 10:19 PM
Dyn0mitemat
Registered User
1998 ZJ

Join Date: Dec 2010
Location: BC
Posts: 1,307
I got my parts in and haven't gotten around to it. I ordered the 1/2" thread ball joint rod ends and turnbuckle, but now that its here I think it's a bit big so I may just go back to all-thread and being creative.

I'm working on getting the 8.8 in right now, afterwards while I'm waiting on parts for the hp30 to come in I'll probably get around to doing it as I won't miss not having 4wd if I have to have the thing apart a few days because I'll have 4.56's in the rear and 3.73's in the front until I get the hp30 in

09 Rubi 2dr:MetalCloak2.5", 37"MTZ's/Slabs, EVO Stff, ORFab Cage, Chromo's, Driveshafts etc
Dyn0mitemat is offline
post #25 of 73 Old 02-22-2012, 09:39 AM
speedbucket
Registered User
1993 ZJ

Join Date: Jan 2011
Location: chesapeake
Posts: 3,562
I did something similar on my wife's Dakota. I used a goodsize turnbuckle for a screendoor, eliminated the snap in studs with a shouldered bolt. Then just added jam nuts to the turn buckle


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
V8 zj at 6" . Double tri rear and true 3 link front. Stretched to 108"
speedbucket is offline
post #26 of 73 Old 04-29-2012, 10:20 AM
metallica0682
Registered User
1996 ZJ

Join Date: Nov 2008
Location: gloucester
Posts: 86
so did you use the s10 transfer case lever like the other guy? if not could you post some pics with what you had to do with the lever at the t-case I have all the parts except I either need to find a s10 lever or figure out how to use the stock one
metallica0682 is offline
post #27 of 73 Old 04-29-2012, 10:30 AM Thread Starter
harwood909
Registered User
1995 ZJ

Join Date: Jun 2010
Location: Stevens Point WI
Posts: 229
Quote:
Originally Posted by metallica0682 View Post
so did you use the s10 transfer case lever like the other guy? if not could you post some pics with what you had to do with the lever at the t-case I have all the parts except I either need to find a s10 lever or figure out how to use the stock one
I welded up the original hole in the t-case lever and gound down and redrilled it to fit. Here are the actual dimensions of the lever....


It's a little hard to make out so just ask if you need a clearer picture

Custom Machined Budget Boost

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Literally Built
harwood909 is offline
post #28 of 73 Old 05-31-2012, 01:40 PM
MonkeyInaSuit
Registered User

Join Date: Oct 2011
Location: blackfoot
Posts: 13
Sorry I Know this is an old thread but how exactly did you get the whole linkage assembly out I'm having trouble with it thanks.
MonkeyInaSuit is offline
post #29 of 73 Old 05-31-2012, 02:11 PM Thread Starter
harwood909
Registered User
1995 ZJ

Join Date: Jun 2010
Location: Stevens Point WI
Posts: 229
Quote:
Originally Posted by MonkeyInaSuit View Post
Sorry I Know this is an old thread but how exactly did you get the whole linkage assembly out I'm having trouble with it thanks.
Pry linkage from pivot points connecting the shifter to the case

Remove the center console from inside.

Remove the bolt holding the shift handle to the rotating lever.

Remove 4 screws holding down the "cup".

Remove the snap ring that holds the rotating lever in the cup.

Custom Machined Budget Boost

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Literally Built
harwood909 is offline
post #30 of 73 Old 05-31-2012, 08:17 PM
MonkeyInaSuit
Registered User

Join Date: Oct 2011
Location: blackfoot
Posts: 13
So I've been working on the linkage and only have the cup to remove but I can't get the bolts off. I've tried using vice grips but it keeps falling off.
Is there any other way I should try and get them off. thanks for your help.
