Go Back JeepForum.com > Models > Jeep Grand Cherokee & Commander Forums > ZJ Grand Cherokee Forum > Clear pic of 46RE shift lever?

Currie Antirock, Currectlync & Lift Kits on Sale!Rough Country Lift Kits and Parts!Yukon Hardcore Locking hubs Dana 44!! CCOR 706-207-4140

Reply
Unread 12-15-2012, 09:19 AM   #1
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids, Michigan
Posts: 6,417
Clear pic of 46RE shift lever?

I'm working on a 5.9 & 46RE swap into a TJ that was formerly a straight shift. The engine donor was a Ram truck with a column operated shift. The TJ is a floor shift. I'm having trouble getting the shift cable in a position to actuate the shift lever on the transmission. I'm looking for a clear picture of the shift lever on the transmission and the cable bracket that bolts to the transmission on a ZJ in hopes that the ZJ piece may solve my issues. I attached an image from a parts catalog to illustrate what's needed. I believe the ZJ has a differently shaped shift lever from the Ram, but don't know for sure, and need a good look at one to see if it may work for my situation. If anyone has a picture, or could point me to one, I would appreciate it.

__________________
"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline   Reply With Quote Quick reply to this message
Unread 12-15-2012, 11:11 AM   #2
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,794
think the levers might be different as column/vs floor shift has different throw lengths.
do you have a picture? all the zj shift levers and the trans side mount brackets for the cable are the same iirc.

i think i still have a brand new bracket i bought for my 44re floating around here somewhere.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote Quick reply to this message
Unread 12-15-2012, 11:32 AM   #3
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids, Michigan
Posts: 6,417
Yep, thanks, here's what I'm dealing with.

This is the transmission shift lever, and all the other garbage around it. Two things not mentioned earlier: The starter is on the driver side, which is the side pictured. The Jeep 46RE is on the passenger side. Also, I didn't put the exhaust down pipe on until this morning, which creates more issues.

The RED CIRCLE is the mount for the linkage that the column shift uses. The YELLOW CIRCLE is the transmission shift lever. It's currently in park, which is all the way rearward. Moving forward engages the gear ranges in order. The GREEN CIRCLE is roughly where the cable bracket should go.

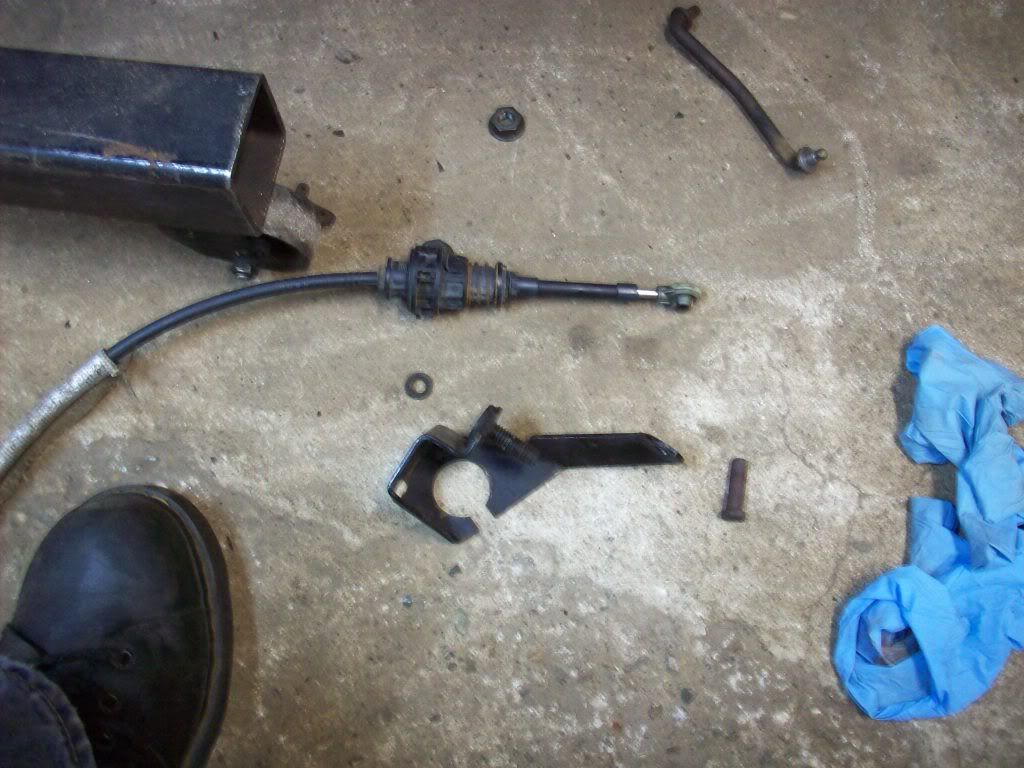

Here's the TJ cable and transmission side bracket. I'd gladly buy a ZJ cable and bracket if it would work, but the more I look at it, the more I think I'm going to have to make something.

__________________
"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline   Reply With Quote Quick reply to this message
Unread 12-15-2012, 04:23 PM   #4
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,794
yep. the zj bracket is completely different from the dodge. looks very similar to the tj bracket. but i think it's a bit different. i'd have to look again. the shift cable looks like mine did(threw it out a long time back), but i don't think it has the throw to work with the 4spd. i have been wrong before though.

i just found mine while doing a pick up around my garage and it looks like it will probably work with the driver's side starter there. i went with a dodge manual and didn't have to deal with that.

i'd redo the down pipe for clearance personally if it meant i could use an off the shelf cable bracket. getting that position is pretty important.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote Quick reply to this message
Unread 12-15-2012, 04:44 PM   #5
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids, Michigan
Posts: 6,417
The TJ bracket laying on the ground in the second pic doesn't mate to the Dodge tranny. It's close, but too short, and mounts the cable too high. Also, the large hole that captures the cable assembly is about where the those two bosses in transmission case are, to the left of the Dodge shifter mount (I don't know what those are or do, transmissions aren't my strong point.).

Can you snap a pic of that 44RE mount? Curious if it would clear those bosses and solve some issues.

I've been dicking around with it a little tonight, the only way I think I can get it to work with the downpipe, cooler lines, etc., as they are currently is if I make an extension that attaches to the shifter lever and basically allows the cable end to mount about 4 inches further back. I'd cut the TJ cable mount bracket and weld it to the Dodge mount. If moving the exhaust was the only issue, I'd get center dump headers and move it, no question. But I've got other issues here too.

Thanks. Appreciate the comments.
__________________
"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline   Reply With Quote Quick reply to this message
Unread 12-15-2012, 05:20 PM   #6
KoreaZJ
Registered User
1994 ZJ

Join Date: Aug 2011
Location: GANGNAM STYLE
Posts: 2,666
Like Rat says, parts list shows same bracket part number for all ZJ's.

46RE


42RE/44RE/44RH


Pic from my 42RE...
KoreaZJ is offline   Reply With Quote Quick reply to this message
Unread 12-15-2012, 05:30 PM   #7
KoreaZJ
Registered User
1994 ZJ

Join Date: Aug 2011
Location: GANGNAM STYLE
Posts: 2,666
Look at the Shift Lever #11 in the 46RE pic. It points up to where the ZJ bracket (and your TJ bracket) is positioned. Do you have the stock Shift Lever? It points down.
KoreaZJ is offline   Reply With Quote Quick reply to this message
Unread 12-15-2012, 06:10 PM   #8
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids, Michigan
Posts: 6,417
Thanks Korea. My transmission is from a Dodge ram, and the shift lever is angled downward slightly. I see the ZJ is different as it is bent so that it is raised.

However, if the ZJ cable mounting bracket is the same as the TJ it won't work because it interferes with the transmission case.

Here's the TJ bracket. Looks alot like your 42RE. Note that the center of the hole were the cable mounts is about center with the flange where it bolts to the transmission:


Here's an overhead shot. The bolt on the right side of the bracket should go in the mounting hole on the transmission. Doing so would make it impossible for the cable to attach. The red arrow is where the shift cable should travel through the mount.


And a side shot. You can see if the mount was moved inwards, away from the camera in this shot, toward the transmission, the shift cable would not clear the raised bosses. Again, red arrow is the way the cable should run.



So all that being said, it looks like your 42RE still raises the point where the cable locks into the bracket. Does your 42RE have those two bosses as well?

Thanks. You guys are awesome.
__________________
"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline   Reply With Quote Quick reply to this message
