Budget Tire Rack Project - JeepForum.com


LinkBack Thread Tools
post #1 of 14 Old 11-27-2005, 05:11 PM Thread Starter
CrawfishStu
Registered User
1995 ZJ

Join Date: Oct 2005
Location: Crofton, MD
Posts: 554
Budget Tire Rack Project Now with Photos

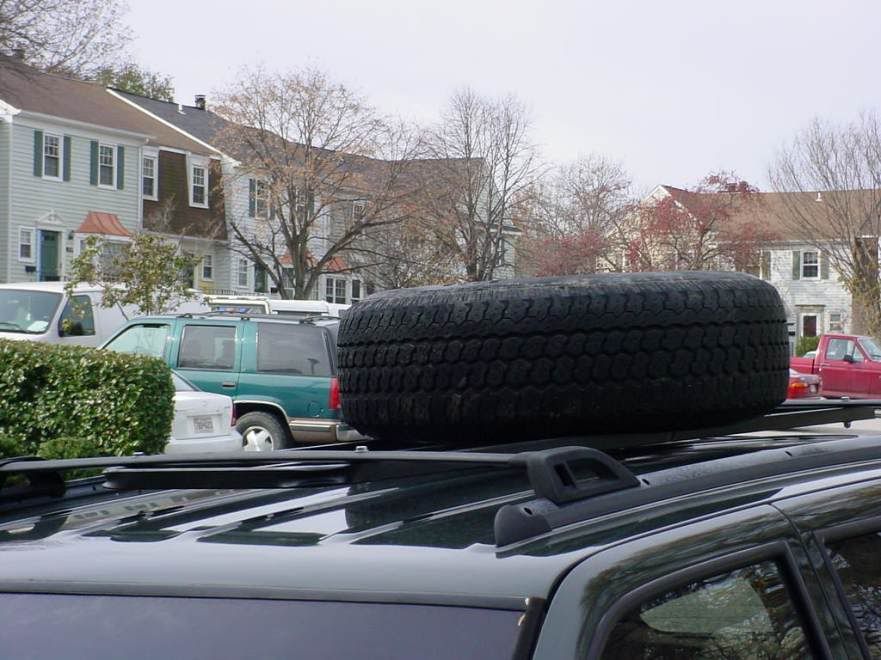

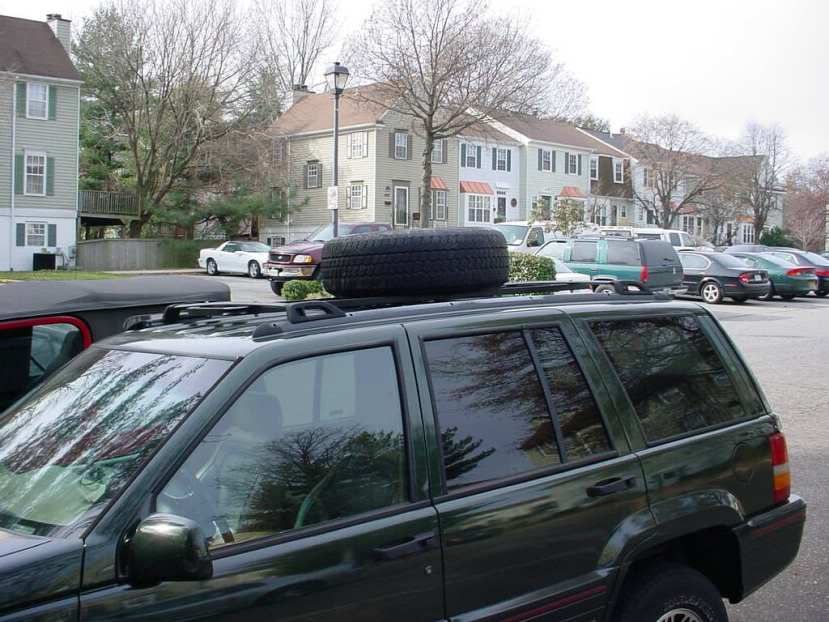

So I hate.....hate is too gentle a word.....that my spare tire is in the cab of my truck. Even with the really nice orvis tire cover it just took up too much room. So I decided that I really wanted either a swing gate setup or a roof mounted rack. But.....availability and price limited me. So I saw where this guy online made a rack out of tube steel and I thought what a great excuse to go buy a little welding machine. I know...I won't spend $250 on a rack but I'll go and buy a welding machine. So I was shopping for tube steel and by the time I would have gotten the materials I would have spent a ton on a rack that I didn't really like the looks of anyway. So I left Lowe's a little disappointed and headed over to Target to pick up some stuff.....and one of the things I needed to buy was on this rack that would have been just perfect. I grabbed a manager and haggled with him to check for a rack in the back that was damaged. He found one and I loaded it up. I got it home and used the saws all to cut the brackets off and then used my die grinder to grind down the welds and sand it. I pulled some measurements and drilled some holes. Then I painted the rack with some flat black plasti-dip for a thick durable coating. I mounted the rack under the luggage rack so that I can still use it because I ran the bolts through the top of the tire and put the nut under the new rack so that I can pull the tire off and toss it in the back and go. Because of the curve in the roof and the fact that I wanted to mount it so low profile I went ahead and put a couple of rubber bumpers made out of polyurathane washers under the rack so that they would hit on the plastic rail on the roof before the nuts smash into the roof in case I hit something hard enough to make the rack bounce. So here it is guys. I plan on mounting two lights in the front and two lights in the back as well.

First Time Post with Pictures.......










Last edited by CrawfishStu; 11-27-2005 at 05:25 PM.
CrawfishStu is offline
Sponsored Links
Advertisement

post #2 of 14 Old 11-27-2005, 05:17 PM
walter_da_jpr
4.0 Piston Skirt Victim

walter_da_jpr's Avatar
1999 WJ

Join Date: Apr 2004
Posts: 1,308
linky no worky

WALTER

WALTER
walter_da_jpr is offline
post #3 of 14 Old 11-27-2005, 05:26 PM
guango88
Air Trans

guango88's Avatar
1996 ZJ

Join Date: Sep 2005
Location: NYC, NY
Posts: 386
unable to see any images

ONE ABOVE ALL
guango88 is offline
post #4 of 14 Old 11-27-2005, 05:31 PM
Texas ZJ1
Jeep Jedi Master

Texas ZJ1's Avatar
1994 ZJ

Join Date: Mar 2003
Location: Omaha
Posts: 20,302
Hey newbs,

the links work just fine.

First Time Post with Pictures.......








Hunter

04 4.7 HO, limited

08 Z71 Suburban, front leveling kit with rear spacers. 285/65 18s Nitto TerraGrappler G2s

94 5.9 Laredo 6.5 RE lift with 35 Maxxis Bighorns
and 33 Bridgestone Duelers
Detroit and true trac
Red Jeep Club Member
REDNECK JCM
Texas Jeep Owner #6
USN Jeep Club #4
http://www.kevinsoffroad.com/
602.841.3355

For your performance needs:

kolak@kolakperformance.com
480.998.366
Texas ZJ1 is offline
post #5 of 14 Old 11-27-2005, 05:36 PM Thread Starter
CrawfishStu
Registered User
1995 ZJ

Join Date: Oct 2005
Location: Crofton, MD
Posts: 554
Thanks Hunter.

95ZJ, V-8, 231, HP30.LockRight, D44A.Aussie, 8" Rusty's LA, 35x12.5 MTZs, Custom Sliders, Rusty's TC Skid, ARB Front Bumper, Tomken Rear Bumper, Phat Jeeps Steering, + More.
CrawfishStu is offline
post #6 of 14 Old 11-27-2005, 05:37 PM
walter_da_jpr
4.0 Piston Skirt Victim

walter_da_jpr's Avatar
1999 WJ

Join Date: Apr 2004
Posts: 1,308
Of course they work now. Sweet creation

WALTER

WALTER
walter_da_jpr is offline
post #7 of 14 Old 11-27-2005, 05:45 PM
guango88
Air Trans

guango88's Avatar
1996 ZJ

Join Date: Sep 2005
Location: NYC, NY
Posts: 386
great idea but.......will that tubing will hold at hwy speeds! specially been held by 4 screws (full spare could actually weight 30 lbs +), and what is actually holding the spare down? I would try u-clamps,
just a sugestion

still looks good

ONE ABOVE ALL
guango88 is offline
post #8 of 14 Old 11-27-2005, 05:53 PM Thread Starter
CrawfishStu
Registered User
1995 ZJ

Join Date: Oct 2005
Location: Crofton, MD
Posts: 554
Guess I could have given more build info. The rack is held to the roof rack by four 3/8x3" bolt with washers and stopnuts. The tire is held to the rack by two 1/2x8" bolts with a few washers to make up the slack and lock washers and standard hex nuts on the bottom. I have had it on for about a week now and you barely hear it move at all and it makes very little wind noise. I was standing on top of the tire and it wasn't bending the tube steel or the rack at all. I'm 150lbs. Haven't seen a milage difference yet either. Over all I spent about 15 bucks on it.

95ZJ, V-8, 231, HP30.LockRight, D44A.Aussie, 8" Rusty's LA, 35x12.5 MTZs, Custom Sliders, Rusty's TC Skid, ARB Front Bumper, Tomken Rear Bumper, Phat Jeeps Steering, + More.
CrawfishStu is offline
post #9 of 14 Old 11-27-2005, 07:05 PM
Texas ZJ1
Jeep Jedi Master

Texas ZJ1's Avatar
1994 ZJ

Join Date: Mar 2003
Location: Omaha
Posts: 20,302
Stu,

can you imagine the wind noise from a 33 MT hanging out up there?

Hunter

04 4.7 HO, limited

08 Z71 Suburban, front leveling kit with rear spacers. 285/65 18s Nitto TerraGrappler G2s

94 5.9 Laredo 6.5 RE lift with 35 Maxxis Bighorns
and 33 Bridgestone Duelers
Detroit and true trac
Red Jeep Club Member
REDNECK JCM
Texas Jeep Owner #6
USN Jeep Club #4
http://www.kevinsoffroad.com/
602.841.3355

For your performance needs:

kolak@kolakperformance.com
480.998.366
Texas ZJ1 is offline
post #10 of 14 Old 11-27-2005, 07:29 PM
FPKites
ZJjazzyJim

FPKites's Avatar
1996 ZJ

Join Date: Sep 2004
Location: Denver, Colorado
Posts: 13,583
Can you imagine the size of the hernia you'll have when you get it down?

Jim Karlin
"How the heck do you get there?"
"Duh! Big RED Jeep!!!"
Best customer service in the states:

96 ZJ Laredo
5" lift, Claytons, KOR radiator support, rear bumper, steering brace, etc, etc, etc.

04 WJ Overland
Clean.... :D
FPKites is offline
post #11 of 14 Old 11-27-2005, 07:49 PM
Phil Gerard
Former Mod

Phil Gerard's Avatar
1995 ZJ

Join Date: Jan 2004
Location: NJ
Posts: 2,503
Oh heck....I take my 32 up and down everyday a few times for exercise!!
You guys are making me realize that if I do get a flat and I'm alone I'm SOL unless someone stops and helps me get it down!!

Phil

'95 ZJ Ltd. White 4.0L
TW DC DS; ARB Bull Bar, F&R Air Lockers; Superior Axles; Warn Winch; 4.56 gears; ACOS, Addco F&R Sw Bar, JKS Discos, Rr Track Bar & Nerfs, 249>242 Swap, Stillen rotors+Kolak pads, 3 pc. Armor, RE 4.5 Kit + 2.5"BB, Adj. UCAs&LCAs, OME SS, Bilstein 5150s, 15x8 AR Diamond Backs, 33 Truxus MTs, K&N FIPK, RE 62mm TB, Perf. Distr. 4.0L Kit, Exhaust: 2.5" Kolak exhaust FM 70: Optima Yellow, Mean Grn Alt., PIAA 520s, 540s, Kevins Rack, & TB Conversion
Phil Gerard is offline
post #12 of 14 Old 11-27-2005, 07:59 PM
ZJ_COWBOY
Registered User

ZJ_COWBOY's Avatar
1994 ZJ

Join Date: Jun 2004
Location: MI
Posts: 659
Quote:
Originally Posted by FPKites
Can you imagine the size of the hernia you'll have when you get it down?

Ive herd a lot of people say the same thing, but you have to figure how many times do you really get a flat? Sure if you get one a week, you have bad luck and shouldnt mount a tire up there. But within the two years Ive owned my ZJ Ive only got one flat and it doesnt count because it was a slow leak and not a blow out. I coulda drove home but didnt.

RIP 93' ZJ
RIP 98' Dodge Neon

2001 Neon getting 30 MPG w00t!
94 ZJ $200 Project.
ZJ_COWBOY is offline
post #13 of 14 Old 11-27-2005, 08:23 PM
footinmouth47
Registered User

footinmouth47's Avatar
1998 ZJ

Join Date: Sep 2005
Location: Togiak
Posts: 882
i like it but what was the original perpous of the tubing and if i could find two then it would be perfict i have a welder though so it would be much more complicated.
Greg

98 zj (The Vixen) 5.2 V8, 4 in f>r, 31's,

Built not Bought member #247

SOLD:( new DD- 04 polaris sportsman
footinmouth47 is offline
post #14 of 14 Old 11-27-2005, 08:43 PM Thread Starter
CrawfishStu
Registered User
1995 ZJ

Join Date: Oct 2005
Location: Crofton, MD
Posts: 554
It was some kind of recycling rack from target that they were using as a temp display. If I put an aggressive tire up there I will put a cover on it......and a small crane to help me get it down.

95ZJ, V-8, 231, HP30.LockRight, D44A.Aussie, 8" Rusty's LA, 35x12.5 MTZs, Custom Sliders, Rusty's TC Skid, ARB Front Bumper, Tomken Rear Bumper, Phat Jeeps Steering, + More.
CrawfishStu is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.



Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Similar Threads
Thread Thread Starter Jeep Forums Replies Last Post
Wj tire rack???? youngdog17 ZJ Grand Cherokee Forum 19 12-19-2009 11:58 PM
Newb Budget Lifts/Tire Help wjinferno ZJ Grand Cherokee Forum 6 07-21-2009 08:57 PM
My ZJ build thread - AKA "Project Budget ZJ" arveetek ZJ Grand Cherokee Forum 22 03-16-2009 04:26 AM
Tire Rack- Any Suggestions? ZeJokee ZJ Grand Cherokee Forum 7 02-02-2009 11:57 AM
Budget ZJ Home Depot Rack mr_user ZJ Grand Cherokee Forum 9 12-27-2005 04:49 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
