Attention all ovaled track bar mount experts.

I installed an IRO 3" with 3/8" OME trim packers and ended up with 4" of lift (or more) all around. I replaced all 4 rod ends at the same time. Did an allignment and balanced the wheels. I've have two bouts with DW while on the interstate one day. But that is the only place it has happened and it hasn't happened anywhere since then driving around the city like normal. I decided to make sure all by bolts were torqued well and decided to look at the axle track bar mount to see if there was a problem. Tell me what you think. There is a video posted at the bottom to illustrate.

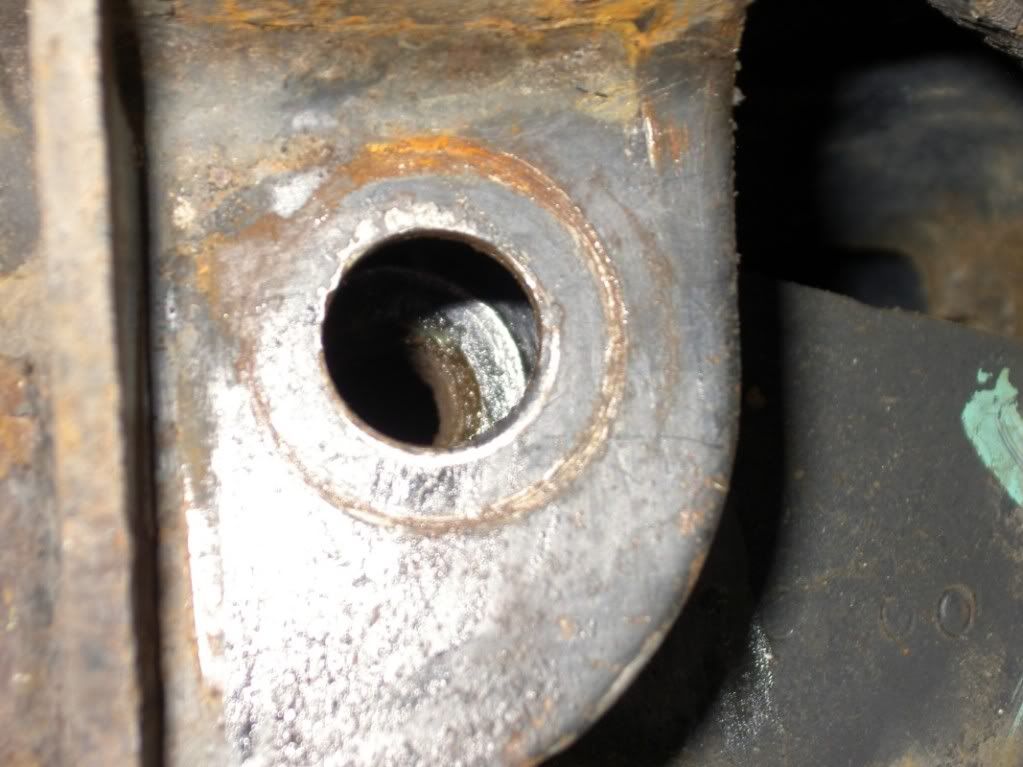

It does not look ovaled. However after measuring it with a micrometer... The hole measures ~.54 inches and the bolt measures ~.46 inches. A difference of .08" Which is a little less than 1/8" difference. Is this enough to cause DW? After the bolt is installed...there would be about 1/16" play on each side of the bolt. Should there be absolutely zero movement? Should the washer that is welded to the mount provide exact tolerances?





01 WJ Spec. App. Laredo. Retrofitted with Akebono calipers; Stillen Sport Rotors; Reese Class III Hitch; and a ZJ Front Drive Shaft
Save yourself time, money, and a lot of frustration by NOT shopping at JcWhitney!!
Utah Jeep Crew #8
FS: Rear wind deflectors || || Stock OEM Air Box Set Up

Last edited by BlackShuck; 08-04-2009 at 07:01 PM.
BlackShuck is offline
Sponsored Links
Advertisement

post #2 of 9 Old 08-04-2009, 05:31 PM
skain8
Registered User

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Posts: 3,871
Tighter fit the better. I drilled mine out to accept a 1/2" bolt, so I defer to others on the washer trick.

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
skain8 is offline
post #3 of 9 Old 08-04-2009, 06:38 PM Thread Starter
BlackShuck
Registered User
2001 WJ

Join Date: Feb 2007
Location: Utah
Posts: 477
Quote:
Originally Posted by skain8 View Post
Tighter fit the better. I drilled mine out to accept a 1/2" bolt, so I defer to others on the washer trick.
Did you drill the first mount hole, plus the track bar part? Or just the mount? I guess you can get larger bolt shanks that will have the same thread size for the nut that is part of the frame?

01 WJ Spec. App. Laredo. Retrofitted with Akebono calipers; Stillen Sport Rotors; Reese Class III Hitch; and a ZJ Front Drive Shaft
Save yourself time, money, and a lot of frustration by NOT shopping at JcWhitney!!
Utah Jeep Crew #8
FS: Rear wind deflectors || || Stock OEM Air Box Set Up
BlackShuck is offline
post #4 of 9 Old 08-04-2009, 08:25 PM
skain8
Registered User

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Posts: 3,871
I drilled the axle mount, stright through the welded nut. There's room to put on a nut or 2 behind the welded nut. A 1/2" bolt should fit nicely in the tracbar bushing sleeve. Verify for your application. With the JKS it did anyway.

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
skain8 is offline
post #5 of 9 Old 08-05-2009, 12:17 PM Thread Starter
BlackShuck
Registered User
2001 WJ

Join Date: Feb 2007
Location: Utah
Posts: 477
Are people pushing for exact fit tolerances? Or can there be minimal play (less than what is shown in my video)?

01 WJ Spec. App. Laredo. Retrofitted with Akebono calipers; Stillen Sport Rotors; Reese Class III Hitch; and a ZJ Front Drive Shaft
Save yourself time, money, and a lot of frustration by NOT shopping at JcWhitney!!
Utah Jeep Crew #8
FS: Rear wind deflectors || || Stock OEM Air Box Set Up
BlackShuck is offline
post #6 of 9 Old 08-05-2009, 04:35 PM
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Posts: 19,793
should be 1/16 or so oversize from the bolt threads. then crank the rat snot out of it.

'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

ratmonkey is offline
post #7 of 9 Old 08-06-2009, 12:24 AM
j.love
Registered User

j.love's Avatar
1994 ZJ

Join Date: Jun 2006
Location: 39 57′ 1″ N, 75 9′ 1″ W
Posts: 1,865
Am I correct in saying that the sleeve in the track bar bushing shouldn't be able to rotate once the nut is tight? all of the movement should be comming from the rubber not the sleeve. if that bolt is Balls *** tight, that bushing sleeve isnt going anywhere. Am I missing something? The bolt is not a bearing, the bushing is the movement.

David.
94 ZJ laredo 5.9 V8 swap D44a posi
Quote:
Originally Posted by ratmonkey View Post
I wouldn't drive down a driveway on that.
''If we do everything right, if we do it with absolute certainty, there's still a 30% chance we're going to get it wrong.''
Joe Biden
j.love is offline
post #8 of 9 Old 08-06-2009, 12:54 AM
Virmagicus
Moderator

Virmagicus's Avatar
1998 ZJ

Join Date: Feb 2006
Location: Northern Indiana
Posts: 6,440
The sleeve does not move independently once it is torqued on the axle mount. Like on a 2 piece poly bushing with sleeve you want to grease the outside of the bushing before you install it so it will not squeak and move freely. A 2 piece bushing moves more freely. Another great idea is if your TB hole get's ovaled out, drill out the hole bigger and get a 2 piece rear TB bushing & sleeve for a ZJ. The sleeve is bigger & thicker in diameter and the OD of the bushing is the same size. I figured this out awhile ago and it works great for the HD TB's. Why drill out the sleeve and make it thinner when you can upgrade to a thick walled sleeve?

Jeff







To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Virmagicus is offline
post #9 of 9 Old 08-06-2009, 01:17 AM
j.love
Registered User

j.love's Avatar
1994 ZJ

Join Date: Jun 2006
Location: 39 57′ 1″ N, 75 9′ 1″ W
Posts: 1,865
Quote:
The sleeve does not move independently once it is torqued on the axle mount.
i didn't think so.
that hole is good. Look for your death wobble elsewhere!

David.
