5.2L 318 Electrical Plug ID

I did an engine swap from a 95 5.2L 318 to a 94 5.2L 318 with my mechanic friend, we got most of the way done and it's running and drivable (yes it's throwing off a check engine light) and then he got deployed for the next 8 months. So while he is gone I've been working on the interior however this one Plug keeps bugging me and I am trying to find where it goes...any help or suggestions would be greatly appreciated.

Attached Thumbnails
GSXRSTORM is offline
Sponsored Links
Advertisement

post #2 of 13 Old 06-18-2017, 06:21 PM
wingless
Web Wheeler

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: Florida
Posts: 2,341
Welcome to the forum.

It looks like the EGR valve connector plug.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
wingless is offline
post #3 of 13 Old 06-19-2017, 12:42 PM Thread Starter
GSXRSTORM
Registered User
1994 ZJ

Join Date: Feb 2016
Location: Chandler
Posts: 21
It looks exactly like the EGR sensor plug on the other side and is what I initially thought as well. I thought maybe I got it on the wrong side but if I switch the sensor to this side I run into the same problem on the other side.
GSXRSTORM is offline

post #4 of 13 Old 06-19-2017, 02:09 PM
wingless
Web Wheeler

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: Florida
Posts: 2,341
What does "the other side" mean?

There is only one EGR valve and only one EGR connector.

It is on the passenger side.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
wingless is offline
post #5 of 13 Old 06-19-2017, 07:31 PM Thread Starter
GSXRSTORM
Registered User
1994 ZJ

Join Date: Feb 2016
Location: Chandler
Posts: 21
Ah, I have the EGR valve connector plug on the driver side of the engine. So I will put it over to the passenger side and trace back the plug on the driver side and find out where it goes.
GSXRSTORM is offline
post #6 of 13 Old 06-19-2017, 08:46 PM
wingless
Web Wheeler

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: Florida
Posts: 2,341

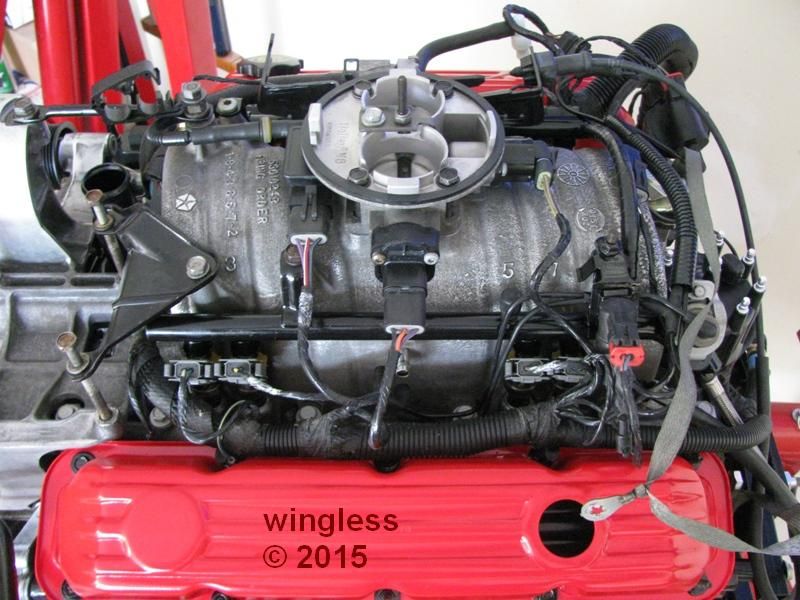

This shows the rear engine connectors.

There is the EGR connector on the passenger side, the evaporator purge solenoid vacuum port connector on the driver's side, the idle air control throttle body connector in the middle and the distributor camshaft position sensor in the middle.




To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by wingless; 10-17-2017 at 09:31 PM. Reason: Replaced PB extortion w/ Flickr
wingless is offline
post #7 of 13 Old 06-19-2017, 09:46 PM Thread Starter
GSXRSTORM
Registered User
1994 ZJ

Join Date: Feb 2016
Location: Chandler
Posts: 21
Wingless, thank you so much that completely clears up so much...Will have to get home and check a few things now and fix them tomorrow.
GSXRSTORM is offline
post #8 of 13 Old 06-20-2017, 08:18 AM
wingless
Web Wheeler

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: Florida
Posts: 2,341
Glad to help.

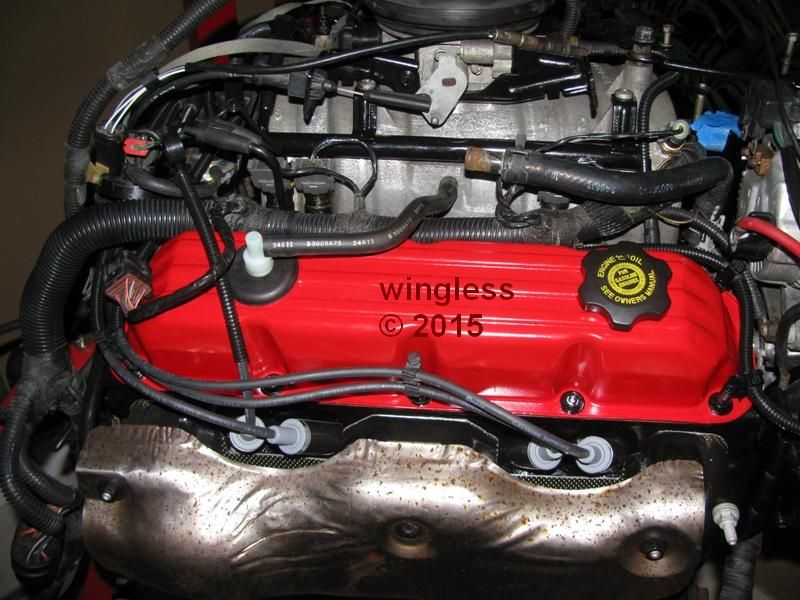

The image shows the TSB 18-48-98 for the spark plug wire routing.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
wingless is offline
post #9 of 13 Old 06-20-2017, 09:52 AM Thread Starter
GSXRSTORM
Registered User
1994 ZJ

Join Date: Feb 2016
Location: Chandler
Posts: 21
Now that I am reading this I am glad that I kept everything from the old build because now I am finding all these parts and now it's just a matter of fixing these small issues.
GSXRSTORM is offline
post #10 of 13 Old 06-20-2017, 11:30 AM Thread Starter
GSXRSTORM
Registered User
1994 ZJ

Join Date: Feb 2016
Location: Chandler
Posts: 21
Hey Wingless, by chance do you have a picture of the front of the engine...at this point I'm wanting to make sure I have everything set up correctly?
GSXRSTORM is offline
post #11 of 13 Old 06-20-2017, 12:26 PM
wingless
Web Wheeler

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: Florida
Posts: 2,341
Here are more images.

Good luck.







To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by wingless; 10-17-2017 at 09:29 PM. Reason: Replaced PB extortion w/ Flickr
wingless is offline
post #12 of 13 Old 06-23-2017, 01:16 PM Thread Starter
GSXRSTORM
Registered User
1994 ZJ

Join Date: Feb 2016
Location: Chandler
Posts: 21
thank you

Wingless thank you again so much, your pictures helped out and I was able to get everything fixed up and now no more engine light...for now.

Again thank you.
GSXRSTORM is offline
post #13 of 13 Old 06-23-2017, 01:39 PM
wingless
Web Wheeler

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: Florida
Posts: 2,341
You are welcome.

Glad to help.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
