Unread 11-14-2008, 07:39 AM   #16
Brandon_YJ
Registered User
1987 YJ Wrangler

Join Date: Sep 2007
Location: Metro Detroit
Posts: 3,696
Quote:
Originally Posted by BigDeaner View Post
I've been trying to figure out the torque specs for the body bolts. I just bought a daystar kit, and can;t find anything in the manual on what to torque them to.
50 ft-lbs for the larger mounts
35 ft-lbs for the smaller ones

__________________
Quote:
Originally Posted by Mean Max View Post
I think I'll keep the YJ. But can I talk you into taking the wife?
DISCLAIMER: I (usually) browse the web using Elinks in a (text only) terminal. Which means I do not have image viewing support. So if you get confused by my seemingly inability to comment on your pictures, emoticons, etc; now you know why.
If you're still confused click here to see how I view the forum.
Brandon_YJ is offline   Reply With Quote Quick reply to this message
Unread 11-14-2008, 07:51 AM   #17
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,616
Quote:
Originally Posted by Ratmeat View Post
Good one for the sticky topics somewhere, IMO
It is, and has been, on the first page of the FAQ.
__________________

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline   Reply With Quote Quick reply to this message
Unread 11-14-2008, 02:31 PM   #18
TSEJEEPERS
Registered User
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 4,991
Quote:
Originally Posted by Brandon_YJ View Post
50 ft-lbs for the larger mounts
35 ft-lbs for the smaller ones
Thanks Brandon
__________________
93 YJ SOA 2" springs front, XJ springs rear w/main leaf added, High pinon 9 inch rear detroit locker front Dana 44 ARB 4.56 Gears, 36 inch Irok tires too much to list. www.mijc.org
TSEJEEPERS is offline   Reply With Quote Quick reply to this message
Unread 11-14-2008, 10:09 PM   #19
BigDeaner
Registered User
1987 YJ Wrangler

Join Date: May 2008
Location: Vancouver Island
Posts: 262
Quote:
Originally Posted by Brandon_YJ View Post
50 ft-lbs for the larger mounts
35 ft-lbs for the smaller ones
where did you find those from?
BigDeaner is offline   Reply With Quote Quick reply to this message
Unread 11-14-2008, 10:10 PM   #20
BigDeaner
Registered User
1987 YJ Wrangler

Join Date: May 2008
Location: Vancouver Island
Posts: 262
Quote:
Originally Posted by rustywrangler View Post
It is, and has been, on the first page of the FAQ.
I'm not the smartest but i looked around and still could'nt find what u were talking about.

Last edited by BigDeaner; 11-14-2008 at 10:26 PM..
BigDeaner is offline   Reply With Quote Quick reply to this message
Unread 11-15-2008, 07:04 AM   #21
Alfons
Registered User
1992 YJ Wrangler

Join Date: Jul 2005
Location: Ontario, Canada
Posts: 2,218

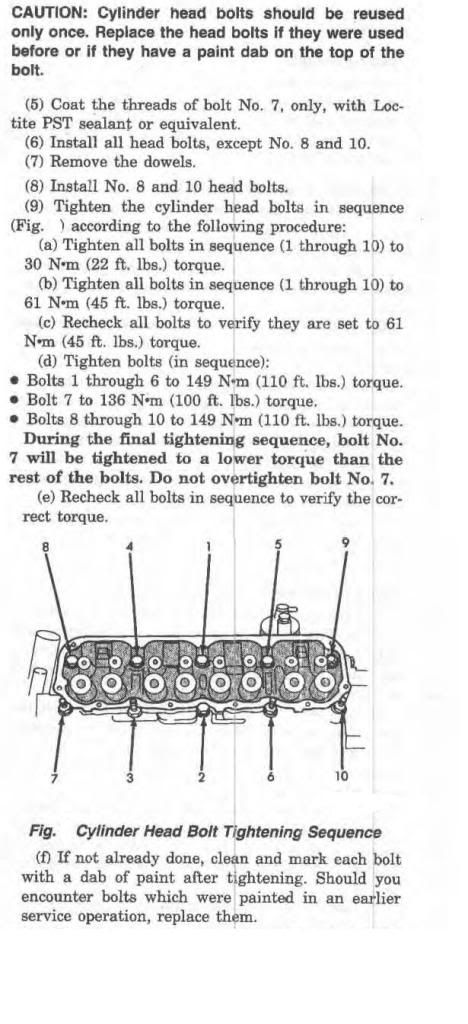

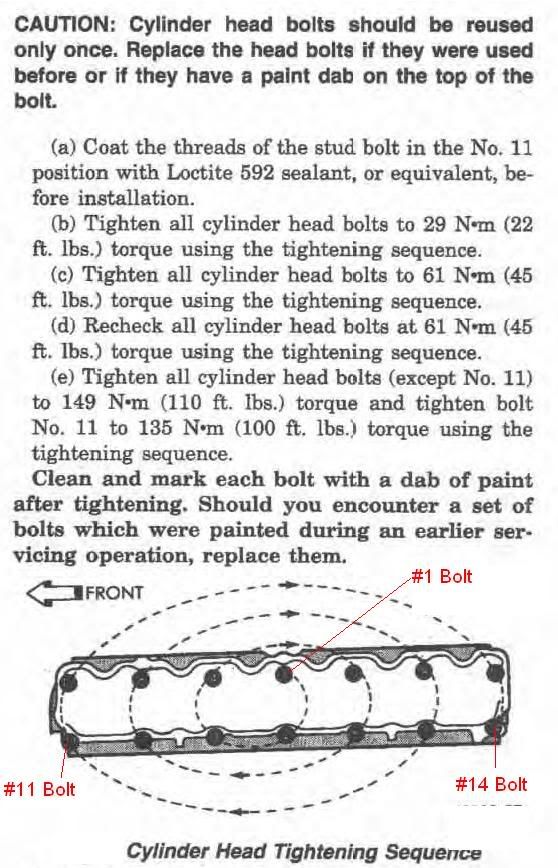

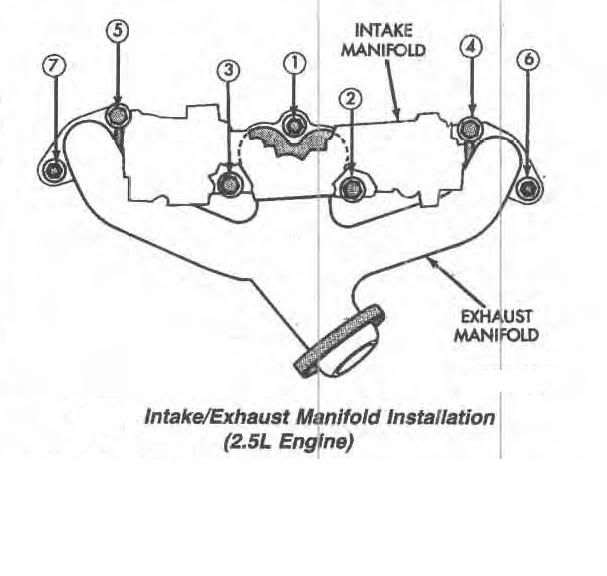

Here are some pictures for those that don't have bolt sequence diagrams for the head & manifold installations. Some notes to go along with the pictures:
  • There's one head bolt on each engine that goes into the water cavity, these are the ones identified as needing Locktight to seal them properly.
  • The dowels refered to in the the 2.5 head installation can be a couple of spare head bolts used for head alignment, or you can make the dowels by using a couple of bolts the same size with the heads cut off and a slot cut into the tops for removal with a screwdriver. You put these dowels into holes #8 and 10, slide the head over the dowels, and then you can carry on with the rest of the instructions.
  • Run a tap through all bolt holes to clean them out and run a die over the bolt threads, otherwise bolt tightness (torque) won't be correct.







Alfons is offline   Reply With Quote Quick reply to this message
Unread 02-22-2009, 03:44 PM   #22
Tompatt
Registered User
1987 YJ Wrangler

Join Date: Jun 2008
Location: Macon / Carrollton, Georgia
Posts: 2,793
Bump. For GREAT info.
__________________
Thomas
-1987 YJ
Jeep Build
Tompatt is offline   Reply With Quote Quick reply to this message
Unread 05-02-2009, 05:42 PM   #23
eric411420
Registered User
1994 YJ Wrangler

Join Date: Feb 2009
Location: Arizona
Posts: 79
Quote:
Originally Posted by Brandon_YJ View Post
I'm bored, VERY bored. So I thought I'd crack open a repair manual and list all the torque specs in a thread so that they will be searchable for future use.
Not sure if this has been done before, if so - then I guess we have some redundancy.

So here we go. Below are all of the torque specs of all the bolts listed in my Haynes Manual for the 1987 - 2003 Jeep Wrangler.
Or course I'll leave out all the non-YJ specific ones.
I'll get what I can tonight, and then work on it more tomorrow night. And then I'll clean it up and catagorize it better after that. Right now I'm just wanting to get the information typed while I'm running a very long and boring job here tonight and have free time.

Tune-up Specific Items
Automatic Transmission:
Filter Screws 30RH and 32RH - 35 in-lbs
Filter Screws 42RLE - 45 in-lbs
Pan Bolts - 14 ft-lbs

Carburetor Mounting Nuts/Bolts - 14 ft-lbs
Throttle Body Mounting Nuts/Bolts - 14 ft-lbs

Transfer Case:
Drain/Fill Plug NP231 15-25 ft-lbs
Drain/Fill Plug NP241 14-25 ft-lbs

Manual Transmission:
Drain/Fill Plug AX-4/5 - 32.5 ft-lbs
Drain Fill Plug AX-1500 - 25 ft-lbs
Drain/Fill Plug NV3550 - 14-20 ft-lbs

Spark Plugs:
2.5L Engine - 27 ft-lbs
4.2L Engine - 27 ft-lbs
4.0L Engine - 27 ft-lbs

Oil Pan Drain Plug - 25 ft-lbs

Oxygen Sensor - 22 ft-lbs

Wheel Lug Nuts - 80-110 ft-lbs

Rear Diff Cover Bolts - 30 ft-lbs
Front Diff Cover Bolts - 30 ft-lbs

I just stumbled upon this and I just had to tell you that YOU RULE! Thanks a million for taking the time to do this!
__________________
When seconds count, the police are only minutes away.
eric411420 is offline   Reply With Quote Quick reply to this message
Unread 12-12-2009, 09:07 PM   #24
J-Quad
Registered User
1995 YJ Wrangler

Join Date: Aug 2008
Location: Mid-Michigan
Posts: 369
Quote:
Originally Posted by ionakana View Post
I'm added a leaf to my spring pack and got to thinking after I took it apart, how tight do I need to tighten the center bolt of the spring now that I have it put back together with the new leaf?
Maybe this should be determined and added to this thread....?

J-Quad
__________________
-- '95 YJ, 4-cyl, 5-speed.
From Dec-Mar, it wears an 80" snowplow. From Apr-Nov, it gets muddy on the 2-tracks!
"War does not determine who is right, war determines who is left."
J-Quad is offline   Reply With Quote Quick reply to this message
Unread 12-14-2009, 07:50 AM   #25
Matt_vs_YJ
Registered User
1989 YJ Wrangler

Join Date: Jul 2007
Location: Yorktown, VA
Posts: 829
Quote:
Originally Posted by ionakana View Post
I'm added a leaf to my spring pack and got to thinking after I took it apart, how tight do I need to tighten the center bolt of the spring now that I have it put back together with the new leaf?
Quote:
Originally Posted by J-Quad View Post
Maybe this should be determined and added to this thread....?

J-Quad
35 ft lbs when installing and 25-40 to check them.
__________________
Call me Matt. I have a YJ.

If you're in the Hampton Roads area of Virginia check out the Middle Peninsula Jeep Association
Matt_vs_YJ is offline   Reply With Quote Quick reply to this message
Unread 01-17-2010, 06:16 PM   #26
blue-monster
Registered User
1995 YJ Wrangler

Join Date: Aug 2009
Location: bahrain
Posts: 125
What about the 3" body lift how much should be tight?
blue-monster is offline   Reply With Quote Quick reply to this message
Unread 02-26-2010, 07:02 PM   #27
Mitchness
Registered User
1994 YJ Wrangler

Join Date: Jan 2007
Location: Spokane, Washington
Posts: 780
Alright, I got one. How about the bolts for the transfer case skid plate-to-frame? Can't seem to find it in the Haynes and can't find it on here.
Mitchness is offline   Reply With Quote Quick reply to this message
Unread 02-26-2010, 08:27 PM   #28
Matt_vs_YJ
Registered User
1989 YJ Wrangler

Join Date: Jul 2007
Location: Yorktown, VA
Posts: 829
Quote:
Originally Posted by Mitchness View Post
Alright, I got one. How about the bolts for the transfer case skid plate-to-frame? Can't seem to find it in the Haynes and can't find it on here.
30 ft lbs. according to the FSM
__________________
Call me Matt. I have a YJ.

If you're in the Hampton Roads area of Virginia check out the Middle Peninsula Jeep Association
Matt_vs_YJ is offline   Reply With Quote Quick reply to this message
Unread 02-26-2010, 08:36 PM   #29
Mitchness
Registered User
1994 YJ Wrangler

Join Date: Jan 2007
Location: Spokane, Washington
Posts: 780
Thank you very much.
Mitchness is offline   Reply With Quote Quick reply to this message
Unread 04-29-2010, 05:10 PM   #30
Nielsen17
Registered User
1995 YJ Wrangler

Join Date: Dec 2009
Location: Maine
Posts: 69
AHHH saved my life, well actually probably just hours of hair pulling frustration, but thanks
__________________
And to think I used to drive a jetta...
Men and fish are alike. We both get into trouble whenever we open our mouths.
Nielsen17 is offline   Reply With Quote Quick reply to this message
