Weber 32/36 Install Write-up

Weber 32/36 Carburetor Install - Kit # K551 / K551-S*

*Note this kit is the K551-S, all the steps are the same, and there is only an extra step at the end to reconnect the stock air cleaner. If you are using the square cleaner that comes with the K551, then stop following these instructions when the stock cleaner adapter is installed and bolt on the one in your kit.

I purchased this kit from Carbs Unlimited and it did not come with very good instructions. So I combined instructions I found on the web and the poor ones that came in the kit. I decided to write up how I completed the install and include pictures so that I could try to help some people out when they install their Weber.

My rig:
1990 YJ, Colorado Red with Laredo markings
The engine is a 1999 re-built 4.2L with the stock Carter (this is where I would rip on the Carter but that’s been done)



The plan:
To replace the stock Carter with a Weber 32/36 Progressive carb yet still keep the stock air cleaner.

Timeline:
It took me 4.5 hours in sub zero weather; it would be a good idea to devote an afternoon for the swap and to tune it. This is not something you want to rush, you are messing wih your fuel delivery system and it very important that it’s all set up correctly.

Parts:
-In the box-
1x Weber 32/36 DGEV Carburetor
1x Carburetor Adapter (Two pieces)
1x Hardware Kit
1x Linkage kit
1x Chrome Air Filter / Stock Air Cleaner Adapter*
*K551 / K551-S
Different Diameter pieces of Vacuum hose
1x 2’ length of Fuel Line



-Tools-
Standard and Metric box/open end wrenches
Socket set (also Standard and Metric)
Pliers
6mm Allen Wrench (I did not have one so by luck a Torx 30 bit will work if you don’t have the Allen wrench)
Shop Rags
Cleaning Solvent
Gasket Scarper / Knife
Torque Wrench
Tube of Loctite
Standard Screwdriver
Gasket Sealer (You must use a sealer that is NOT RTV or Silicone)

-Recommended Extras-
New Fuel Filter
Adjustable Fuel Pressure Regulator (I got a Mr. Gasket one from Advance Auto $30)
Extra Vacuum Hose
New Hose Clamps
Y or T Connectors for Vacuum Hoses
New Return Spring for Throttle Linkage

The Teardown:
1. Remove the stock air cleaner if you are using the square one or slide the stock one to the side if you are reusing it.

2. This is a big one. LABEL EVERYTHING. When you unhook something from the Carter, label both ends with a piece of tape and a number or letter written on each. This way you know what went were and incase you need to hook something back up.

3. Place a rag under the fuel filter to catch spilt gas and remove the filter. It would be a good idea to have the engine cool so it lessens the risk of fire. Unhook the filter’s three lines and toss the spent filter.

4. Disconnect lines form the Carter one at a time, and remember to label them!

5. Disconnect the electrical hookups to the Carter, Make note of the small one wire blade connection on the electric choke; you will need it for later

6. Once all the lines are removed, disconnect the throttle linkage where it connects at the bracket on the manifold (the kit comes with a new linkage so keep the old one on the Carter)

7. Break loose the carb mounting nuts and lift the Carter free from the intake manifold.

8. Stuff a clean rag in the intake opening to keep it clear of junk falling in.

9. If the carb mounting studs did not come out with the nuts then they are jammed in the intake. You can spray them with something to loosen them up; just don’t let it get into the intake manifold. I used a small pipe wrench to remove the two that were stuck, as you can see in the picture below after I removed the Carter.



10. Now clean the mating surface of the intake manifold. (Before I removed the Carter, I noticed that it was very loose, almost and inch of play left and right. After removing the carb I found there was not gasket between the Carter and the manifold, it was clean as a whistle, but I still scraped it clean just to be sure.)

The Assembly:

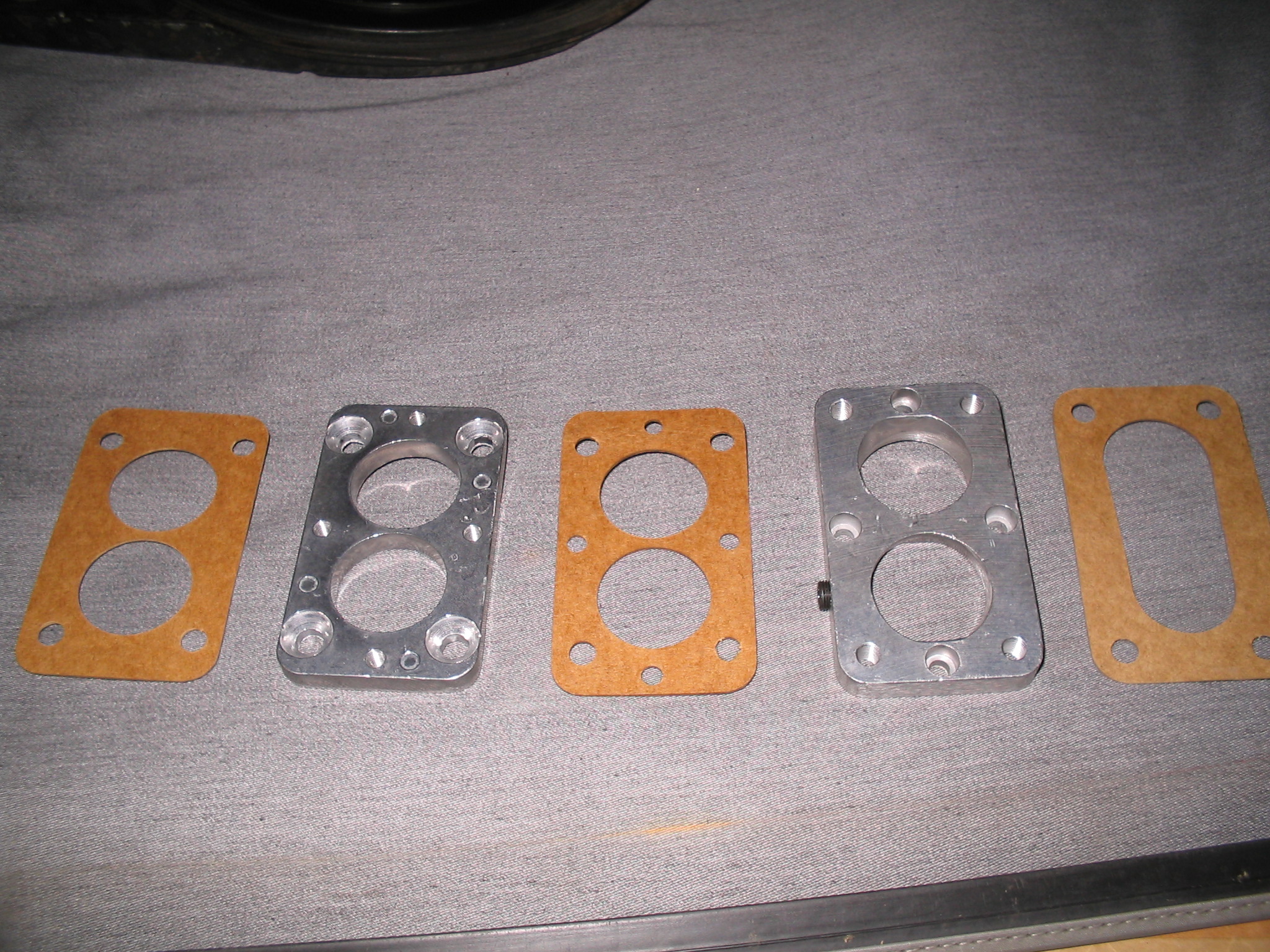

1. The adapter plate is a two piece set with 3 gaskets that assemble in order, each plate and gasket is different and needs to go in the correct order to line up. Below is a picture of the top view for each piece and in what order they are to be assembled. You need to build them up on the intake one at a time, you can’t do it all at once and then drop it into place.

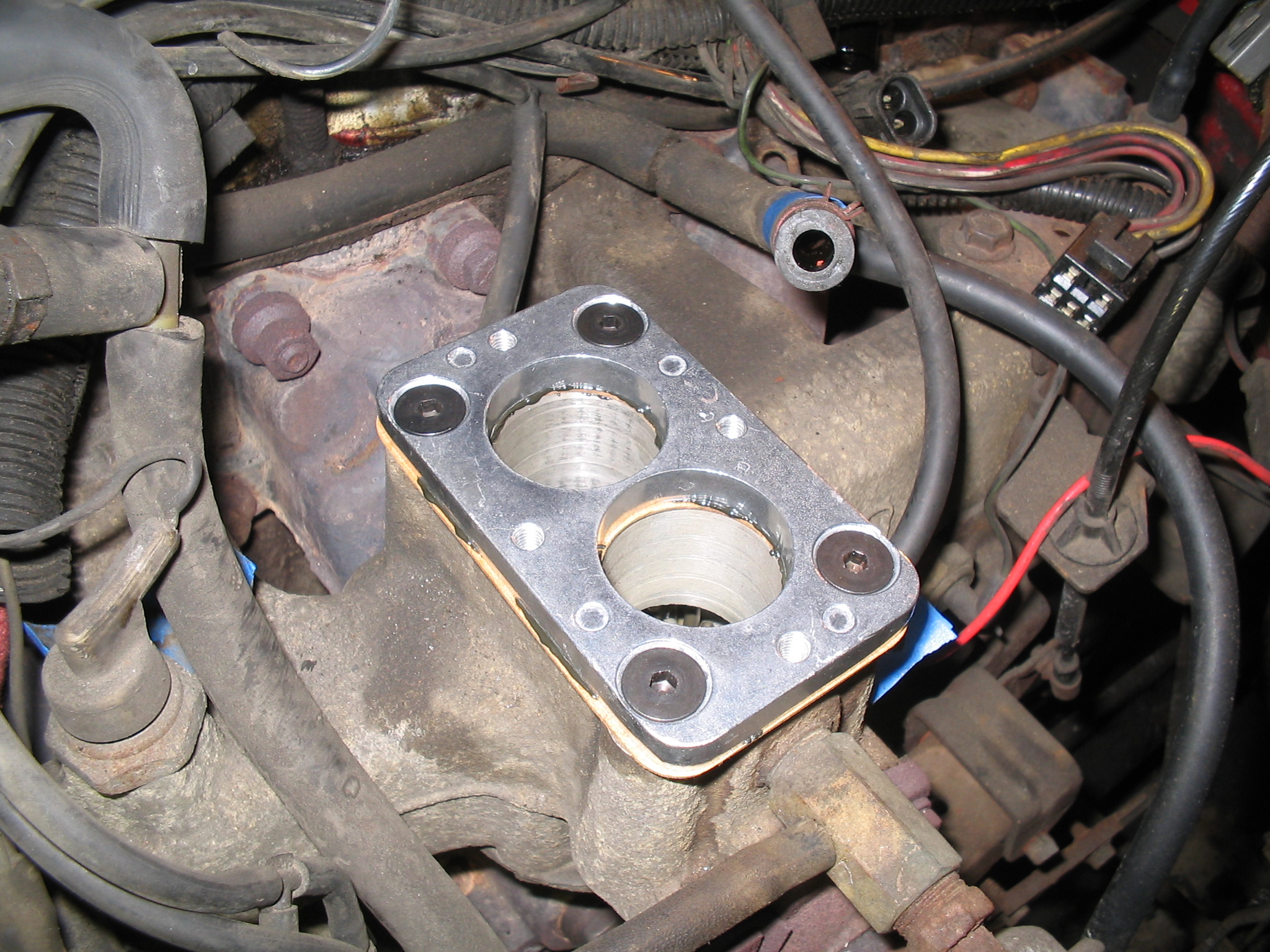

2. Take the gasket on the left (Two large holes, four little ones) and coat it with gasket sealer and set it on the intake manifold. Then set the bottom adapter plate (the one without the hole/plug in the side of it) on the gasket. Use the four chamfered bolts (have a flat top and will fit flush into the plate) to hold down the plate, don’t forget to use the Loctite. Torque to 12ft/lbs.



3. Next coat the intermediate gasket (middle one, two large holes, eight small ones) with sealer and place on bottom adapter plate. Then install the top adapter plate onto the intermediate gasket. Note that the vacuum hole should be facing toward the front of the Jeep. The picture shows that the plug is installed. You should have the power brake booster fitting installed, not the plug, it will be used later when you hook the vacuum lines back up. Then use the four cap screws (small screw with a cylindrical head) and a little Loctite to hold it all down. Torque to 6ft/lbs.




Last edited by ElvisV04290; 11-09-2009 at 06:17 PM.. Reason: Update Broken Picture Links
ElvisV04290 is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 01:21 AM   #2
ElvisV04290
Registered User
1990 YJ Wrangler

Join Date: Mar 2006
Location: Macomb, Illinois
Posts: 1,329
4. Now take the carburetor gasket (should be the only one left, large hole in the middle) and apply sealer, then place on top adapter plate. Next install the carb mounting studs (looks like a bolt without a head) again with a little Loctite. Theses bolts should be hand-tightened into the adapter plate.





5. Time to crown the intake manifold with your new Weber. Set the Weber onto the adapter plate with the linkage facing towards the rear.



6. Install the throttle cable bracket onto the two studs closer to the left fender. Then install the washers and nuts provided onto the four studs to hold the Weber in place.



7. Cycle the linkage to insure there is no binding or sticking of the linkage. Now is when to adjust it to prevent problems later. When it’s all moving smooth, tighten the nuts to 12ft/lbs.

8. Connect the bottom of the snap-on-rod to the bell crank. It snaps into the same spot the old one was. You cannot use the same bracket for the spring to return the throttle linkage so you will have to adapt a new one. I made one out of a thin ribbon of metal with holes in it. I bolted it to the other side of the EGR valve and reused one of my old springs.



9. Now its time to start hooking up vacuum lines and other connections. Remember that little electrical connector? Well it slips into the same place on the new Weber's electric choke, just slide it on. As for the vacuum lines, I have included two pictures below. Top is the connections on the carb and what they are. The bottom one was given to me by Tshark299 and does a great job showing what needs to be hooked up and where it goes. The ported vacuum pulls from the 'EGR port' on the Weber, that connection is the one you need to connect your dist advance to, while the 'vacuum advance' is a combo of manifold and ported vacuum and should not be used and needs to be capped off (this setup is used in some MGs and other British cars). Some hoses you will need to cut and make a new connection, others can be removed completely and the other end of the connection plugged. This is what took me the longest time, don’t rush and just take it slow. And remember the brake booster connection on the plate? That’s what goes to the manifold vacuum on the second picture, or you can use the stock hookup that is built into the intake manifold that the brake booster currently pulls vacuum from.





10. Next install the fuel regulator, fuel line and fuel filter. Install the fuel filter in place of the old one. Then install the fuel regulator after the filter, it should come with instructions, but it’s not that hard to figure out. There is an in and an out side, run the fuel hose form the filter to the in and the out to the carb fitting for the fuel (see carb diagram above). The instructions that came with my Weber said to set the regulator at 2psi, with a maximum of 3psi. Make sure all connections are secure and you used hose clamps to avoid fuel leaks. Here is what my regulator looked like after install.



11. This is where the K551 and K551-S kits separate. If you have the K551 that uses the new square filter install it according to the instructions that came with your kit, it’s not hard to figure out, just bolt on the air filter. If you are installing the K551-S place the gasket onto the intake of the Weber. Then bolt down the air cleaner adapter onto the top of the Weber and install the short stud into the adapter. Now the new height of the intake is about 1.5 inches higher than the Cater, so you need to adjust the air cleaner base to compensate. I removed the stock stud to hold everything down and installed the new longer stud and used new nuts and washers to hold it to the bracket on the valve cover. Then on the stud I placed a large nut, about on inch high, and then the large plastic washer. Then set the air cleaner back on and set the top of the cleaner on. Don’t crank it down, just look at how it lines up and add more washers under it if you need it higher. After you get it just right, tighten the wing nuts on the cleaner and the Weber. It is important to be sure the hood will close with the new height of the air cleaner, it so be fine, but just to be sure. Here’s how my Weber looks after the install and the adapter plate attached.





12. Now it’s time to fire up the engine. It will turn over several times before the motor fires (if you hooked everything up correctly that is). Leave the engine running and look for fuel leaks. Once the engine reaches operating temperature it’s time to adjust the mixture and idle speed screws.

The Idle and Mixture Settings:

I used the instructions found at http://www.redlineweber.com/html/Tec...lean_best_.htm

I feel I don’t need to copy the instructions to here, so read them there.

Conclusion:

I am very happy with the results of the swap. My Wrangler runs better in every possible way over the Carter. The next step for me will be to do a ‘Nutter’ bypass to take the computer totally out of the loop. I have done the best I can to explain how I installed my Weber carb. My only plan was to help other like me, who got poor instructions and really did not have a clue on what to do.

I would like to thank tookie, Tshark299, Richmond 88 YJ, King03Kev, biblicone, mrmustang, t rexx70, mean90yj, tcourdin, and everyone on JF for putting up with my questions and for all the help. I hope I can return the favor one day.


Enjoy your new Weber and I hope to see you on the trails!
__________________
1990 YJ, Colorado Red with 'Laredo' markings, 4.2L, TF999, NP231, Valvoline Syn fluids, Weber 32/36, Nutter Bypass, Dana 30/35, 16" Electric Fan, Optima Yellow Top, 140amp alt., K&N Air Filter, Cherry Bomb muffler, SRC Front Bumper, CH&F Shackles, KC 100w Daylighters, Homemade Lightbar, Rear Aux lights, Cobra CB/PA/WX, 102" Whip Ant., 400 watt power inverter, 2 fire extinguishers, Mobile Internet & WiFi equipped.
Daily Driver since April 23rd, 2003

Northern Illinois Extreme Jeep Club Member www.extremejeepclub.com
Weber 32/36 Install -> http://www.jeepforum.com/forum/f12/weber-32-36-install-write-up-382309/
Early YJ Club Member #37
For anyone with a 4.2L --> http://groups.jeepforum.com/258s_Unite

Last edited by ElvisV04290; 11-09-2009 at 06:23 PM.. Reason: Update Broken Picture Links
ElvisV04290 is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 06:18 AM   #3
Richmond88yj
Eat, Sleep, Jeep

Richmond88yj's Avatar
1988 YJ Wrangler

Join Date: Mar 2004
Location: Chesterfield VA
Posts: 2,112
Wow this should be stickied!

What a great write up! This folks, is how you help the community!

Elvis, thank you bro! For such a good contribution, I'd like to buy you a membership, check your PM's tonight.
Richmond88yj is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 08:42 AM   #4
ZickZJ
Registered User
1990 YJ Wrangler

Join Date: Oct 2003
Location: Beloit, WI
Posts: 246
Excellent Job!
__________________
Sold 90' YJ, 4.2, Weber, 4" Procrap, 33" BFG MTs, 8.8 w/ 4.10s & LSD, SYE & Tomwoods DS, Dual Optimas, Jacobs, Electric fan.

97' ZJ, SOLD
ZickZJ is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 09:28 AM   #5
themonkeyman
Registered User
1987 YJ Wrangler

Join Date: Nov 2006
Location: Annandale, VA
Posts: 527
Great job, very well done. Someone should sticky this, as there are way too many needless (read: noob) threads about the weber...

Once again, Excellent job

You've created a bit of a monster though, because now we'll all be on your back about doin a nutter-bypass write-up!
themonkeyman is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 09:50 AM   #6
YJ Rider
Registered User
1987 YJ Wrangler

Join Date: Feb 2007
Location: Ohio
Posts: 306
This is great. Exactly what I needed.

Once question for you. When hooking back up the vacuum lines are you running the line from the PVC valve to the carb, this where you took out the plug on the adapter plate and hooked into. What do you have running out of the outlet below the carb mount opposite the brake booster line? Did you plug that or is it getting used?
YJ Rider is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 10:23 AM   #7
ElvisV04290
Registered User
1990 YJ Wrangler

Join Date: Mar 2006
Location: Macomb, Illinois
Posts: 1,329
Quote:
Originally Posted by YJ Rider
Once question for you. When hooking back up the vacuum lines are you running the line from the PVC valve to the carb, this where you took out the plug on the adapter plate and hooked into. What do you have running out of the outlet below the carb mount opposite the brake booster line? Did you plug that or is it getting used?
There is a vacuum line running from the PCV valve to the charcoal canister. The YJ already has a mounting for the brake booster in the intake mainfold, so I thought the connection on the adapter plate was not needed. But it is, you need to cut the line going from the PCV to the canister and install a T or Y spliter so you can also run a hose from the carbs vacuum hookup (whats labled at the brake booster hookup). Did this answer your question? If not let me know.
__________________
1990 YJ, Colorado Red with 'Laredo' markings, 4.2L, TF999, NP231, Valvoline Syn fluids, Weber 32/36, Nutter Bypass, Dana 30/35, 16" Electric Fan, Optima Yellow Top, 140amp alt., K&N Air Filter, Cherry Bomb muffler, SRC Front Bumper, CH&F Shackles, KC 100w Daylighters, Homemade Lightbar, Rear Aux lights, Cobra CB/PA/WX, 102" Whip Ant., 400 watt power inverter, 2 fire extinguishers, Mobile Internet & WiFi equipped.
Daily Driver since April 23rd, 2003

Northern Illinois Extreme Jeep Club Member www.extremejeepclub.com
Weber 32/36 Install -> http://www.jeepforum.com/forum/showthread.php?t=382309
Early YJ Club Member #37
For anyone with a 4.2L --> http://groups.jeepforum.com/258s_Unite
ElvisV04290 is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 10:46 AM   #8
YJ Rider
Registered User
1987 YJ Wrangler

Join Date: Feb 2007
Location: Ohio
Posts: 306
Not exactly, There is an line running out on the opposite side at the same place the brake booster line goes into the manifold. I can see parts if it in your pictures but cannot see where it goes. I was told before this is what tee'd into the PCV line but I believe I was told wrong. It is directly above the EGR valve.
YJ Rider is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 12:51 PM   #9
ElvisV04290
Registered User
1990 YJ Wrangler

Join Date: Mar 2006
Location: Macomb, Illinois
Posts: 1,329
oh, stupid me, I see what you mean now. I just looked at my engine. Its sending vacuum to my four wheel drive dissconect. It was like that before I ever did the swap and had nothing to do with the Weber. Since it is a vacuum you could spit that into the PCV, I just did not do it that way. So does this help at all?
__________________
1990 YJ, Colorado Red with 'Laredo' markings, 4.2L, TF999, NP231, Valvoline Syn fluids, Weber 32/36, Nutter Bypass, Dana 30/35, 16" Electric Fan, Optima Yellow Top, 140amp alt., K&N Air Filter, Cherry Bomb muffler, SRC Front Bumper, CH&F Shackles, KC 100w Daylighters, Homemade Lightbar, Rear Aux lights, Cobra CB/PA/WX, 102" Whip Ant., 400 watt power inverter, 2 fire extinguishers, Mobile Internet & WiFi equipped.
Daily Driver since April 23rd, 2003

Northern Illinois Extreme Jeep Club Member www.extremejeepclub.com
Weber 32/36 Install -> http://www.jeepforum.com/forum/showthread.php?t=382309
Early YJ Club Member #37
For anyone with a 4.2L --> http://groups.jeepforum.com/258s_Unite
ElvisV04290 is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 02:37 PM   #10
timatoe
Registered User
1990 YJ Wrangler

Join Date: Aug 2006
Location: Grass Valley California
Posts: 13,813
Quote:
Originally Posted by Richmond 88 YJ
Wow this should be stickied!
Awesome write up. I'll hopefully be using this soon.
timatoe is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 06:19 PM   #11
YJ Rider
Registered User
1987 YJ Wrangler

Join Date: Feb 2007
Location: Ohio
Posts: 306
That helps. My problem now is that I do not have it running to my 4WD to engage that. Does that line go back to your transfer case? Where does it hook into.
I took it off before listening to someone who apparently did not know what they were talking about. I have not been out since I started all this to see if my 4WD even works....
YJ Rider is offline   Reply With Quote Quick reply to this message
Unread 03-02-2007, 10:58 PM   #12
bgredjeep
Registered User
1987 YJ Wrangler

Join Date: May 2005
Location: Augusta, GA
Posts: 1,796
Nice write up. I was trying to figure out what that air cleaner part was when I saw it in the second pic at the top.

One thing I ran into when I was trying different reg. settings on my Jeep was that running 2psi would starve the motor for fuel on heavy acceleration. I could get about 1/2 through second gear running full throttle and it would start studdering until I let off. At 3psi that has not been the case.
bgredjeep is offline   Reply With Quote Quick reply to this message
Unread 03-03-2007, 12:10 AM   #13
ElvisV04290
Registered User
1990 YJ Wrangler

Join Date: Mar 2006
Location: Macomb, Illinois
Posts: 1,329
I ran mine at 3psi for a bit and it would stall out for a second when i put my foot to the floor, but the manual that came with the carb said for agressive driving to set it a 2. But I have done some more fine tuning and should try 3psi again.
__________________
1990 YJ, Colorado Red with 'Laredo' markings, 4.2L, TF999, NP231, Valvoline Syn fluids, Weber 32/36, Nutter Bypass, Dana 30/35, 16" Electric Fan, Optima Yellow Top, 140amp alt., K&N Air Filter, Cherry Bomb muffler, SRC Front Bumper, CH&F Shackles, KC 100w Daylighters, Homemade Lightbar, Rear Aux lights, Cobra CB/PA/WX, 102" Whip Ant., 400 watt power inverter, 2 fire extinguishers, Mobile Internet & WiFi equipped.
Daily Driver since April 23rd, 2003

Northern Illinois Extreme Jeep Club Member www.extremejeepclub.com
Weber 32/36 Install -> http://www.jeepforum.com/forum/showthread.php?t=382309
Early YJ Club Member #37
For anyone with a 4.2L --> http://groups.jeepforum.com/258s_Unite
ElvisV04290 is offline   Reply With Quote Quick reply to this message
Unread 03-03-2007, 08:13 AM   #14
Richmond88yj
Eat, Sleep, Jeep

Richmond88yj's Avatar
1988 YJ Wrangler

Join Date: Mar 2004
Location: Chesterfield VA
Posts: 2,112
Hey Elvis, Check your PM's. Your Name should be turning RED anytime now. Thanks for supporting the community, enjoy your membership!
Richmond88yj is offline   Reply With Quote Quick reply to this message
Unread 03-03-2007, 11:41 AM   #15
ElvisV04290
Registered User
1990 YJ Wrangler

Join Date: Mar 2006
Location: Macomb, Illinois
Posts: 1,329
Quote:
Originally Posted by Richmond 88 YJ
Hey Elvis, Check your PM's. Your Name should be turning RED anytime now. Thanks for supporting the community, enjoy your membership!
Thanks Richmond, and thanks to everyone that left feedback on my write-up, I'm glad I could do something for the community other than just asking questions all the time
__________________
1990 YJ, Colorado Red with 'Laredo' markings, 4.2L, TF999, NP231, Valvoline Syn fluids, Weber 32/36, Nutter Bypass, Dana 30/35, 16" Electric Fan, Optima Yellow Top, 140amp alt., K&N Air Filter, Cherry Bomb muffler, SRC Front Bumper, CH&F Shackles, KC 100w Daylighters, Homemade Lightbar, Rear Aux lights, Cobra CB/PA/WX, 102" Whip Ant., 400 watt power inverter, 2 fire extinguishers, Mobile Internet & WiFi equipped.
Daily Driver since April 23rd, 2003

Northern Illinois Extreme Jeep Club Member www.extremejeepclub.com
Weber 32/36 Install -> http://www.jeepforum.com/forum/showthread.php?t=382309
Early YJ Club Member #37
For anyone with a 4.2L --> http://groups.jeepforum.com/258s_Unite
ElvisV04290 is offline   Reply With Quote Quick reply to this message
