Waterpump tutorial

I went to my local Bennett Auto Supply store and got their help with the different Jeep waterpumps. They sell ASC Industries brand waterpumps, and they allowed me to get all the fitment info & take pictures of the parts. I wanted to show the differences between the models & the standard and reverse rotation impellers.

Here is what I found.

These CJ style waterpumps are NOT interchangeable with YJ pumps.
Fitment:

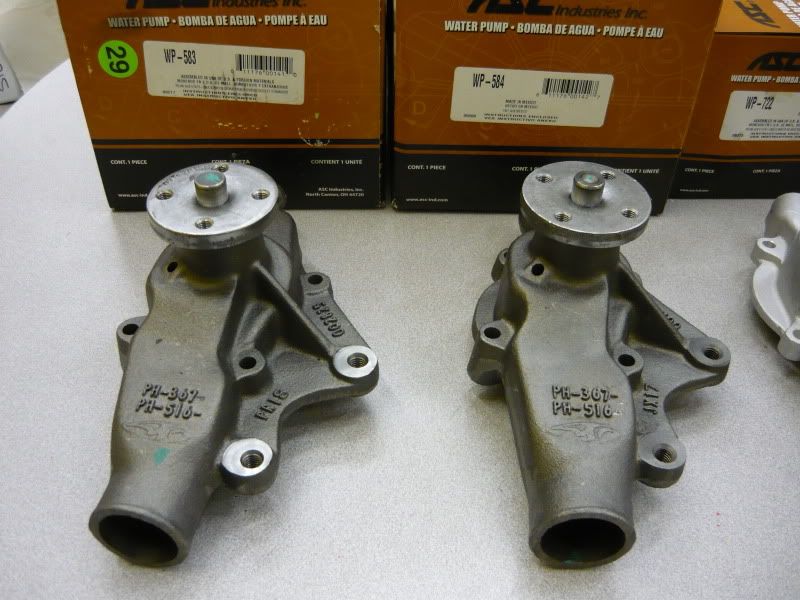

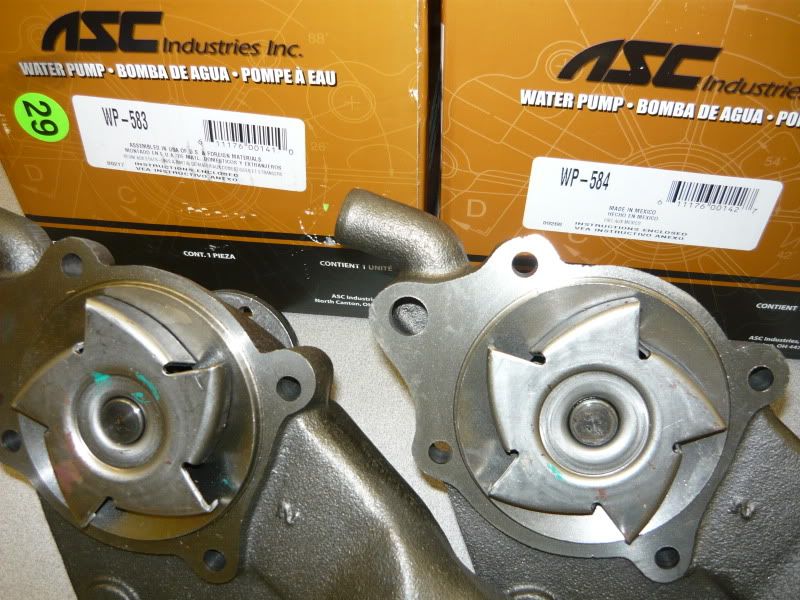

WP-583 = '83-'86 2.5L & '81-'86 4.2L Serpentine reverse rotation only
WP-584 = '83-'86 2.5L & '80-'86 4.2L V-belt standard rotation only
Notice the water pipe for the heater core supply is cast into the housing.
This pipe casting will not clear the A/C & alternator bracket on YJ models using the same engine as the CJ models that these pumps fit.

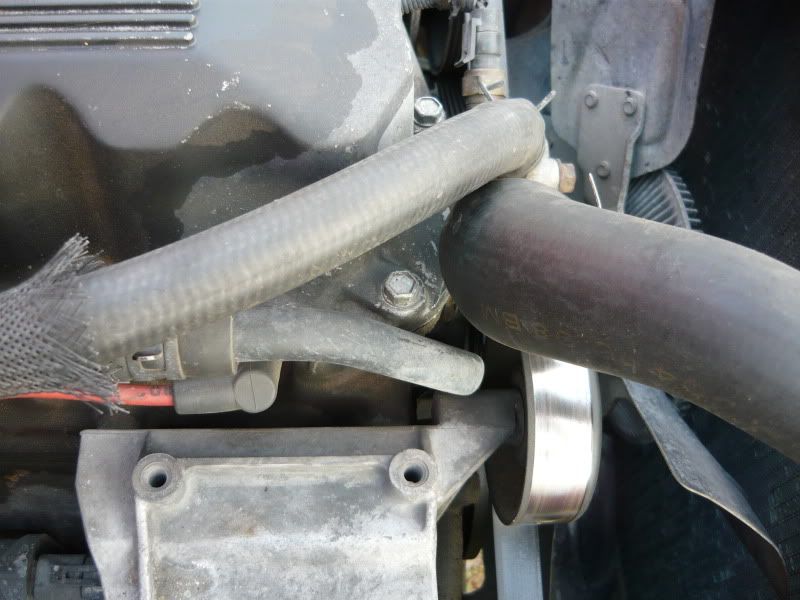

The last pic in this group shows the pipe to bracket clearance on a YJ.





These are AMC YJ water pumps, and are NOT interchangeable with Daimler-Chrysler YJ waterpumps.
Fitment:

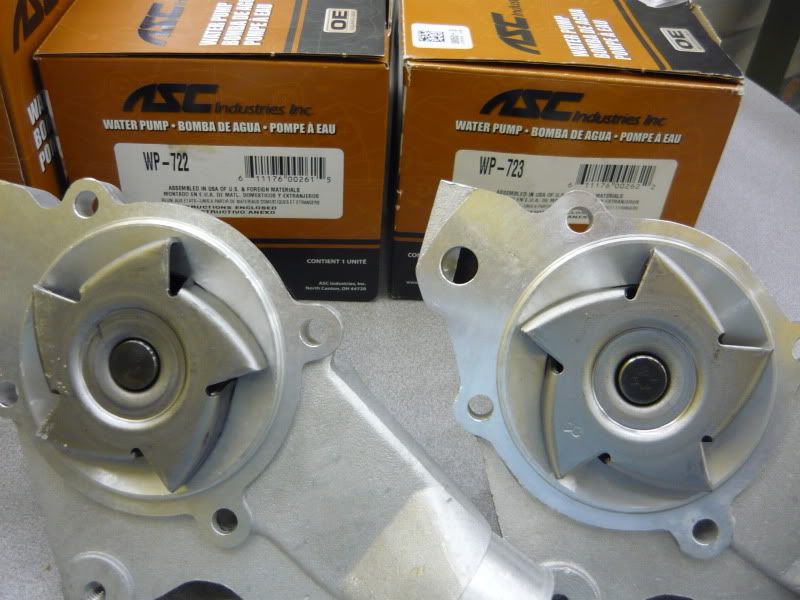

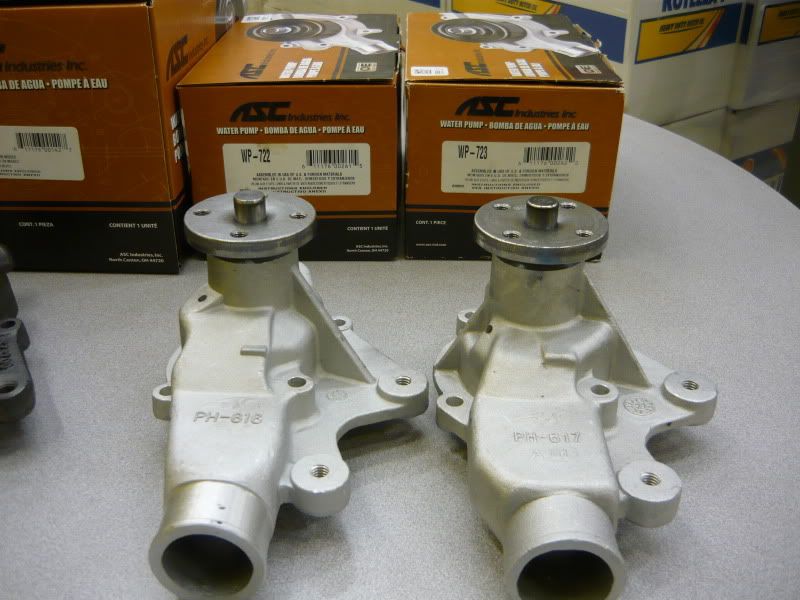

WP-722 = '87-'90 2.5L & '87-'90 4.2L V-belt standard rotation only
WP-723 = '87-'90 2.5L & '87-'90 4.2L Serpentine reverse rotation only
Notice that the pump has a threaded hole for the heater supply pipe to be threaded into the pump.

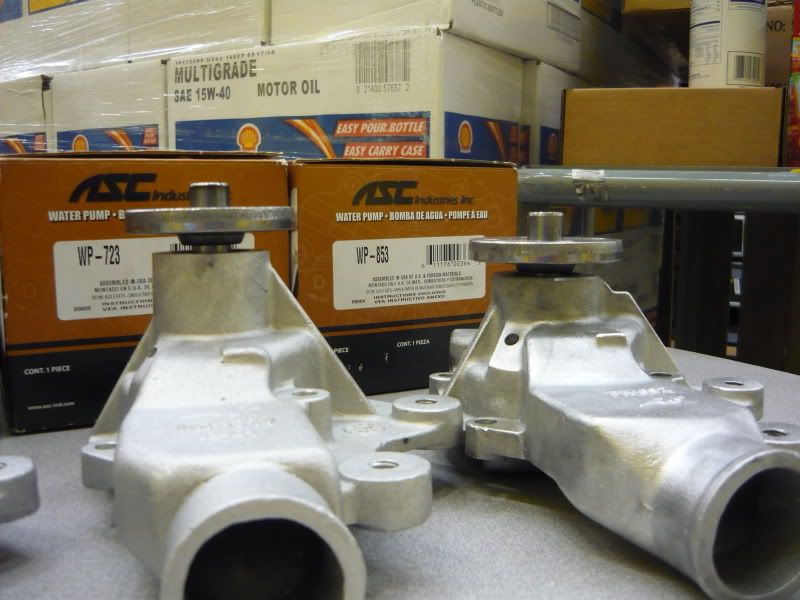

The waterpump on the right, part #WP-853 is a reverse rotation pump for Daimler-Chrysler YJs
Fitment:
WP-853 = '91-'02 2.5L YJ & TJ models & '91-'99 4.0L YJ & TJ models
Notice the lower profile shaft.


Max

__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.

Last edited by Mean Max; 01-13-2010 at 06:07 PM..
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 11-03-2009, 06:56 PM   #2
Alvy
Registered User
1993 YJ Wrangler

Join Date: Dec 2008
Location: Winter Haven, FL
Posts: 285
Thank you Maximus. Good info.
__________________
1993 YJ, AX15, 4.0L, 8.8 LSD w/3.73's, Lock-rite locker in front, S.O.A. JB4x4 high steer bracket, BrandonYJ 1" Booms, Rugged Ridge SS S.Y.E. XJ drive shaft, 35x12.50 BFG KM2's, Chevy Cavy seats, woods camo paint, 200,000 miles and still goin strong!
1993 Cherokee Country AW4,4.0L, 3.55's, 4" blocks in back, 4" TJ springs front, 31x10.50 BFG A/T, Ford Red paint, recently finished with 4wd conversion
Alvy is offline   Reply With Quote Quick reply to this message
Unread 11-03-2009, 07:03 PM   #3
shaggyjim
Registered User
1992 YJ Wrangler

Join Date: Nov 2008
Location: Grand Junction, Colorado
Posts: 974
WOW MAX! How did you talk them into that?
__________________
Jim...

"That's more fun than watching a hippie get mauled by a bear!"

"I love cats, I just can't eat a whole one!"
shaggyjim is offline   Reply With Quote Quick reply to this message
Unread 11-03-2009, 07:16 PM   #4
SeanMo
Registered User
1994 YJ Wrangler

Join Date: Aug 2009
Location: Los Gatos
Posts: 70
Nice job. Things like this are super helpful to all, but especially us newbies. Very much appreciated
__________________
'94 YJ, 2.5" lift on 32's
[URL="http://www.jeepforum.com/forum/f12/my-94-build-thread-880682/"][COLOR="Blue"][COLOR="Black"] [/COLOR] My"Build"[/COLOR][/URL]
SeanMo is offline   Reply With Quote Quick reply to this message
Unread 11-03-2009, 07:20 PM   #5
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,616
Quote:
Originally Posted by shaggyjim View Post
WOW MAX! How did you talk them into that?
If he knows his parts guy well enough, I am sure he said no problem glad to help.

I know the local advance auto asst mgr by name and have even worked on his jeep.
__________________

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline   Reply With Quote Quick reply to this message
Unread 11-03-2009, 07:40 PM   #6
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Quote:
Originally Posted by shaggyjim View Post
WOW MAX! How did you talk them into that?
Quote:
Originally Posted by rustywrangler View Post
If he knows his parts guy well enough, I am sure he said no problem glad to help.

I know the local advance auto asst mgr by name and have even worked on his jeep.
I used to be in the auto repair business, and I have not only worked with these guys for almost 25 years, I am personal friends with most all of them as well. They were more than glad to assist me in assembling these pictures & specs. They're all really great guys who are true professionals!

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 11-04-2009, 04:20 AM   #7
skynyrdchick
Registered User
1993 YJ Wrangler

Join Date: Jan 2009
Location: florida
Posts: 28
Quote:
Originally Posted by Mean Max View Post
I used to be in the auto repair business, and I have not only worked with these guys for almost 25 years, I am personal friends with most all of them as well. They were more than glad to assist me in assembling these pictures & specs.
I am sure they didn't mind because of your FATHER-IN-LAW! Remember the guy that they are all excited about because he's moving back to town??
skynyrdchick is offline   Reply With Quote Quick reply to this message
Unread 01-23-2010, 04:36 PM   #8
hotelconucc93
Senior Member

hotelconucc93's Avatar
2010 YJ Wrangler

Join Date: Jun 2008
Location: Chesterfield, VA, VA
Posts: 753
Max,

Where can I get a replacement pipe coming out of the water pump and can this be installed/removed with the water pump on the engine or will it not clear when twisting?
__________________
Axles and bolts and springs....Oh My!

My Build Thread --->>> http://www.jeepforum.com/forum/f12/t...ilding-869713/

Not my write up, but now one of my jeeps losing a BA and gaining an AX-> http://www.jeepforum.com/forum/f19/y...ite-up-312203/
hotelconucc93 is offline   Reply With Quote Quick reply to this message
Unread 01-23-2010, 10:17 PM   #9
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Quote:
Originally Posted by hotelconucc93 View Post
Max,

Where can I get a replacement pipe coming out of the water pump and can this be installed/removed with the water pump on the engine or will it not clear when twisting?
I have never seen one available in the aftermarket. They may exist, but are apparently scarce if they do.

The return pipe is threaded. It must be installed with the pump removed.

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 01-24-2010, 09:03 AM   #10
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,616
Take the old one into NAPA, they have lengths of threaded pipe like that. That is where I got mine at least.
__________________

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline   Reply With Quote Quick reply to this message
Unread 01-24-2010, 09:13 AM   #11
hotelconucc93
Senior Member

hotelconucc93's Avatar
2010 YJ Wrangler

Join Date: Jun 2008
Location: Chesterfield, VA, VA
Posts: 753
Thanks. Looked online all over the place. Sounds like best bet or repairing mine.

Chet
__________________
Axles and bolts and springs....Oh My!

My Build Thread --->>> http://www.jeepforum.com/forum/f12/t...ilding-869713/

Not my write up, but now one of my jeeps losing a BA and gaining an AX-> http://www.jeepforum.com/forum/f19/y...ite-up-312203/
hotelconucc93 is offline   Reply With Quote Quick reply to this message
Unread 01-27-2010, 10:04 AM   #12
hotelconucc93
Senior Member

hotelconucc93's Avatar
2010 YJ Wrangler

Join Date: Jun 2008
Location: Chesterfield, VA, VA
Posts: 753
Thanks! Fixed it, sanded and painted. Too much of a prize item it seems to let go easy.
__________________
Axles and bolts and springs....Oh My!

My Build Thread --->>> http://www.jeepforum.com/forum/f12/t...ilding-869713/

Not my write up, but now one of my jeeps losing a BA and gaining an AX-> http://www.jeepforum.com/forum/f19/y...ite-up-312203/
hotelconucc93 is offline   Reply With Quote Quick reply to this message
Unread 01-27-2010, 10:39 AM   #13
letitloose06
Registered User
1992 YJ Wrangler

Join Date: Feb 2008
Location: Beach Park, Illinois
Posts: 432
Quote:
Originally Posted by hotelconucc93 View Post
Max,

Where can I get a replacement pipe coming out of the water pump and can this be installed/removed with the water pump on the engine or will it not clear when twisting?
You can by the pipe from RockAuto Auto Parts

It's called a "Water Pump Inlet Tube"
DORMAN Part # 56398
__________________
1992 YJ 4.0L, AX-15, 4" RE Standard Lift, 35x12.5R15 BFG KM2's, 8.8 Rear, HP30 front, 4.10's, SYE and CV Driveshaft, Taurus Electric Fan, 136 A GC Alternator, Grand Prix Seats, RR HD Steering, JCR Off road Stage 2 Front Bumper, Custom Rear Bumper

1966 M416 1/4 Ton Cargo Trailer -- Build Thread
letitloose06 is offline   Reply With Quote Quick reply to this message
Unread 01-27-2010, 07:09 PM   #14
hotelconucc93
Senior Member

hotelconucc93's Avatar
2010 YJ Wrangler

Join Date: Jun 2008
Location: Chesterfield, VA, VA
Posts: 753
WOW thats a great site and a wonderful find. That needs to stay firmly in this thread for reference!!!!!!!! THANKS
__________________
Axles and bolts and springs....Oh My!

My Build Thread --->>> http://www.jeepforum.com/forum/f12/t...ilding-869713/

Not my write up, but now one of my jeeps losing a BA and gaining an AX-> http://www.jeepforum.com/forum/f19/y...ite-up-312203/
hotelconucc93 is offline   Reply With Quote Quick reply to this message
Unread 08-01-2010, 02:25 PM   #15
crqflier
Registered User
1999 TJ Wrangler

Join Date: Apr 2009
Location: San Diego
Posts: 507
Is there a way to tell if my water pump is reverse rotation without removing it? I see the lower profile and the possibilit of the R stamped on it, but really don't have anything to compare it to while it's mounted. Thanks.
