post #106 of 209 Old 02-22-2013, 10:15 AM
pete1991YJ
Registered User
1991 YJ Wrangler

Join Date: Mar 2012
Location: Niagara Falls
Posts: 1,876
Quote:
Originally Posted by vdubbles24 View Post
Thanks for top info.

Fuel gauge still not workin, gonna drop tank maybe this weekend and check ground. It's pegging full when on so I'm assuming bad ground.
There are some other ground locations to check also on the gauge. I know, I spent a day once finding out. Sometimes there is a cluster of grounds behind the e-brake pedal. If not there, then for sure there will be a bunch of grounds on teh dipstick bracket, behind the distributor on the passenger's side of the engine block.

The tank ground is actually a steel tab which is spot-welded onto the top of the sender unit FWIW. The pump grounds to that on the inside of the tank.

The gauges all have a single flexible circuit board behind them, which very often needs to have the contacts cleaned. One guy did a whole write-up about it: http://www.jeepforum.com/forum/f12/r...ter-how-991307

Hope that helps!


***--- Wrecking Crew member ---***
"I've prolly been around longer than you think"
pete1991YJ is offline
Sponsored Links
Advertisement

post #107 of 209 Old 02-22-2013, 10:19 AM
giggityjeeper
Registered User
1990 YJ Wrangler

Join Date: May 2007
Location: British Columbia
Posts: 4,022
Quote:
Originally Posted by pete1991YJ View Post
There are some other ground locations to check also on the gauge. I know, I spent a day once finding out. Sometimes there is a cluster of grounds behind the e-brake pedal. If not there, then for sure there will be a bunch of grounds on teh dipstick bracket, behind the distributor on the passenger's side of the engine block.

The tank ground is actually a steel tab which is spot-welded onto the top of the sender unit FWIW. The pump grounds to that on the inside of the tank.

The gauges all have a single flexible circuit board behind them, which very often needs to have the contacts cleaned. One guy did a whole write-up about it: http://www.jeepforum.com/forum/f12/r...ter-how-991307

Hope that helps!
thats were mine was and had same problem, dont drop the tank just yet.....

Started with some rust repairs ended in a SOA...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


family roll bar swap/upgrade..


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


1990 YJ. SOA, OME 36R 3.5" lift springs, OME 5/8 greasable shackles, OTT high steer, Custom cage, team Rush, Posi, 33 TSL swampers
giggityjeeper is offline
post #108 of 209 Old 02-22-2013, 11:02 AM
jonelby
Registered User
1990 YJ Wrangler

Join Date: Jan 2012
Location: The Mountains of Atlantic City
Posts: 19
Hello, I am on my second 90 YJ. You have done very well so far! Before dropping the tank, you might trace out the wiring in the harness at the left rear corner of the Jeep. You can probe the wires and figure out which one is power and which one is the ground signal. Read the relative ohm value (if the sender works) 90-0 depending on actual fuel level. This may help prove if your sender is bad or not, before you drop the tank.

If you are planning to drop the tank, I suggest you have about 3' of 1/4" & 3' of 5/16" fuel line to replace what's there. New clamps on hand would be a good idea too. A piece of duct tape to hold the new lines down in the valley of the top of the tank works well. This will avoid pinching the new lines when you put the tank back up. ( They do pinch easy too, since there is next to no room for margin of error in there.) Good luck.
jonelby is offline
post #109 of 209 Old 02-22-2013, 11:58 AM Thread Starter
vdubbles24
Registered User
1994 YJ Wrangler

Join Date: Feb 2013
Location: Grandview
Posts: 212
Is there any color diagrams to show which wire is what?
vdubbles24 is offline
post #110 of 209 Old 02-22-2013, 12:02 PM
giggityjeeper
Registered User
1990 YJ Wrangler

Join Date: May 2007
Location: British Columbia
Posts: 4,022
Quote:
Originally Posted by vdubbles24 View Post
Is there any color diagrams to show which wire is what?
ground is black....look up in on the side by the ebrake, if u see a black wire it will bethe ground, if its attached try cleaning it and doing it back up, mine was just hanging there from the PO and some wiring he had done on the stereo.....

stupid thing didnt work for 4 years and 10 seconds later works perfect,.... AHHhhhHHhh

Started with some rust repairs ended in a SOA...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


family roll bar swap/upgrade..


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


1990 YJ. SOA, OME 36R 3.5" lift springs, OME 5/8 greasable shackles, OTT high steer, Custom cage, team Rush, Posi, 33 TSL swampers
giggityjeeper is offline
post #111 of 209 Old 02-22-2013, 12:08 PM
pete1991YJ
Registered User
1991 YJ Wrangler

Join Date: Mar 2012
Location: Niagara Falls
Posts: 1,876
Quote:
Originally Posted by vdubbles24 View Post
Is there any color diagrams to show which wire is what?
Your best bet is to get a copy of the Hayne's manual and/or a Chilton's. Both should be in stock at larger auto parts stores.

Going from my memory, the tan wire at the dash cluster (and also the pump harness) is the one for the sender and gauge. You want to check the tan one with an ohm meter, the sender should vary from zero to 90 ohms.

Black is ground. Black with a small orange stripe is "hot" for the pump.

Best of all is to go on ebay and find a copy of the factory (dealership) service manual (FSM). There are people who still publish it but it costs like $120.

***--- Wrecking Crew member ---***
"I've prolly been around longer than you think"

Last edited by pete1991YJ; 02-22-2013 at 12:10 PM. Reason: explanation
pete1991YJ is offline
post #112 of 209 Old 02-22-2013, 05:43 PM
Yarz
Registered User
1990 YJ Wrangler

Join Date: Jan 2007
Location: Gibsonia, PA
Posts: 258
Quote:
Originally Posted by vdubbles24 View Post
Is there any color diagrams to show which wire is what?
For the fuel tank wiring? Here's the best I can find:

"Build a man a fire, and he'll be warm for a day. Set a man on fire, and he'll be warm for the rest of his life."

1990 White YJ TBI350, SM465, NP231, SOA, RE 1.5" SOA springs, Ford 8.8, D30, 4.10's, JBConversions SYE, XJ shaft, Bilstein 5150s, jb4x4 steering, MORE SS brakelines, 35x12.50 15 MT's, '95 YJ Brake Booster, '78 Grand Marquis MC, ZJ Prop. Valve
Yarz is offline
post #113 of 209 Old 02-22-2013, 06:42 PM
jonelby
Registered User
1990 YJ Wrangler

Join Date: Jan 2012
Location: The Mountains of Atlantic City
Posts: 19
That diagram won't apply here. The OP has a carbed six with a mechanical fuel pump. No pump in tank.

There is a molex connector inside the left rear corner of the tub above the plastic mud shield ( behind the left tail lamp). From my memory, you can look at the wire loom and see the wires that disappear to the top of the tank. 3 of them. A ground, a positive signal wire, and the signal back to the gauge, which I think was tan. Its easy to confirm the signal color wire if you take out the gauge cluster and look at the connector and trace the copper ribbon to he fuel gauge pin out. You can ground the signal wire to simulate a full reading to verify the gauge works. Ohm out the sender to see if you have a resistance reading between 0-90 ohms. Sorry to leave you here, but there are a few write ups on this forum about this
jonelby is offline
post #114 of 209 Old 02-22-2013, 07:03 PM
pete1991YJ
Registered User
1991 YJ Wrangler

Join Date: Mar 2012
Location: Niagara Falls
Posts: 1,876
Quote:
Originally Posted by jonelby View Post
That diagram won't apply here. The OP has a carbed six with a mechanical fuel pump. No pump in tank.

There is a molex connector inside the left rear corner of the tub above the plastic mud shield ( behind the left tail lamp). From my memory, you can look at the wire loom and see the wires that disappear to the top of the tank. 3 of them. A ground, a positive signal wire, and the signal back to the gauge, which I think was tan. Its easy to confirm the signal color wire if you take out the gauge cluster and look at the connector and trace the copper ribbon to he fuel gauge pin out. You can ground the signal wire to simulate a full reading to verify the gauge works. Ohm out the sender to see if you have a resistance reading between 0-90 ohms. Sorry to leave you here, but there are a few write ups on this forum about this
It is indeed tan and goes to pin 8 (IIRC) similar to the diagram. Same deal on my injected model. Grounds are black (and most likely corroded all to heck and gone).

***--- Wrecking Crew member ---***
"I've prolly been around longer than you think"
pete1991YJ is offline
post #115 of 209 Old 02-22-2013, 08:11 PM Thread Starter
vdubbles24
Registered User
1994 YJ Wrangler

Join Date: Feb 2013
Location: Grandview
Posts: 212


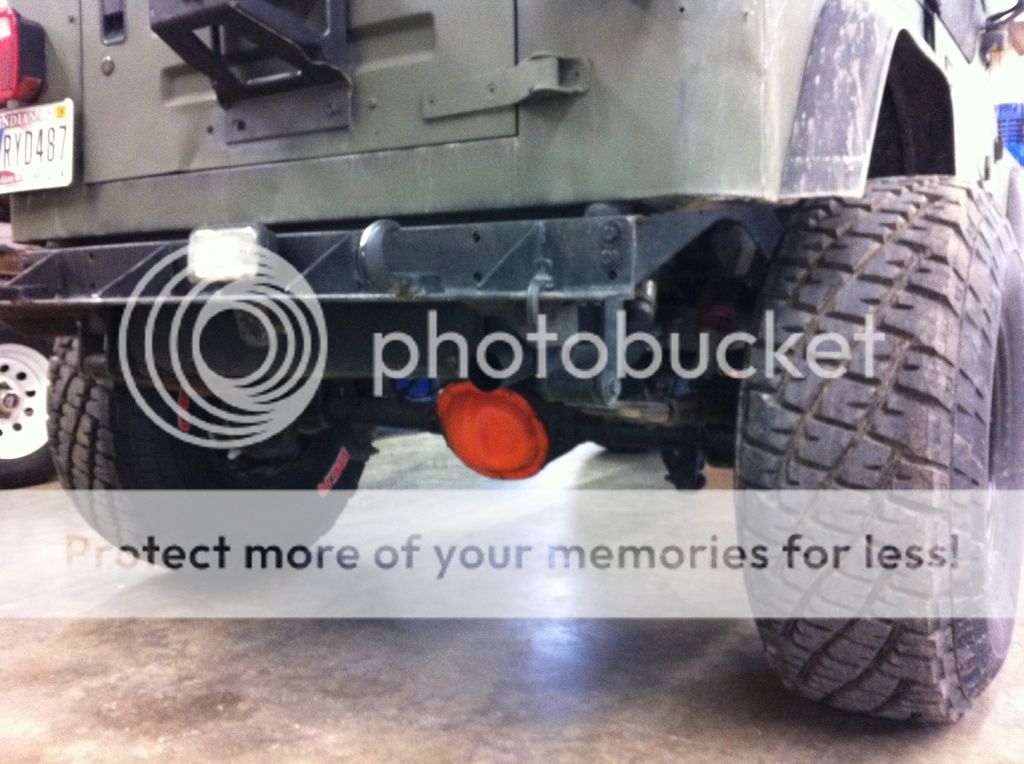

Shot of tail pipe from new exhaust. Wanted it hid as much as possible.



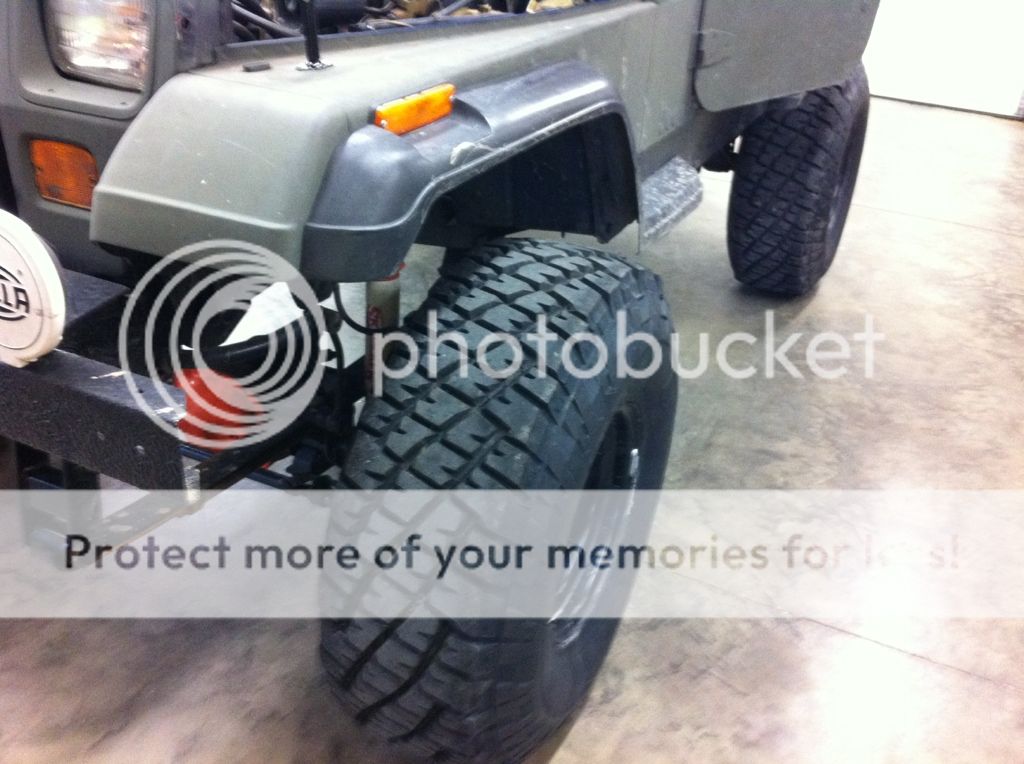

Pic of tires.



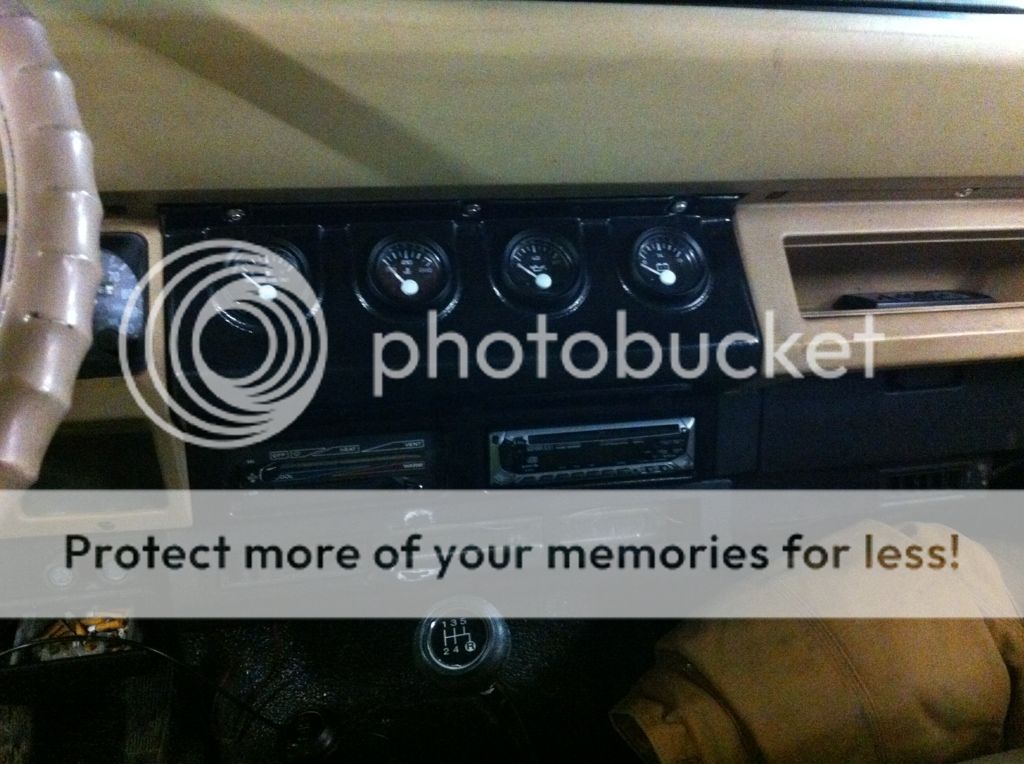

New guages, shift knob, and old school ken wood deck. As you can see I need a few vents. "Still searching for those"

You can see the guages I have. I'm gonna mess with wiring tomorrow in day light. I have no garage. Pics were takin in my buddies garage earlier.
vdubbles24 is offline
post #116 of 209 Old 02-22-2013, 09:25 PM Thread Starter
vdubbles24
Registered User
1994 YJ Wrangler

Join Date: Feb 2013
Location: Grandview
Posts: 212
http://www.summitracing.com/parts/re...s/?prefilter=1
"This link just had the pic, same brand etc etc etc."

Picked up one of these little hitches today at autozone. I was gonna bolt/weld it to my rear bumper. Just to pull a small 4x8 trailer to haul trash to dump weekly. I'm talkin less than 500lb load. "Average 150lb a week, 4 kids and one of them in diapers, man we make a lot of garbage" anyhow can I get opinions on these before I weld it up? In case I need to take it back instead.

Thanks
Brandon
vdubbles24 is offline
post #117 of 209 Old 02-22-2013, 09:27 PM Thread Starter
vdubbles24
Registered User
1994 YJ Wrangler

Join Date: Feb 2013
Location: Grandview
Posts: 212
I posted pic of my rear bumper earlier.
vdubbles24 is offline
post #118 of 209 Old 02-22-2013, 10:02 PM
pete1991YJ
Registered User
1991 YJ Wrangler

Join Date: Mar 2012
Location: Niagara Falls
Posts: 1,876
Looks like it should work.

***--- Wrecking Crew member ---***
"I've prolly been around longer than you think"
pete1991YJ is offline
post #119 of 209 Old 02-24-2013, 07:28 PM Thread Starter
vdubbles24
Registered User
1994 YJ Wrangler

Join Date: Feb 2013
Location: Grandview
Posts: 212
How can I tell what tranny I have? Cold mornings it feels like I'm shifting a stick in mud. The oil is thick. I wanna service it. I think it's a ax-15 but wanna make sure.
vdubbles24 is offline
post #120 of 209 Old 02-24-2013, 07:39 PM
pete1991YJ
Registered User
1991 YJ Wrangler

Join Date: Mar 2012
Location: Niagara Falls
Posts: 1,876
Quote:
Originally Posted by vdubbles24 View Post
How can I tell what tranny I have? Cold mornings it feels like I'm shifting a stick in mud. The oil is thick. I wanna service it. I think it's a ax-15 but wanna make sure.
The 6-cylinders all had the AX-15 far as I know. Earlier models 87-89 *might* have had the piece-of-crap Renault BA-10/5. That one is easy to spot because its case splits longitudinally.

The 4-cylinders all had the AX-5 far as I know.

Both trannies are very well supported with all the guts and rebuild kits available at Quadratec. The recommended oil is 10-W30 motor oil. Yep you read that right. Takes about 2 quarts.
The easy way to fill it it thru the shift tower ntil it runs out the side fill plug. Hope that clarifies!

***--- Wrecking Crew member ---***
"I've prolly been around longer than you think"

Last edited by pete1991YJ; 02-24-2013 at 07:41 PM. Reason: typos
pete1991YJ is offline
