Is the TJ/XJ Axle Shaft a different diameter?

Recent my actuator went out, and I was looking for different ways to fixing it, and I of course inquired about a new actuator, and Posi-Lok, and was then informed I could forego the whole CAD system and swap in a TJ / XJ front axle shaft (passenger side), so I went and picked one up today.

But something struck me: is this shaft thicker than my stock YJ shafts?

Also, if anyone else has done this, where did you seal the axle?

I plan on doing the swap tomorrow, so information would be awesome!

idskot is offline   Reply With Quote Quick reply to this message
Unread 12-26-2011, 10:52 PM   #2
kloppk
Registered User
1992 YJ Wrangler

Join Date: Oct 2006
Location: , Massachusetts
Posts: 2,721
Yup - the TJ/XJ shaft will fit.
You will need to install a NAPA 11800 seal in the passengers side of the diff in the axle tube.
Will require pulling the carrier out to install the seal.
__________________
Baystate Jeepers
Deep Woods Extreme
New England 4 Wheelers
kloppk is offline   Reply With Quote Quick reply to this message
Unread 12-26-2011, 10:57 PM   #3
toolegit86
Registered User
1989 YJ Wrangler

Join Date: Dec 2011
Location: tri, wa
Posts: 32
i think Tjs are 30 spline. U can swap them in but need a locker or spiders with matching splines. Xj work. Look for the 270x ujoint axles 96 and up there the strongest oem.
__________________
Adrenaline Motorsports
1989 yj. Hp60f/60rear disk. Teralow 4.6stroker. All the bolt ons..etc..
1983 camaro build in progress. 1996 dodge tow rig.
2005 gto corvette spec 6.0 6 speed
toolegit86 is offline   Reply With Quote Quick reply to this message
Unread 12-26-2011, 10:57 PM   #4
Joe Dillard
Electric Chair Operator
1991 YJ Wrangler

Join Date: May 2004
Location: King George, VA
Posts: 12,414
The TJ/XJ 1 piece passenger side shafts are actually smaller in diameter.

I sealed my old HPD30 at the carrier. Lots of folks use Napa PN CR11800.

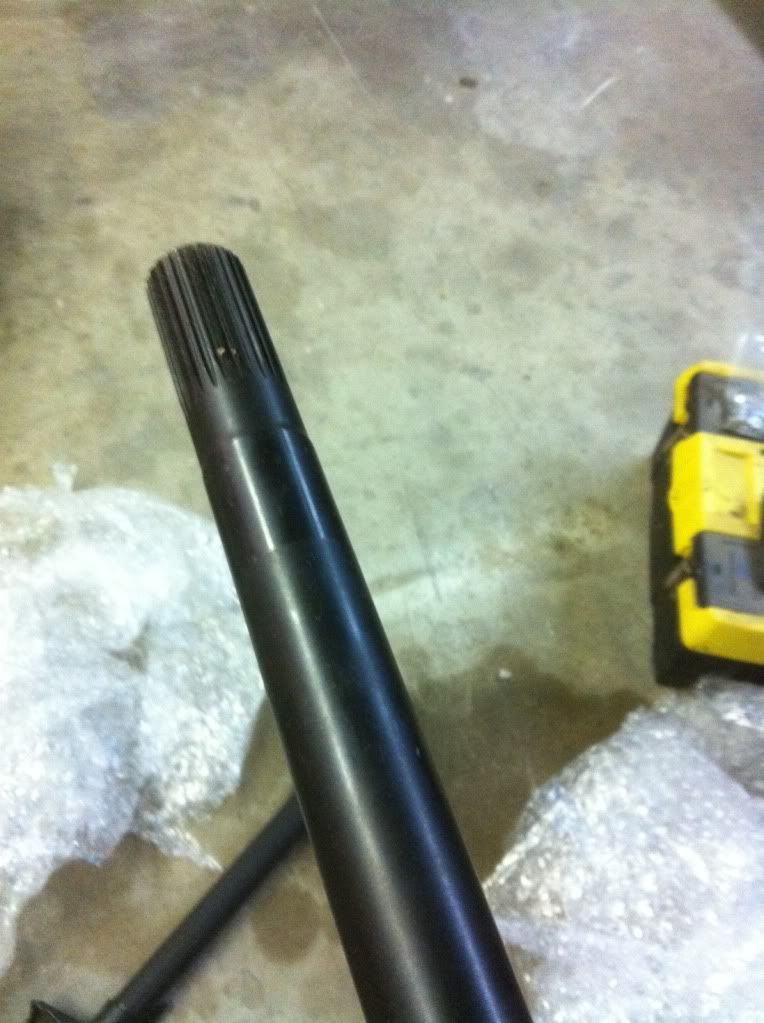

This is a TJ on top, YJ bottom & the seal package:


Joe Dillard is offline   Reply With Quote Quick reply to this message
Unread 12-26-2011, 10:59 PM   #5
Joe Dillard
Electric Chair Operator
1991 YJ Wrangler

Join Date: May 2004
Location: King George, VA
Posts: 12,414
Quote:
Originally Posted by toolegit86 View Post
i think Tjs are 30 spline. U can swap them in but need a locker or spiders with matching splines. Xj work. Look for the 270x ujoint axles 96 and up there the strongest oem.
Joe Dillard is offline   Reply With Quote Quick reply to this message
Unread 12-26-2011, 11:01 PM   #6
toolegit86
Registered User
1989 YJ Wrangler

Join Date: Dec 2011
Location: tri, wa
Posts: 32
Before i broke my cad axle i was lookin to do this swap. And i was told tj shafts are 30 spline. And could do the swap if i put a locker or spiders n... I put a hp60 and trashed the 30 lol
__________________
Adrenaline Motorsports
1989 yj. Hp60f/60rear disk. Teralow 4.6stroker. All the bolt ons..etc..
1983 camaro build in progress. 1996 dodge tow rig.
2005 gto corvette spec 6.0 6 speed
toolegit86 is offline   Reply With Quote Quick reply to this message
Unread 12-26-2011, 11:05 PM   #7
Joe Dillard
Electric Chair Operator
1991 YJ Wrangler

Join Date: May 2004
Location: King George, VA
Posts: 12,414
Somebody gave you bogus info.

Check the TJ stock sticky spec post #8 here: http://www.jeepforum.com/forum/f9/st...1/#post4118396
Joe Dillard is offline   Reply With Quote Quick reply to this message
Unread 12-26-2011, 11:33 PM   #8
idskot
Registered User
1991 YJ Wrangler

Join Date: Dec 2011
Location: Miami, Florida
Posts: 814
Quote:
Originally Posted by Joe Dillard View Post
The TJ/XJ 1 piece passenger side shafts are actually smaller in diameter.

I sealed my old HPD30 at the carrier. Lots of folks use Napa PN CR11800.

This is a TJ on top, YJ bottom & the seal package:


Would it be considered bad practice to seal it at the CAD entry rather than at the carrier?

The reasoning behind this is because I've never took a carrier out, and I'd rather keep it simple and put more gear fluid in there.
idskot is offline   Reply With Quote Quick reply to this message
Unread 12-26-2011, 11:47 PM   #9
idskot
Registered User
1991 YJ Wrangler

Join Date: Dec 2011
Location: Miami, Florida
Posts: 814
Also: There's a bit of rust toward the end of the shaft, should I sand it down a tip?

And can I also reuse the ujoint I have already?

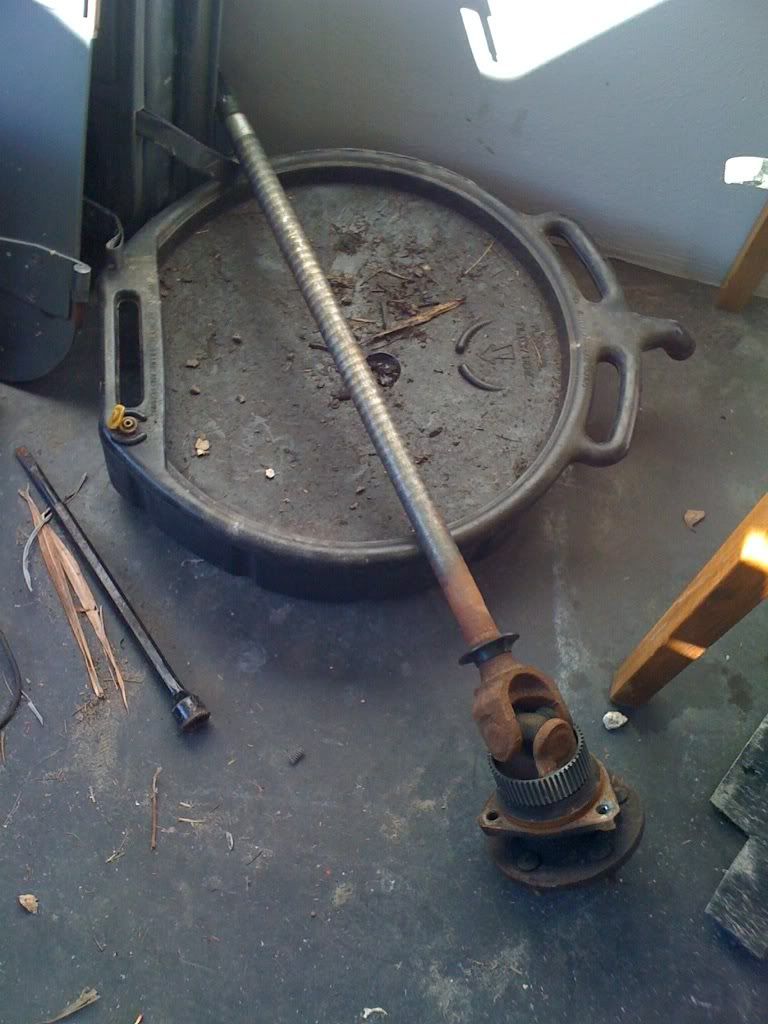

Here's a picture of the shaft (I pulled it out of an XJ)



(Excuse the dirty oil pan. I left it out side and the lawn guy was blowing stop everywhere.)
idskot is offline   Reply With Quote Quick reply to this message
Unread 12-27-2011, 12:14 AM   #10
timatoe
Registered User
1990 YJ Wrangler

Join Date: Aug 2006
Location: Grass Valley California
Posts: 13,788
The seal goes at the end down there by the splines, where it's all nice and shiny so no need for sanding anything. If you Google "TJ shaft in YJ" you'll get tons of info.
__________________
Quote:
Originally Posted by George Orwell
We sleep safe in our beds because rough men stand ready in the night to visit violence on those who would do us harm.
timatoe is offline   Reply With Quote Quick reply to this message
Unread 12-27-2011, 01:34 AM   #11
Anticanman
Follow me

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon, California
Posts: 19,235
Quote:
Originally Posted by timatoe View Post
The seal goes at the end down there by the splines, where it's all nice and shiny so no need for sanding anything. If you Google "TJ shaft in YJ" you'll get tons of info.
__________________
Luck Favours The Prepared
[SIGPIC][/SIGPIC]
Anticanman is offline   Reply With Quote Quick reply to this message
Unread 12-27-2011, 01:36 AM   #12
Anticanman
Follow me

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon, California
Posts: 19,235
And no, the ujoints are different from yj to tj/xj.
__________________
Luck Favours The Prepared
[SIGPIC][/SIGPIC]
Anticanman is offline   Reply With Quote Quick reply to this message
Unread 12-27-2011, 02:56 AM   #13
idskot
Registered User
1991 YJ Wrangler

Join Date: Dec 2011
Location: Miami, Florida
Posts: 814
Quote:
Originally Posted by Anticanman View Post
And no, the ujoints are different from yj to tj/xj.
So should I just use that whole assembly? Just pop it in and reconnect the rotor / brakes?

& will I have a balance issue?

Last edited by idskot; 12-27-2011 at 03:15 AM..
idskot is offline   Reply With Quote Quick reply to this message
Unread 12-27-2011, 06:36 AM   #14
jeepinmichguy_
I haz ah Geep

jeepinmichguy_'s Avatar
2003 TJ Wrangler

Join Date: Jul 2009
Location: The Sticks, Alabama
Posts: 7,379
Quote:
Originally Posted by toolegit86 View Post
i think Tjs are 30 spline. U can swap them in but need a locker or spiders with matching splines. Xj work. Look for the 270x ujoint axles 96 and up there the strongest oem.

They are 27 spline.
__________________
ΜΟΛΩΝ ΛΑΒΕ

Quote:
Originally Posted by TheBoogieman View Post
Jeepinmichguy is a jerk.
Quote:
Originally Posted by mrblaine View Post
How about this, if you had the Jeep Spirit, you wouldn't abuse the rest of us trying to enjoy a nice day out wheeling by bringing your brokeass broken down junkyard crap out to play where it can't handle it?
Quote:
Originally Posted by JeepForum123 View Post
you all have nice rigs, stop being f****** a**holes.
jeepinmichguy_ is offline   Reply With Quote Quick reply to this message
Unread 12-27-2011, 09:28 AM   #15
Anticanman
Follow me

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon, California
Posts: 19,235
Quote:
Originally Posted by idskot View Post
So should I just use that whole assembly? Just pop it in and reconnect the rotor / brakes?

& will I have a balance issue?
No balance issue unless you're talking about your driveshaft, it may. Eed to be balanced. The whole setup is fine to just install but take the opportunity to replace the ujoints in the xj shafts with 760 series hardware. You'll thank yourself later even if it's because you have new joints.
__________________
Luck Favours The Prepared
[SIGPIC][/SIGPIC]
Anticanman is offline   Reply With Quote Quick reply to this message
