Unread 05-01-2012, 05:57 PM   #46
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,058
Ranger arm showed up looks like its going to work. I will have to remove my swaybar at full lock it will interfere with the draglink nut.
I still have to file the keyways but I test fit it and it gives just enough clearance. We shall see when the driver tire is at full stuff. Goferit inserts should be here Thursday.
From left to right, stock YJ , '91 2 wheel drive manual ranger (Got at local yard), '83 2 wheel drive power steering ranger.

__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote Quick reply to this message
Unread 05-01-2012, 06:44 PM   #47
Louie4
Powah Injanir

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh, NC
Posts: 9,977
Good deal. Be sure to take a pic of the final product.
__________________
Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is online now   Reply With Quote Quick reply to this message
Unread 05-01-2012, 06:57 PM   #48
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,058
Quote:
Originally Posted by Louie4 View Post
Good deal. Be sure to take a pic of the final product.
Will do should be by this weekend!!!
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote Quick reply to this message
Unread 05-01-2012, 08:50 PM   #49
fratis
......

fratis's Avatar
1991 YJ Wrangler

Join Date: Dec 2003
Location: Hale'iwa, Hawai'i
Posts: 4,914
Quote:
Originally Posted by Anticanman View Post
Perhaps you can try to find a shorter arm somewhere.
have to be careful as you can reduce steering radius with a short pitman.

Quote:
Originally Posted by Louie4 View Post
Right now I got a bead on a Teraflex cross-over steering knuckle with 1.5" O.D. tie rod, and I'm unsure about the size of the drag link. It also has 1 ton TRE's.
the problem with that knuckle is the arm itself is too long and again reduces turning radius by quite a bit.

Quote:
Originally Posted by Louie4 View Post
I may look at flipping the stock pitman arm and reaming it.
the splined section of pitman arms are tapered as well. flipping it wont work.
__________________
-insert meaningless out-of-place political diatribe-
fratis is offline   Reply With Quote Quick reply to this message
Unread 05-01-2012, 08:57 PM   #50
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,058
Quote:
Originally Posted by fratis
they are tapered. did you try flipping it?
The hole on the manual ranger arm is smaller than the power steering one. I got a power steering one and its only about a half inch shoter than stock YJ one I think I will be fine. I hope.
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote Quick reply to this message
Unread 05-01-2012, 09:39 PM   #51
Louie4
Powah Injanir

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh, NC
Posts: 9,977
Quote:
Originally Posted by fratis View Post
the problem with that knuckle is the arm itself is too long and again reduces turning radius by quite a bit.

the splined section of pitman arms are tapered as well. flipping it wont work.
Unfortunately I already have the knuckle so I'll just have to make due. For some reason I thought the splined section of the pitman arm wasn't tapered because the splines on the sector shaft is tapered. Either way I could just drill the arm through and put a heim joint on top and gain some clearance. Will see how it turns out and if I even need to go that route.
__________________
Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is online now   Reply With Quote Quick reply to this message
Unread 05-02-2012, 12:09 AM   #52
fratis
......

fratis's Avatar
1991 YJ Wrangler

Join Date: Dec 2003
Location: Hale'iwa, Hawai'i
Posts: 4,914
the distance from the hole to the top ball joint is almost 9". my dana 60 arm is even shorter. some people have drilled their own hole in the arm of the knuckle and hacked off some of the length. for my funky front axle build i made my own pitman arm. ill be making another shortly and it will be my third. not hard to do.
__________________
-insert meaningless out-of-place political diatribe-
fratis is offline   Reply With Quote Quick reply to this message
Unread 05-02-2012, 08:46 PM   #53
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,058
I need to go find a bigger stump.

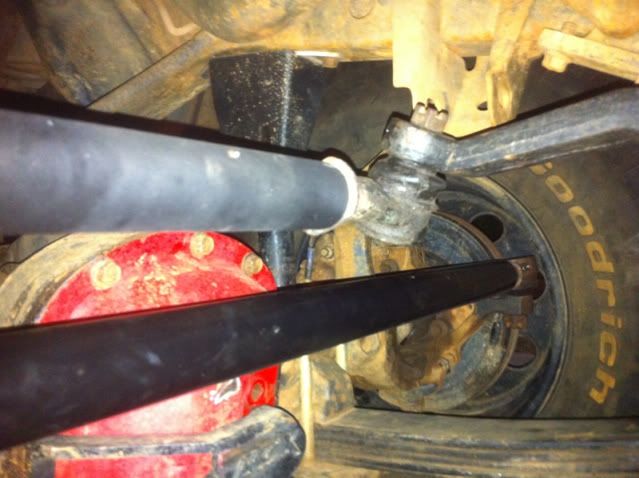

Looks like it will all clear






Just need to order one more goferit insert I didn't think about the pitman arm its reamed bigger than the YJ tre. I tried to make the ranger tre work but the threads are bigger and won't fit the draglink. Unless I can think of something else?????
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote Quick reply to this message
Unread 05-03-2012, 02:32 PM   #54
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,058
Just placed an order for one more Goferit insert. Hope it gets here as soon as the last one did. Now to focus on getting bumpstops in and building a real cage
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote Quick reply to this message
Unread 05-07-2012, 06:51 PM   #55
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,058
I don't think that insert is coming out of the pitman arm.
forumrunner_20120507_174632.jpg Got it all back together and took it for a spin around the block. Works good can't wait to more road time in. Got to watch the kids so wife can have a break. More testing tomorrow!!
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote Quick reply to this message
Unread 05-11-2012, 10:08 PM   #56
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,058
Tested it real good today towed my dirt bike with it for 80 miles and it did great. Steering is tight no binding. I also flexed it out real good out at my parents ranch and it
Has about 1" of clearance at full stuff with pitman arm drag link I'm real happy.
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote Quick reply to this message
Unread 05-12-2012, 10:47 AM   #57
Louie4
Powah Injanir

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh, NC
Posts: 9,977
That's great! I have my knuckle painted and will hopefully get to installing it next week depending on the weather.
__________________
Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is online now   Reply With Quote Quick reply to this message
Unread 05-12-2012, 12:23 PM   #58
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,058
Quote:
Originally Posted by Louie4
That's great! I have my knuckle painted and will hopefully get to installing it next week depending on the weather.
Cool! I will be keeping an eye on your thread to see how it goes.
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote Quick reply to this message
Unread 05-30-2012, 10:10 PM   #59
Louie4
Powah Injanir

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh, NC
Posts: 9,977
skyj,

Looks like I may be going the route you went unless I find a flat arm from an Astro van or something.

__________________
Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is online now   Reply With Quote Quick reply to this message
Unread 05-30-2012, 10:50 PM   #60
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,058
Quote:
Originally Posted by Louie4
skyj,

Looks like I may be going the route you went unless I find a flat arm from an Astro van or something.
If you go with the ranger arm make sure its out of a 80's 2 wheel drive "power steering". I would go with the ranger arm over an astro, an astro will put your draglink behind your tie rod. I didn't lose any turning radius I can still go lock to lock. I guess with the tera knuckle you wouldnt have any interference with the two unlike my stock setup with the draglink attaching to the tie rod.
If you go with a flat arm will you have interference with the frame? The ranger arm has at least a half inch drop.
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is offline   Reply With Quote Quick reply to this message
