Unread 09-29-2012, 02:54 PM   #31
shockboss17
Registered User
1995 YJ Wrangler

Join Date: Dec 2011
Location: wilmington, delaware
Posts: 118
I just completed my splash quard, I used 1/4 inch think aluminum plate from Home Depot, it covers the alternator, n the underbelly, hopefully it hold up, let me know your comments. Not the prettyiest job but hopefully it will do

image-3029983261.jpg   image-1078426508.jpg   image-2725598230.jpg   image-4203022518.jpg
shockboss17 is offline   Reply With Quote Quick reply to this message
Unread 10-30-2012, 02:09 PM   #32
LeJerk
Registered User
2009 JK Wrangler

Join Date: Jun 2010
Location: Colorado
Posts: 78
Quote:
Originally Posted by Feetwet View Post
Here's a quick sketch with rough dimensions.
Is it 20" by...?
LeJerk is offline   Reply With Quote Quick reply to this message
Unread 01-30-2013, 08:24 AM   #33
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta, GA
Posts: 339
Wonder if something like this will work.. Mine is a little torn at the mounting holes:

http://www.amazon.com/gp/product/B00...TF8&psc=1&s=hi
atldude is offline   Reply With Quote Quick reply to this message
Unread 01-30-2013, 02:31 PM   #34
Jay-P
Registered User
1992 YJ Wrangler

Join Date: Aug 2002
Location: Winnipeg, MB, Canada
Posts: 263
Quote:
Originally Posted by atldude View Post
Wonder if something like this will work.. Mine is a little torn at the mounting holes:

http://www.amazon.com/gp/product/B00...TF8&psc=1&s=hi
I guess if you could get it tight enough as to not become a wind catch if the front middle flops down.
__________________
1992 YJ + 2012 JKUR
Jay-P is offline   Reply With Quote Quick reply to this message
Unread 01-30-2013, 05:27 PM   #35
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 817
Looks like that stuff would work. A little thin, maybe.

The front connects to the crossmember right behind the radiator using nylon barbed pushpins, 4 of em I think. If you get em tight it shouldn't flop around too bad.
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline   Reply With Quote Quick reply to this message
Unread 01-30-2013, 05:36 PM   #36
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta, GA
Posts: 339
Thanks guys. Was debating on 1/4 vs 1/8 in thick maybe 1/4 would hold up better. I think my oem is about 1/8 but a little less flexible than rubber. Thought abouta metal sheet but .. I think i'll stick to something a little more flex and without sharp edges. Would be real nice to have molded plastic aftermArket piece that bols on to the frame holes
atldude is offline   Reply With Quote Quick reply to this message
Unread 03-27-2013, 10:07 AM   #37
Alheim
Registered User
1995 YJ Wrangler

Join Date: Apr 2002
Location: nyc
Posts: 507
Quote:
Originally Posted by Feetwet View Post
That's funny Idso, I just had the oil pan off for a new gasket install. Popped out 2 dents and painted it with some shiny black rattlecan. Looks wet with oil though, doesn't it?

Anyway, took some measurements as promised. Here's a quick sketch with rough dimensions. Ignore the radiator location. I drew it in the wrong spot. It is actually in FRONT of the leading edge of the shield. The shield attaches to the cross member just behind the radiator, for you guys trying to fab up and install one. Just refer back to the earlier pics.



It installs using those plastic barbed push pins with the large round head. As I said earlier, I reinforced with wire here and there.

Hope this helps someone.
Awesome sketch. Thanks on behalf of The Internet.
__________________
'95 YJ 123bhp 4-banger powerhouse.
UPDATE: 2.5L ENGINE RETIRED; she was still running strong at 212,000mi.
4.0 swap in progress.
Alheim is offline   Reply With Quote Quick reply to this message
Unread 03-27-2013, 02:03 PM   #38
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 817
Quote:
Originally Posted by Alheim View Post
Awesome sketch. Thanks on behalf of The Internet.
What, no love from the Library of Congress??

Thanks..
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline   Reply With Quote Quick reply to this message
Unread 03-27-2013, 07:47 PM   #39
Blackfish
Registered User
1995 YJ Wrangler

Join Date: Mar 2008
Location: Ash NC
Posts: 204
mine was removed, when I used it for anger management trying to drill and tap a manifold bolt, I can tell you that was the best use for it. of course its always a good way to get rid of those loose tie raps laying around.
__________________
My boss made the comment that "I bet you missed me over the holiday break",my response was "yes your right I did, but my aim is getting better"
Blackfish is offline   Reply With Quote Quick reply to this message
Unread 07-15-2013, 03:09 PM   #40
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta, GA
Posts: 339
So i found the part available at vpartsinc.com part number for 2.5l '95 is 55174919 about $9 +$9 for shipping. This is cheaper for me than any other option simply cause i would have to buy the material whether it be rubber or alum/metal sheet. I just ordered so i'll let you guys know when it gets here.

Cheers!
atldude is offline   Reply With Quote Quick reply to this message
Unread 07-17-2013, 02:58 PM   #41
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta, GA
Posts: 339

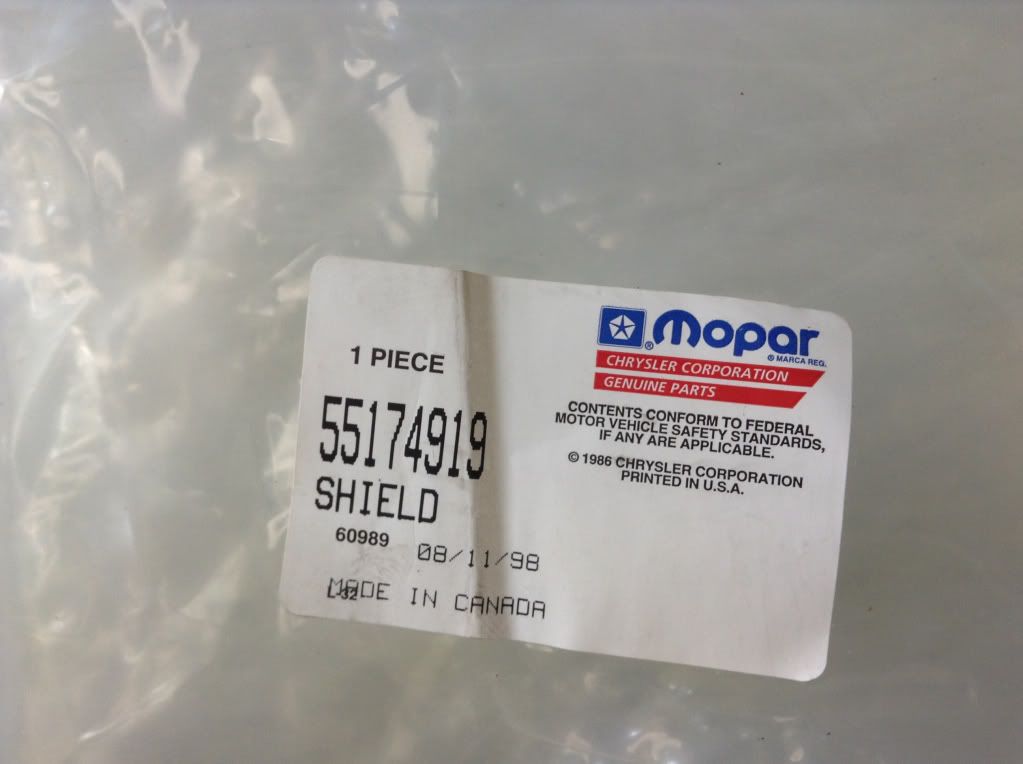

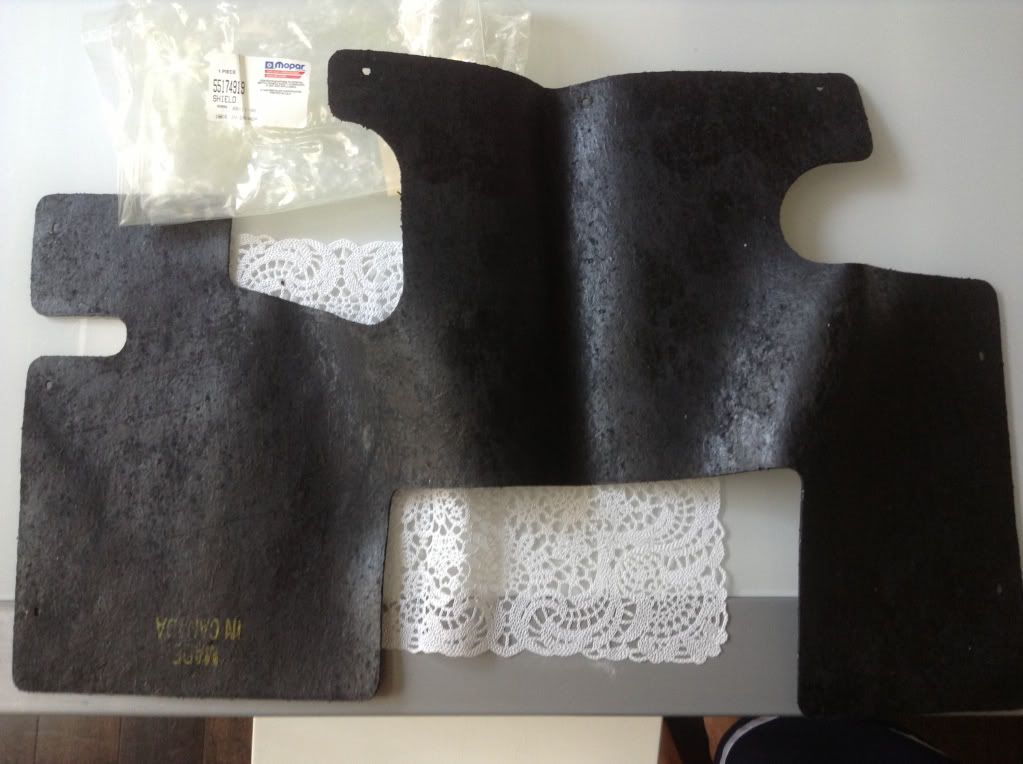

And it just arrived! Made in canada in 1998




atldude is offline   Reply With Quote Quick reply to this message
Unread 07-17-2013, 03:02 PM   #42
Brown Dog
Vendor

Brown Dog's Avatar
1991 YJ Wrangler

Join Date: Nov 2005
Location: Queen Creek, Arizona
Posts: 3,532
Does that fancy place mat come with it? If it does, I'm in!
__________________
Brown Dog Offroad
http://www.browndogoffroad.com

The Jeep Forum Discount is ON!!

Motor Mounts, Motor Mount Lifts (MML), and Engine Brackets for Jeep
100% HANDCRAFTED IN AMERICA


91YJ 2.5
Brown Dog Mounts and Engine Brackets (Serial Number 1)
2" BL
4.5" Superlift SL
AA SYE
35" GoodYear Mud Terrains
Conteract Balancing Beads
Bulldog front bumper
Best Top seats
"Family" roll bar
25 foot 1/2" log chain
No Top, No Doors (Best Top Safari)
Brown Dog is offline   Reply With Quote Quick reply to this message
Unread 07-17-2013, 03:20 PM   #43
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta, GA
Posts: 339
Lol u get a set of 4! Pull the trigger
atldude is offline   Reply With Quote Quick reply to this message
