Unread 08-09-2012, 10:00 PM   #16
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 817
Quote:
Originally Posted by TSEJEEPERS View Post
Mine had one too when I bought it new in 93.
I got tired of trying to keep it fastened and took it off long ago.
If I remember right it was held to the frame with the type of pins that hold the door panels on.
That's correct. Like I said above, I reinforced it with wire. I like having it on there.

__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline   Reply With Quote Quick reply to this message
Unread 08-10-2012, 12:12 AM   #17
deathtrap
Registered User
1993 YJ Wrangler

Join Date: Jun 2011
Location: Hemet, CA.
Posts: 339
I still use mine, I keep fixing it with zip ties. It would be nice to find a source for this material. I have heard of some type of roofing stuff that is real close. Any roofers on hear know? There is also some flaps on the front inner fenders made of it.
deathtrap is offline   Reply With Quote Quick reply to this message
Unread 08-10-2012, 01:59 AM   #18
cubewhiz
Registered User
1995 YJ Wrangler

Join Date: Sep 2009
Location: Kearny, New Jersey
Posts: 1,089
I'd still like to see a pic of one.
__________________
95 YJ with V8 going in, BDS 3.5" lift with MORE 5/8" boomerangs
Toyo Open Country M/T 33x12.50R15 on Cragar Soft 8 15x8 wheels
[URL="http://www.jeepforum.com/forum/f12/bobs-build-thread-1081112/"]My Build Thread[/URL]
--------
My new Jeep: 95 ZJ with 4.0L I6 (auto trans)
cubewhiz is offline   Reply With Quote Quick reply to this message
Unread 08-10-2012, 12:57 PM   #19
mrdeath2000
Registered User
1993 YJ Wrangler

Join Date: Jun 2011
Location: Surprise,, AZ
Posts: 652
I'd like to have one. Last time I went blasting through some water, then I pulled off and heard funny noises from the engine which was my alternator yelling at me. It still works, but waited there for like 5 minutes until it stopped making noises.
__________________
93' YJ 2.5L, 4.88's, 8.8, E-Locker & LSD
mrdeath2000 is offline   Reply With Quote Quick reply to this message
Unread 08-10-2012, 04:54 PM   #20
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 817
Here's some pics of the guard in place.

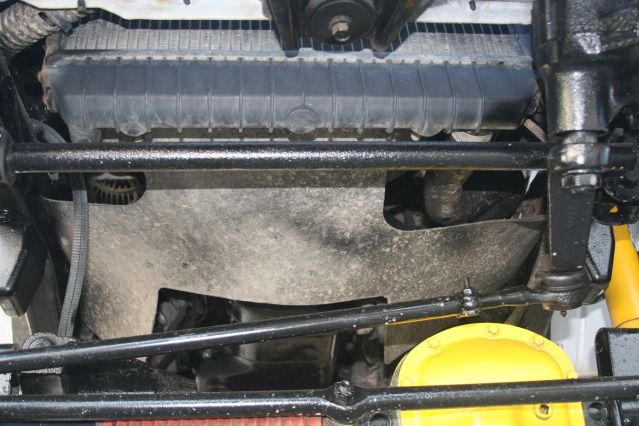

Attaches across the bottom of the shroud in the front. Cutouts for the lower radiator hose and CAD harness and hard brake line. From this angle you can just see the alternator but it's way back in there and mostly protected.

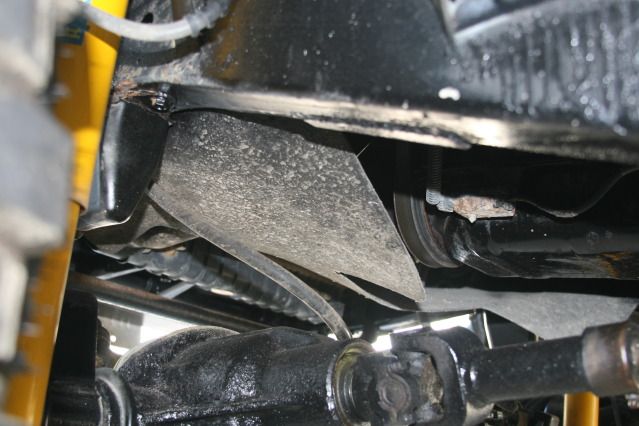

Front view

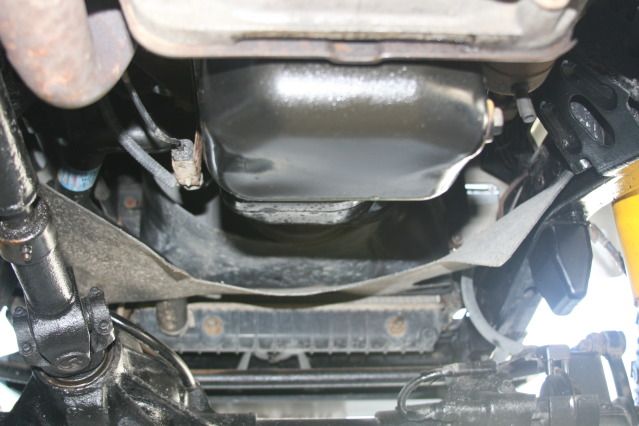

Rear view, mostly on edge but you can see the drape of the thing. Stops just in front of the oil pan.


Driver's side. Shows the thickness, about 3/16" or so.


Puttin it to use. Easy crossing, low water...
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline   Reply With Quote Quick reply to this message
Unread 08-11-2012, 05:06 PM   #21
jimmyjamster
Registered User
1995 YJ Wrangler

Join Date: Apr 2012
Location: Hanover, Virginia
Posts: 31
Anyone know where a replacement can be bought? Mine's kinda shredded and I can't find one. I guess I could get a piece of EPDM or TPO roofing and make my own.
jimmyjamster is offline   Reply With Quote Quick reply to this message
Unread 08-11-2012, 06:36 PM   #22
czjeeper
Registered User
1992 YJ Wrangler

Join Date: Jul 2006
Location: Washougal, WA
Posts: 1,506
One of you that has a serviceable splash shield should measure up a blue print for us!
__________________
US Army combat vet
2011 Grand Cherokee Laredo 3.6
Armed Forces Jeeps Member #125
Red Jeep Club Member #251

In the Portland/Vancouver area? Check 'em out! Piston's Wild Motorsports Club

Click here for 2.5L AX5 to AX15 swap
czjeeper is offline   Reply With Quote Quick reply to this message
Unread 08-11-2012, 06:43 PM   #23
ZeroGravity
Registered User
1991 YJ Wrangler

Join Date: Jul 2008
Location: Boston, MA
Posts: 3,930
Mine used to chill on top of my front axle, then I removed it. I'll avoid mud and water at all possible (use go-arounds and such) and I it's pretty much a trail rig now so it really doesn't matter for me. I don't think the stock shield did a very good job any ways.
__________________
91 YJ
98 XJ
2 door love
The U.S. Army vaguely envisioned something bigger than a motorcycle, smaller than a truck, and undaunted by the most difficult terrain.
ZeroGravity is offline   Reply With Quote Quick reply to this message
Unread 09-05-2012, 05:54 AM   #24
LeJerk
Registered User
2009 JK Wrangler

Join Date: Jun 2010
Location: Colorado
Posts: 78
Thanks for the pictures, Feetwet. I'm still looking for a replacement and having a hell of a time finding anything online.
LeJerk is offline   Reply With Quote Quick reply to this message
Unread 09-05-2012, 04:47 PM   #25
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 817
No problem on the pics, you're welcome.

I haven't seen them online anywhere either. I tried searching under "splash guard", "splash shield", "mud shield", etc. to come up with a link for you guys but no luck yet.

I'll be under the Heep for a while this weekend, I'll take some measurements. Any heavy rubber mat-type material should work. Something like EPDM roofing may be a little light. Need something like mud flap material, a bit stiffer. Mine has a layer of nylon fibers imbedded, gives it some heft and retains the shape. Don"t want it flopping around in the wind and all that.

Just saw you're 92yrs old! Happy Birthday!

Nice screen name...is that French?
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline   Reply With Quote Quick reply to this message
Unread 09-06-2012, 09:36 AM   #26
ldso
abidin'

ldso's Avatar
1995 YJ Wrangler

Join Date: Sep 2009
Location: Columbus, Ohio
Posts: 1,021
Quote:
Originally Posted by Feetwet View Post
Here's some pics of the guard in place.

Rear view, mostly on edge but you can see the drape of the thing. Stops just in front of the oil pan.
DON'T DRIVE IT LIKE THAT!!! You need to put back the dents in your oil pan before you try to drive it.

J/K very clean under there! Seeing that angle of the pic of the radiator reminds me that I need to skid the radiator and oil pan.

I was curious what people would say on this thread, I just replaced my radiator and didn't put the splash guard back on. It was torn and only connected in a couple places. Maybe I'll put part of it back on when I make skid plates.
__________________
1995 YJ "Mabel", 2.5L Muncie SM465 np231j 4.88's HP30 Lockright JK 44 Detroit 33s CJ clip

Actually, it's pronounced "mill-e-wah-que" which is Algonquin for "the good land."
ldso is offline   Reply With Quote Quick reply to this message
Unread 09-08-2012, 06:57 PM   #27
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 817
That's funny Idso, I just had the oil pan off for a new gasket install. Popped out 2 dents and painted it with some shiny black rattlecan. Looks wet with oil though, doesn't it?

Anyway, took some measurements as promised. Here's a quick sketch with rough dimensions. Ignore the radiator location. I drew it in the wrong spot. It is actually in FRONT of the leading edge of the shield. The shield attaches to the cross member just behind the radiator, for you guys trying to fab up and install one. Just refer back to the earlier pics.



It installs using those plastic barbed push pins with the large round head. As I said earlier, I reinforced with wire here and there.

Hope this helps someone.
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline   Reply With Quote Quick reply to this message
Unread 09-27-2012, 09:38 AM   #28
shockboss17
Registered User
1995 YJ Wrangler

Join Date: Dec 2011
Location: wilmington, delaware
Posts: 118
Thanks for the measurements, I have a 95 yj, im actually gonna try and make my own skid plate today, if it works out ill post some pics of what I used and how I bolted it up...

Happy Jeepin
shockboss17 is offline   Reply With Quote Quick reply to this message
Unread 09-28-2012, 07:40 AM   #29
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 817
You are aware this is about the Splash Guard, not the Skid Plate, right?

The former is a rubber mat that helps protect the engine from splashing water and road debris, the latter is a Metal Structural Support for the engine and transmission/transfer case.
__________________
Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline   Reply With Quote Quick reply to this message
Unread 09-28-2012, 09:07 AM   #30
shockboss17
Registered User
1995 YJ Wrangler

Join Date: Dec 2011
Location: wilmington, delaware
Posts: 118
Yeah I'm aware, I couldn't find any rubber material like that, I got some 1/4 thick aluminum sheet from Home Depot, n put it up in the same spot, I'm just trying to protect from water splashing up in there
shockboss17 is offline   Reply With Quote Quick reply to this message
