Steering Gearbox Adjustment Writeup

Is your steering wheel sloppy? Unresponsive in the first bit of a turn? Well then your steering gearbox may need to be adjusted.

Legal:
I, nor jeepforum, nor anyone else take responsibility for your screwups. The steering system is critical to the performance of your car both on road and off. This writeup is meant as a guide to adjusting the steering gearbox only and should not be taken as a bible or fact. Please consult a professional if you feel that you may compromise your vehicle.
/Legal

The first step to all of this is to figure out where the sloppiness is coming from. I found out it was my steering box by grabing the steering shaft right above the steering box and found that i could move it about 1/8th-1/4th of a turn with out the pitarm moving at all. Other posibilities of play is in the draglink/tie rods, play at the ujoints in the steering shafts and a number of other things. This writeup only applies if your gearbox is the culprit.

On top of the steering gearbox is a nut with a allen screw in it. This is the adjustment screw that you need to turn.

Total time: 30 mins

Tools needed:
5/8 wrench
3/8 wrench
Allen keys
Pliers

optional but help:
torque wrench/breaker bar
Pb Blaster

Step one:
Locate and remove the 4 bolts that hold on the front plastic jeep cover. (if you have removed your plastic jeep cover or installed a winch cover, skip this step or remove it.) They are 3/8 inch.
The plastic jeep cover is this thing:

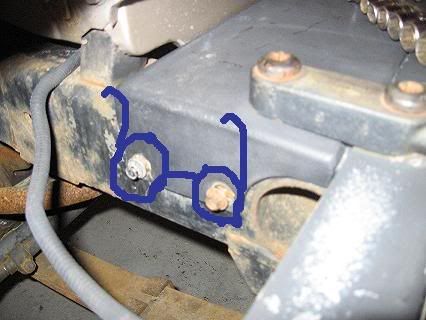

The bolts are located here. There are two on each side:

Please excuse the glasses

The plastic lifts from the back:

http://i154.photobucket.com/albums/s...Gearbox013.jpg

The second step is to remove the plastic support bar.

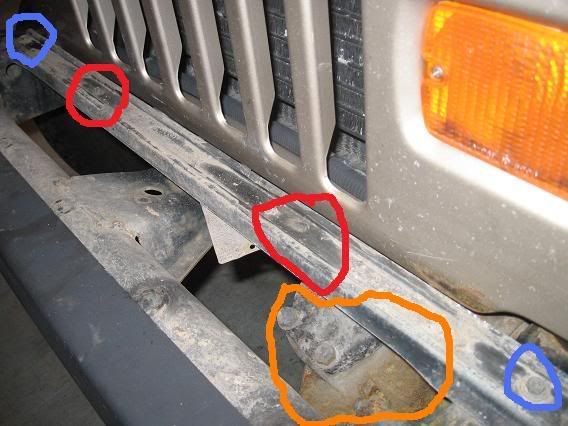

The bar also supports the front passanger brake line. It is held in by to black clips. The red circles are the location of the clips. The blue circles are where the bolts are located. The orange circle is the steering gear box. A pair of pliers should be used to squish the clip and push it through the holes as shown.



Then remove the two screws at the end of the bar that hold it to the frame.



Now you should be able to see the top of the steering gearbox.



The nut and the allen screw are circled in black. Heres a view after some pb blaster was sprayed on:



You will need to lossen up the nut. It is a 5/8ths nut. I had to use a torque wrench to break it lose. You only need to turn the nut about 3/4 to 1 turn if that.

Now, take a 5/8 wrench and put it on the nut. Take a allen key that fits into the allen screw and place it into the screw. Turning the screw clockwise will tighten the steering, to the left will loosen it. Turning the screw only a little bit, like 1/8th of a turn will have a great effect on your steering. Turning the allen key too far will bind the steering box gears and blow up your steering gearbox.



I turned my allen screw about 1/4 of a turn. Then, take the allen key out and tighten up the nut. Jump in the jeep and turn it on. Is it tighter? If so your doing alright, if it is looser then you screwed up. The steering wheel should have a minimal amount of play in it but still a very little bit. If there is no play at all, you may have tightened it too far. Now, run around the block. Come back. You may need to adjust the allen screw a few times, each time checking the play in the steering wheel.

After you have it where you want it, make sure that the nut is tightened down. I tightened mine til it was snug and then a little bit more (1/8th of a turn). Put the support bar back in place, dont forget about the brake line clips. Bolt it down snugly. Put the plastic jeep cover back on snuging up the bolts. THe jeep cover will compress and break if you tighten it down too far so snug is good. Dont forget the antiseize so that when you go to do this again in a couple of years (or you get a winch) you wont have to fight with the bolts.



Congratulations. You have sucessfully adjusted your steering gearbox. Now, pray to the jeep gods and go run some trails.


Last edited by SonofSam02; 12-21-2007 at 06:13 PM.
SonofSam02 is offline
Sponsored Links
Advertisement

post #2 of 96 Old 12-20-2007, 07:20 PM
Tomb Raider
Addicted...

Tomb Raider's Avatar
1991 YJ Wrangler

Join Date: Aug 2005
Location: Jefferson City
Posts: 4,998
Just put this in the FAQ. Thanks for the writeup!

-Scott
Tomb Raider is offline
post #3 of 96 Old 12-21-2007, 12:52 PM
goatboy
Registered User
1989 YJ Wrangler

Join Date: Feb 2007
Location: Fillmore, California
Posts: 2,449
Real nice job...thanks!
goatboy is offline
post #4 of 96 Old 12-21-2007, 01:05 PM
PA_Probe
Registered User
1990 YJ Wrangler

Join Date: Sep 2007
Location: Central PA
Posts: 45
Nice write up.

I believe the bolts for the plastic cover are 3/8.
PA_Probe is offline
post #5 of 96 Old 12-21-2007, 06:14 PM Thread Starter
SonofSam02
Registered User
1994 YJ Wrangler

Join Date: Oct 2006
Location: Odenton, Md
Posts: 476
thanks, its been updated


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
SonofSam02 is offline
post #6 of 96 Old 12-21-2007, 11:06 PM
whiteyj1994
Registered User
1994 YJ Wrangler

Join Date: Sep 2007
Location: Valley Springs,CA
Posts: 281
where were you when I first came to this site, I didn't know about FAQ so I posted a req. for help (clearly stating that I could turn the shaft and the pit man arm didn't move ) wanting to know if that was an adjuster and all I got were people asking what size rim I was running and offset, I finally gave up on them and went for it, what a difference.
whiteyj1994 is offline
post #7 of 96 Old 12-22-2007, 01:47 AM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,293
Nicely done!
Joe Dillard is offline
post #8 of 96 Old 12-22-2007, 11:27 AM
Mr.B
Wot's...uh The Deal?

Mr.B's Avatar
1994 YJ Wrangler

Join Date: Nov 2005
Location: Roseville, Ca.
Posts: 4,269
Quote:
Originally Posted by whiteyj1994
where were you when I first came to this site, I didn't know about FAQ so I posted a req. for help (clearly stating that I could turn the shaft and the pit man arm didn't move ) wanting to know if that was an adjuster and all I got were people asking what size rim I was running and offset, I finally gave up on them and went for it, what a difference.
Sorry man, I guess I missed that thread.

Nice writeup sonofsam02. I did this back when I first got my Jeep. There wasn't much of anything about it on here back then either. A Bronco guy showed me how to do it. It took about a turn and a half, on my manual gearbox to get it right. You might want to say if you have to turn it that much, it's probably time to look for a new box. I have power steering now.

.
White '94 YJ 2.5L 5 speed, 35" BFGs KM2's, 5" lift, Mark VII 2 speed fan, Milemarker PE8000, Front Aussie Locker, Power steering conversion, '98 Cavalier seats, MORE Boomerangs in front, 136 amp ZJ alternator, JB conversions SYE, Tom Woods custom drive shaft, 8.8 with ARB, 4.88 gear ratio, Teralow


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Member:The Wrecking Crew

Ham license:
KB6(tooeasytosearch)

Everyone is Welcome

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by Major Sanderson
You have no respect for excessive authority or obsolete traditions. You're dangerous and depraved, and you ought to be taken outside and shot!
Quote:
Originally Posted by Beefstew
I may have proven that I am in fact an idiot, by all of your standards...
Quote:
Originally Posted by ritjobbie View Post
Mr.B's post gets you as close to Buddha as you can get on JF...
Mr.B is offline
post #9 of 96 Old 12-22-2007, 02:50 PM
vtmets1
Registered User
1994 YJ Wrangler

Join Date: Dec 2007
Location: vermont
Posts: 21
steering gear box

Son of sam...great post, thanks. I had some earlier post about my jeep, felt like I was driving a boat. I have owned thew jeep for a week now, I realized the problem was the steering, I had to turn the wheel a lot before any response. So today, I went and tried out the gear box adjustment. After the second tightening, My son was turning the wheel back and forth, I was watching the response of the tires. I worked my way back to the gear box, the whole thing was moving everytime the steering wheel move. Shut the jeep off to investigate, the steering box was barely held on by 1 bolt, I took it out with my fingers. After a trip to the hardware store, Ireplaced both boths, adjusted the gerar box back and she handles like a dream. Thanks for your help.
vtmets1 is offline
post #10 of 96 Old 12-22-2007, 04:36 PM
jaw41272
Registered User

jaw41272's Avatar
1991 YJ Wrangler

Join Date: Feb 2007
Location: Glendale, NY
Posts: 643
Nice step by step, the only part that killed me was after I tightened it all up, what good did me running around the block do??? The neighbors were all sorts of freaked out when they saw me running around the block all greasy and waving a ratchet. Other than that it worked like a charm. Boy was it hard to explain to the Cops that stopped me though that I was fixing my Jeep, they just kinda looked all puzzled and told me to walk calmly so as not to scare the children.

91 Sahara 4.0l Operation Welcome Home Parade Veh #69
PARADE JEEP MEMBER #1Auto posi-lok equipped, 4" susp. lift
K&N Drop in and loaded with battle scars

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

FOR SALE 2005 PT CRUISER CONVERTIBLE
2005 Suzuki DRZ400S For SALE
jaw41272 is offline
post #11 of 96 Old 12-22-2007, 10:20 PM Thread Starter
SonofSam02
Registered User
1994 YJ Wrangler

Join Date: Oct 2006
Location: Odenton, Md
Posts: 476
lol
i bet they were all suprised.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
SonofSam02 is offline
post #12 of 96 Old 12-23-2007, 11:52 AM
HighandLow
Senior Member

HighandLow's Avatar
2010 JK Wrangler

Join Date: Jul 2006
Location: Houston
Posts: 785
Thanks for the write up. I will be doing this to my son's Jeep very soon.

2010 Rubicon, Auto, Stone White, 3.5"Synergy Coils, DL and TR, MetalCloak TB's and CA's Fr/Rr, 37"Coopers 18" Ions , Adams 1310's, G2 5.13 gears, Synergy Sleeves and Gussets, ORF, PSC, JCR, PIAA,Rancho equipped...
HighandLow is offline
post #13 of 96 Old 12-23-2007, 04:26 PM
Mr.B
Wot's...uh The Deal?

Mr.B's Avatar
1994 YJ Wrangler

Join Date: Nov 2005
Location: Roseville, Ca.
Posts: 4,269
Quote:
Originally Posted by jaw41272
Nice step by step, the only part that killed me was after I tightened it all up, what good did me running around the block do??? The neighbors were all sorts of freaked out when they saw me running around the block all greasy and waving a ratchet. Other than that it worked like a charm. Boy was it hard to explain to the Cops that stopped me though that I was fixing my Jeep, they just kinda looked all puzzled and told me to walk calmly so as not to scare the children.

At least you got some exercise other than what you do at the back of your Jeep.

.
White '94 YJ 2.5L 5 speed, 35" BFGs KM2's, 5" lift, Mark VII 2 speed fan, Milemarker PE8000, Front Aussie Locker, Power steering conversion, '98 Cavalier seats, MORE Boomerangs in front, 136 amp ZJ alternator, JB conversions SYE, Tom Woods custom drive shaft, 8.8 with ARB, 4.88 gear ratio, Teralow


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Member:The Wrecking Crew

Ham license:
KB6(tooeasytosearch)

Everyone is Welcome

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by Major Sanderson
You have no respect for excessive authority or obsolete traditions. You're dangerous and depraved, and you ought to be taken outside and shot!
Quote:
Originally Posted by Beefstew
I may have proven that I am in fact an idiot, by all of your standards...
Quote:
Originally Posted by ritjobbie View Post
Mr.B's post gets you as close to Buddha as you can get on JF...
Mr.B is offline
post #14 of 96 Old 12-23-2007, 08:36 PM
jaw41272
Registered User

jaw41272's Avatar
1991 YJ Wrangler

Join Date: Feb 2007
Location: Glendale, NY
Posts: 643
A lot easier at the back than it is inside

91 Sahara 4.0l Operation Welcome Home Parade Veh #69
PARADE JEEP MEMBER #1Auto posi-lok equipped, 4" susp. lift
K&N Drop in and loaded with battle scars

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

FOR SALE 2005 PT CRUISER CONVERTIBLE
2005 Suzuki DRZ400S For SALE
jaw41272 is offline
post #15 of 96 Old 03-11-2008, 10:44 AM
Windsma
Registered User
1990 YJ Wrangler

Join Date: Mar 2008
Location: Burlington, NC
Posts: 121
Noob question, Is this for the manual or power steering gearbox? (I have the manual w/ 1/2 turn wheel play. Arms look good.)

White Jeep Club Member #1981
Burlington, North Carolina

1990 Wrangler 2.5L bought 3/10/08
70 Camaro RS Dragcar. Watch it fly:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Windsma is offline
