Snorkel... Pics anyone?

I bought an snorkel, it doesn't have all the instalation kit, is only the fiberglass snorkel. Snyone have installed on his YJ and have pictures of how make it? I dont think is hard but i dont want to make mistakes. Also if have what i need. I think is 3" intake for the snorkel. Thanks. Theres the pic of the crawler of my friend in Cd. Victoria, Mexico. One of the best. Sorry for the long post xD

Rabbitsh is offline   Reply With Quote Quick reply to this message
Unread 05-31-2015, 06:48 AM   #2
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 18,090
You should either mention the brand or post a photo of it.
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is offline   Reply With Quote Quick reply to this message
Unread 05-31-2015, 09:58 AM   #3
Rabbitsh
Registered User
1995 YJ Wrangler

Join Date: Dec 2011
Location: Tampico, Tamaulipas, Mexico
Posts: 54
It's an standard fiberglass snorkel. Just didnt come with any part of installation, neither diagram. I put a pic i found on internet.

Rabbitsh is offline   Reply With Quote Quick reply to this message
Unread 05-31-2015, 10:07 AM   #4
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park, Maryland
Posts: 13,002
Looks possibly to be an ARB Safari snorkel.
Joe Dillard is offline   Reply With Quote Quick reply to this message
Unread 05-31-2015, 12:26 PM   #5
Rabbitsh
Registered User
1995 YJ Wrangler

Join Date: Dec 2011
Location: Tampico, Tamaulipas, Mexico
Posts: 54
Is not original. Fiberglass mold taken from arb. So no installation included
Rabbitsh is offline   Reply With Quote Quick reply to this message
Unread 05-31-2015, 12:42 PM   #6
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 18,090
If you go to arb it shows all the parts...http://www.arb.com.au/products/safari-snorkels/
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is offline   Reply With Quote Quick reply to this message
Unread 05-31-2015, 08:58 PM   #7
Swampwalker3
Registered User
1987 YJ Wrangler

Join Date: Nov 2006
Location: Gainesville, Florida
Posts: 780

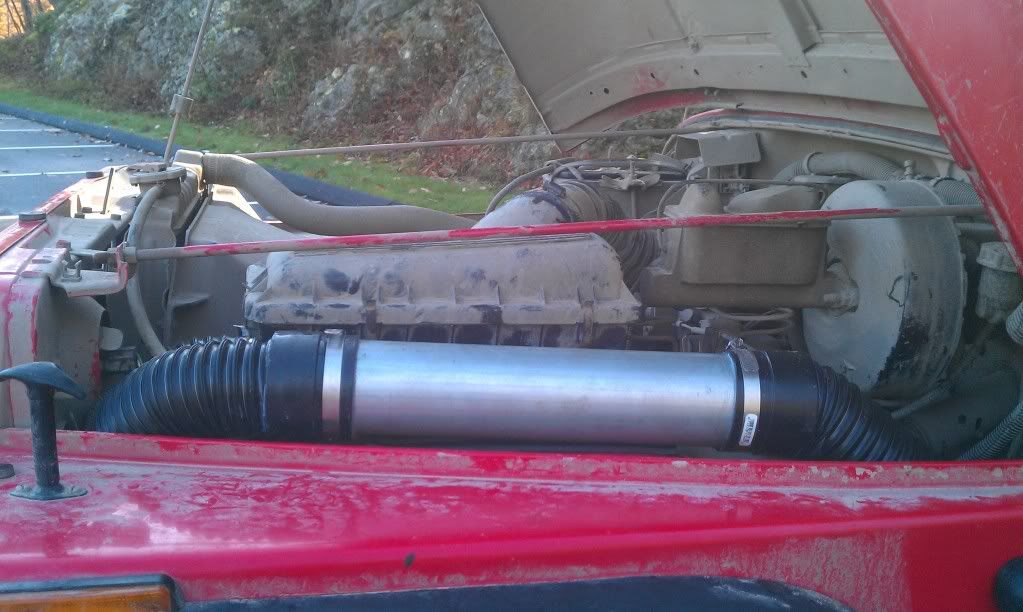

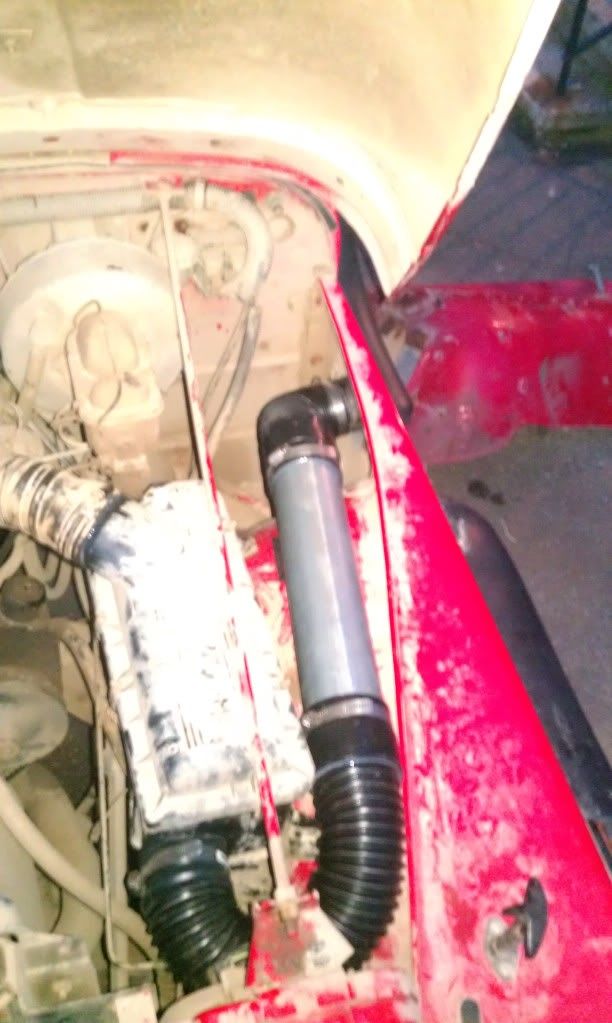

My ARB I used a flex hose that lead to the airbox. Had to make an attachment to the box with epoxy and such then used the oem stuff from the box to the intake.
There's different ways to go about it but here's one: http://www.misfitjeepers.com/viewtopic.php?f=8&t=67
__________________


Zane Neher
88 YJ. H.O. 4.0L/AW4/twin sticked d300/1 tons/38.5s.
Swampwalker3 is offline   Reply With Quote Quick reply to this message
Unread 06-01-2015, 06:31 AM   #8
grandboost98
Registered User
1989 YJ Wrangler

Join Date: Aug 2010
Location: Durham/East Haven, CT
Posts: 3,904

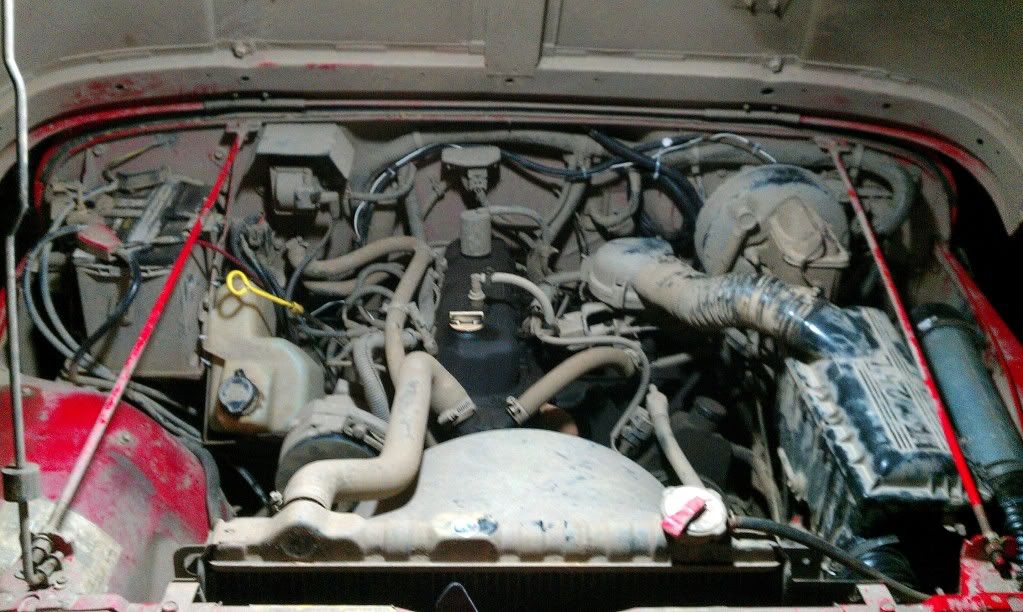

I was in the same situation. I was able to find the template somewhere online for the big hole in the fender. The rest I just threw together with some parts from Vatozone.

I did have to relocate the washer fluid bottle, horn and raised/slid back the air box





__________________
89 Wrangler-3.5" HD BDS lift,M.O.R.E HD 5/8" booms on 35" KM2s
99 Cherokee-2 door,5" lift on 35" KM2s
04 Grand Cherokee Overland
72 Chevy Nova-in progress
http://tiny.cc/BRASSBALLSOFFROAD
grandboost98 is online now   Reply With Quote Quick reply to this message
Unread 06-25-2015, 11:02 AM   #9
Rabbitsh
Registered User
1995 YJ Wrangler

Join Date: Dec 2011
Location: Tampico, Tamaulipas, Mexico
Posts: 54
Thank you everyone, now i know how i will make it..
Rabbitsh is offline   Reply With Quote Quick reply to this message
