Skid Plate removal

Started working on my transfer case problems and when I started to remove the skid plate that covers the transfer case either the bolts broke off or they would just turn and not come out. After thinking about it and realizing that the plate had to come off, I took out the grinder and took matters into my on hands. After grinding off three of the five, the other two broke, the plate finally came off! My question is, How would the any of you guys advice me to put it back on? Thanks for all the advice ahead of time!

mikai is offline
Sponsored Links
Advertisement

post #2 of 14 Old 12-17-2010, 07:53 PM
SnowdogMarc
Registered User
1988 YJ Wrangler

Join Date: Aug 2008
Location: Alberta
Posts: 1,443
I had a nut strip out in the frame on mine. I used a hole saw as close to the size of the nut for the bolt as I could get to cut what was left of it out. I then welded in a new nut to the frame in the hole I made. It's held up great for the past year.

l We're here for a good time. Not a long time. So have a good time the sun can't shine every day.
l_______
/l ,[_____],
l---L -[]lllllll[]-

()_) ()_)--o-)_)____________VE6-SDG
SnowdogMarc is offline
post #3 of 14 Old 12-17-2010, 08:27 PM
DMKJ
Registered User
1997 TJ Wrangler

Join Date: Oct 2010
Location: Mattituck
Posts: 167

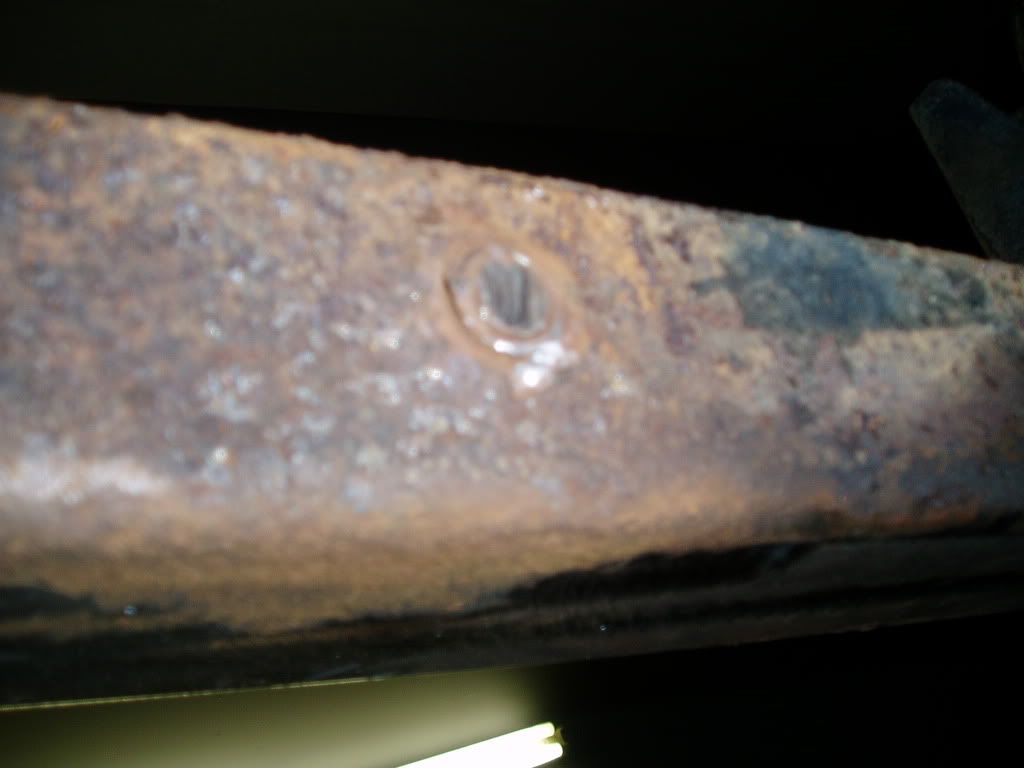

You can grind off the nutsert and replace them. there are some write ups about fixing the nutsert in JF.

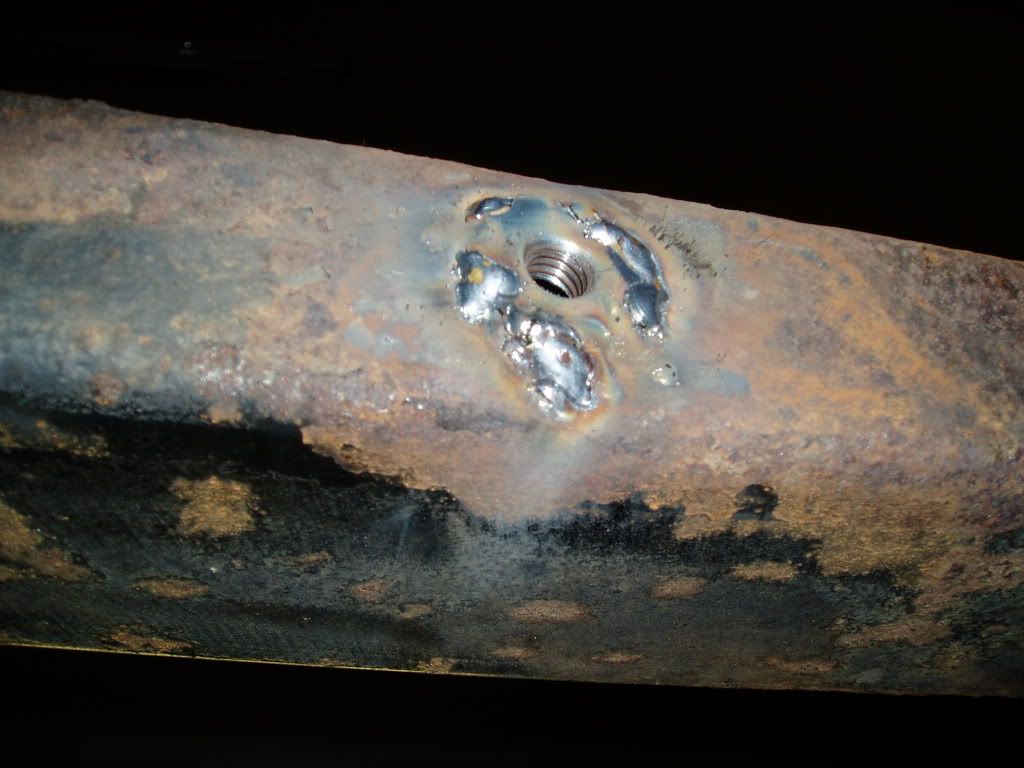

I chose to use welded nutsert.





There are also bolt in nutserts if welding is not an option. Some guys have also drilled through the frame (I personally did not like that option)

97 TJ work in progress
97 TJ, Parts
98 Grand Cherokee
DMKJ is offline
post #4 of 14 Old 12-17-2010, 10:32 PM
SmokeEater522
Registered User
1993 YJ Wrangler

Join Date: May 2010
Location: TN
Posts: 95
i welded a nut to a washer and then welded that the the frame b/c i had to replace 4 out of 6 anyway, so i just did them all that way, seems to be holding up fine so far
SmokeEater522 is offline
post #5 of 14 Old 12-17-2010, 11:19 PM
notmyj
Registered User
1992 YJ Wrangler

Join Date: Sep 2006
Location: Pittsburgh
Posts: 2,459
Here is how to fix it....

Cut a window into the side of the frame



You can just score the top of the window so you can bend it up and out of the way...



Remove the captured nut that is spinning in the frame and weld in a new nut...



Then bend the window back down, weld it up, grind it smooth and paint. Repeat as needed...

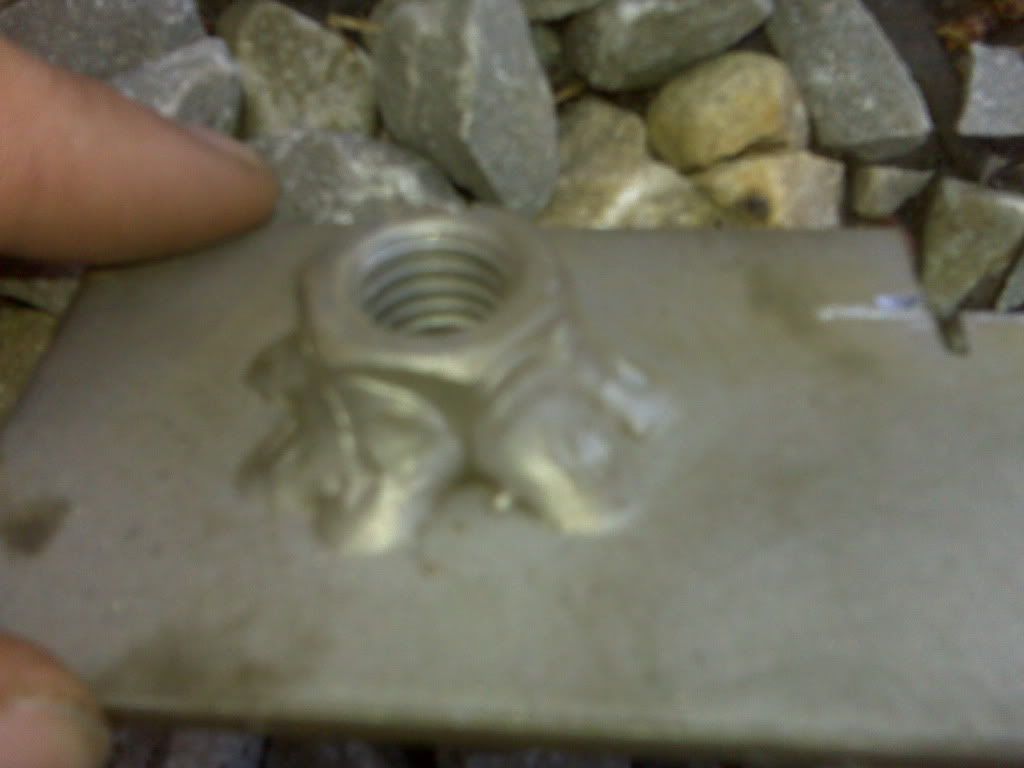

For the ones that have broken bolts in them, you may need to cut the bottom of the frame out where the captured nut is and replace the nut and section of the frame. you can replace the bottom of teh frame with 1/8"x 2" steel strap. Cut it to fit the section you cut out, drill the new hole in the right place, and weld a new nut to the new section of steel strap.



Then weld the strap back into the frame with the nut, grind smooth and paint.

If you cant or dont weld..... Not really sure what to do.... This is the only way I have done them.

www.pghoffroad.com
My SOA Build
Recovery Gear Basics
My BUDGET York OBA Install
Budget Welding Cart
Carling Contura Switch Panel

If it has tracks, tires or tits, its gonna cause a problem.

"Everytime someone "upgrades" a D35, an angel looses its wings."

"Dizzy" - What SnoopDog would call a Distributor if he was a mechanic. I cringe every time I hear this moronic term

Quote:
Originally Posted by Warren Zevon
Send lawyers, guns and money. The **** has hit the fan...
92, 4.0, AW4, 8.8, D30, 15x10, 37's, SOA etc, etc
92, 2.5, 30, 8.8, 4.88, Locked, Winch, 15x8, 35's, 3.5" (RIP)
notmyj is offline
post #6 of 14 Old 12-18-2010, 11:28 AM
RockWoRM
LJ's do it longer

RockWoRM's Avatar
2005 LJ Wrangler

Join Date: Mar 2006
Location: Fresno
Posts: 9,244
Quote:
Originally Posted by notmyj View Post
Cut a window into the side of the frame


To each their own, and I'm not bad mouthing what you did, but IMHO it would be way easier to drill the bottom hole to the size of the nut and simply weld it back in from the bottom. You could easily recess the nut a little by screwing in the bolt and holding the nut up a little to give it a little more frame bite when welding. That would be more than strong enough if the weld is done correctly.



WRM

'05 LJR, 6sp, RC long arm w/MC 6" coils, 5.13 D44's w/chromo shafts, MetalCloak fenders/sliders/body armor, 37x12.50 MTR's, Warn 9.5, RockHard swing out w/full spare. <><
RockWoRM is offline
post #7 of 14 Old 12-18-2010, 04:46 PM
SnowdogMarc
Registered User
1988 YJ Wrangler

Join Date: Aug 2008
Location: Alberta
Posts: 1,443
I have to agree with RockWorm. Cutting a big hole in the frame is not an option for me. I've seen too many frames that were professionally welded like that get stressed and crack right at the repair.

l We're here for a good time. Not a long time. So have a good time the sun can't shine every day.
l_______
/l ,[_____],
l---L -[]lllllll[]-

()_) ()_)--o-)_)____________VE6-SDG
SnowdogMarc is offline
post #8 of 14 Old 12-18-2010, 05:13 PM
gkainz
Registered User
1995 YJ Wrangler

Join Date: Nov 2005
Location: Arvada, CO
Posts: 263
damn y'all sure go thru a lot of work when you can just get a replacement nutsert from McMaster-Carr, Fastenal or even the dealer and just put the damn thing back in the original hole - no cutting, welding, dancing around ...
gkainz is offline
post #9 of 14 Old 12-18-2010, 05:32 PM
SmokeEater522
Registered User
1993 YJ Wrangler

Join Date: May 2010
Location: TN
Posts: 95
^^looked at the dealer option and refused to pay $10 a freakin nut for them, so i broke out the grinder and welder...and din't have to cut any holes in the frame
SmokeEater522 is offline
post #10 of 14 Old 12-19-2010, 07:08 AM
GreenRenegade
Registered User
2013 JK Wrangler

Join Date: Sep 2010
Location: Grovetown, GA
Posts: 229
Good grief, you people make everything so complicated.
Ever hear of duct tape? It's upgraded now. No longer 40 mph tape, it's now 100 mph tape and everyone knows a YJ can't go over 92 mph. \
Duct tape is stronger than carbon fiber, 1/4" steel plate, and will definitely outlast a weld.
It's a space age material that wont rust, discolor, burn, or even get wet.
Simply tear a strip (it can only be torn by hand) that will span your frame rails and hold up your transfer case. Then tear a few more strips to use as a skid plate.
Voila, it's that easy.
Disclaimer: NOT REALLY! For those who might believe this, I'm joking. As you may have seen on TV, Don't try This At Home (or in your garage, shop, workplace...)

Happy Politically Correct Holidays,
Dan

2013 Wrangler Rubicon 2dr
GreenRenegade is offline
post #11 of 14 Old 12-20-2010, 05:56 AM
DMKJ
Registered User
1997 TJ Wrangler

Join Date: Oct 2010
Location: Mattituck
Posts: 167


97 TJ work in progress
97 TJ, Parts
98 Grand Cherokee
DMKJ is offline
post #12 of 14 Old 12-20-2010, 08:34 AM
johnboy68
HIP2BSQR

johnboy68's Avatar
1995 YJ Wrangler

Join Date: Jul 2007
Location: Fayette County WV
Posts: 1,050
johnboy68 is offline
post #13 of 14 Old 12-20-2010, 07:13 PM
deeremechanic
Registered User
1993 YJ Wrangler

Join Date: Dec 2010
Location: Mattoon
Posts: 14
Quote:
Originally Posted by GreenRenegade View Post
Good grief, you people make everything so complicated.
Ever hear of duct tape? It's upgraded now. No longer 40 mph tape, it's now 100 mph tape and everyone knows a YJ can't go over 92 mph. \
Duct tape is stronger than carbon fiber, 1/4" steel plate, and will definitely outlast a weld.
It's a space age material that wont rust, discolor, burn, or even get wet.
Simply tear a strip (it can only be torn by hand) that will span your frame rails and hold up your transfer case. Then tear a few more strips to use as a skid plate.
Voila, it's that easy.
Disclaimer: NOT REALLY! For those who might believe this, I'm joking. As you may have seen on TV, Don't try This At Home (or in your garage, shop, workplace...)

Happy Politically Correct Holidays,
Dan
THAT IS GREAT!!!! REDNECK FOR LIFE
deeremechanic is offline
post #14 of 14 Old 12-20-2010, 07:16 PM
deeremechanic
Registered User
1993 YJ Wrangler

Join Date: Dec 2010
Location: Mattoon
Posts: 14
Quote:
Originally Posted by SmokeEater522 View Post
i welded a nut to a washer and then welded that the the frame b/c i had to replace 4 out of 6 anyway, so i just did them all that way, seems to be holding up fine so far
I also did this becuase there was not alot of good frame steel there becuase it had rusted and thats why they spun out like that for me. i found that out when i replaced my tranfercase this past weekend. i beat the h*ll out of it to make sure it was gunna hold and it held up just fine.
deeremechanic is offline
