Unread 01-29-2008, 09:13 PM   #1
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 4,151
Separating gear shifter

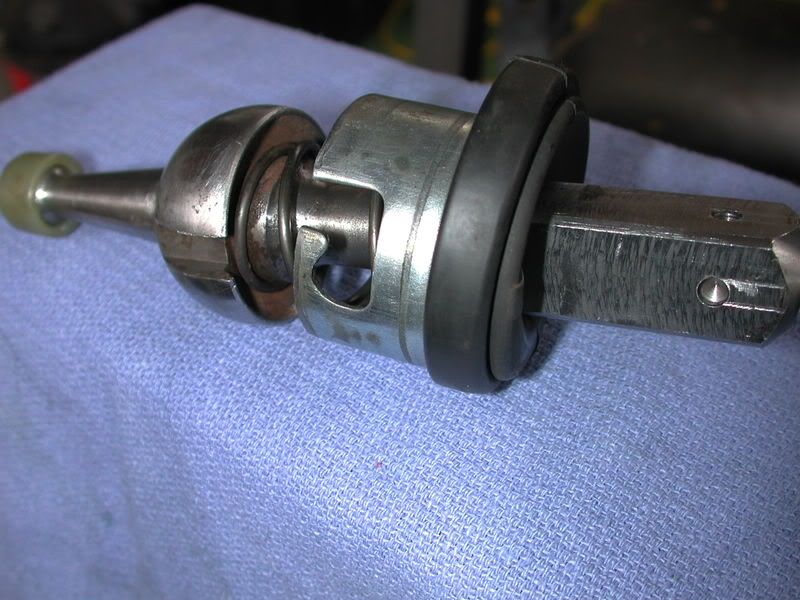

Not too long ago, someone posted a question on how to separate the shifter-the portion inside the cab that Jeep calls "lever assembly," from the shifter portion which goes into the transmission which Jeep officially calls "lever gearshift." They were trying to replace the round rubber boot which covers over the top of the shift tower. I pulled mine off this past weekend and needed to separate them to clean, and to just figure out how it's done. The FSM is completely silent on this process. First picture you will see I have the upper end of the lever, gearshift is wedged under the jaws of a vice, but not gripped in it so to speak. A pickle fork can then be used to span across the lever at the junction point between the two components of the shifter, complete: In the next picture which is of course posed, since it took a 14 yr old and an 11 year old to hold the rubber boots out of the way while I tapped upwards on the end of the pickle fork to separate the two portions of the assembly:


It didn't take too much force at all to separate these, but I was unable to separate them by just pulling apart. I did spray a little PB blaster down inside there to work its majic first.

__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.

Last edited by Opihi59; 05-16-2010 at 12:52 PM..
Opihi59 is offline   Reply With Quote Quick reply to this message
Unread 01-29-2008, 09:17 PM   #2
pat8942
Registered User
1992 YJ Wrangler

Join Date: Dec 2007
Location: Deming,New Mexico, New Mexico
Posts: 2,178
Very good info.
Quote:
Originally Posted by Opihi59
Not too long ago, someone posted a question on how to separate the shifter-the portion inside the cab that Jeep calls "lever assembly," from the shifter portion which goes into the transmission which Jeep officially calls "lever gearshift." They were trying to replace the round rubber boot which covers over the top of the shift tower. I pulled mine off this past weekend and needed to separate them to clean, and to just figure out how it's done. The FSM is completely silent on this process. First picture you will see I have the upper end of the lever, gearshift is wedged under the jaws of a vice, but not gripped in it so to speak. A pickle fork can then be used to span across the lever at the junction point between the two components of the shifter, complete: In the next picture which is of course posed, since it took a 14 yr old and an 11 year old to hold the rubber boots out of the way while I tapped upwards on the end of the pickle fork to separate the two portions of the assembly:


It didn't take too much force at all to separate these, but I was unable to separate them by just pulling apart. I did spray a little PB blaster down inside there to work its majic first.
pat8942 is offline   Reply With Quote Quick reply to this message
Unread 01-29-2008, 09:30 PM   #3
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 4,151
Okay, I found the original post: http://www.jeepforum.com/forum/f12/gear-shift-boot-wtf-509665/
Honestly, I looked and looked and couldn't find the right search words to find the original thread. This information makes better sense if it had followed on as an answer to dmcanally's original post. I will PM him this thread and hopefully it will help him as well as others on the forum.
__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.
Opihi59 is offline   Reply With Quote Quick reply to this message
Unread 01-29-2008, 10:10 PM   #4
SonofSam02
Registered User
1994 YJ Wrangler

Join Date: Oct 2006
Location: Odenton, Md
Posts: 477
im just going to ship my transmission to you lol
you have solved two of the problems that i have had.
so keep them coming...

so what about a transmission that is possed by the devil? lol
i cant find that bowing smilie or i would put it up
SonofSam02 is offline   Reply With Quote Quick reply to this message
Unread 01-29-2008, 10:47 PM   #5
dmcanally
Member

dmcanally's Avatar
2011 JK Wrangler

Join Date: Oct 2006
Location: Austin, Tx
Posts: 410
that is awesome! thanks for the how-to! I have my first day off in almost a month tomorrow so I know what my morning is going to be spent doing :-).

Thanks again man
__________________
Red Jeep Club # 383
, _____
/l
,[___],
l--L --[]lllll[]-
()_) ()_)-o-)_)
dmcanally is offline   Reply With Quote Quick reply to this message
Unread 01-29-2008, 11:12 PM   #6
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 4,151
dmcanally, glad you got this and that it is fairly timely. Sorry I hadn't already tried this when you first posted but I am fairly new to the forum and am catching up. If you hadn't posted the question, I likely never would have bothered submitting the solution.
After you get it apart let us know how it went and then have a beer.
__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.
Opihi59 is offline   Reply With Quote Quick reply to this message
Unread 01-30-2008, 04:48 AM   #7
Alfons
Registered User
1992 YJ Wrangler

Join Date: Jul 2005
Location: Ontario, Canada
Posts: 2,218
Good work - nice simple approach, I never thought of using a pickle fork
Alfons is offline   Reply With Quote Quick reply to this message
Unread 04-04-2009, 08:43 PM   #8
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 4,151
Adding in some photos of details that may be helpful to other aspects of this job. This is the stub, removed from the shift tower, and after the shift lever has been separated.

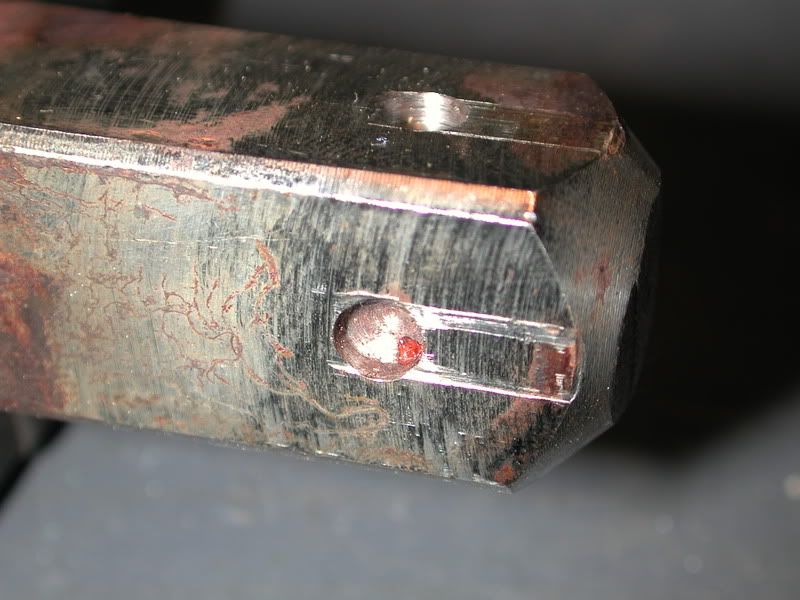

Detail of square end of stub

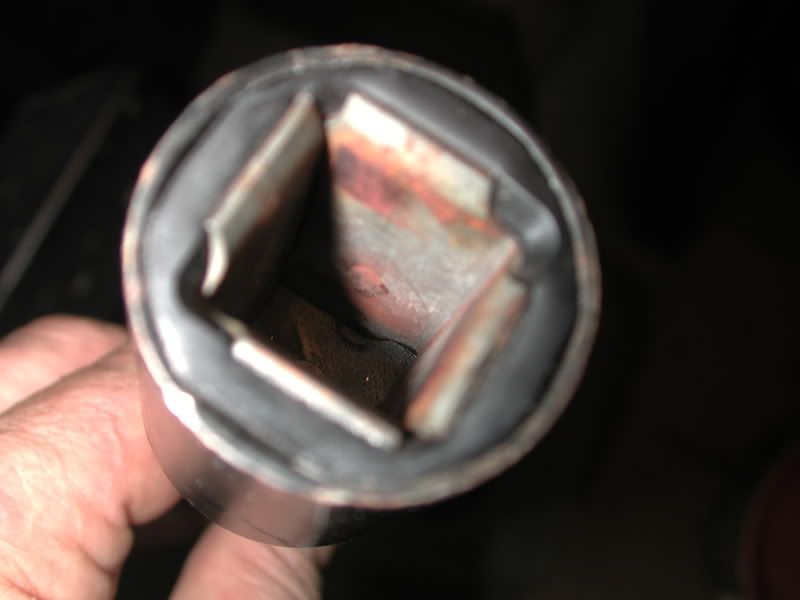

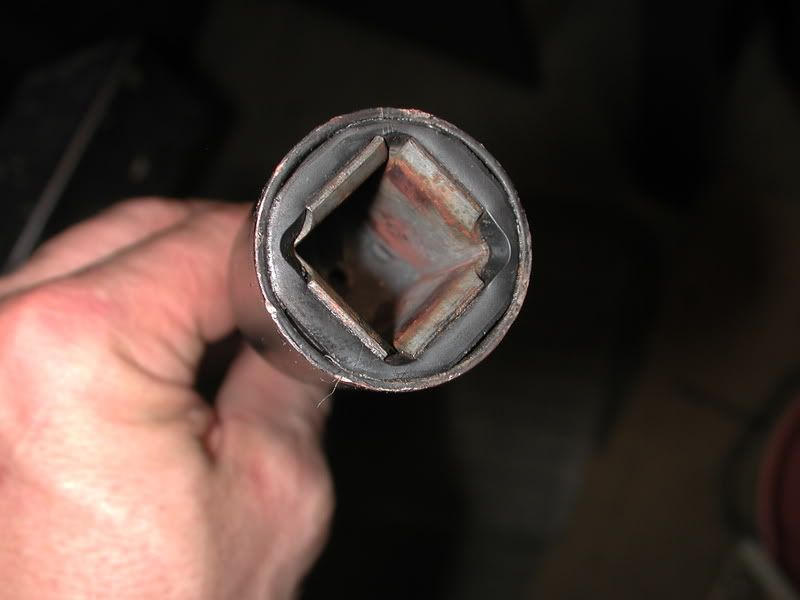

Bottom end of shifter, that slips back on the square end of the stub, 2 detail photos.



__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.

Last edited by Opihi59; 05-16-2010 at 12:54 PM..
Opihi59 is offline   Reply With Quote Quick reply to this message
Unread 11-11-2009, 04:29 AM   #9
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 4,151
Updating this post to include details of the Transfer case shifter. The transfer case shifter can also be removed from the shifter stub with a pickle fork as well.

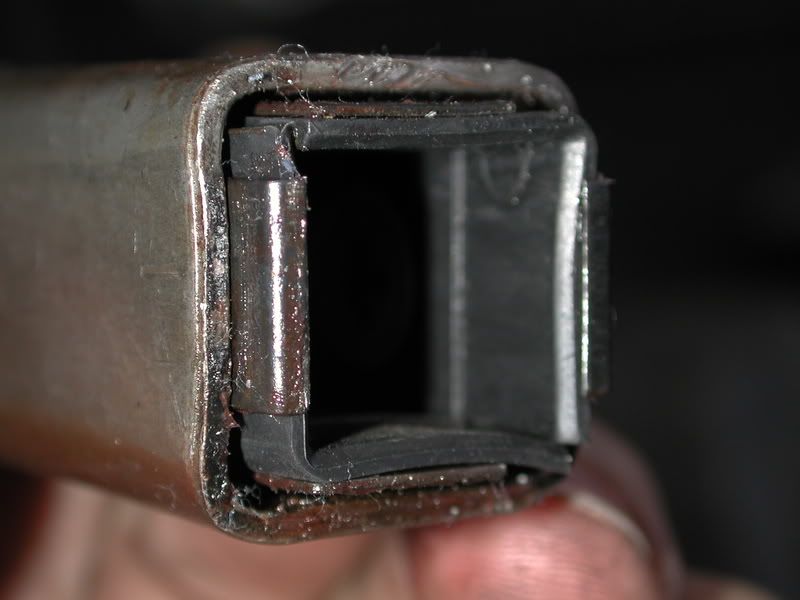

This is what the end of the transfer case shifter looks like, there is a metal clip that holds it to the shifter stub as shown in the photo, you can also see the isolator inside the hub.



The notorious "Isolator" in hand. It fits on the inside of the shifter shaft.

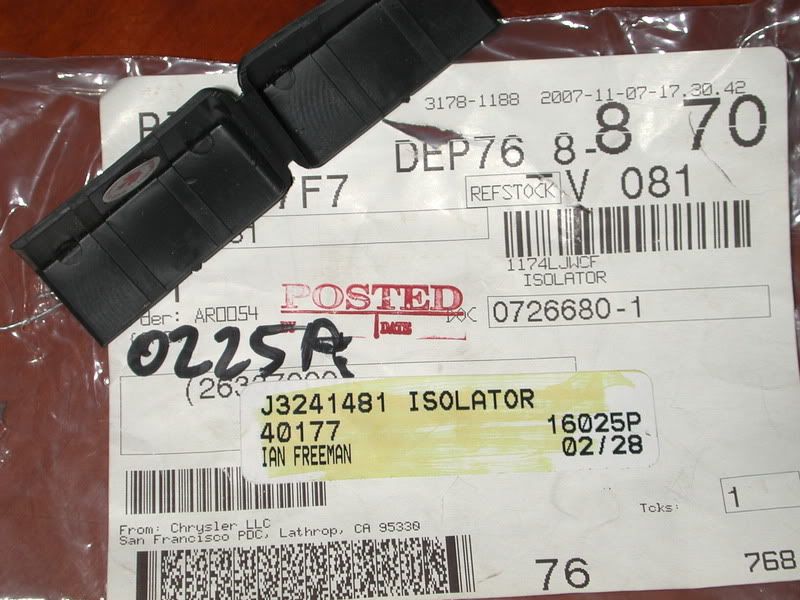

This has the part number of the Isolator. It was on national backorder but somehow I got one from the dealership. This was Feb 07 or thereabouts.



As I understand the Isolator is available at Morris 4 X 4. Shifter Handle Isolator*3241481 by the Jeep Specialists | Morris 4x4 Center Link thanks to Mean Max.
__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.

Last edited by Opihi59; 05-20-2010 at 01:09 AM..
Opihi59 is offline   Reply With Quote Quick reply to this message
Unread 11-11-2009, 04:57 AM   #10
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 4,151
More updating--This is Jbolty's remedy.

http://www.jeepforum.com/forum/f12/t...-fixed-585098/

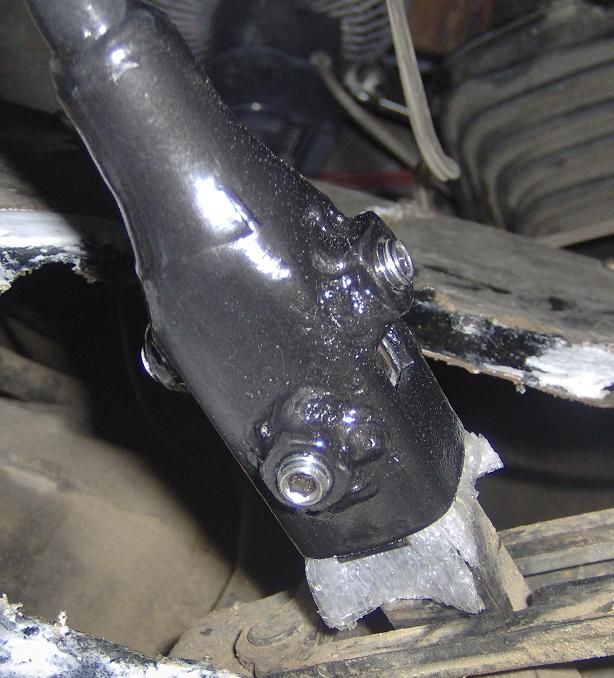

The set screws were positioned over the grooves on the transfer case shifter stub, and thin strips of foam type material was placed similar to the function of the isolator.
__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.
Opihi59 is offline   Reply With Quote Quick reply to this message
Unread 11-11-2009, 06:40 AM   #11
RIjon
Registered User
1998 XJ Cherokee

Join Date: Apr 2007
Location: , Rhode Island/Arizona
Posts: 198
Quote:
Originally Posted by Opihi59 View Post

The notorious "Isolator" in hand. It fits on the inside of the shifter shaft.



This has the part number of the Isolator. It was on national backorder but somehow I got one from the dealership. This was Feb 07 or thereabouts.



As I understand the Isolator is available at Morris 4 X 4. Shifter Handle Isolator*3241481 by the Jeep Specialists | Morris 4x4 Center Link thanks to Mean Max.

I can attest to them being sold now. I bought 2 of them and they worked on both my trans shifter....and transfer case shifter.

I also bought the oil seal that fits under the shifter ball. Worked perfect!
Oil Seal - Fits Inside The Shift Retainer*4864226X by the Jeep Specialists | Morris 4x4 Center



Thanks,
Jon
__________________
www.gaugeplates.com Switch panels for our jeeps

2008 Toyota Tundra RCSB Supercharged
1998 Cherokee Classic ..... work in progress
RIjon is offline   Reply With Quote Quick reply to this message
Unread 11-11-2009, 10:38 AM   #12
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
I just replaced the seal in the shift tower for the AX-15 in my wife's '93 YJ.

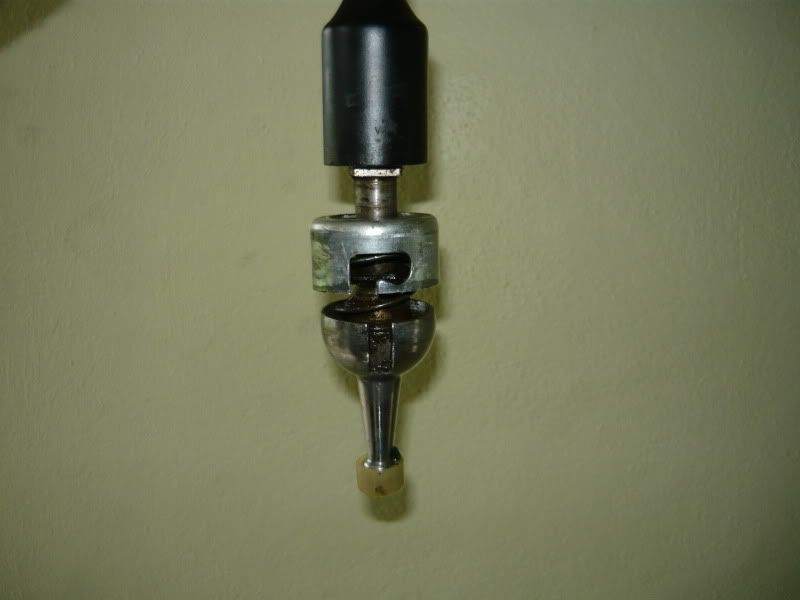

The shifter needs to be removed from the shift tower. Here you can see how the locking ring engages the 2 pins in the shift tower.
The pins can be seen in the tower pic a little farther down.

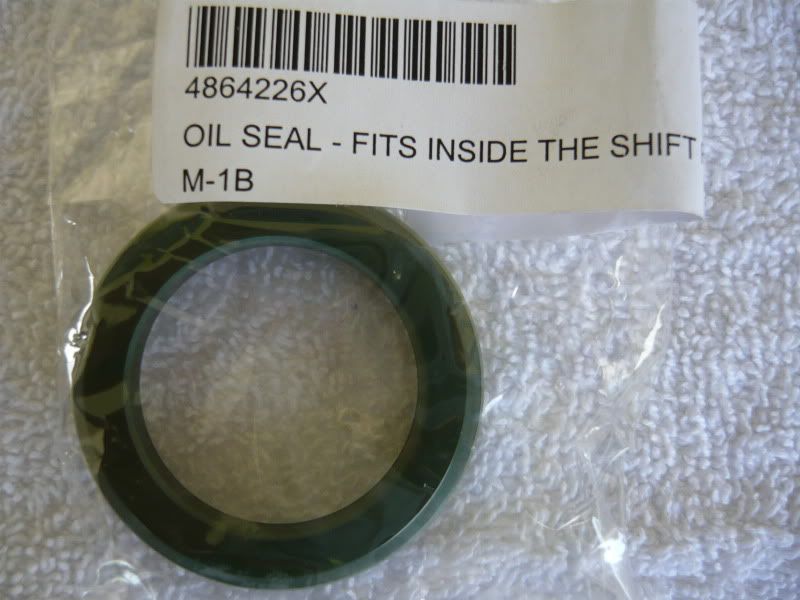

Here is the new seal.

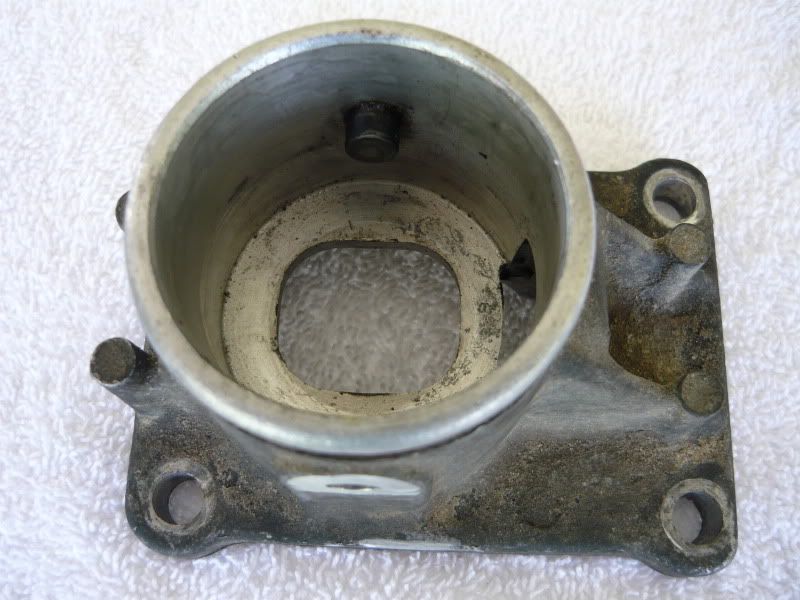

It goes in the bottom of the shift tower shown here. The seal can be maneuvered around the pins. They cannot be removed from the casting.


The seal replacement can be done with the shift tower still mounted on the transmission. I had this one off anyway, but it's removal is not required.


Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 02-26-2010, 02:21 PM   #13
jbolty
Moderator

jbolty's Avatar
1990 YJ Wrangler

Join Date: Jun 2007
Location: San Diego, CA
Posts: 15,981
Quote:
Originally Posted by Opihi59 View Post
More updating--This is Jbolty's remedy.

http://www.jeepforum.com/forum/f12/t...-fixed-585098/

The set screws were positioned over the grooves on the transfer case shifter stub, and thin strips of foam type material was placed similar to the function of the isolator.
And here is the picture,

__________________
.
"The right to be heard does not necessarily include the right to be taken seriously." —Hubert Humphrey
.
If you live within wheeling distance of San Diego county, click here
jbolty is offline   Reply With Quote Quick reply to this message
Unread 05-20-2010, 03:06 AM   #14
normalicy
Registered User
1987 YJ Wrangler

Join Date: Feb 2003
Location: St. Louis
Posts: 68
Oh what I would have given to have found this post a month ago (was searching for "remove shifter" instead of seperating). I've been beating the heck out of mine trying to remove it by hand or shim on the inside to release the locks. Didn't realize brute force would do the trick.
__________________
What is normal anyway?

E-mail at: normalicy@charter.net

Heatware References (a feedback website) HERE

Ebay Feedback HERE
normalicy is offline   Reply With Quote Quick reply to this message
Unread 05-20-2010, 10:55 AM   #15
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 4,151
Gently applied brute force, with restraint. It really doesn't take too much force. PB blaster first.

3 Things to know about the forum: Always PB blaster, Always check the FAQ, Always do a search, and if none of that works, ask Mean Max.
__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.
Opihi59 is offline   Reply With Quote Quick reply to this message
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.
Note: All free e-mails have been banned due to mis-use. (Yahoo, Gmail, Hotmail, etc.)
Don't have a non-free e-mail address? Click here for a solution: Manual Account Creation
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.


Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
