rear bumper build

OK I have a front bumper build thread so I started on the back bumper today.
I will have a swing out tire mount that will hold 2 5gal gas cans when done and a 31-35 tire.
It might support a 38 but I'll never go there

Made some good progress.

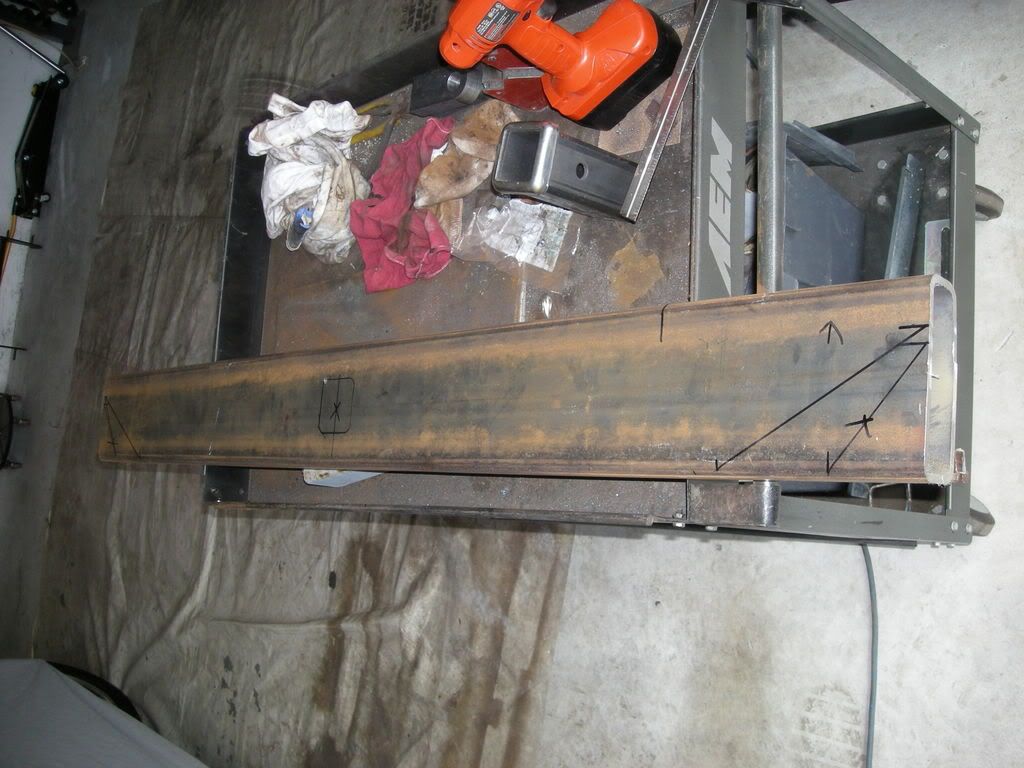

Laying out the bumper :

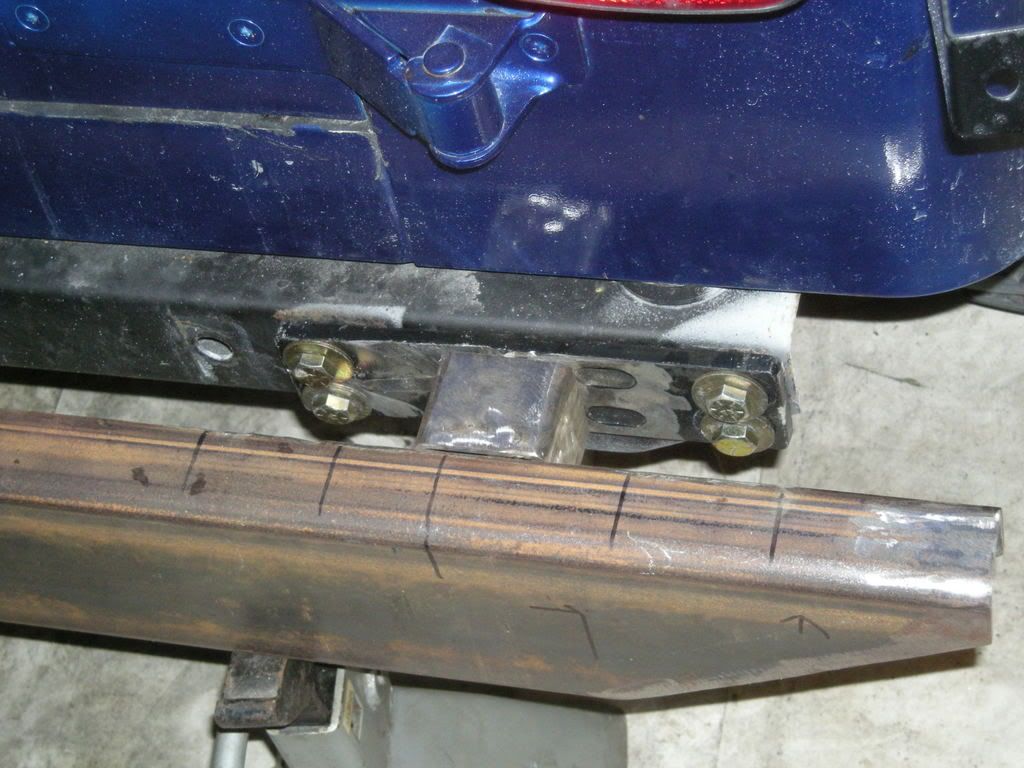

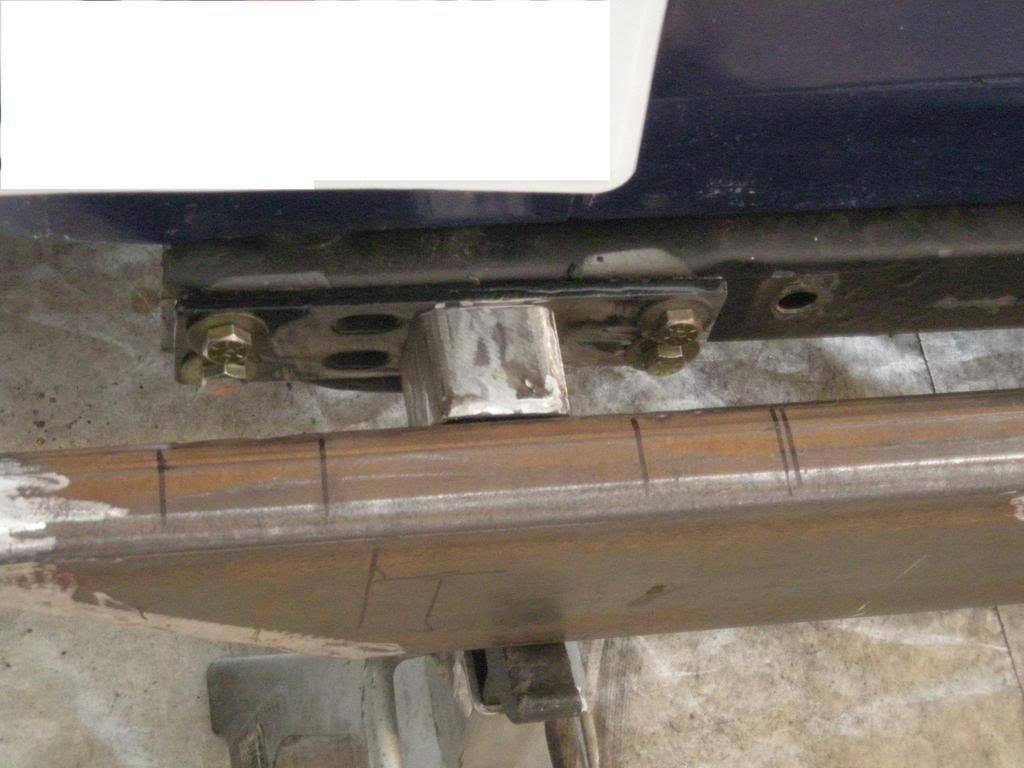

The mounting brackets:

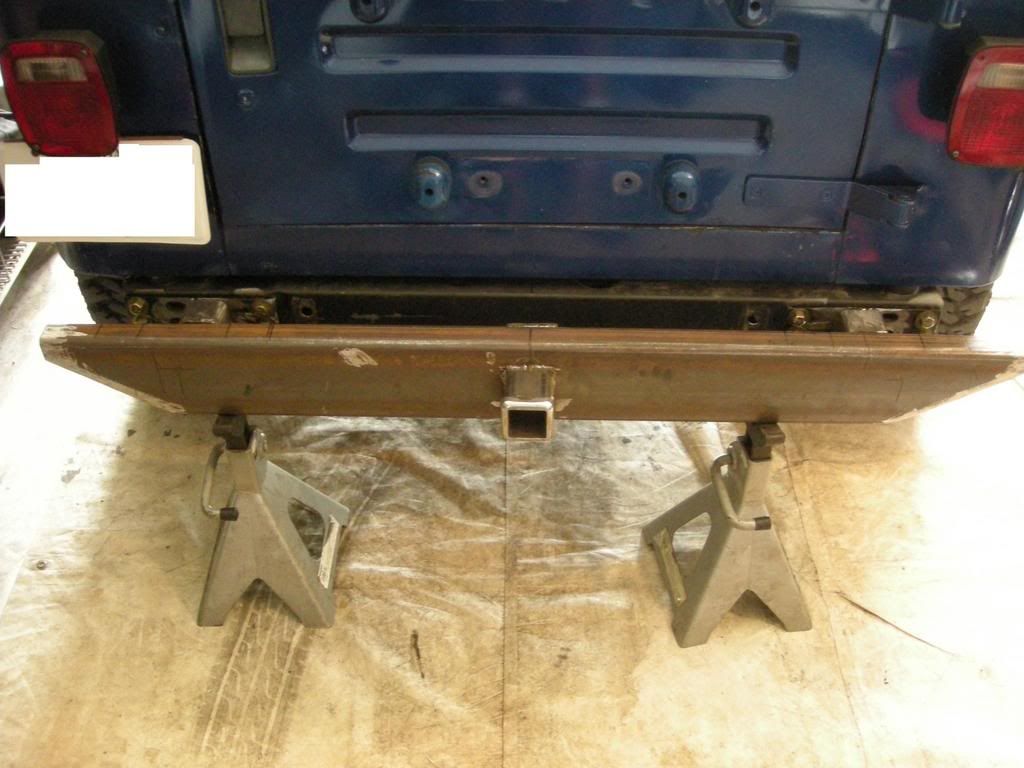

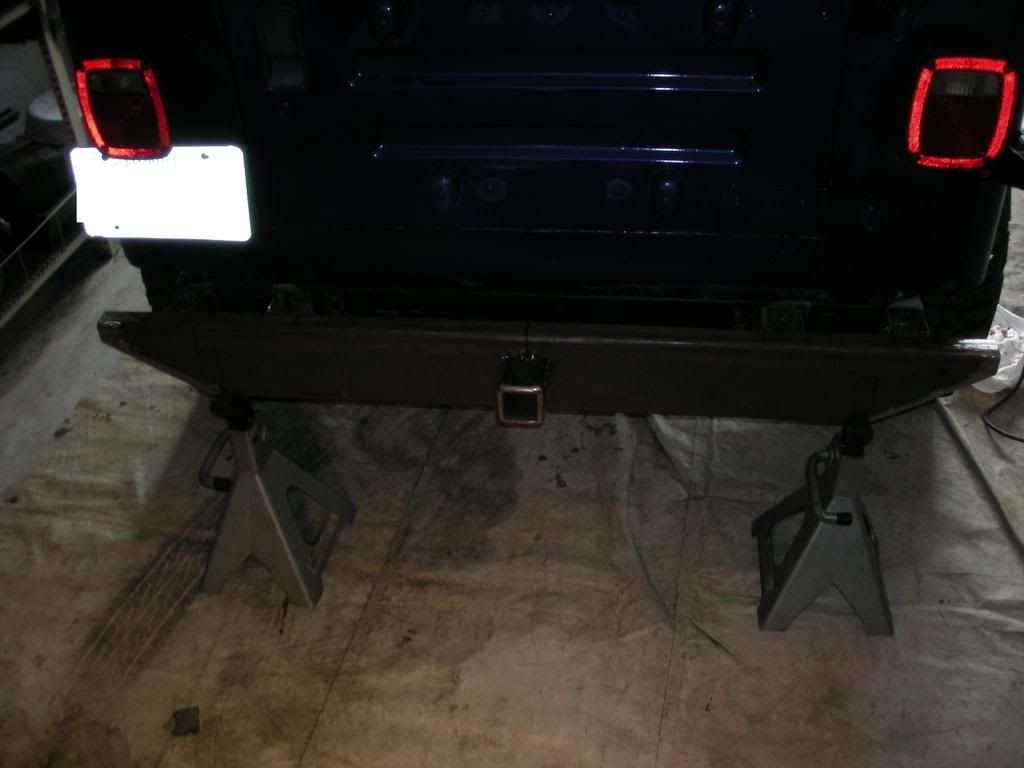

Mocked up to the jeep:




2015 Jeep Wrangler JKU "Tank" Sport S
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline
Sponsored Links
Advertisement

post #2 of 9 Old 10-14-2007, 03:56 PM
bigstinger
Registered User

bigstinger's Avatar
1993 YJ Wrangler

Join Date: Apr 2006
Location: Richmond, VA
Posts: 365
what are you cutting the steel with?
I have a rear bumper and I am itching to build the tire carrier.
Have you bought your latches yet? Where from? Where did you get your bearing for the swingout part?

thanks

4.0L Ford 8.8 4.56 lsd D30 SOA, 4.56 BFG 35 X 12.50 AT's
Ebay Bushwacker knock-off TJ flares - tuffy security console.
Stainless steel braided brake lines skyjacker pitman arm skyjacker hydros
Buy my unit bearings!
http://www.jeepforum.com/forum/showthread.php?t=533752
bigstinger is offline
post #3 of 9 Old 10-14-2007, 04:44 PM Thread Starter
jeepwrnglr92
Registered User
2015 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 2,748
Quote:
Originally Posted by bigstinger
what are you cutting the steel with?
I have a rear bumper and I am itching to build the tire carrier.
Have you bought your latches yet? Where from? Where did you get your bearing for the swingout part?

thanks
I am using a combination of the cutoff saw 14in and a 4.5 grinder with a cutoff wheel in it. I also have a plasma cutter.

I got the hinge from A to Z fab. They are site sponsors here. Good guys to deal with.

I am using 2/6 stock and 2/2 and some 1x1 for the uprights.

I got the locking mechanism form small parts inc. Ill try to find the link and post it.

www.smallparts.com Do a search for DSC-323 That is what I ordered.

So far I think I would use 2x4 for the bumper like I used for the front bumper. don't really need 2x6 my 2cents of course

2015 Jeep Wrangler JKU "Tank" Sport S
2002 Avalanche: To many mods to list

Last edited by jeepwrnglr92; 10-15-2007 at 08:42 AM.
jeepwrnglr92 is offline
post #4 of 9 Old 10-15-2007, 08:18 AM
GrimJeeper91
Registered User

GrimJeeper91's Avatar
1991 YJ Wrangler

Join Date: Apr 2004
Location: Torrance, CA
Posts: 2,280
Did you just bolt to the rear cross member or have you tied that thing to the frame? The cross member itself is very weak so a frame tie in is highly recommended.

'91 YJ 4.O, Auto, Rr. D60 w/ 35 Spline Alloy USA Axles & Detriot Locker, Fr. D30 True-Trac, 4.56's, 4.5" Deaver Springs, Bilstein 5100's, 1" BL, Rubi Flares, 35x12.50 MT/R's on MT classic II's, Detroit Locker, Vanco Big Brakes, Booster & Master, Warn 9000XDI, York OBA, AA SYE & TW's DS's, Teraflex Belly Up, Rocker Guards...
GrimJeeper91 is offline
post #5 of 9 Old 10-15-2007, 08:42 AM Thread Starter
jeepwrnglr92
Registered User
2015 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 2,748
I am not done yet and I am going to try to redesign the mounting brackets yet again. I do plan on making frame tie ins when I get to that point. Still working that out.

I have to find a way around the spring mounts etc. Not to mention I am not sure how to get a nut in the back side of the fram or should I just drill all the way to the otherside?

Gastank is there and that worries me. I dont feel like dropping it or drilling into it.

2015 Jeep Wrangler JKU "Tank" Sport S
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline
post #6 of 9 Old 10-16-2007, 11:29 AM Thread Starter
jeepwrnglr92
Registered User
2015 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 2,748
OK i was tinking about this. When I paint the bumpers should i paint them body color or black? I am going to paint the jeep army green in the end.

I was thinking of painting the bumpers with the bedliner stuff then paint army green over that.

2015 Jeep Wrangler JKU "Tank" Sport S
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline
post #7 of 9 Old 10-19-2007, 05:23 PM Thread Starter
jeepwrnglr92
Registered User
2015 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 2,748
I got some more work done on this today. Got the mounting brackets put on. Still have to do lots more work. Ill post pictures tomorrow.

2015 Jeep Wrangler JKU "Tank" Sport S
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline
post #8 of 9 Old 10-19-2007, 06:37 PM
martells2
Registered User
1993 YJ Wrangler

Join Date: Oct 2006
Location: Westchester, NY
Posts: 675
paint them flat black...and you might want to consider just welding it to the existing crossmember and then plating the sides in. if you kinda going for the cosmetic look you're in the clear, but if you are going to be pulling on things or you wheel it somewhat hard, that looks like it stick out a good bit and would hang up on things rather easily. just food for though.
martells2 is offline
