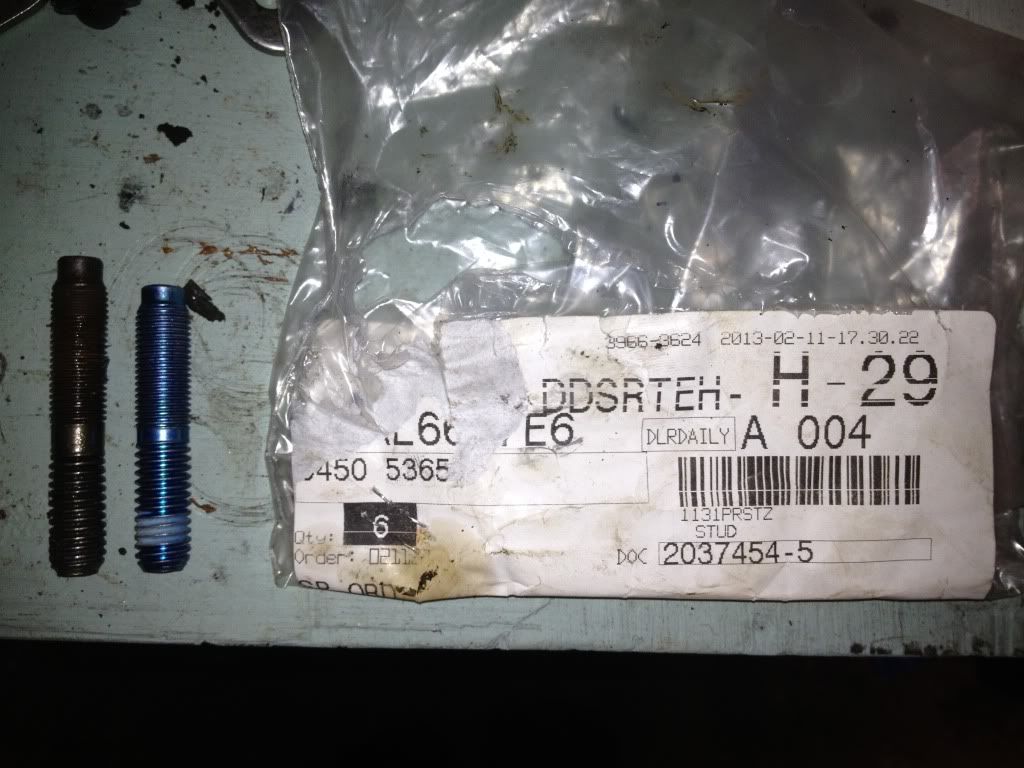

Here's what went into my case. Factory on left and new on right. I think the part number on he bag got ripped though



__________________
89 YJ S, 2.5L/AX-5/NP231
99 WJ Limited, 4.0L/42RE/NP247
93 YJ, 4.0L HO/32RH/NP231 - Sold
schaef89 is offline   Reply With Quote Quick reply to this message
Unread 09-24-2013, 05:01 AM   #17
jeep108
Registered User
1990 YJ Wrangler

Join Date: Jul 2009
Location: blanchard, Oklahoma
Posts: 621
Quote:
Originally Posted by imstillatwork View Post
Studs often have two different threads on the ends, one thread for going into aluminum, a different thread pitch for the nut.
So you really need to know the thread pitch of the end that s in the case already.
This ^^^^ a regular bolt won't work, I guess I should say it's not a regular bolt, it might work if you buy the proper thread for the t case side and have enough room to feed it thru the trans and into the case. IIRC there were a few of the nuts that were tight to get to, so i'm not sure feeding a bolt thru would be any fun. I sent you a pm.
__________________
Find the[COLOR="Blue"]"YJ of the month"[/COLOR] contest in the stickies and participate!

Eph 6:13 -Therefore put on the full armor of God, so that when the day of evil comes, you may be able to stand your ground,


[QUOTE=Opihi59;14523519]Welcome to the forum.
If you are a mechanical neophyte and have to repetitively intone the mantra of "lefty loosey," are a mouth breather and only own a hammer, it will be more of a challenge. [/QUOTE]

Last edited by jeep108; 09-24-2013 at 05:14 AM.. Reason: Trying not to be negative ;)
jeep108 is offline   Reply With Quote Quick reply to this message
Unread 09-24-2013, 06:09 AM   #18
StanF
Registered User
1995 YJ Wrangler

Join Date: Feb 2013
Location: Austin, Texas
Posts: 1,230
Quote:
Originally Posted by jeep108 View Post
This ^^^^ a regular bolt won't work, I guess I should say it's not a regular bolt, it might work if you buy the proper thread for the t case side and have enough room to feed it thru the trans and into the case. IIRC there were a few of the nuts that were tight to get to, so i'm not sure feeding a bolt thru would be any fun. I sent you a pm.
+1

On my 1995 YJ, they are 3/8-16 on the end that goes into the transfer case and 3/8-24 on the nut end. Use loctite when reassembling these.

I doubt you will be able to find these at your hardware store. Try a Jeep Parts dealer or online.

Here's a picture showing the double nut technique that you will need for the studs.

http://www.fourwheeler.com/how-to/tr.../photo-15.html

From my tcase:

__________________
My Ammo Can Console: http://www.jeepforum.com/forum/f12/yet-another-ammo-can-project-finished-1498520/
My 8.8 Swap: http://www.jeepforum.com/forum/f12/yet-another-ford-8-8-swap-extras-1565339/
StanF is offline   Reply With Quote Quick reply to this message
Unread 09-24-2013, 12:08 PM   #19
Randonexplosion
Trailer Queen

Randonexplosion's Avatar
1988 YJ Wrangler

Join Date: Sep 2010
Location: Cortez, Colorado
Posts: 4,469
This is what I used...

http://www.amazon.com/gp/product/B00...?ie=UTF8&psc=1
__________________
5.3/4l60e swap

August YJOTM

Exiled Offroad - Colorado
Randonexplosion is offline   Reply With Quote Quick reply to this message
Unread 10-02-2013, 05:09 PM   #20
Jeepsterchick15
Registered User
1995 YJ Wrangler

Join Date: Sep 2013
Location: Owasso, Ok
Posts: 12
Here's one for you guys... My new t case has one of the older speedometer adapter hear things, and my jeep is wired for the electronic... Can I just swap the old manual one out for the electronic one??? Sure hope so cause I have the new one bought and the old one soaking in penetrating oil to get it out!
Jeepsterchick15 is offline   Reply With Quote Quick reply to this message
Unread 10-02-2013, 05:10 PM   #21
Jeepsterchick15
Registered User
1995 YJ Wrangler

Join Date: Sep 2013
Location: Owasso, Ok
Posts: 12
*gear things
Jeepsterchick15 is offline   Reply With Quote Quick reply to this message
Unread 10-02-2013, 05:47 PM   #22
Apollo12227
Registered User
1992 YJ Wrangler

Join Date: Oct 2009
Location: Orlando
Posts: 2,661
Quote:
Originally Posted by Jeepsterchick15 View Post
Here's one for you guys... My new t case has one of the older speedometer adapter hear things, and my jeep is wired for the electronic... Can I just swap the old manual one out for the electronic one??? Sure hope so cause I have the new one bought and the old one soaking in penetrating oil to get it out!
You would need to swap in your electronic speedo gear and sender from your old tcase. You need the sender housing that the plug goes into, as well as the speedo gear. You will also need to make sure you "clock" the speedo gear correctly depending on how many teeth it has.

http://www.jeepforum.com/forum/f9/cl...sensor-428357/

The above link is for a TJ, but the principal is the same. Find the range on the sender housing that correlates with how many teeth the speedo you are using has... Make sure that range is pointing down, or 6'oclock upon installing, otherwise your spedometer will not work.
Apollo12227 is offline   Reply With Quote Quick reply to this message
Unread 10-02-2013, 06:19 PM   #23
Jeepsterchick15
Registered User
1995 YJ Wrangler

Join Date: Sep 2013
Location: Owasso, Ok
Posts: 12
Great read. Thanks... Only prob is my old ones shaft is quite a bit longer than the one that came with the new one! The new gear is black, old is red. Not sure what to do here now???
Jeepsterchick15 is offline   Reply With Quote Quick reply to this message
Unread 10-02-2013, 06:21 PM   #24
Apollo12227
Registered User
1992 YJ Wrangler

Join Date: Oct 2009
Location: Orlando
Posts: 2,661
Quote:
Originally Posted by Jeepsterchick15 View Post
Great read. Thanks... Only prob is my old ones shaft is quite a bit longer than the one that came with the new one! The new gear is black, old is red. Not sure what to do here now???
The length of the gear isn't specific to the transfercase, it is specific to the type of speed sensor "housign" you have... My stock YJ speedo housing was about 1.5 to 2" longer than the one that was normally used on later model electronic speedo YJ's... I had to pick up a new speedo gear "housing" from a local jeep shop used. The original housing used a very long speedo gear, the new one used a much shorter speedo gear. The color only designates how many teeth it has, but you can manually count them.

Why cant you use the speedo "housing" and gear that you were using before? The differences in speedo length are an issue with respect to the part the plug goes into more than the transfercase...
Apollo12227 is offline   Reply With Quote Quick reply to this message
Unread 10-02-2013, 06:45 PM   #25
Jeepsterchick15
Registered User
1995 YJ Wrangler

Join Date: Sep 2013
Location: Owasso, Ok
Posts: 12
Trust me, still an amateur and def appreciate your help! Trying to explain as best I can... See if the pic makes sense... Red one came with the tcase, black is the new electronic housing... Can't upload pic from my phone... Can you give me your email address? Please
Jeepsterchick15 is offline   Reply With Quote Quick reply to this message
Unread 10-02-2013, 06:51 PM   #26
Jeepsterchick15
Registered User
1995 YJ Wrangler

Join Date: Sep 2013
Location: Owasso, Ok
Posts: 12
My email is loramae15@aol.com I am trying to put the pic online but can't from my phone for some reason... If you will email me I should be able to reply with an attachment
Jeepsterchick15 is offline   Reply With Quote Quick reply to this message
Unread 10-02-2013, 06:59 PM   #27
Apollo12227
Registered User
1992 YJ Wrangler

Join Date: Oct 2009
Location: Orlando
Posts: 2,661
Quote:
Originally Posted by Jeepsterchick15 View Post
My email is loramae15@aol.com I am trying to put the pic online but can't from my phone for some reason... If you will email me I should be able to reply with an attachment
I'm at work at the moment, I apologise. Here is a writeup on how to post pictures. This option is free:

http://www.jeepforum.com/forum/f22/h...pforum-658070/

Otherwise I'll try to email you when I get home.

I'm not sure I am understanding your issue though. There are 3 parts associated w/the sending of speed to your spedometer.

1. The housing that the gauge plugs into,
2. The speedo gear...
3. The wire/plug or cable/wire/plug depending on whether you have electric/mechanical hybrid, or all electrical.

Does your jeep use the cable/electronic hybrid? Or all electrical?

If all electrical, then you have to use the "housing" from an all electric setup, the speedo between the two types of housings will interchange if the housings both require speedos of the same length. Why can't you just use the one that was on your busted transfercase?

As for the difference in lengths, some part #1's and Part #2's listed above were longer than others. The issue is with part #1 as to which gear is correct. If the part #1 you are wanting to use houses the longer speedo, you need the longer speedo, likewise, if you have the shorter housing, you need to use the shorter speedo....


All of the housings described above, will fit an NP231 case... So in essense, you should just be able to swap over the speedo housing, and gear, from your original transfercase, onto the new case.
Apollo12227 is offline   Reply With Quote Quick reply to this message
