Unread 01-27-2008, 10:46 PM   #1
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 4,164
Pilot Bearings 101

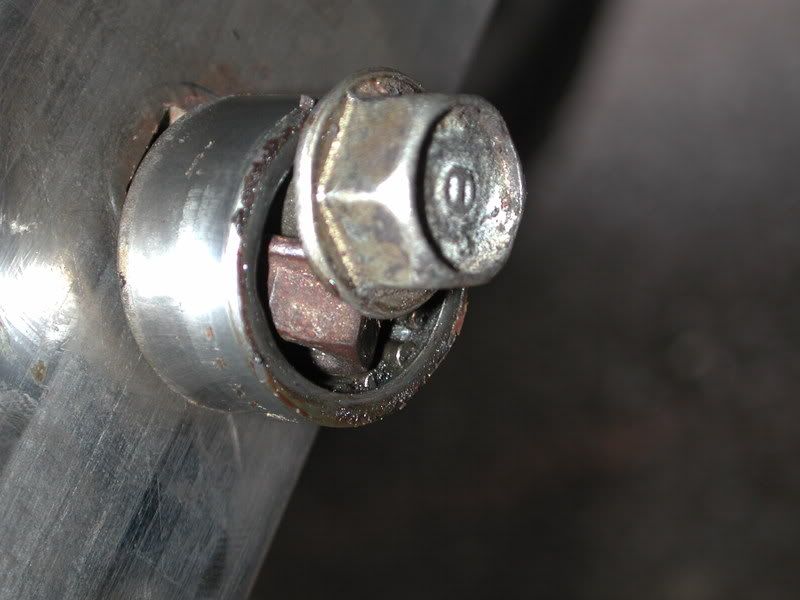

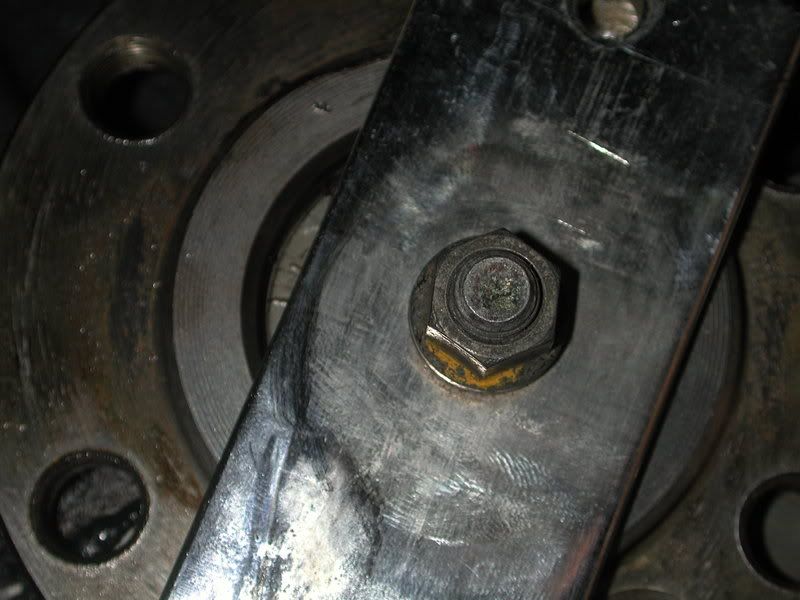

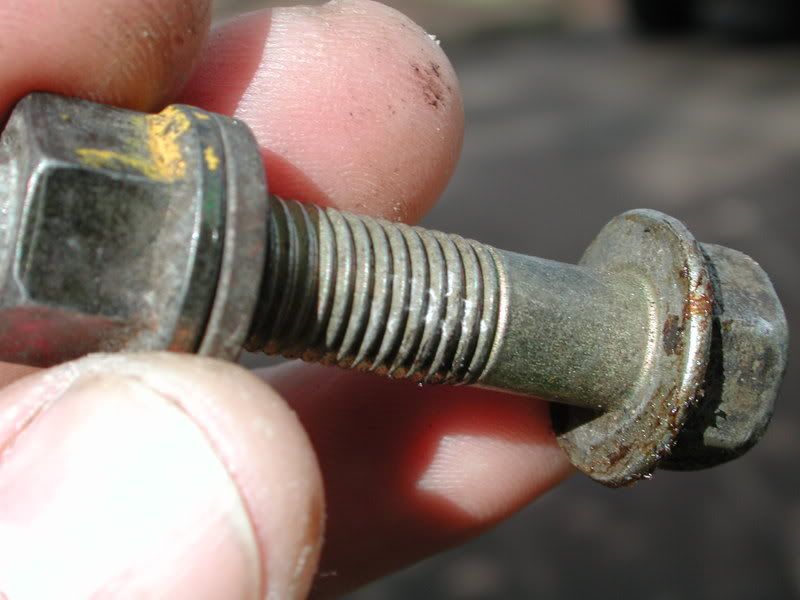

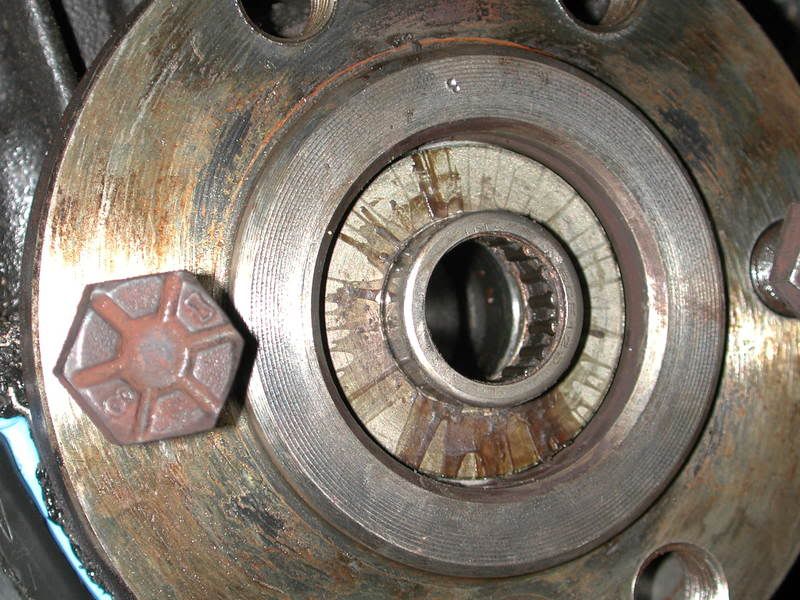

I have never been able to keep up with all the "special" tools I need for most of the stuff I do so have been fabricating what I need as the situation arises. So making a useful pilot bearing puller can be a simple task. The snout of the AX15 is large enough you can use a flange bolt, choose one as large as you can find that will fit in the pilot bearing, one with clean smooth threads such as this. next thing to do is find a handy hefty steel bar with a hole drilled in it that will fit the bolt, and span across the flywheel, then you put the bolt in the pilot bearing, head first, thread the nut on it such as this shot: then you tighten up the nut and it pulls out the pilot bearing. Photo of the "pull" in progress with pilot halfway out, you can see at this point I added in 2 of the flywheel bolts to provide some standoff: This next image shows the pilot bearing pulled, on the backside of the puller metal plate. Note that I added in a nut inside the bore of the pilot bearing ID to wedge the flange bolt against one side to keep it from popping loose during the pull: It only took a few minutes to find the stuff I needed laying around and then about 10 minutes to set it up and pull the pilot bearing. I'm not sophisticated enough to have a real pilot bearing puller. Hopefully this will help someone fabricate a ghetto style pilot bearing puller, I have made several others but the snout on the AX 15 is so large it is easy to do with just a flange bolt. I will submit another string on driving in a new pilot bearing as I messed up the first one........

Edit--here it is-- http://www.jeepforum.com/forum/f12/p...lation-513450/

__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.

Last edited by Opihi59; 05-16-2010 at 12:26 AM..
Opihi59 is offline   Reply With Quote Quick reply to this message
Unread 01-27-2008, 11:19 PM   #2
oldballz
Registered User
2011 JK Wrangler

Join Date: Jul 2007
Location: Farmington, New Mexico
Posts: 334
I like this! This is K.I.S.S. in it's purest form!!!
__________________
[SIZE="4"][URL="http://www.jeepforum.com/forum/f96/viair-oba-install-my-way-1276968/"]MY VIAIR OBA INSTALL [/URL][/SIZE]

[SIZE="3"][URL="http://www.jeepforum.com/forum/f127/2011-rubicon-unlimited-suspension-1282519/"]ONE MAN'S JUNK IS ANOTHER MAN'S TREASURE. PARTS FOR SALE HERE[/URL][/SIZE]
oldballz is offline   Reply With Quote Quick reply to this message
Unread 01-27-2008, 11:32 PM   #3
Jeeples
Registered User
2000 WJ

Join Date: Jul 2006
Location: forum/f310/, UT
Posts: 4,841
Quote:
Originally Posted by Opihi59
I have never been able to keep up with all the "special" tools I need for most of the stuff I do so have been fabricating what I need as the situation arises. So making a useful pilot bearing puller can be a simple task. The snout of the AX15 is large enough you can use a flange bolt, choose one as large as you can find that will fit in the pilot bearing, one with clean smooth threads such as this. next thing to do is find a handy hefty steel bar with a hole drilled in it that will fit the bolt, and span across the flywheel, then you put the bolt in the pilot bearing, head first, thread the nut on it such as this shot: then you tighten up the nut and it pulls out the pilot bearing. Photo of the "pull" in progress with pilot halfway out, you can see at this point I added in 2 of the flywheel bolts to provide some standoff: This next image shows the pilot bearing pulled, on the backside of the puller metal plate. Note that I added in a nut inside the bore of the pilot bearing ID to wedge the flange bolt against one side to keep it from popping loose during the pull: It only took a few minutes to find the stuff I needed laying around and then about 10 minutes to set it up and pull the pilot bearing. I'm not sophisticated enough to have a real pilot bearing puller. Hopefully this will help someone fabricate a ghetto style pilot bearing puller, I have made several others but the snout on the AX 15 is so large it is easy to do with just a flange bolt. I will submit another string on driving in a new pilot bearing as I messed up the first one........
