Pilot bearing installation

I suppose enough people have seen my homemade pilot bearing puller, submitted yesterday.

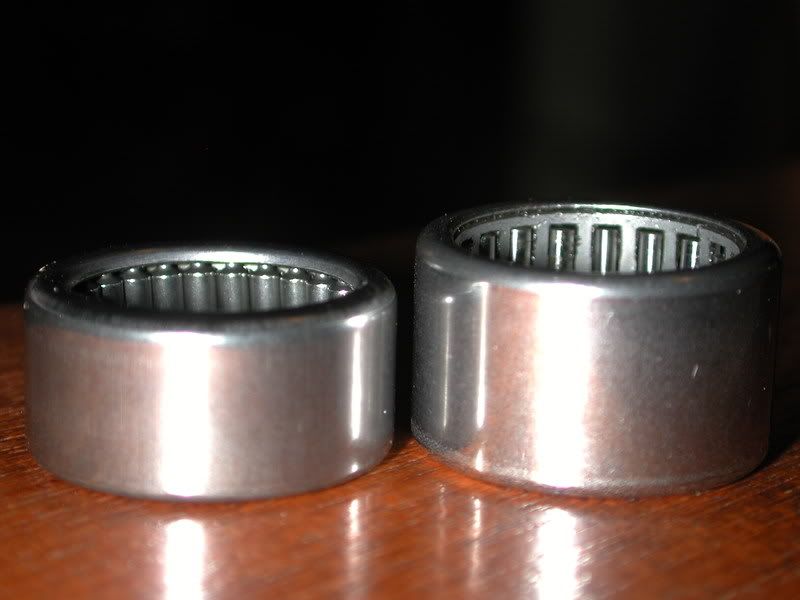

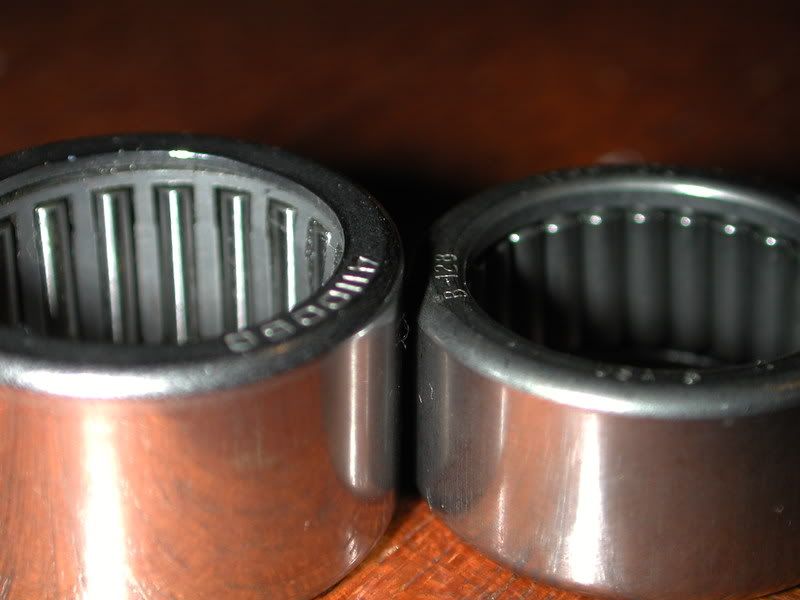

I ran into problems on the bearing install. While the FSM makes a point about installing the new pilot bearing "Bearing seal must face transmission" in ALLCAPS and bolt print, I could not discern any difference between either end of my new pilot bearing. This apparently was a practical demonstration of the 50-50-80 rule which reads if there is only 2 ways to do something, then 80 percent of the time you will chose the wrong solution. I put mine in backwards, it would no longer turn when I checked it so there was another last minute dash to the parts store but they had one for $8. Turns out the new new one was not as long as the first new one, but I had the chance to compare them critically and noted that one end of the bearing race is sturdier/thicker and more flat. This would be the side to tap against. The end which goes into the end of the crank is rounded slightly, and is comparatively much thinner. So of course, I had chosen the wrong end. 50-50-80..... Another tip would be the part number is engraved on the face of the thicker end. If logic applies to automotive mechanics, it would make sense to be able to read a part number when the part is still installed. Photographs here for your comparison, In this photo, the THICK ends are shown, the shorter bearing has a beefier appearing "hit here with bearing driver" end: In the next photograph, the more fragile ends are shown, they are installed facing the engine:
I have installed at least a dozen or more pilot bearings in the last few years alone, but have never encountered this problem. This may of course be intuitive to many of the forum's experts, but hopefully this will help someone at some point from destroying the last spare pilot bearing available within 3000 miles, or on a Saturday evening of a 3 day weekend after the stores are closed up.

__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.

Last edited by Opihi59; 05-16-2010 at 12:19 PM..
Opihi59 is offline   Reply With Quote Quick reply to this message
Unread 01-28-2008, 07:53 PM   #2
timatoe
Registered User
1990 YJ Wrangler

Join Date: Aug 2006
Location: Grass Valley California
Posts: 13,720
Quote:
Originally Posted by Opihi59
I suppose enough people have seen my homemade pilot bearing puller, submitted yesterday.
I ran into problems on the bearing install. While the FSM makes a point about installing the new pilot bearing "Bearing seal must face transmission" in ALLCAPS and bolt print, I could not discern any difference between either end of my new pilot bearing. This apparently was a practical demonstration of the 50-50-80 rule which reads if there is only 2 ways to do something, then 80 percent of the time you will chose the wrong solution. I put mine in backwards, it would no longer turn when I checked it so there was another last minute dash to the parts store but they had one for $8. Turns out the new new one was not as long as the first new one, but I had the chance to compare them critically and noted that one end of the bearing race is sturdier/thicker and more flat. This would be the side to tap against. The end which goes into the end of the crank is rounded slightly, and is comparatively much thinner. So of course, I had chosen the wrong end. 50-50-80..... Another tip would be the part number is engraved on the face of the thicker end. If logic applies to automotive mechanics, it would make sense to be able to read a part number when the part is still installed. Photographs here for your comparison, In this photo, the THICK ends are shown, the shorter bearing has a beefier appearing "hit here with bearing driver" end: In the next photograph, the more fragile ends are shown, they are installed facing the engine: IMG]http://i30.photobucket.com/albums/c315/Opihi59/DSCN2943.jpg[/IMG]
I have installed at least a dozen or more pilot bearings in the last few years alone, but have never encountered this problem. This may of course be intuitive to many of the forum's experts, but hopefully this will help someone at some point from destroying the last spare pilot bearing available within 3000 miles, or on a Saturday evening of a 3 day weekend after the stores are closed up.
No Clicky
__________________
Quote:
Originally Posted by George Orwell
We sleep safe in our beds because rough men stand ready in the night to visit violence on those who would do us harm.
timatoe is offline   Reply With Quote Quick reply to this message
Unread 01-28-2008, 08:03 PM   #3
Richmond88yj
Eat, Sleep, Jeep

Richmond88yj's Avatar
1988 YJ Wrangler

Join Date: Mar 2004
Location: Chesterfield VA
Posts: 2,112
That';s great info.

On the last two I did they were solid-ish, made of some oil impregated allow with no moving parts. Seem to hold up well, and no "which side first" issue.

Wonder which one is superior in lasting longer... I've always been a fan of the style you posted.
Richmond88yj is offline   Reply With Quote Quick reply to this message
Unread 01-28-2008, 08:23 PM   #4
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 4,098
Looks like second photo link didn't work, will send photo number 2 once more:

__________________
....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock http://kamfamily.wordpress.com/2009/...waiian-limpet/

Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.

Last edited by Opihi59; 05-16-2010 at 12:20 PM..
Opihi59 is offline   Reply With Quote Quick reply to this message
Unread 01-28-2008, 08:25 PM   #5
Burnerman
Registered User
1989 YJ Wrangler

Join Date: Oct 2006
Location: Vernon, NJ
Posts: 4,757
Quote:
Originally Posted by Opihi59
Looks like second photo link didn't work, will send photo number 2 once more:
Lets try....
__________________
89' YJ Larado 4.0L,AX15
05' Grand Cherokee Limited, 2"OME lift and a Hemi.
Burnerman is offline   Reply With Quote Quick reply to this message
Unread 01-28-2008, 09:08 PM   #6
doug_1994
Registered User
1994 YJ Wrangler

Join Date: Mar 2006
Location: Monaca, Pa. 15061
Posts: 1,545
Quote:
Originally Posted by Richmond 88 YJ
On the last two I did they were solid-ish, made of some oil impregated allow with no moving parts.
Same here, but mine is a conversion unit.

I kinda like this better for the reason its simpler...well it sounds good in my head anyways.
__________________
Wise men speak because they have something to say;
Fools because they have to say something.

Plato
doug_1994 is offline   Reply With Quote Quick reply to this message
Unread 01-28-2008, 09:28 PM   #7
swedishdwarf
Registered User
1995 YJ Wrangler

Join Date: Sep 2007
Location: Slouching toward Bethlehem
Posts: 635
The bronze bushings last longer. You're not supposed to put anything on them, but I find a little ATF makes it easier to get the trans back in.
__________________
You can't teach an old dogma new tricks.
swedishdwarf is offline   Reply With Quote Quick reply to this message
Unread 01-29-2008, 12:58 AM   #8
oldballz
Registered User
2011 JK Wrangler

Join Date: Jul 2007
Location: Farmington, New Mexico
Posts: 334
Im puttin' this one in the mental bank for later on down the road. Great stuff.
__________________
[SIZE="4"][URL="http://www.jeepforum.com/forum/f96/viair-oba-install-my-way-1276968/"]MY VIAIR OBA INSTALL [/URL][/SIZE]

[SIZE="3"][URL="http://www.jeepforum.com/forum/f127/2011-rubicon-unlimited-suspension-1282519/"]ONE MAN'S JUNK IS ANOTHER MAN'S TREASURE. PARTS FOR SALE HERE[/URL][/SIZE]
oldballz is offline   Reply With Quote Quick reply to this message
Unread 01-29-2008, 04:08 AM   #9
Alfons
Registered User
1992 YJ Wrangler

Join Date: Jul 2005
Location: Ontario, Canada
Posts: 2,218
I found that the pilot bearings bought from a dealership have the seal, whereas third-party ones don't.
