Unread 05-19-2013, 08:01 AM   #61
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
I found it! It was covered with 24 years of grease and dirt. It just blended right into the firewall. Lol

So what is it that I need to do?

CBinDC is offline   Reply With Quote
Unread 05-19-2013, 08:28 AM   #62
DirtKar
I pledge allegiance.

DirtKar's Avatar
1993 YJ Wrangler

Join Date: Jun 2012
Location: Nor Cal Sierras
Posts: 1,493

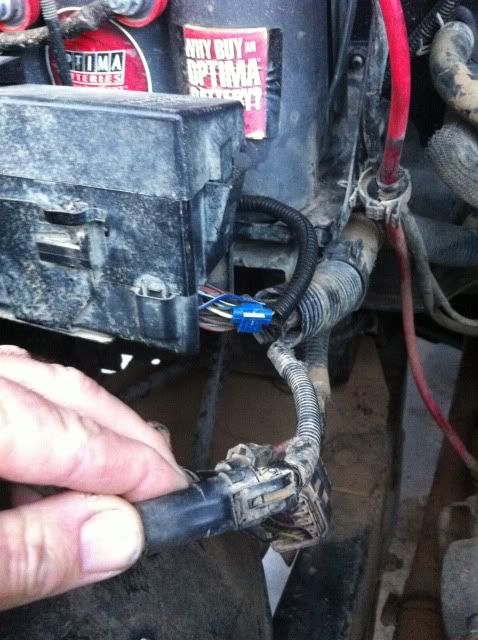

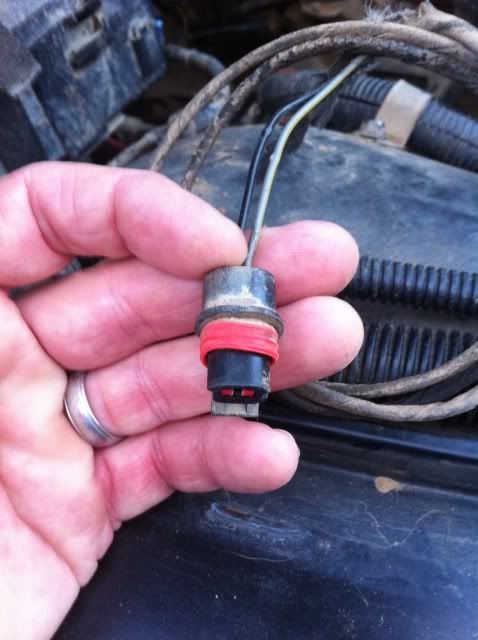

Mines a 93' so I'm not sure if they have the exact same harness. Do you have a plug that looks like this? If you do, open it and put a wire in the holes you see in the second pic to short it. Turn the key on, doesn't have to be running, just on. At that point you should have he 4x4 lite illuminated if not, check the bulb.


__________________
Quote:
Originally Posted by Carlos14 View Post
What you see as not bad, and what I see as not bad, are two completely different not bads
YJOTM JULY 2014
DirtKar is offline   Reply With Quote
Unread 05-19-2013, 09:08 AM   #63
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
It looks like they may be different. Here is what mine looks like.



CBinDC is offline   Reply With Quote
Unread 05-19-2013, 09:21 AM   #64
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
Michael, I think this is the wire you were talking about. Am i supposed to disconnect it at the switch? What do you want me to do with it?



CBinDC is offline   Reply With Quote
Unread 05-19-2013, 09:35 AM   #65
Michaelgoesrawr
Web Wheeler

Michaelgoesrawr's Avatar
1988 YJ Wrangler

Join Date: Nov 2009
Location: Waco, TX
Posts: 6,811
Quote:
Originally Posted by CBinDC
Michael, I think this is the wire you were talking about. Am i supposed to disconnect it at the switch? What do you want me to do with it?
Yeah that's it. Kars is different because his electronics are at the cad. Stick a wire in one side so it won't come out and the. Ground the wire so you don't have to hold it. Turn the key on and see if the light comes on.
__________________
Adopt your pets. Don't shop for them.
Michaelgoesrawr is offline   Reply With Quote
Unread 05-19-2013, 09:38 AM   #66
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
Quote:
Originally Posted by Michaelgoesrawr

Yeah that's it. Kars is different because his electronics are at the cad. Stick a wire in one side so it won't come out and the. Ground the wire so you don't have to hold it. Turn the key on and see if the light comes on.
Stick it in the wire that's leading to switch (the one with the metal end)?
CBinDC is offline   Reply With Quote
Unread 05-19-2013, 10:28 AM   #67
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
Alright, I put the wire in the metal end, grounded it, turned on the ignition, and no light.
CBinDC is offline   Reply With Quote
Unread 05-19-2013, 11:01 AM   #68
Michaelgoesrawr
Web Wheeler

Michaelgoesrawr's Avatar
1988 YJ Wrangler

Join Date: Nov 2009
Location: Waco, TX
Posts: 6,811
Quote:
Originally Posted by CBinDC
Alright, I put the wire in the metal end, grounded it, turned on the ignition, and no light.
Did you put it in the round side that goes into the Jeep?

I figured your switch was bad but it's something in the cluster. I see no reason why tapping into the 12v won't fix this one too
__________________
Adopt your pets. Don't shop for them.
Michaelgoesrawr is offline   Reply With Quote
Unread 05-22-2013, 02:40 PM   #69
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
I determined my switch (4x4) is still working so I'm moving onto the vacuum accuator (or the axle shift motor). I have a Chilton manual for my model and under the Functional test section for the Shift motor it states:

1) Raise and support the vehicle safely.

2) Disconnect the vacuum harness and connect a hand vacuum pump to the front port. Apply 15 in. Hg of vacuum to the front port and rotate the right front wheel to fully disengage the axle shafts.

3) The shift motor should maintain the the vacuum applied to the front port for a minimum of 30 seconds. If the motor does not maintain the vacuum, replace it. If the motor does, go to step 4.

4) Connect the vacuum pump to the rear port. Cap the port for the indicator lamp switch and apply 15 in Hg.

There are about 4 more steps to check if the motor is working but I have a few question.

Does the Jeep need to be in neutral, in gear, in 2wd or 4wd, does the battery need to be connected or not, and does the vehicle need to be turned on or off? Chiltons doesn't mention any of this.

I bought a hand pump at Harbor Freight and did all these things, except start the engine (I did turn the ignition on though). When I applied the 15 in. of vacuum the needle didn't budge at all. At one point I walked away, came back 10 mins later and the needle was still on 15 in.

How do I get the right front wheel to engage or disengage. I turned the wheel but it just rotates freely. Whats up? I'm missing something.
CBinDC is offline   Reply With Quote
Unread 05-22-2013, 02:48 PM   #70
Michaelgoesrawr
Web Wheeler

Michaelgoesrawr's Avatar
1988 YJ Wrangler

Join Date: Nov 2009
Location: Waco, TX
Posts: 6,811
I'd say the Jeep is in park(auto) or neutral when you do it. Since you're applying vacuum the Jeep doesn't need to be on at all, not even the key. You're just testing the shift motor to make sure the diagram is good(which it sounds like to me).

The right wheel will always move freely because you have open differentials. So as far as I know that's okay.

Edit: I'd leave the battery connected but that's just me.
__________________
Adopt your pets. Don't shop for them.
Michaelgoesrawr is offline   Reply With Quote
Unread 05-22-2013, 03:05 PM   #71
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
Quote:
Originally Posted by Michaelgoesrawr
I'd say the Jeep is in park(auto) or neutral when you do it. Since you're applying vacuum the Jeep doesn't need to be on at all, not even the key. You're just testing the shift motor to make sure the diagram is good(which it sounds like to me).

The right wheel will always move freely because you have open differentials. So as far as I know that's okay.
Ok. However, on step 7 it states:

"7) Apply 15 in. Hg of vacuum to the shift motor rear port. Rotate the right front wheel to engage the axle shafts. The axles must be completely engaged!".

How do I engage them? I've spun the wheel with it in neutral and and in first, in 2wd and 4wd engaged, and the wheel spins freely. I went and rotated the left wheel and that spun freely, while in neutral, 1st gear, 2wd, and 4wd.
CBinDC is offline   Reply With Quote
Unread 05-22-2013, 03:14 PM   #72
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
Does "engage" mean that both wheels spin at the same time?
CBinDC is offline   Reply With Quote
Unread 05-22-2013, 03:26 PM   #73
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
In the first step it says to disconnect the vacuum harness and connect the hand pump to the front port. Does this mean to just disconnect the that one vac line off the front port or Ll the vac lines on the motor? To me disconnecting the harness implies all the lines. Then again, I'm not sure.
CBinDC is offline   Reply With Quote
Unread 05-22-2013, 04:38 PM   #74
Michaelgoesrawr
Web Wheeler

Michaelgoesrawr's Avatar
1988 YJ Wrangler

Join Date: Nov 2009
Location: Waco, TX
Posts: 6,811
It just refers to locking the front two wheels together. With the whole front of the vehicle off the ground if you spin one wheel forward the other wheel should spin backwards. Sounds strange but it's true.

I'm not sure about the other vacuum questions
__________________
Adopt your pets. Don't shop for them.
Michaelgoesrawr is offline   Reply With Quote
Unread 05-22-2013, 05:23 PM   #75
CBinDC
Registered User
1989 YJ Wrangler

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 946
Quote:
Originally Posted by Michaelgoesrawr
It just refers to locking the front two wheels together. With the whole front of the vehicle off the ground if you spin one wheel forward the other wheel should spin backwards. Sounds strange but it's true.

I'm not sure about the other vacuum questions
I've had the front end off the ground the entire time. I turn the right wheel and the left wheel doesn't move at all.
CBinDC is offline   Reply With Quote
