which nipple on axle vacuum motor to apply vacuum for 4WD

can anyone advise which nipple (black, yellow, or green below) on the axle vacuum motor needs vacuum applied to get the front axle to be engaged?



JOExFROMxNY is offline
Sponsored Links
Advertisement

post #2 of 8 Old 12-27-2010, 08:02 AM
kloppk
Registered User
1992 YJ Wrangler

Join Date: Oct 2006
Posts: 2,751
The "Yellow" one. I believe it's the middle nipple.
kloppk is offline
post #3 of 8 Old 12-27-2010, 08:06 AM Thread Starter
JOExFROMxNY
Registered User
1988 YJ Wrangler

Join Date: Dec 2009
Location: Long Island, NY
Posts: 744
can i just apply vacuum once to move it or does it need constant vacuum to stay engaged while running?
JOExFROMxNY is offline
post #4 of 8 Old 12-27-2010, 08:11 AM
Mark05059
Registered User
1989 YJ Wrangler

Join Date: Mar 2009
Location: quechee Vermont
Posts: 4,699
to stay engaged it needs vac all the time while running or it will slide back

1998 ZJ 5.2 Auto

1989 Wrangler Black Bone Stock 2.5l 5spd
/l , [____],
|---L--[]lllllll[]-
()_) ()_)==O=)_)
Mark05059 is offline
post #5 of 8 Old 12-27-2010, 08:15 AM
boydster00
Registered User
1990 YJ Wrangler

Join Date: Oct 2010
Location: Glen Burnie
Posts: 54
See the yellow that goes to the 4WD light switch? It needs constant vac to keep the switch engaged and to hold the fork in place. Lack of vac won't make it move back to 2, but it could move to 2 on its own. If you're trying to just get it working (as a temp fix), disconnect the red vac line from the engine vac system and run a vac line from the eng system down to the vac motor where the yellow line attaches. Disconnect the other lines. Your 4WD light wont work, but that should move and hold it in axle lock until you can get it working right.

1990 YJ Sahara 4.2, 2011 F150 4x4, 1987 Mustang 5.0 GT (orig owner), 2006 Triumph Rocket3.
boydster00 is offline
post #6 of 8 Old 12-27-2010, 01:09 PM Thread Starter
JOExFROMxNY
Registered User
1988 YJ Wrangler

Join Date: Dec 2009
Location: Long Island, NY
Posts: 744
Thanks man, it worked. I got 10 feet of washer fluid line and ran it from the red vacuum line to the middle nipple on the axle vacuum motor. Everything good now.You Brothers on jeepforum are the greatest help. once again you guys saved my day. that is why i always am a supporter of this board. Instant help. when you need it.
JOExFROMxNY is offline
post #7 of 8 Old 12-27-2010, 03:52 PM
boydster00
Registered User
1990 YJ Wrangler

Join Date: Oct 2010
Location: Glen Burnie
Posts: 54
Bravo, man. Now you can remove that whole 4x4 vac harness (yes, it all comes out in 1 harness without affecting anything on the engine) and take your time getting it fixed up.

One thing I found besides plastic lines that looked like they had been chewed on by mice was the blue relief / check valve. Mine was plugged. It's designed to relieve vac to atmosphere when changing from 4 to 2 and back, allowing the vac motor to move without vac on the opposite side of the diaphragm. It should draw air in in one direction, but should not allow air flow the other way.

1990 YJ Sahara 4.2, 2011 F150 4x4, 1987 Mustang 5.0 GT (orig owner), 2006 Triumph Rocket3.
boydster00 is offline
post #8 of 8 Old 12-31-2010, 06:37 PM Thread Starter
JOExFROMxNY
Registered User
1988 YJ Wrangler

Join Date: Dec 2009
Location: Long Island, NY
Posts: 744

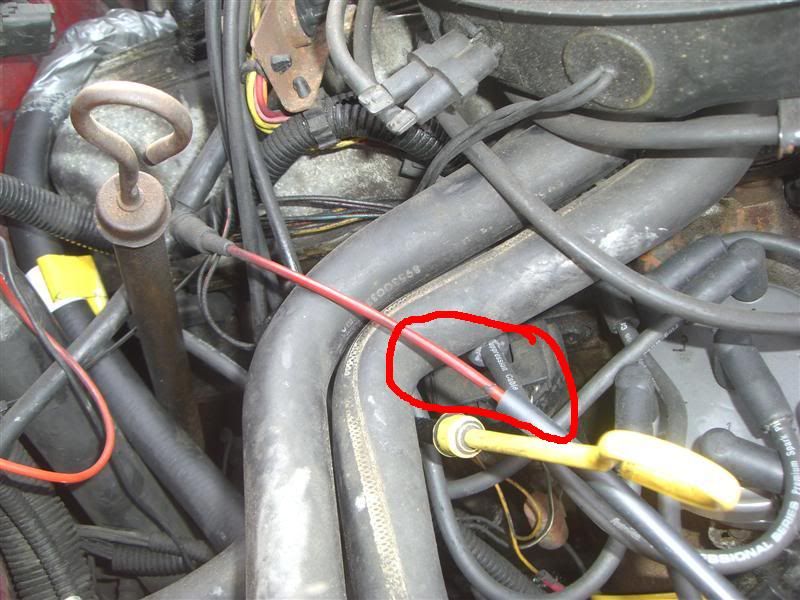

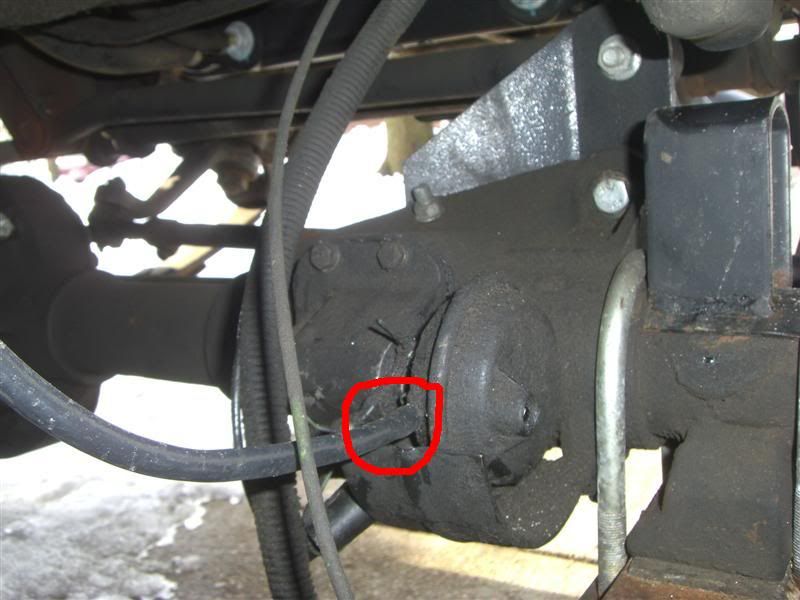

Here are a couple of shots of what I did on my '88 to get it going in 4WD. I pulled the cone shaped thing from the hard red plastic vacuum line near the dist. cover and oil dipstick and connected an end of the washer fluid line i bought to it. It just slipped over it nice and snug since the red plastic was rigid. I connected the other end to the middle nipple on the vacuum shifter motor on the axle. The whole job took less than a minute and it worked great all week. Thanks again to all who suggested this quick fix.




JOExFROMxNY is offline
