Mysterios vacuum in the cab.. Anyone know what it is?

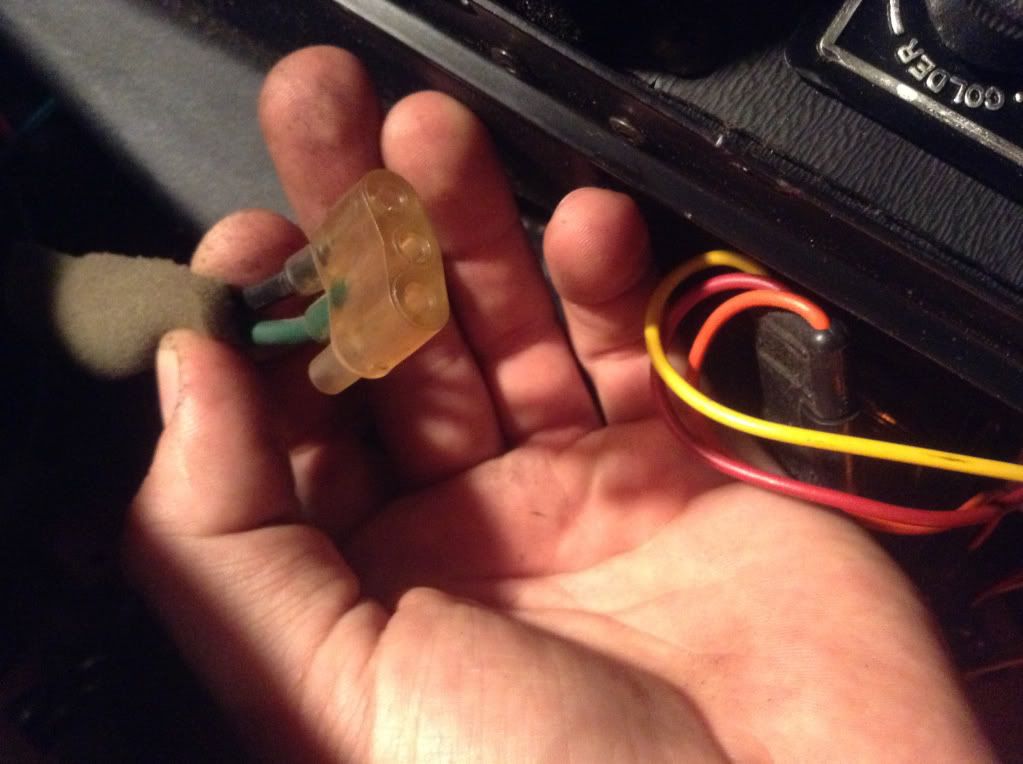

Today i pulled the ac in the cab to check on things and the next drive i heard hissing. Took it down and found these bad boys sticking out and hissing:

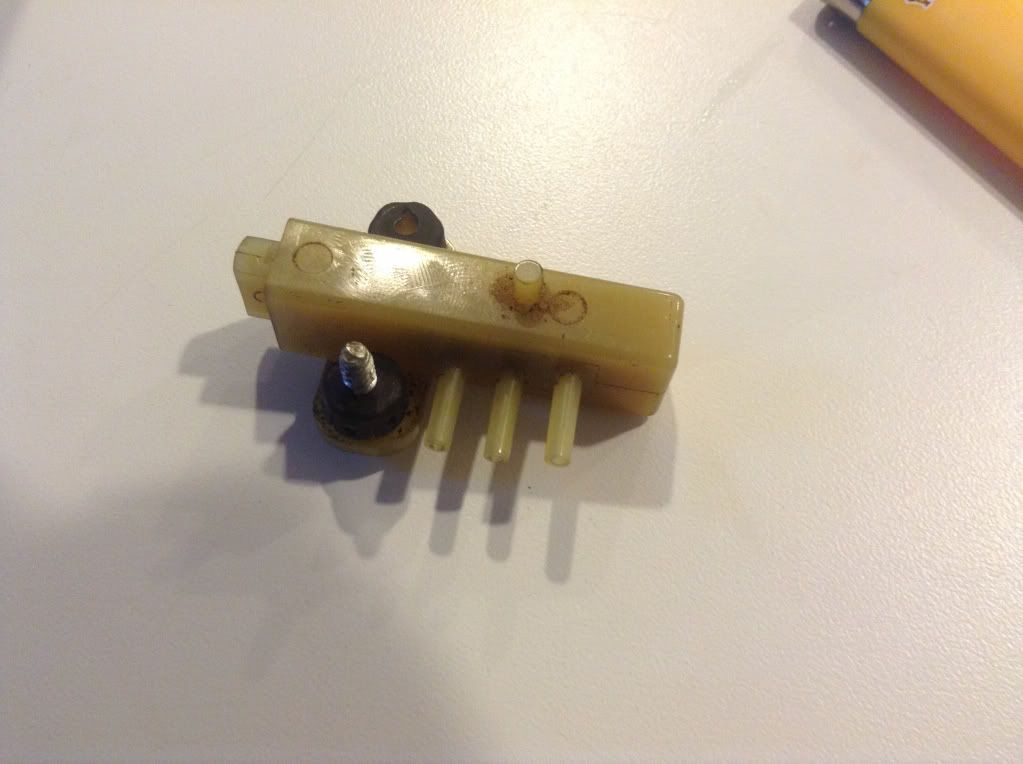

Shortly after investigating where they could possibly plug into i found this hanging on a single screw half ay undone:



They are located right below the heater controls and just curious what they are for and how do i assemble properly. Definitely clear that the plastic piece hooks up to the hose but is there something the plastic piece should fit onto?

atldude is offline
Sponsored Links
Advertisement

post #2 of 15 Old 05-01-2013, 06:39 PM
zeus87gn
Registered User
1987 YJ Wrangler

Join Date: Sep 2006
Location: Hernando, Ms
Posts: 2,447
The plastic block mounts to your heater control device
It moves an air diverter flap in your heat system
Yes, it should be there
Sorry, i cant take a pic of the one i have right now to show you

Handicapped license plates are not for mentally handicapped people -

"Man has not yet evolved an inch from the primordial slime that spawned him." Mark Blankfield, Jekyll & Hyde... Together again


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
zeus87gn is offline
post #3 of 15 Old 05-01-2013, 06:42 PM Thread Starter
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta
Posts: 339
No need i see what u mean seems like when i move the vent control a little 'trigger' may push the switch in or let it all out. Hmm gotta find another screw now lol. Doesn't appear like its making real good contact ...
atldude is offline
post #4 of 15 Old 05-01-2013, 06:47 PM Thread Starter
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta
Posts: 339
One more question. There supposed to be 2 or 3 tubes coming in? I only have 2?! But the plastic piece has 3 inlets and so does the connector...
atldude is offline
post #5 of 15 Old 05-01-2013, 07:22 PM Thread Starter
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta
Posts: 339
Wait maybe i got it all wrong. Sound like from this post that the vacuum lines are supposed to control the left cowl gate (though looks like the right one ) how does that happen?

Edit link:
http://www.wranglerforum.com/f8/yj-h...ned-68618.html
atldude is offline
post #6 of 15 Old 05-01-2013, 09:02 PM Thread Starter
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta
Posts: 339
Eh nevermind i figured it out..still don't know what its for.. Guessing it changes the vac if the gates are open in certain position? Maybe cause it to rev up a little ?,Lol don't know but thanks for the help got it all put together. Apparently only 2 tubes and the third one is left open.
atldude is offline
post #7 of 15 Old 05-02-2013, 01:22 PM
zeus87gn
Registered User
1987 YJ Wrangler

Join Date: Sep 2006
Location: Hernando, Ms
Posts: 2,447
Thats right - one tube is the source the other is the signal
I believe it closes an air inlet flap when you move the lever to the off position

Handicapped license plates are not for mentally handicapped people -

"Man has not yet evolved an inch from the primordial slime that spawned him." Mark Blankfield, Jekyll & Hyde... Together again


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
zeus87gn is offline
post #8 of 15 Old 05-02-2013, 03:29 PM
flcracker
Registered User
1992 YJ Wrangler

Join Date: Jun 2012
Location: Naples
Posts: 912
looks like something I get to do this summer because right now, all I get is hot air and its not a good thing in SW FL in the summer....

Not the sharpest bulb in the box....

My Jeep is possessed with the goal of making me lose my religion....
flcracker is offline
post #9 of 15 Old 05-02-2013, 05:18 PM Thread Starter
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta
Posts: 339
Quote:
Originally Posted by flcracker
looks like something I get to do this summer because right now, all I get is hot air and its not a good thing in SW FL in the summer....
Bet ur gate's prolly not opening properly take the heater out clean it, reseal it rehook the control wires and u'd be all set. did that in feb due to leaking heater core but did not deal with the controls and should have as u can see
atldude is offline
post #10 of 15 Old 05-02-2013, 07:10 PM
87TPIYJ
Registered User
1987 YJ Wrangler

Join Date: Feb 2009
Location: Jacksonville
Posts: 1,252
I don't have any vacuum lines running to mine and it seems to work fine!?!?

YJ 350TPI NV4500 SOA 8.8 Flat skid

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
87TPIYJ is offline
post #11 of 15 Old 05-02-2013, 08:04 PM Thread Starter
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta
Posts: 339
Maybe it comes on certain years? Check out the link i posted earlier might be more info there. Maybe its been capped off at the source? Comes through a hole through the firewall above the ac drain in the center somewhere.. Should be a green one and a black one but i think they go through diff holes on the fwall.
atldude is offline
post #12 of 15 Old 05-02-2013, 08:28 PM
87TPIYJ
Registered User
1987 YJ Wrangler

Join Date: Feb 2009
Location: Jacksonville
Posts: 1,252
Mine had them at one point. They fell off or something and I ended up junking them. Couldn't figure out what they were doing. My heater and recirculation work fine. It's all mechanical levers.

YJ 350TPI NV4500 SOA 8.8 Flat skid

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
87TPIYJ is offline
post #13 of 15 Old 05-02-2013, 08:43 PM
zeus87gn
Registered User
1987 YJ Wrangler

Join Date: Sep 2006
Location: Hernando, Ms
Posts: 2,447
The flapper valve it works is up behind the dash
you wont see it without at least removing the center gauge cluster
Or the glove box

Handicapped license plates are not for mentally handicapped people -

"Man has not yet evolved an inch from the primordial slime that spawned him." Mark Blankfield, Jekyll & Hyde... Together again


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
zeus87gn is offline
post #14 of 15 Old 05-02-2013, 09:01 PM
87TPIYJ
Registered User
1987 YJ Wrangler

Join Date: Feb 2009
Location: Jacksonville
Posts: 1,252
So what does that flapper valve do?

YJ 350TPI NV4500 SOA 8.8 Flat skid

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
87TPIYJ is offline
post #15 of 15 Old 05-02-2013, 09:12 PM Thread Starter
atldude
Registered User
1995 YJ Wrangler

Join Date: Jan 2013
Location: Atlanta
Posts: 339
http://www.jeepforum.com/forum/f12/m...77/index3.html

Supposedly it opens the driver side gate. If u ditched the black vac line don't u have a vac leak?
