My 94 rebuild thread

Hi Guys & Gals

I am getting ready to do a tear down / rebuild of my 94 YJ 2.5l auto. My plan is to begin the process May 1st as I am waiting for the salt&sand get washed off the roads here so I can take my new car out of winter storage to be used as a DD. I bought the Jeep last year for cheap ($1500) for the sole purpose of a winter DD and to replace my 4x4 Tacoma that Toyota had bought back. It will most likely be cheaper to repair then to try and find another Jeep.. The main reason for this is to repair some rust damage to the frame. In order to pass inspection last fall i shoved some fiberglass "kitty hair" into the bad spots on the frame, smoothed it out with a grinder and applied a very heavy coat of undercoating the day before the MVI so it was still dripping wet for the mechanic that had to look underneath it (worked like a charm) The plan is to remove everything from the frame, cut out damaged sections / fab & weld in new metal. The old 2.5 liter engine runs like a top, compression is good, so other then a good cleaning no need for any repairs there. I hate the auto tranny but since my wife has trouble with a 5spd I will be sticking with it

Overall the frame seems fairly solid, but I realize that once I begin sandblasting the frame I may find its worse then I had thought!

In another thread here at JF it was suggested to use 3/16 steel for frame repair, does everyone agree??

Here's My YJ

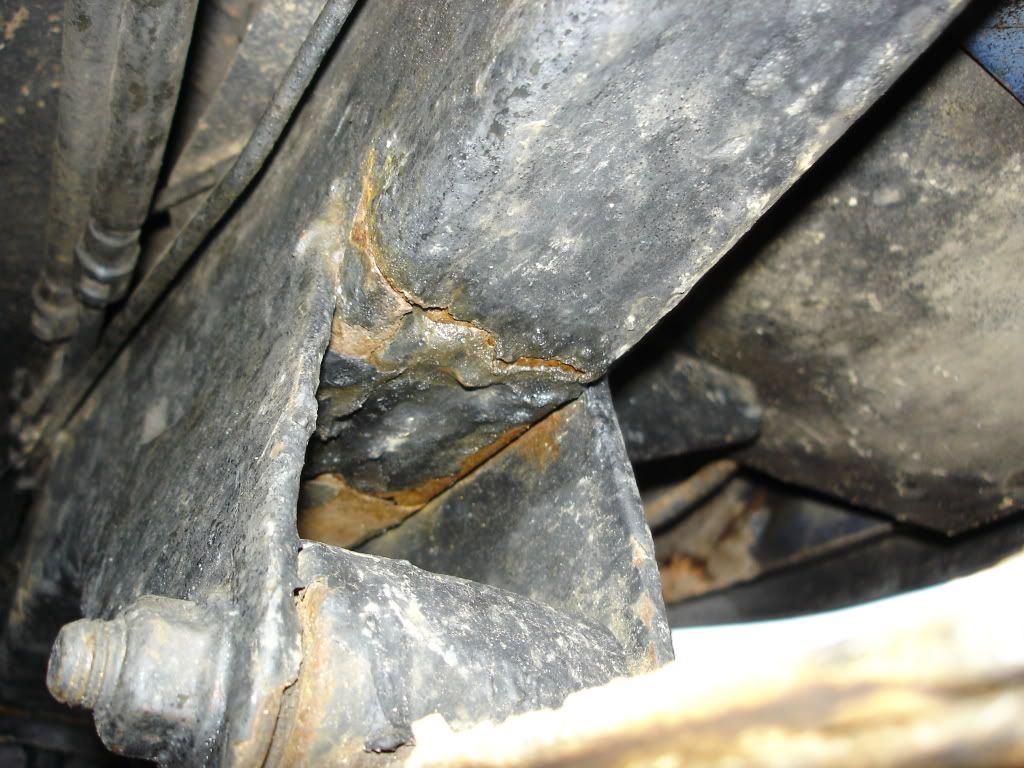

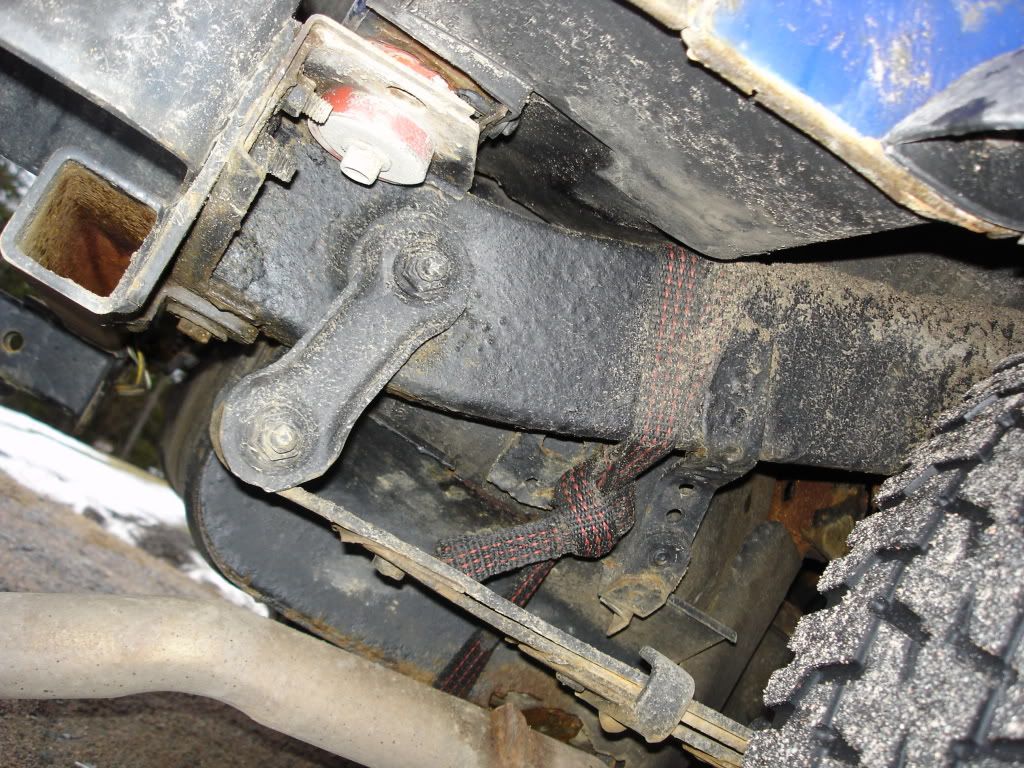

Rust damage to driverside front axle leaf spring mount, notice the crack, there was actually a hole on the bottom of the rail inside the shackle but as i mention i filled it with fiberglass to get through an MVI

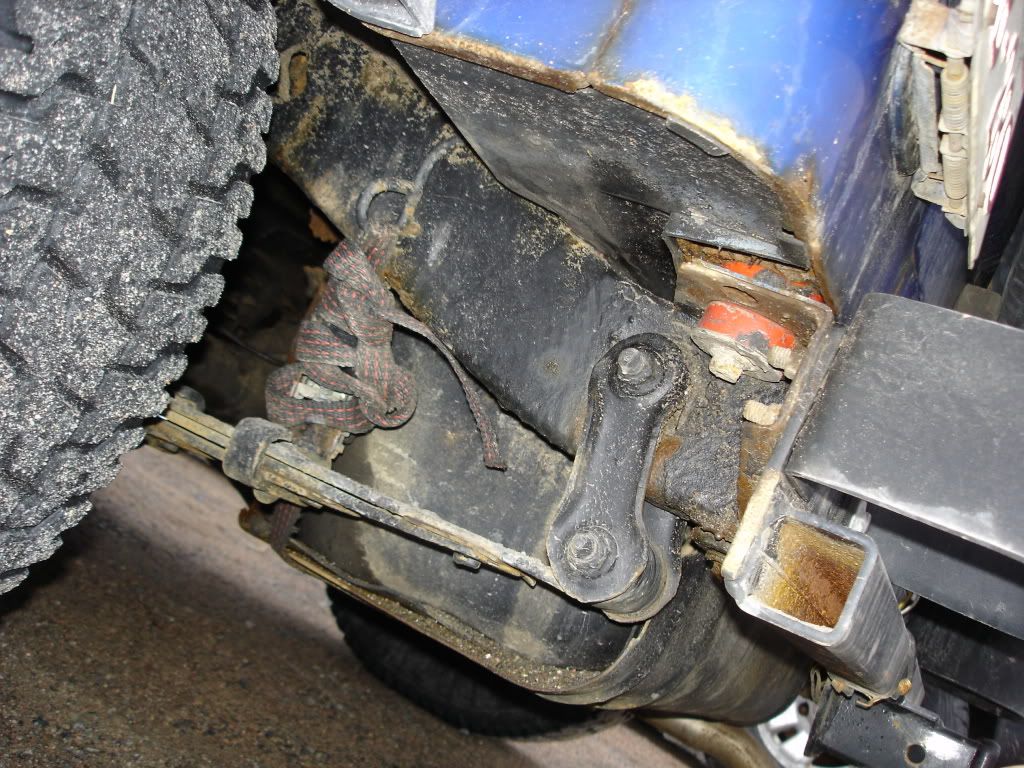

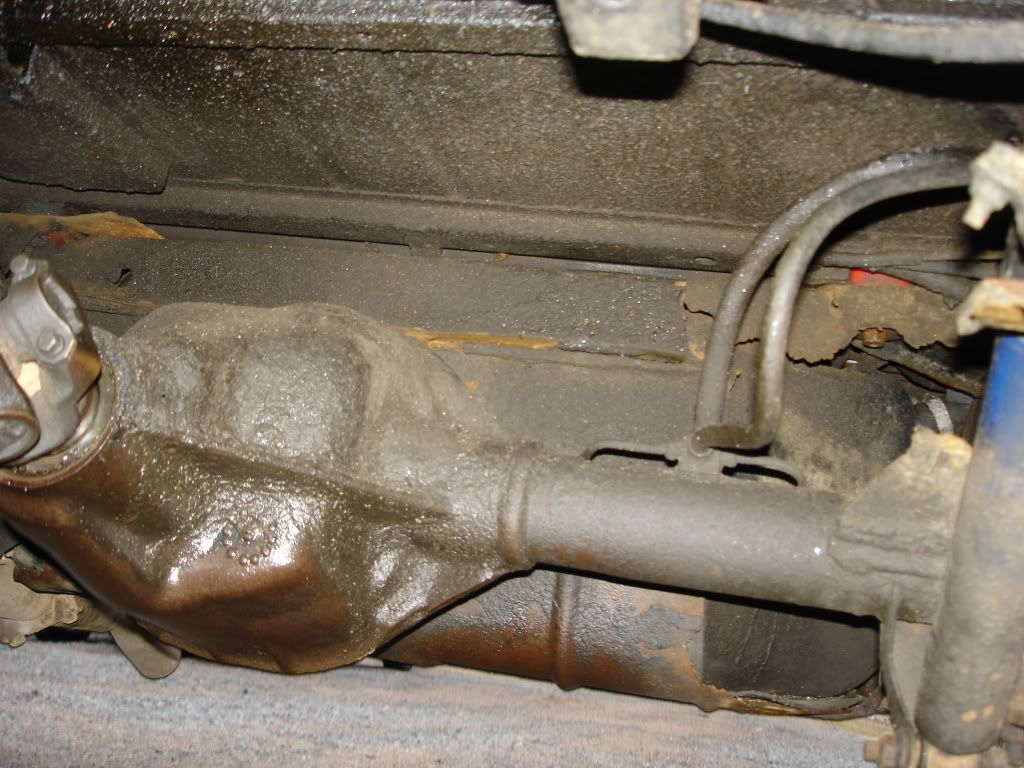

the rear crossmember that supports the gas tank is broken on both sides, tank is being held up by a tie down strap

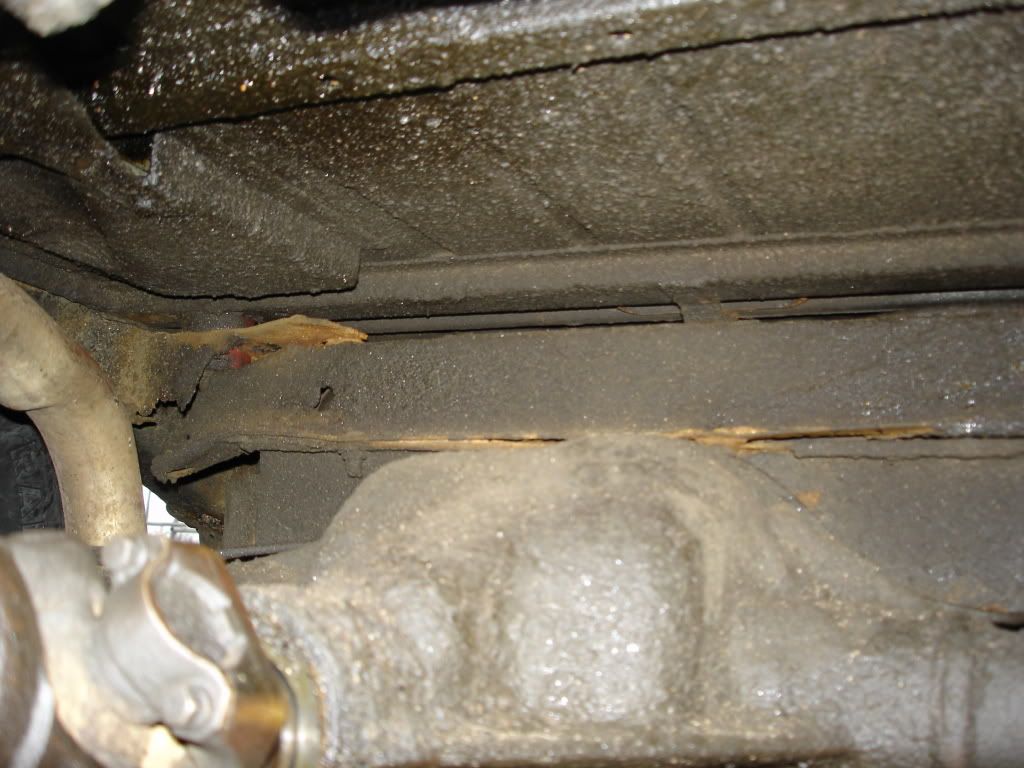

the usual problem area isnt as bad as i have seen here at JF, although there is some rust along the botom of the rail here, hopefully i will be able to leave most of the metal intact here, notice the strap holding up the gas tank





Any tips are certainly welcome and I will update this build thread once i begin with pics at every stage. ( and most likely be begging for help)

__________________
1994 Jeep YJ 2.5

My Save the YJ from the junkyard project...
http://www.jeepforum.com/forum/f12/my-94-rebuild-thread-747404/

2001 Toyota Tundra TRD

Last edited by trucknut; 12-02-2009 at 09:01 AM..
trucknut is offline   Reply With Quote
Unread 04-26-2009, 10:46 AM   #2
trucknut
Registered User
1994 YJ Wrangler

Join Date: Sep 2008
Location: Saint John, NB
Posts: 207
Started the project sooner then expected thanks to the nice weather. Everything came apart nice and easy,

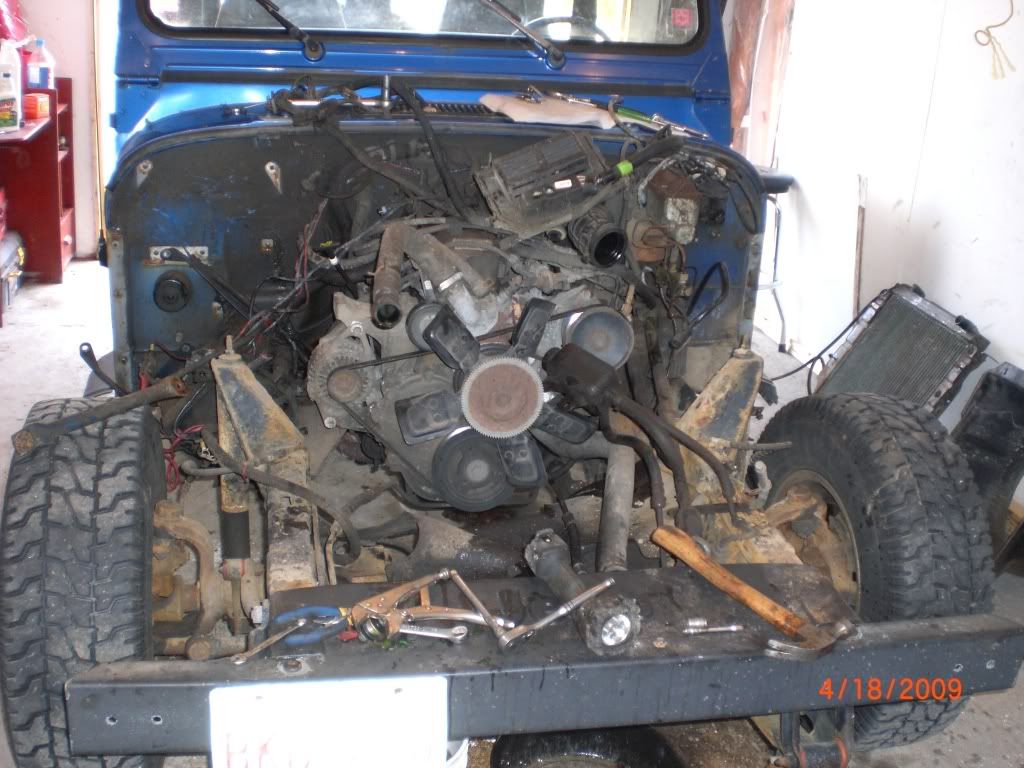

removed front clip

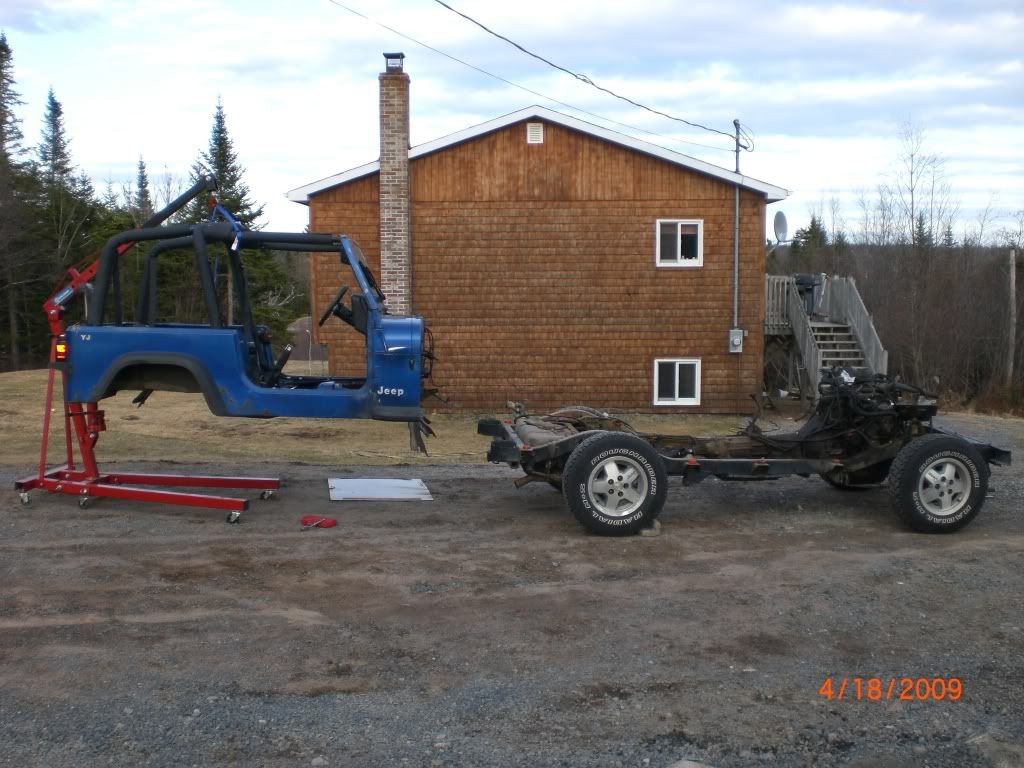

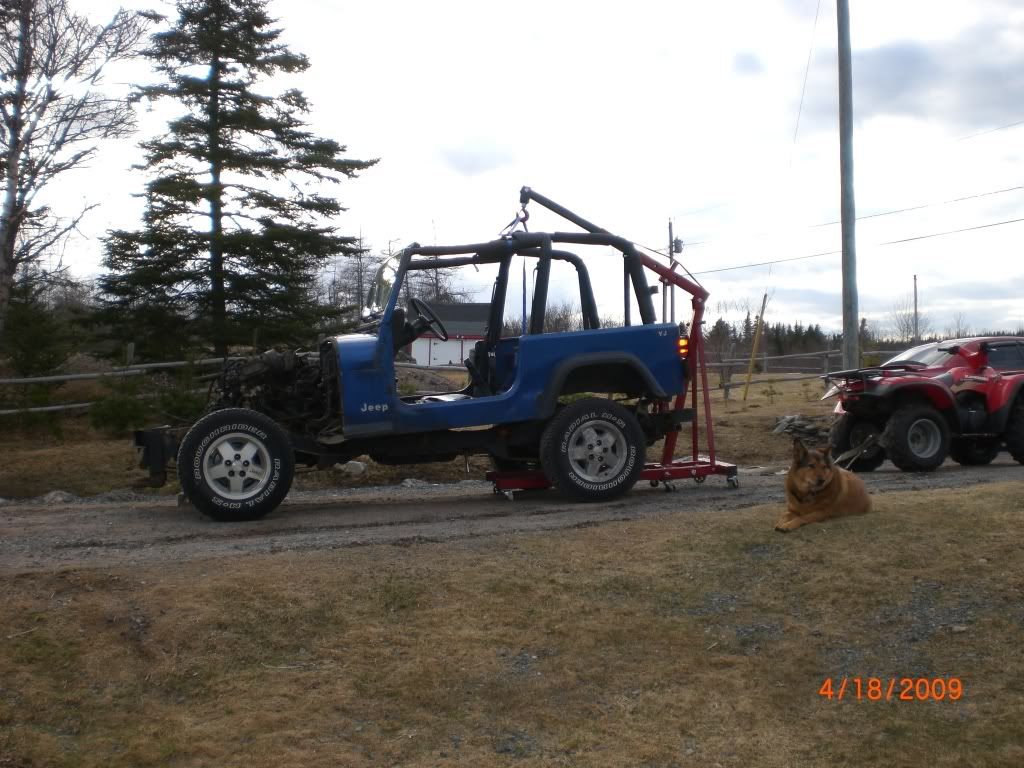

off comes the body


tub clear of frame


rolling chassis

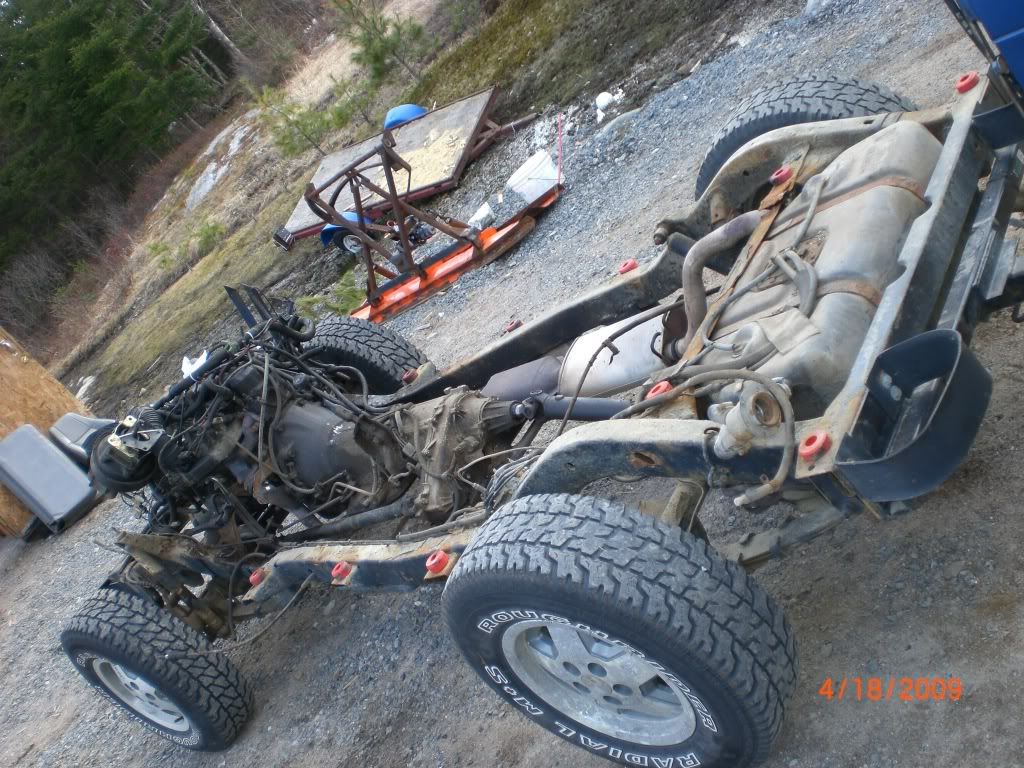

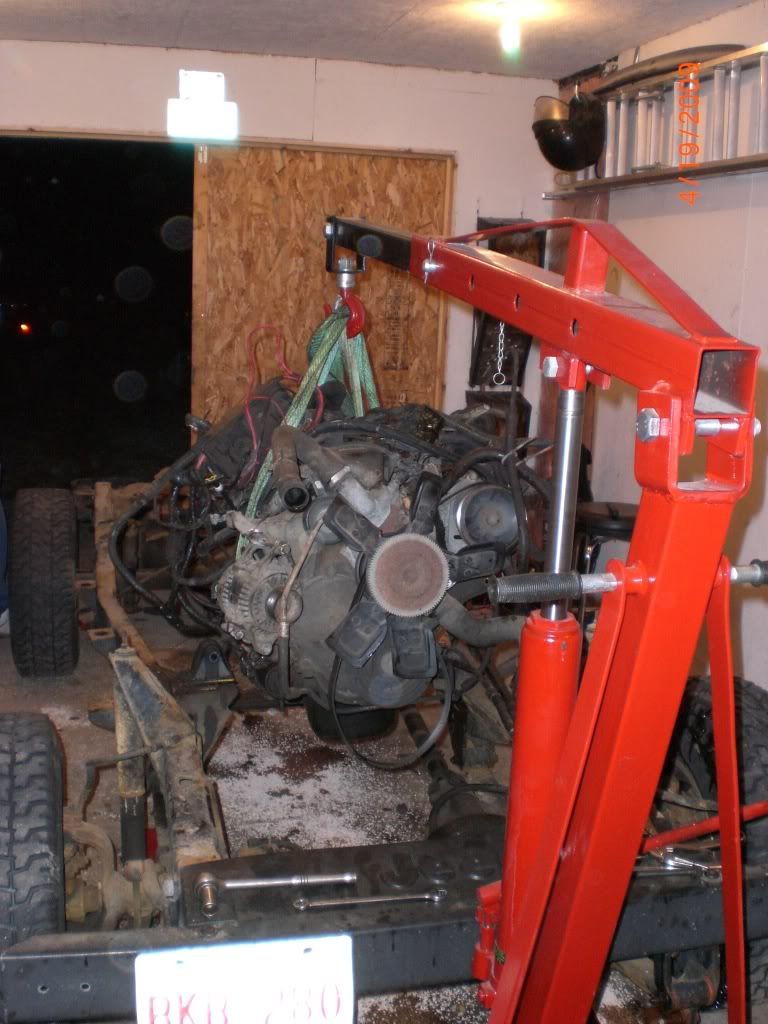

now time to remove the engine/tranny assembly

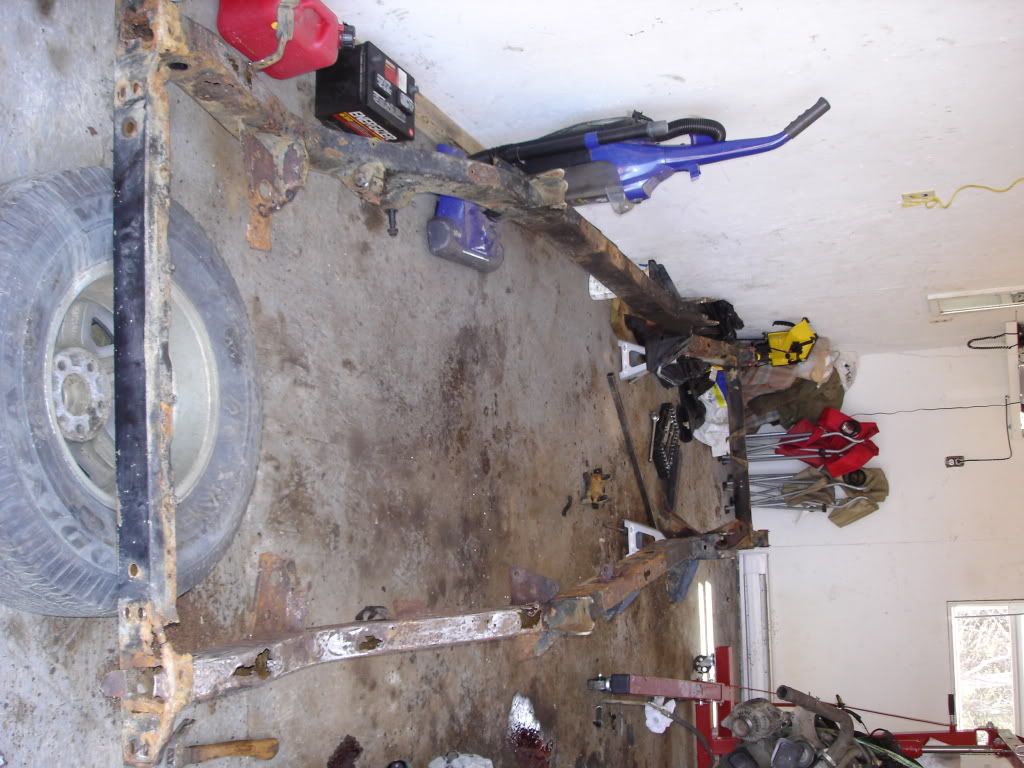

frame with everything removed, next step will be sandblasting... waiting on supplies
__________________
1994 Jeep YJ 2.5

My Save the YJ from the junkyard project...
http://www.jeepforum.com/forum/showthread.php?t=747404

2001 Toyota Tundra TRD

Last edited by trucknut; 04-26-2009 at 10:57 AM..
trucknut is offline   Reply With Quote
Unread 04-26-2009, 10:54 AM   #3
trucknut
Registered User
1994 YJ Wrangler

Join Date: Sep 2008
Location: Saint John, NB
Posts: 207

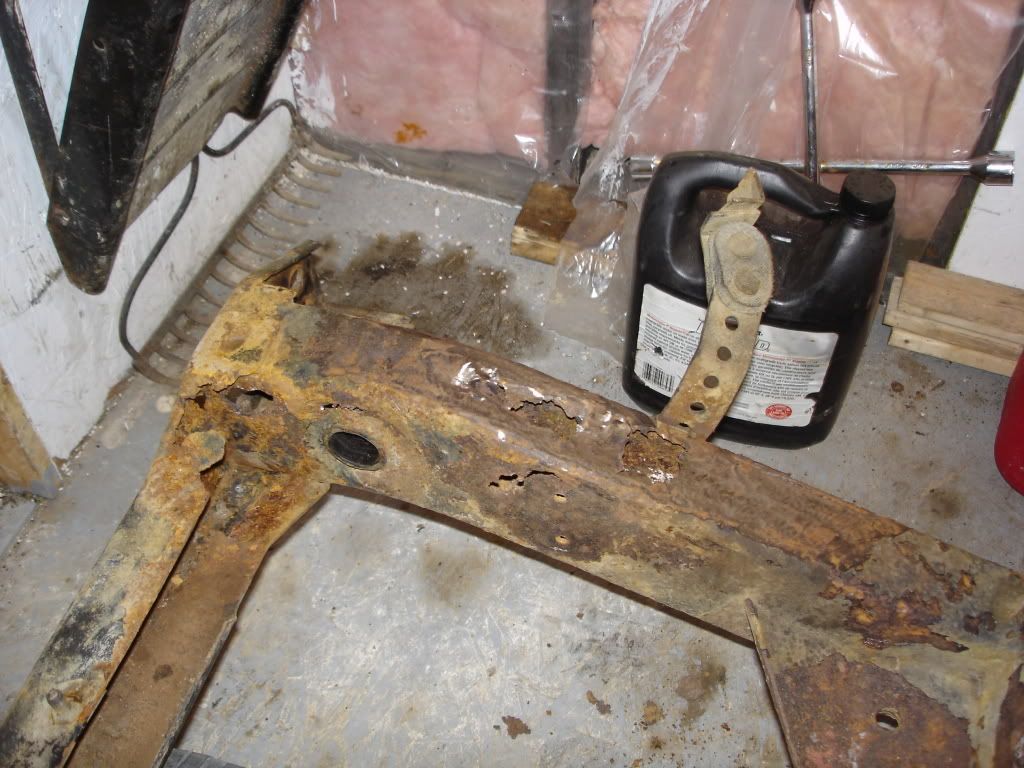

here's the rust damage, the frame is upside down in all pics

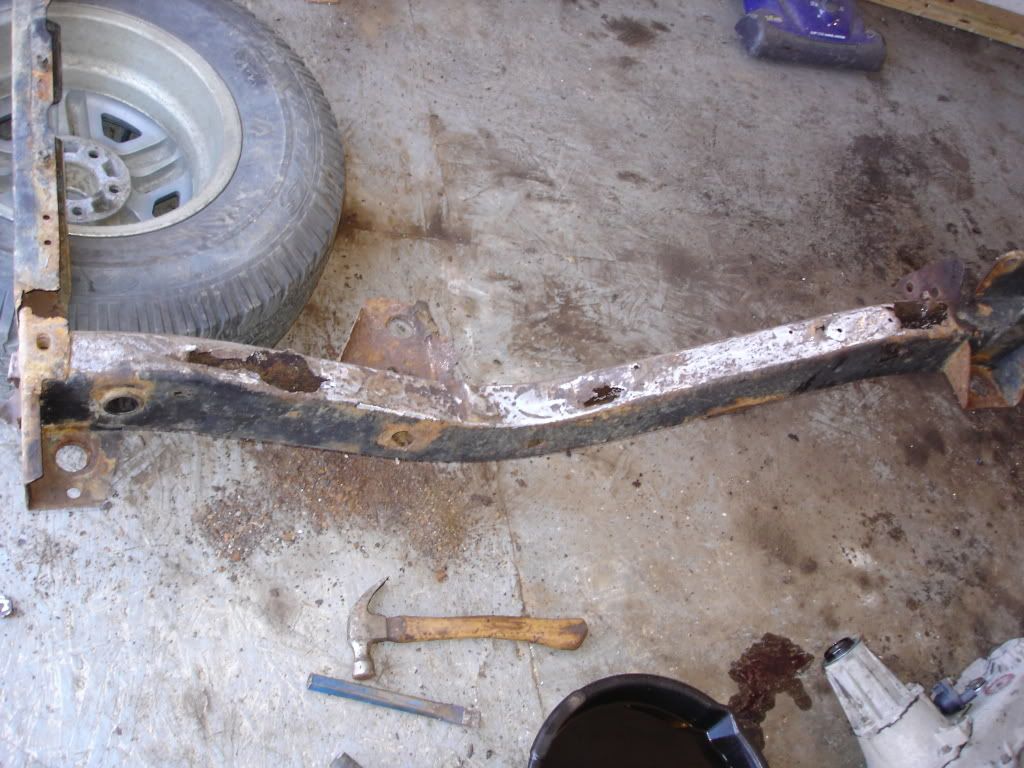

drivers side back

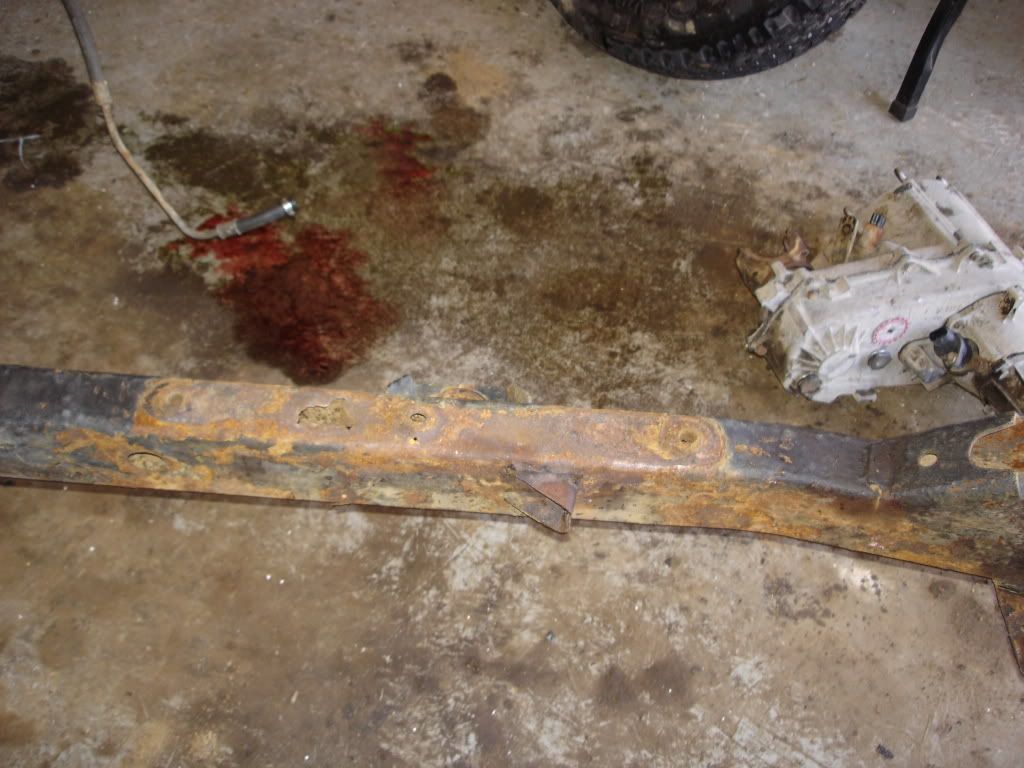

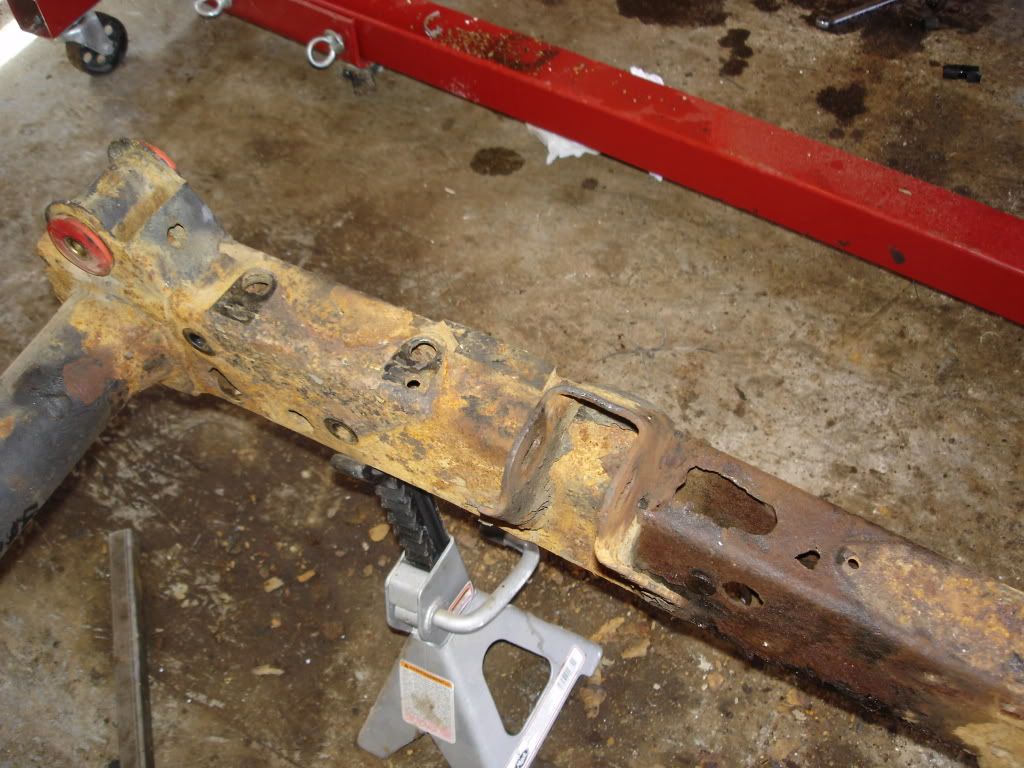

driver side by center crossmember, the middle nut is broke free inside too...

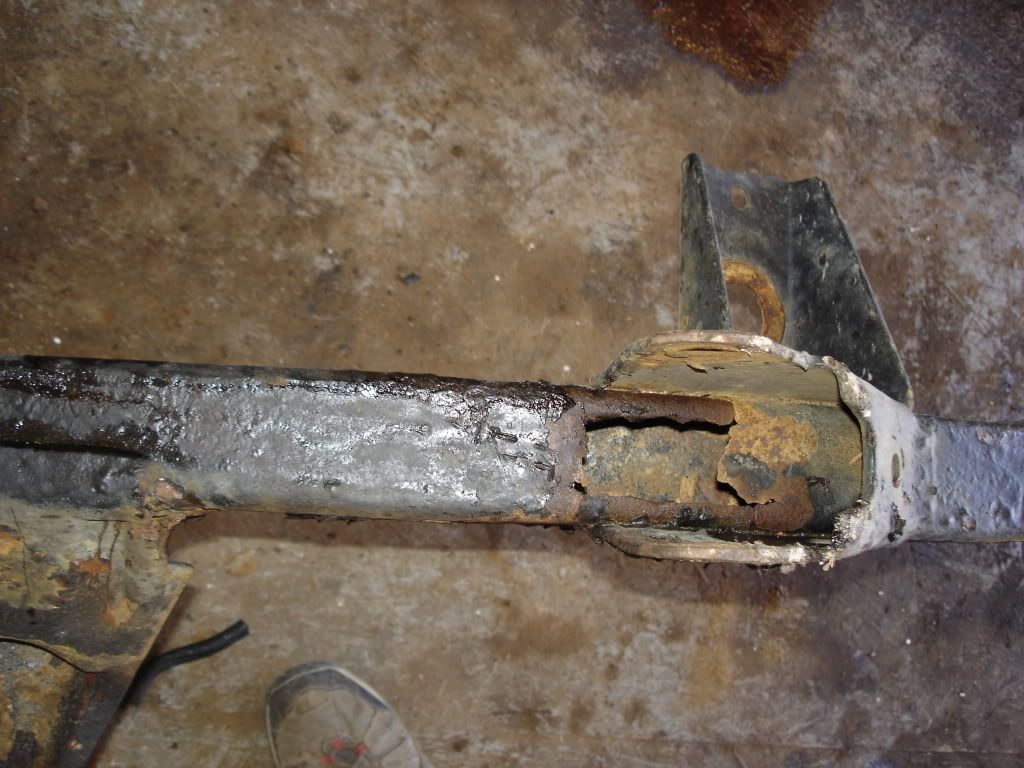

drivers side front axle leaf spring shackle


steering box area.... both nuts for steering box bracket let go inside of the frame... had to cut off the bolts and feed them through the closest rust hole


some rust on passengers side rear rail as well


i think my best option is to plate over top of the rust instead of cuting out the metal, what do you guys think? i have had no luck finding a decent replacement frame around here
__________________
1994 Jeep YJ 2.5

My Save the YJ from the junkyard project...
http://www.jeepforum.com/forum/showthread.php?t=747404

2001 Toyota Tundra TRD
trucknut is offline   Reply With Quote
Unread 05-12-2009, 09:46 AM   #4
Toms87
Registered User
1987 YJ Wrangler

Join Date: Jun 2008
Location: Maryland
Posts: 1,516
You won't be able to use the stock rear drive shaft with SOA, it's about 5.5" of lift (plus however much the new leaves provide) so that's way up in SYE/CV territory.
Toms87 is offline   Reply With Quote
Unread 05-12-2009, 09:51 AM   #5
Brads_nky_yj
Registered User

Join Date: Mar 2008
Location: Northern Kentucky/Cinci Area
Posts: 3,012
Dude you already have everything off. Find a newer frame if ya can, that one is nasty.
__________________
93 YJ - SOLD
Brads_nky_yj is offline   Reply With Quote
Unread 05-12-2009, 12:46 PM   #6
jaywiz1977
Registered User
1995 YJ Wrangler

Join Date: Mar 2009
Location: Port Clinton,Ohio
Posts: 353
wow you guys in canada have real bad rust issues! that frame is swiss cheese.Blast it off and see how much of it is left,i would start looking for a frame though(it's honestly in reeeally bad shape,and you may have issues finding good metal to weld the patches to).
__________________
my build

There are alot of different people in the world out of all of them,it's the normal ones that scare me the most!
jaywiz1977 is offline   Reply With Quote
Unread 05-12-2009, 02:25 PM   #7
trucknut
Registered User
1994 YJ Wrangler

Join Date: Sep 2008
Location: Saint John, NB
Posts: 207
^^^ i have been looking for a replacement frame for a few weeks now, they all seem to have heavy rust damage

since that last pic I have spent hours sandblasting and grinding to get most of it cleaned up no new holes where blasted through but its pretty thin in spots, I will take a picture tonight and post... I knew I had a severe problem when the rear crossmember supporting the gas tank broke and the tank fell down to the axle

I have a Miller wire feed mig welder and access to loads of free steel so the plan is to plate it on on all sides from the rear bumper to about the back of the transfer case area, and all four sides again up by the steering box, then rebuild the rear crossmember and rear bumper and finally fab some rear shock mounts (yah one broke off awhile ago), its a mess....
__________________
1994 Jeep YJ 2.5

My Save the YJ from the junkyard project...
http://www.jeepforum.com/forum/showthread.php?t=747404

2001 Toyota Tundra TRD
trucknut is offline   Reply With Quote
Unread 05-12-2009, 05:18 PM   #8
YeepieJeepie
Registered User
1990 YJ Wrangler

Join Date: Mar 2009
Location: North Carolina
Posts: 376
Cool idea, lifting the body off with an engine hoist. I wondered if that would work.
YeepieJeepie is offline   Reply With Quote
Unread 05-13-2009, 11:56 AM   #9
trucknut
Registered User
1994 YJ Wrangler

Join Date: Sep 2008
Location: Saint John, NB
Posts: 207
Quote:
Originally Posted by YeepieJeepie View Post
Cool idea, lifting the body off with an engine hoist. I wondered if that would work.
Thx, with no one around to help and knowing what a hurt back feels like that engine hoist is a godsend!!
__________________
1994 Jeep YJ 2.5

My Save the YJ from the junkyard project...
http://www.jeepforum.com/forum/showthread.php?t=747404

2001 Toyota Tundra TRD
trucknut is offline   Reply With Quote
Unread 05-15-2009, 02:22 PM   #10
metalroses
Registered User
1989 YJ Wrangler

Join Date: Apr 2009
Location: Puerto Rico
Posts: 153
nice

thats kool too bad i just have 18 years and cant do that type of things >.<
metalroses is offline   Reply With Quote
Unread 05-19-2009, 11:03 AM   #11
jaywiz1977
Registered User
1995 YJ Wrangler

Join Date: Mar 2009
Location: Port Clinton,Ohio
Posts: 353
with alot of time,and a huge amount of patence,and a welder it can be saved.You have a good plan,just go about a foot farther that you think you need to go,and make sure you get a solid weld to the spring mounts.Good luck man,i will stay tuned in to see how you made out.
__________________
my build

There are alot of different people in the world out of all of them,it's the normal ones that scare me the most!
jaywiz1977 is offline   Reply With Quote
Unread 05-20-2009, 01:59 PM   #12
trucknut
Registered User
1994 YJ Wrangler

Join Date: Sep 2008
Location: Saint John, NB
Posts: 207
Quote:
Originally Posted by jaywiz1977 View Post
with alot of time,and a huge amount of patence,and a welder it can be saved.You have a good plan,just go about a foot farther that you think you need to go,and make sure you get a solid weld to the spring mounts.Good luck man,i will stay tuned in to see how you made out.
time has been the problem lately... very busy at work but it should be quieting down soon... with any luck i will be able to pick up the steel later on this week and weld it in over the weekend. photobucket has been giving me grief uploading pics but i will keep trying
__________________
1994 Jeep YJ 2.5

My Save the YJ from the junkyard project...
http://www.jeepforum.com/forum/showthread.php?t=747404

2001 Toyota Tundra TRD
trucknut is offline   Reply With Quote
Unread 06-26-2009, 01:39 PM   #13
green89yj
Registered User
1989 YJ Wrangler

Join Date: Nov 2008
Location: Georgia
Posts: 1,340
That frame is rough man. There was one on craigslist a while ago but i think it was in Georgia.
__________________
Build
Herc.Custom Green paint. RC 4". 5 Goodyear 33X12.5 MT/R w/Kev. Cragar V5's. Corbeau Moab seats. Optima Yellow.XRC8 Comp Winch. XJ 4.0/AX15
WTT: 4" springs for 6"
WTS: 4.2 parts. Fuel lines, pump, block, head, accessories, just ask
green89yj is offline   Reply With Quote
Unread 06-26-2009, 01:44 PM   #14
Louie4
Powah Injanir

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh, NC
Posts: 9,804
Good luck with the frame, I'm sure plenty of steel can patch it but if you luckily find another one snag it, it might save you a lot of headache.
__________________
Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is online now   Reply With Quote
Unread 06-26-2009, 02:25 PM   #15
chopperdave2200
Registered User
1987 YJ Wrangler

Join Date: Jun 2009
Location: Mulberry Grove, il
Posts: 13
