Length Envy: A build thread

Before i bought my YJ i really wanted a scrambler. Then i found out how expensive they are. After seeing a few really nice lifted TJ unlimiteds, I decided that it would be sweet to stretch my jeep to the unlimited length. This length would be a good compromise between the departure angle of the yj and the extra space and wheel base of the scrambler. Although this thought bounced around my head for a while, i never thought i'd actually do it.

While trying to come up with a master's project, I ran through a few different ideas including a cnc plasma table, but realized that there wasn't really much engineering involved, and i'd have a hard time writing a paper on it. I finally settled on doing a coil conversion on my YJ from scratch. This will give me enough material to research and there will be plenty of stress analysis involved as well.

I was able to get a graduate committee together and located a place to build my project.

I figured while i'm going to be taking the time to build a new suspension, i might as well lift the jeep at the same time. If I'm lifting the jeep I'll need stronger axles, and what the hell, let's stretch it too.

The project is going to be broken down into two phases. Phase one will be getting everything done that needs to get done before i build the suspension. Phase two will obviously be the suspension.

the plan is to run a ford high pinion D44 narrowed to wagoneer width with chevy flat top knuckles and high steer for the front. In the rear i will be running an explorer 8.8 converted to 6 on 5.5 to match the front.

The front will have an aussie locker and the rear will have the factory trak loc limited slip. both axles will be geared to 4.88:1.

For wheels i will be running double beadlock H1 rims recentered and converted to 6 on 5.5. The tires will be the military goodyear wrangler R/T IIs found on early hummers. they are 36". I may move to 37s later when i have more money.

Enough talk, it's pic time.









PHASE 1



This is my working area, the power tech lab at the school. There is a classroom on the second floor which you can see behind the jeep. there's only about two or three classes in the building per year, so i will pretty much have it all to myself.





It took me a couple of hours to get everything ready on the jeep including removing all of the crap on the back end that i wanted to keep, the fender flairs and the rubber liners on the inside of the wheel wells. I ended up cutting them up to get them out easier since they won't fit back in when I'm done.



After making a post on the TJ forums, i was able to get a few people to go out and measure their unlimiteds like so.

the general consensus was that the distance was 55 and 7/8" the same dimension on the YJ is 41", so that's a stretch of 14 and 7/8".



Here's the tub chunk i picked up at Olympic 4x4 in Snohomish, wa. it was $200. instead of just cutting my body and patching in between, i decided to get the rear of another yj tub because it would be easier, plus my old tub was dented up in the back.



here's the plan!



i found the best places to measure from were the back tailgate lip and the top of that triangular wedge piece on the wheel wells. It was the only place i was able to get a consistent reading from side to side (and tub to tub)



after marking out my line, i started cutting with an air cutoff wheel. it worked pretty well. I used a square to transfer the line onto different surfaces. I triple checked to make sure all of the cuts were square because i have to try to replicate the exact cut on the other tub.

The air cutoff wheel worked great. I had access to a plasma cutter but thought the cutoff wheel would make a straighter line. the first cut only took a couple of minutes.



the floor took a while because it's a lot thicker AND it's double layered. who knew?



( Stretched YJ Jeep Stretch body unlimited length) <- adding some keywords for searches. It took forever for me to find anything when i was doing my research.

__________________
Unlimited Length YJ "Sasquatch"
Build Thread
Renix 4.0
AW4 swap with awshifter = DONE
custom console
flatdash

Last edited by dukegnarley; 05-23-2009 at 02:45 AM..
dukegnarley is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 02:15 AM   #2
dukegnarley
Registered User
1988 YJ Wrangler

Join Date: Apr 2007
Location: Ellensburg, Wa
Posts: 494

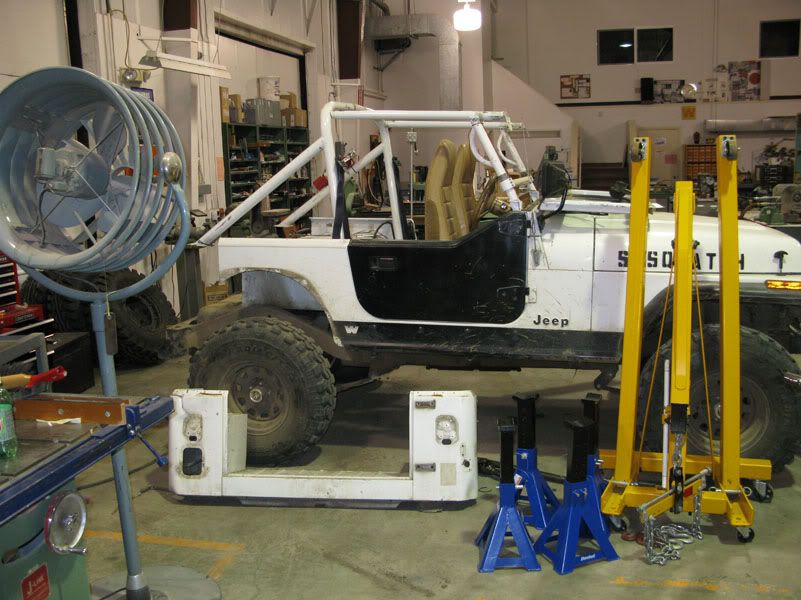

and that's where it's at now.

That rear piece of tub will make a great shelf in my garage back home!

Up next is going to be the frame stretch.
__________________
Unlimited Length YJ "Sasquatch"
Build Thread
Renix 4.0
AW4 swap with awshifter = DONE
custom console
flatdash
dukegnarley is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 06:48 AM   #3
JaikYJ
Registered User
1997 TJ Wrangler

Join Date: Aug 2008
Location: Ontario, Canada
Posts: 1,132
Looks good, thats going to be a nice project for us to follow. That sure does look like a pretty comfy workshop.
__________________
My Build Thread Extreme MakeoverSold
97 TJ Sahara (Build thread to come)
JaikYJ is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 09:52 AM   #4
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
Wow, nice score on the shop! Is a new cage up next after the stretch??
__________________
Don't Click Me!
FunkSkunk is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 10:13 AM   #5
doug_1994
Registered User
1994 YJ Wrangler

Join Date: Mar 2006
Location: Monaca, Pa. 15061
Posts: 1,545
Wicked bad!


What kind of suspension are you gonna set up? Four link? Three link, w/ panhard?


Coils with shocks? Air shocks? coilovers? Link ends?

Details!

Nice shop too.
__________________
Wise men speak because they have something to say;
Fools because they have to say something.

Plato
doug_1994 is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 10:33 AM   #6
rescueyj
Registered User

Join Date: Apr 2006
Location: MD/VA
Posts: 210
why must u put ideas like this in my head. My wife dosent even know you but, she now hates you!!!!!!!!!!
__________________
Wheeler-87 yj project built 4.2, custom suspension, front and rear bumpers with stinger,8000lb winch,striped interior, 33in mtr's, Future-8.8 rear, 4.88 gears locked front and rear
Tow Rig- 02 F150 on 35's sum engine stuff and a old trailer http://militarysignatures.com/signat...ember10866.png
rescueyj is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 11:12 AM   #7
northjeep
Jeep parking ONLY

northjeep's Avatar
1988 YJ Wrangler

Join Date: Aug 2006
Location: Auburn, NY
Posts: 1,491
I'm subscribed...
__________________
-NorthJeep - >> Just Enough Essential Parts
RED Jeep Club member - YJ Club - 258's Unite
northjeep is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 12:21 PM   #8
dukegnarley
Registered User
1988 YJ Wrangler

Join Date: Apr 2007
Location: Ellensburg, Wa
Posts: 494
to answer the questions....

I'm either going to add onto the cage i have, get an LJ one (if i can find one), or build a new one. I won't be able to get to that for a while though since i have a deadline to get the suspension done.

I have to do a bit more research before i decided completely on the suspension, but it's looking like a triangulated 4 link rear and a parallel 4 link front with a panhard.

I can't afford coil overs so it's going to be coils + shocks.
__________________
Unlimited Length YJ "Sasquatch"
Build Thread
Renix 4.0
AW4 swap with awshifter = DONE
custom console
flatdash
dukegnarley is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 12:22 PM   #9
Cbaughn
Registered User
1994 YJ Wrangler

Join Date: May 2008
Location: Birmingham, AL
Posts: 277
Subscribed x 2.
Cbaughn is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 01:00 PM   #10
Burlbook48
Web Wheeler

Burlbook48's Avatar
1995 YJ Wrangler

Join Date: May 2008
Location: Mendocino County, CA
Posts: 1,050
VERY cool! At first I thought you were stretching the jeep in front of the rear wheel wells to get the look of the Unlimited TJ. But from the cut to your tub, it looks like you are stretching *behind* the rear wheel well, correct?

Wonder what that would look like with a Scrambler half-cab on top--- a YJ version of the Gladiator or Brute concept?
__________________
You have to start somewhere to get to the middle of nowhere.
Burlbook48 is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 01:10 PM   #11
dukegnarley
Registered User
1988 YJ Wrangler

Join Date: Apr 2007
Location: Ellensburg, Wa
Posts: 494
I'm actually going for the unlimited look. the body will be stretched 14-7/8" and the wheelbase will be stretched 10" I have seen tj unlimiteds with the scrambler half top. or actually the gr8tops. they look.......ok

__________________
Unlimited Length YJ "Sasquatch"
Build Thread
Renix 4.0
AW4 swap with awshifter = DONE
custom console
flatdash
dukegnarley is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 05:40 PM   #12
rrisher
Registered User
1987 YJ Wrangler

Join Date: May 2008
Location: Huntington Beach, CA
Posts: 987
defiantly one to follow im subscribed~

you can't ask for a better shop to do this in either!
rrisher is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 05:56 PM   #13
kharmajavah
Registered User
1990 YJ Wrangler

Join Date: Apr 2007
Location: Tallahassee, FL
Posts: 464
Wait, so...holy crap!

You were able to get a committee to agree to letting you hack up your jeep for your master's thesis. As a person who has finished his master's and is working on a PhD, I'm impressed. You must have mad communications skills.

So, there must be more to it: what's the thesis about? How'd you push the prospectus through?
kharmajavah is offline   Reply With Quote Quick reply to this message
Unread 11-09-2008, 10:13 PM   #14
dukegnarley
Registered User
1988 YJ Wrangler

Join Date: Apr 2007
Location: Ellensburg, Wa
Posts: 494
well at my school you have options for getting your masters. A thesis, a project, or a test. I"m not planning on getting a phd and doing tons of research to write a big thesis just didn't seem to do it for me. Going the test route is just lame and pathetic so i chose a project. As far as the school is concerned the project is the suspension. I was able to sell it to them by talking about all of the different variables that go into it like bump steer, roll steer,roll center, instant center, anti squat, anti dive, body roll, articulation, etc. Then all of the stress analysis to make sure that it's safe, and the actual construction. I threw a couple of things in there about performance criteria and testing as well.
__________________
Unlimited Length YJ "Sasquatch"
Build Thread
Renix 4.0
AW4 swap with awshifter = DONE
custom console
flatdash
dukegnarley is offline   Reply With Quote Quick reply to this message
Unread 11-10-2008, 09:29 AM   #15
northjeep
Jeep parking ONLY

northjeep's Avatar
1988 YJ Wrangler

Join Date: Aug 2006
Location: Auburn, NY
Posts: 1,491
Imagine being able to say: "Hi my name is Bob, and I have my masters in Jeep suspension tech...how can I help you?"

MMMM adds a whole new dimension to bench wheeling!!
