Led tailight conversion

Okkk so i was thinking on replacing the bulky stock taillight assembly on my YJ with two Red and two White Oblong LED lights like you see on semi trailers and such... My idea was to stagger them at an angle on each side of the rear.

Any install tips on wiring or cutting would be more than handy... I would also like to see some of your pics from sinking your tail lights

Offroadinshawty is offline   Reply With Quote
Unread 02-26-2011, 06:22 PM   #2
jmmorgan82
Registered User

Join Date: Oct 2010
Posts: 962
Here ya go
jmmorgan82 is offline   Reply With Quote
Unread 02-26-2011, 06:51 PM   #3
timatoe
Registered User
1990 YJ Wrangler

Join Date: Aug 2006
Location: Grass Valley California
Posts: 13,587
There are also pics of EXACTLY what you're talking about here on the forum, if you search for them you may find them, I don't remember who posted them before or I'd just find them for you.
__________________
Quote:
Originally Posted by George Orwell
We sleep safe in our beds because rough men stand ready in the night to visit violence on those who would do us harm.
timatoe is offline   Reply With Quote
Unread 02-26-2011, 08:21 PM   #4
SnowdogMarc
Registered User
1988 YJ Wrangler

Join Date: Aug 2008
Location: Alberta
Posts: 1,322

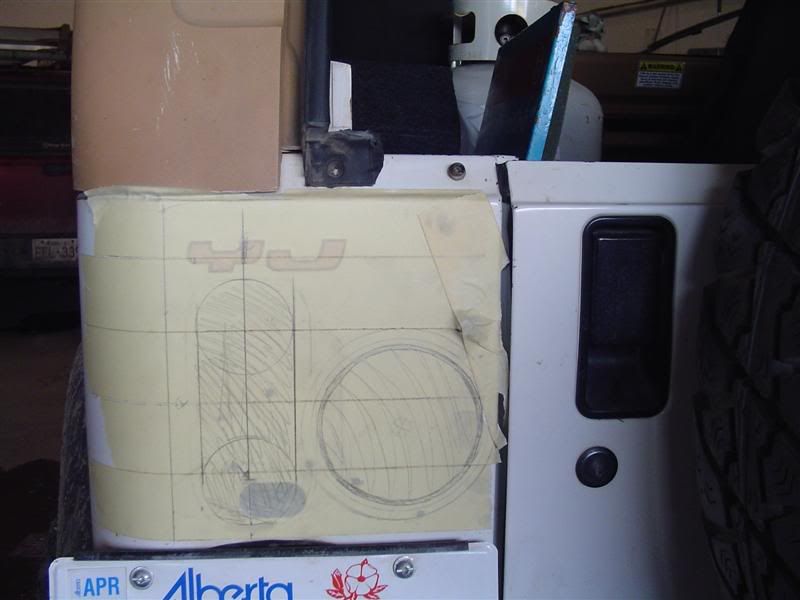

I did something similar but used the oval high intensity for the red and round white for the backup. Backups are stupid bright and light up everything. Friend was behind me at a traffic light and said he was seeing spots after looking at my brake lights LOL.
It's super tight but can be done.


__________________
l We're here for a good time. Not a long time. So have a good time the sun can't shine every day.
l_______
/l ,[_____],
l---L -[]lllllll[]-

()_) ()_)--o-)_)____________VE6-SDG
SnowdogMarc is offline   Reply With Quote
Unread 02-26-2011, 08:32 PM   #5
1murderedjeep
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: Glendale Heights, Illinios
Posts: 725
flush mount your stock tail lights good look and not expensive
1murderedjeep is offline   Reply With Quote
Unread 02-26-2011, 10:21 PM   #6
Offroadinshawty
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: douglasville, ga
Posts: 45
I like what you did with your lights SnowDogMarc. How did you wire those up?
Offroadinshawty is offline   Reply With Quote
Unread 02-27-2011, 11:43 AM   #7
92 Green YJ
Registered User
1992 YJ Wrangler

Join Date: Feb 2003
Location: Spring Valley, San Diego, CA, California
Posts: 3,831
Here is what I did on my YJ for the LED tails.



in this one you can see the small white reverse lights I put in. basically kicked em at an angle. Wanted to do something a little different. As you can see from the lit up pictures it looks kinda mean from the back
__________________
92 YJ. High Output 4.0L
Rubicon Express 4" Lift Kit, 2" Body Lift,15x8" AR 767s, 35x12.50 Xterrains, Home Made Snorkel, Sanden OBA, Home made rocker gaurds. 8.8 Rear with Discs, 4.10s F&R, ARB rear, Detroit EZ Locker front, WarnM8000 with Viking Synthetic Line, Beadlocks, Tons of Mods
My RigRater Score: 682RRv1.0 with a BOA of 13.47
I'm now doing custom bumpers and lift installs in So-cal
92 Green YJ is offline   Reply With Quote
Unread 02-27-2011, 08:43 PM   #8
Offroadinshawty
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: douglasville, ga
Posts: 45
Quote:
Originally Posted by 92 Green YJ View Post
Here is what I did on my YJ for the LED tails.



in this one you can see the small white reverse lights I put in. basically kicked em at an angle. Wanted to do something a little different. As you can see from the lit up pictures it looks kinda mean from the back
I like how you did the tail lights. and my thinking was to angle the tail and reverse lights like you have yours on each side.

Now for the stupid question... Im not so good at trouble shooting wiring. Can u explain to me in lame-mans terms how you wired both tail and reverse lights to the stock wiring harness? and any other useful info
Offroadinshawty is offline   Reply With Quote
Unread 02-27-2011, 09:19 PM   #9
92 Green YJ
Registered User
1992 YJ Wrangler

Join Date: Feb 2003
Location: Spring Valley, San Diego, CA, California
Posts: 3,831
sure. wasnt too difficult really. the Haynes service manual has the wiring diagrams in the back, that will tell you which color wires do what. basically there are 4 you need to be concerned with. tail, stop/turn (l and R), ground and reverse. If you dont have a book, you can use a multi meter. turn your tails on and see which wire has voltage. thats your tail light wire. hit your left signal and check again, the one that gets 12 volts on and off is for the turn and stop (they run on one wire per side, when you brake it lights them both) the 2 left will be ground and reverse lights. with the engine off and the ebrake set, put it in reverse and see which one gets 12volts, thats gonna be your reverse. the LEDs (the red ones) have 3 wires (some may be self grounding, mine were not) the ground, tail, and stop/turn wire. just hook the correct wires up to the corresponding factory wires and you are all set. the reverse lights are 2 wire, one ground one hot. ground it and hook the reverse light wire to the hot side.
__________________
92 YJ. High Output 4.0L
Rubicon Express 4" Lift Kit, 2" Body Lift,15x8" AR 767s, 35x12.50 Xterrains, Home Made Snorkel, Sanden OBA, Home made rocker gaurds. 8.8 Rear with Discs, 4.10s F&R, ARB rear, Detroit EZ Locker front, WarnM8000 with Viking Synthetic Line, Beadlocks, Tons of Mods
My RigRater Score: 682RRv1.0 with a BOA of 13.47
I'm now doing custom bumpers and lift installs in So-cal
92 Green YJ is offline   Reply With Quote
Unread 02-27-2011, 09:30 PM   #10
newheep
Registered User
1992 YJ Wrangler

Join Date: Oct 2010
Location: west covina
Posts: 101
Quote:
Originally Posted by 92 Green YJ View Post
sure. wasnt too difficult really. the Haynes service manual has the wiring diagrams in the back, that will tell you which color wires do what. basically there are 4 you need to be concerned with. tail, stop/turn (l and R), ground and reverse. If you dont have a book, you can use a multi meter. turn your tails on and see which wire has voltage. thats your tail light wire. hit your left signal and check again, the one that gets 12 volts on and off is for the turn and stop (they run on one wire per side, when you brake it lights them both) the 2 left will be ground and reverse lights. with the engine off and the ebrake set, put it in reverse and see which one gets 12volts, thats gonna be your reverse. the LEDs (the red ones) have 3 wires (some may be self grounding, mine were not) the ground, tail, and stop/turn wire. just hook the correct wires up to the corresponding factory wires and you are all set. the reverse lights are 2 wire, one ground one hot. ground it and hook the reverse light wire to the hot side.
I basically did the same thing but I had to upgrade my flasher unit to get the turn signals to work.
newheep is offline   Reply With Quote
Unread 02-27-2011, 09:41 PM   #11
burnout189
Registered User
1993 YJ Wrangler

Join Date: Mar 2003
Location: Waynesboro PA
Posts: 623
so you guys that have done this, it looks cool and all, but how did you do this without cutting through the fender well inside the tub?

my 4" round jobbies were a tight azz fit. i only have about 1/16 inch from the top of my hole to the bottom of the "seam" under the wheel well (under the "fold"), and the rubber grommet still touches the gas filler bezel.

i can see where you would have room for one oval light, but two would be pushing it...

i mean im just saying to the op, measure real good before cutting holes. they are real hard to un-do
__________________
A full sized Fleet of Jeeps

BARNHART'S AUTO REPAIR
burnout189 is offline   Reply With Quote
Unread 02-27-2011, 10:10 PM   #12
92 Green YJ
Registered User
1992 YJ Wrangler

Join Date: Feb 2003
Location: Spring Valley, San Diego, CA, California
Posts: 3,831
Quote:
Originally Posted by newheep View Post
I basically did the same thing but I had to upgrade my flasher unit to get the turn signals to work.
oh i totally forgot about that! In my case I found the hazzard flasher worked perfectly so I just swapped that one over to the signal flasher slot and got another hazzard light one.


and yes, i used a cut off wheel and cut into the body. If you look close you can see I also angle cut the body towards the tub and the fenders for my eventual tire carrier I have planned. I have no quams hacking up my sheet metal. if that makes you cringe you should have seen the holes I cut in my hood to install some vents
__________________
92 YJ. High Output 4.0L
Rubicon Express 4" Lift Kit, 2" Body Lift,15x8" AR 767s, 35x12.50 Xterrains, Home Made Snorkel, Sanden OBA, Home made rocker gaurds. 8.8 Rear with Discs, 4.10s F&R, ARB rear, Detroit EZ Locker front, WarnM8000 with Viking Synthetic Line, Beadlocks, Tons of Mods
My RigRater Score: 682RRv1.0 with a BOA of 13.47
I'm now doing custom bumpers and lift installs in So-cal
92 Green YJ is offline   Reply With Quote
Unread 02-28-2011, 02:48 PM   #13
Flajeeper1
Registered User
1987 YJ Wrangler

Join Date: Oct 2009
Location: Lakeland, FL
Posts: 726
Here are some LED tail lights with backup lights built into them.

http://www.genright.com/ProductInfo....ductid=LED1200

http://skinnypedal.net/store/index.p...products_id=69

http://www.amazon.com/gp/product/B001PJJJ7A/ref=pd_lpo_k2_dp_sr_2?pf_rd_p=486539851&pf_rd_s=lpo-top-stripe-1&pf_rd_t=201&pf_rd_i=B0039G2XSO&pf_rd_m=ATVPDKIKX0DER&pf_rd_r=1RRY8FC2Y8JPZWTQR2E3
Flajeeper1 is offline   Reply With Quote
Unread 02-28-2011, 11:26 PM   #14
SnowdogMarc
Registered User
1988 YJ Wrangler

Join Date: Aug 2008
Location: Alberta
Posts: 1,322
Quote:
Originally Posted by Offroadinshawty View Post
I like what you did with your lights SnowDogMarc. How did you wire those up?
I spliced the connector from the LED lights into the plug that was on the factory taillight. They do require a ground as the factory ones use the bolt that mounts them to the tub. I just added one in a convenient place behind the lights.


Quote:
Originally Posted by burnout189 View Post
so you guys that have done this, it looks cool and all, but how did you do this without cutting through the fender well inside the tub?
Measure 9 times and cut 4 I did in fact cut about 1/2" into the fender well but it makes it very easy to remove the light with a punch from inside. They are a real PITA to get out if you have to reach up from under the tub. It's also not a good idea to pry from the front as you have a good chance of breaking the light if the gasket is in the least bit cold.
__________________
l We're here for a good time. Not a long time. So have a good time the sun can't shine every day.
l_______
/l ,[_____],
l---L -[]lllllll[]-

()_) ()_)--o-)_)____________VE6-SDG
SnowdogMarc is offline   Reply With Quote
Unread 03-01-2011, 01:03 PM   #15
Offroadinshawty
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: douglasville, ga
Posts: 45
Thanks for the input guys. hopefully when i get some cash i can get out to buyin the supplies and post some pics
