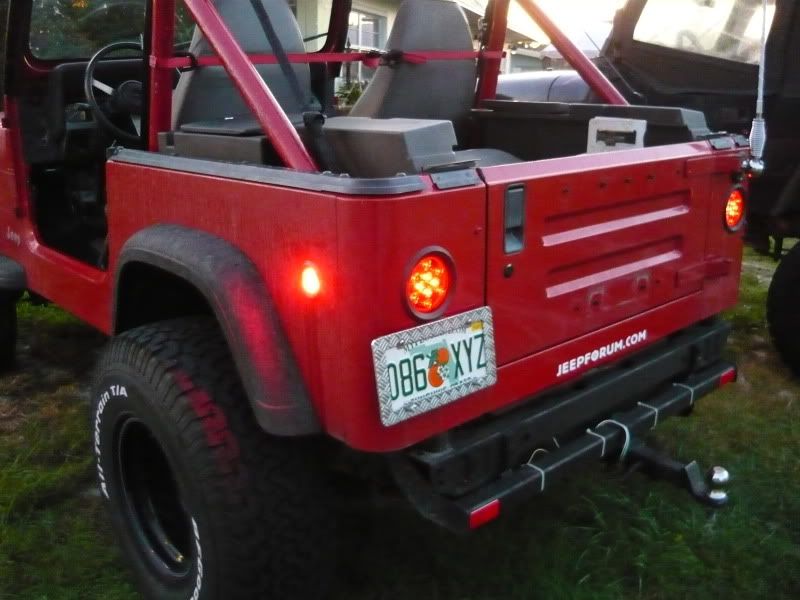

I wired the side marker lights up today, they are really bright!

They are wired only to the park light circuit, so they do not flash with the turn signals.




Here's the run-down on the wire colors on my '91 YJ's tail lights.

In the factory tub wiring harness

Left side
gray/black = brake & turn
blue/red = park lights
dark green/brown = reverse lights

Right side
gray/red = brake & turn
blue/red = park lights
dark green/brown = reverse lights

Max

__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 12-01-2009, 02:49 PM   #17
srsterno
Registered User
1998 TJ Wrangler

Join Date: Nov 2009
Location: NY
Posts: 48
Hmmm - could you dim them if you wanted - to put them more in line with the rear lights in terms of brightness?
srsterno is offline   Reply With Quote Quick reply to this message
Unread 12-01-2009, 02:59 PM   #18
ImpactFabWorks
Registered User
1990 YJ Wrangler

Join Date: Jan 2009
Location: victorville,ca
Posts: 1,864
mine are the same way. the sides ones are just on and off so no adjustment. It doesn't bother me at all.
__________________
1990 YJ = The Toy/ My Daily Driver
1996 XJ= Wifes Daily Driver


www.Impact-FabWorks.com

Impact-FabWorks Facebook


Please fill out your profile, It helps us help you!!!
ImpactFabWorks is offline   Reply With Quote Quick reply to this message
Unread 12-02-2009, 08:45 AM   #19
srsterno
Registered User
1998 TJ Wrangler

Join Date: Nov 2009
Location: NY
Posts: 48
Fair enough - I like the way they look centered on the 4" ones. I have some cutting to do when I make it back home for Xmas. I got the integrated STT/Reverse LEDs - I'll post a few pics when its all said and done.
__________________
~ 98 TJ 2.5 cly, 4.11's, Iron Rock 4.5" lift, BFG KM 33x10.50's
srsterno is offline   Reply With Quote Quick reply to this message
Unread 01-02-2010, 10:22 AM   #20
srsterno
Registered User
1998 TJ Wrangler

Join Date: Nov 2009
Location: NY
Posts: 48

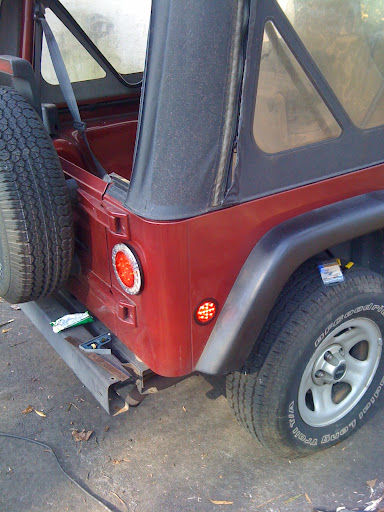

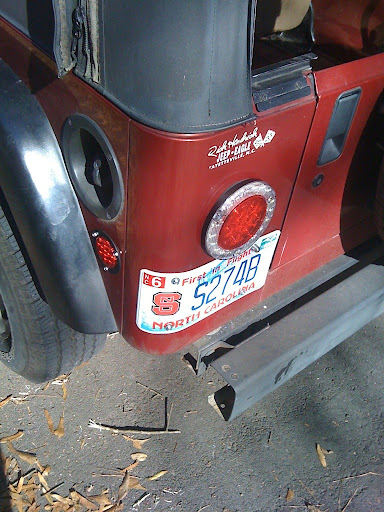

Got these installed and wired up - I like how they turned out. My side markers are pretty bright like some of the other peoples on here, but it's fine:
