Unread 05-12-2010, 07:30 PM   #61
celticluck713
Registered User
1994 YJ Wrangler

Join Date: Oct 2009
Location: nj
Posts: 167

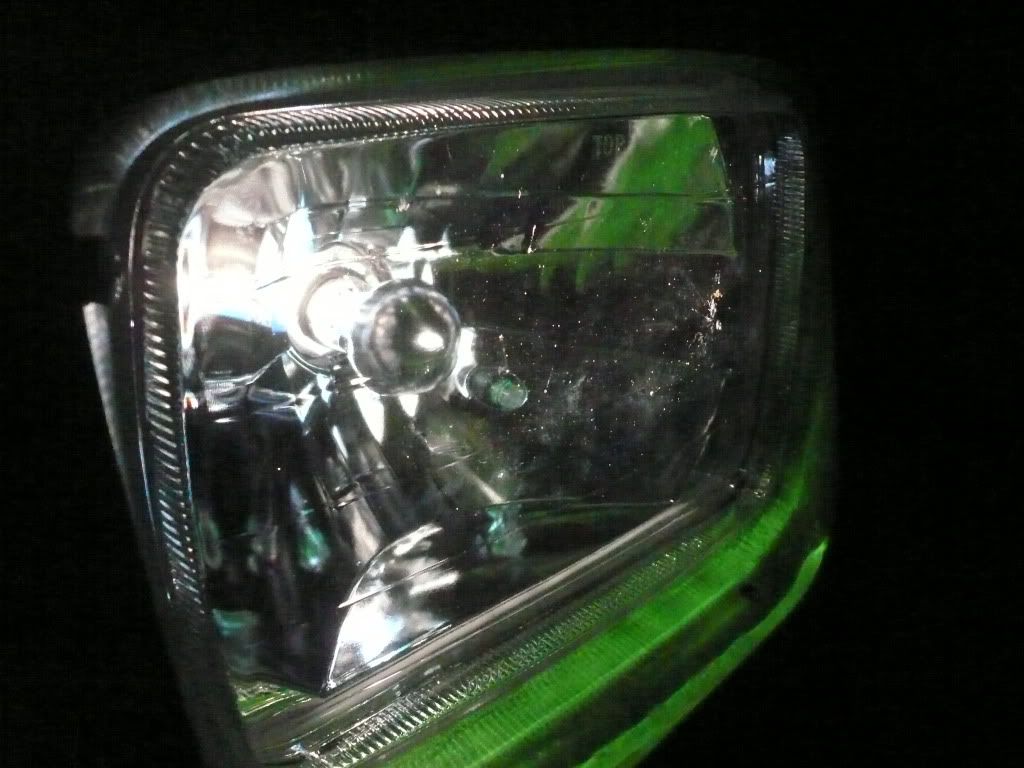

new head lights

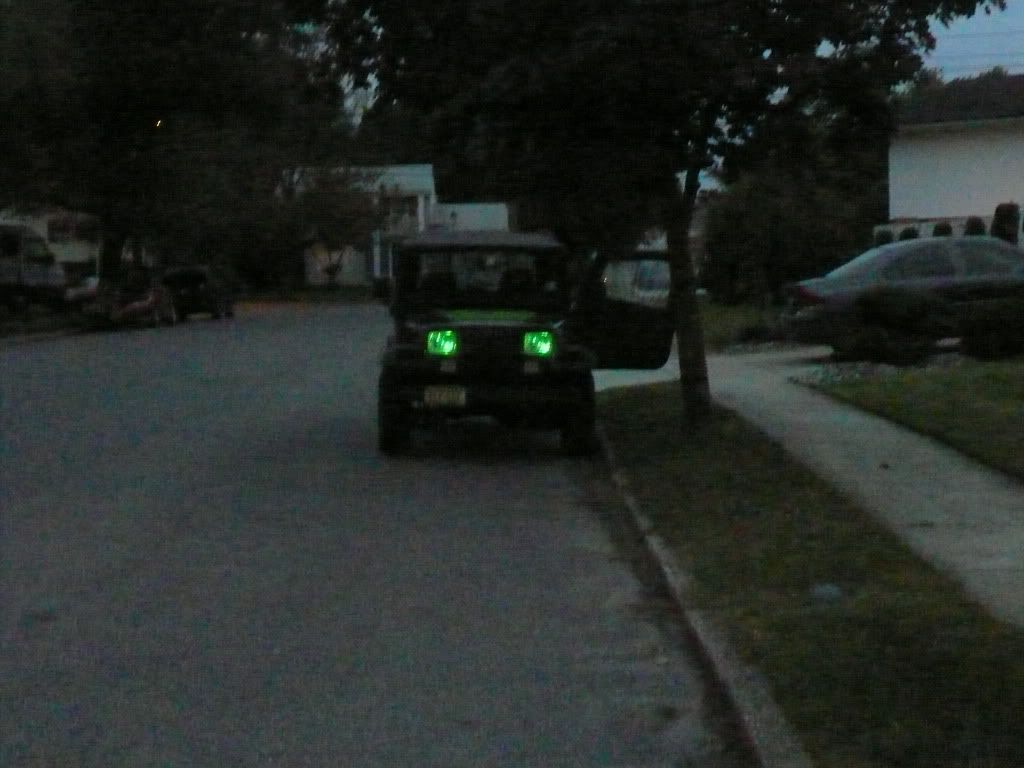

green leds


celticluck713 is offline   Reply With Quote Quick reply to this message
Unread 05-12-2010, 08:00 PM   #62
ncreptile
Registered User
1994 YJ Wrangler

Join Date: May 2009
Location: Johnston County, NC
Posts: 574
Dude thats friggin awesome, if only my jeep were still green I would be doing that, almost makes me want to buy a green jeep!

How well do they actually work and how did you set that up?
__________________
I love you CM <3
What goes around comes around, thats why my weapon of choice is a boomrang.
ncreptile is offline   Reply With Quote Quick reply to this message
Unread 05-12-2010, 08:02 PM   #63
ncreptile
Registered User
1994 YJ Wrangler

Join Date: May 2009
Location: Johnston County, NC
Posts: 574
Quote:
Originally Posted by Wheelman286 View Post
It's cold as S*** for summer here right now... like 57 or somewhere in there. I plan on putting my extras in the Blazer dash somewhere since I gotta take the damn thing apart anyways to fix the digital cluster. Might as well make sure i NEVER have to take that thing apart again.
If you need an extra for the heat controls I got one and I will likely never use it. just let me know.

NC weather, 80f one day 2 days later its snowing Its ok i like the snow, its the humidity I have never gotten used to and Im a born southerner!
__________________
I love you CM <3
What goes around comes around, thats why my weapon of choice is a boomrang.
ncreptile is offline   Reply With Quote Quick reply to this message
Unread 05-12-2010, 08:14 PM   #64
celticluck713
Registered User
1994 YJ Wrangler

Join Date: Oct 2009
Location: nj
Posts: 167
there not gonna put out much light but they do light up the whole head lamp and as for the set up i ordered new lenses for the the turn signals and side markers that were clear and i found a package on ebay for 85 so i ordered it right away lol and they had small holes in the casing and had small 194 bulbs in them so i took them out cause they did nothin for me and replaced em with some left over leds
celticluck713 is offline   Reply With Quote Quick reply to this message
Unread 05-12-2010, 08:30 PM   #65
gryph
Registered User
1987 YJ Wrangler

Join Date: Apr 2010
Location: NJ / NC
Posts: 33
Theses dash lights look great !

Red is great for maintaining night vision
__________________
1987 Wrangler YJ, 2010 328xi Msport, 2005 Range Rover HSE Grey/Grey,
1990 C2 964 Cabrio triple Black, 1987 Corvette
gryph is offline   Reply With Quote Quick reply to this message
Unread 05-12-2010, 10:54 PM   #66
coopstain
Registered User
1994 YJ Wrangler

Join Date: Sep 2009
Location: kalispell mt
Posts: 43
im doing mine saturday. anything i should be aware of i ordered wled x5 6 of those and 74-xHP3 five of those is that all i need
coopstain is offline   Reply With Quote Quick reply to this message
Unread 05-13-2010, 07:35 PM   #67
bigorangeyj
Registered User
2002 TJ Wrangler

Join Date: Sep 2009
Location: FT. BRAGG
Posts: 397
Celcticluck, what kind of headlights are those, and can you post some pics of the hole your talking about and how you did it? Because that looks sweet and would love to do it.
bigorangeyj is offline   Reply With Quote Quick reply to this message
Unread 10-05-2010, 07:52 AM   #68
Mistic
Registered User
1987 YJ Wrangler

Join Date: Sep 2010
Location: South Jersey, NJ
Posts: 337
Hey Guys....I did a complete dash board LED light replacment this weekend in my 1987 YJ. I didn't see any other complete posts in this thread regarding older YJ's so I figured that I'd share the info. It cost me about $90 with shipping for all of the LED's used.

Here are a few pictures of the LED's used along with a bulb count...









The larger bulbs are 194's and the smaller bulbs are 74's. A total counter of (11) 194's and (9) 74's

The locations were as followed...
(2) 194's in the Tach (Red) (360 Degree)
(2) 194's in the Speedometer (Red) (360 Degree)
(6) 194's in the Center Gauge Cluster (Red) (360 Degree)
(1) 194 in the Climate Control (Red) (360 Degree)
(1) 74 on the Column Gear Selector (Red) (360 Degree)
(1) 74 above the Fog Light, Rear Wiper and Defroster Switches (Red) (360 Degree)
(7) 74's in the Blinker, Check Engine Light Cluster (White) (120 Degree)

Here are a few before and after pictures or the Bulb/LED's and the locations...

Blinker, Check Engine Light Cluster (All Old Bulbs)


Blinker, Check Engine Light Cluster (Two LED's Blinkers Only at this time for Comparison)
(Disregard The Extra Bulb in the Lower Right Row, It was Just a Spare Holder and Bulb)


Column Gear Selector (Before)


Column Gear Selector (After)


Speedometer (Before)


Speedometer (After)


Tachometer (Before)


Tachometer (After)


Climate Control (Before)


Climate Control (After)


Rear View of Center Gauge Cluster


Center Gauge Cluster (After)


Fog Light, Rear Wiper and Defroster Switch Down Lighting (Before)


Completed Pics at Night





Let me know if any of you have any Questions!
