Unread 04-08-2010, 03:47 PM   #16
shatteredsoul
Registered User
1998 TJ Wrangler

Join Date: Mar 2009
Location: Portland, Tennessee
Posts: 741
What does something like this cost to replace them all in a 88, great write-up that looks great.

shatteredsoul is online now   Reply With Quote Quick reply to this message
Unread 04-08-2010, 03:53 PM   #17
apaol002
Registered User

Join Date: Apr 2010
Location: colorado
Posts: 6
I have an 90 YJ and I am in the process on ripping the dash apart to do my lights also. I have the gauge cluster with the retarded clock in the center.
The bulb count for the 90 YJ is:

Gauge Cluster: #194 bulb (x6)
Speedo #194 (x2)
Tach #194 (x2)
HVAC #194 (x1)
TOTAL #194 bulbs = 11

There is also 7 #74 bulbs used for the following indicators:
Left turn signal
Right turn signal
High Beam
4WD
Emergency Brake
Hazard Light
as well as one to the right of the steering wheel behind the dash to light up your switches
TOTAL #74 bulbs = 7

I am also in the process of making my own gauge overlays, I am trying different colors and designs to see what looks best. I will post pictures when I get closer to finished, hopefully this weekend. I have blue and white LED's to try. I will post pics of both.

I also picked up my LED's from Pep Boys, they stock them in the different colors, they ran $10.00 for a pack of two.
apaol002 is offline   Reply With Quote Quick reply to this message
Unread 04-08-2010, 04:25 PM   #18
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,077
I have contacted the member, awaiting his reply.

SOME LED's are polarized. Some are not, it depends on how the circuitry is constructed.
__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote Quick reply to this message
Unread 04-10-2010, 02:25 PM   #19
Wheelman286
Registered User
1992 YJ Wrangler

Join Date: Mar 2010
Location: Charlotte, NC
Posts: 240
The 4-LED bulbs are 90 degree light versus 35 degree light for the 6-LED. With that in mind... wouldn't a 4-LED be better because the light would spread out more evenly?
__________________
92 Wrangler 4.0 5-speed -Canyon Blue Metallic/Black Interior '00 S2000 Silverstone Metallic/Red Interior '93 S-10 Blazer Tahoe LT Black/Grey Leather Interior
Wheelman286 is offline   Reply With Quote Quick reply to this message
Unread 04-10-2010, 03:56 PM   #20
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,077
For the tach and speedometer, that could be a possibility. However for the 2 that go to light up the 4 gauges along the center of the dash, I would definitely stick with the 6-LED because the gauges themselves are lit up with light gathering plastic tubes that are pointed directly at the lights.
__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote Quick reply to this message
Unread 04-11-2010, 11:20 AM   #21
celticluck713
Registered User
1994 YJ Wrangler

Join Date: Oct 2009
Location: nj
Posts: 167
i just did my dash will take pics tonight i did green hopefully it works out well
celticluck713 is offline   Reply With Quote Quick reply to this message
Unread 04-20-2010, 04:16 PM   #22
Yarz
Registered User
1990 YJ Wrangler

Join Date: Jan 2007
Location: Gibsonia, PA
Posts: 254
Quote:
Originally Posted by celticluck713 View Post
i just did my dash will take pics tonight i did green hopefully it works out well
Any updates? I'm interested to see how this looks
__________________
"Build a man a fire, and he'll be warm for a day. Set a man on fire, and he'll be warm for the rest of his life."

1990 White YJ TBI350, SM465, NP231, SOA, RE 1.5" SOA springs, Ford 8.8, D30, 4.10's, JBConversions SYE, XJ shaft, Bilstein 5150s, jb4x4 steering, MORE SS brakelines, 35x12.50 15 MT's, '95 YJ Brake Booster, '78 Grand Marquis MC, ZJ Prop. Valve
Yarz is offline   Reply With Quote Quick reply to this message
Unread 04-20-2010, 04:25 PM   #23
celticluck713
Registered User
1994 YJ Wrangler

Join Date: Oct 2009
Location: nj
Posts: 167
sry didnt take pics yet and i cant post pics but if someone wants to post them for me i will email you them tonight after i take them
celticluck713 is offline   Reply With Quote Quick reply to this message
Unread 04-20-2010, 07:17 PM   #24
Yarz
Registered User
1990 YJ Wrangler

Join Date: Jan 2007
Location: Gibsonia, PA
Posts: 254
If you'd like, I can put them up for you. Just pm me whenever you get them and I'll give you my email address. No hurry though, I am just curious how green looks.
__________________
"Build a man a fire, and he'll be warm for a day. Set a man on fire, and he'll be warm for the rest of his life."

1990 White YJ TBI350, SM465, NP231, SOA, RE 1.5" SOA springs, Ford 8.8, D30, 4.10's, JBConversions SYE, XJ shaft, Bilstein 5150s, jb4x4 steering, MORE SS brakelines, 35x12.50 15 MT's, '95 YJ Brake Booster, '78 Grand Marquis MC, ZJ Prop. Valve
Yarz is offline   Reply With Quote Quick reply to this message
Unread 04-20-2010, 08:07 PM   #25
celticluck713
Registered User
1994 YJ Wrangler

Join Date: Oct 2009
Location: nj
Posts: 167

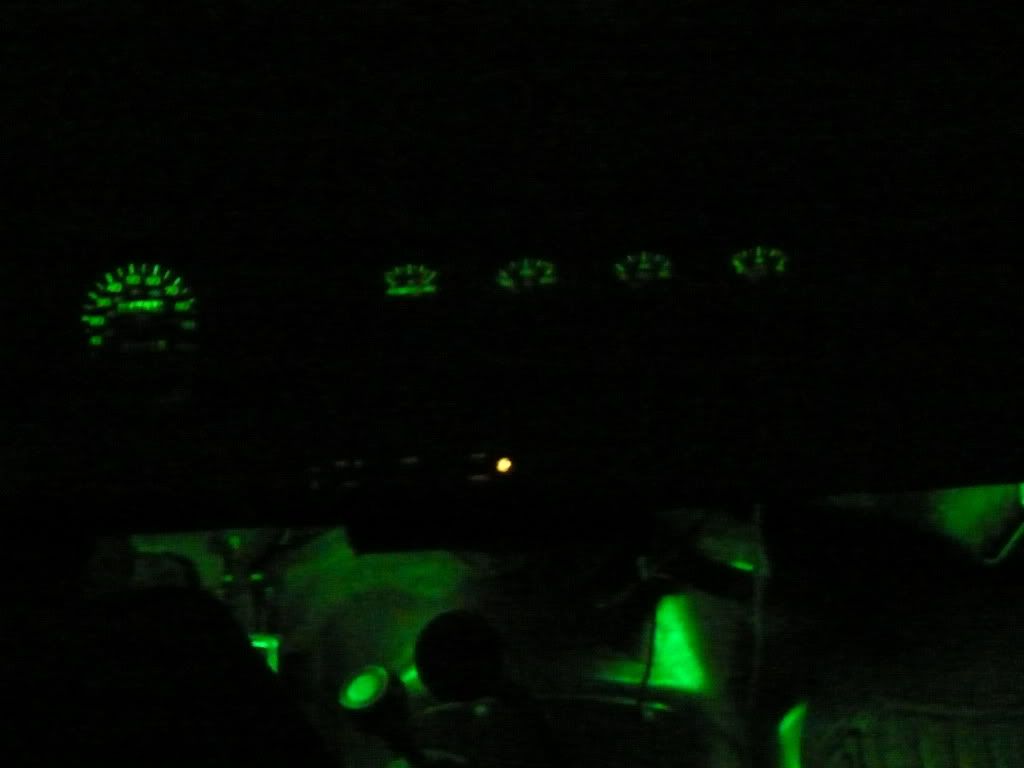

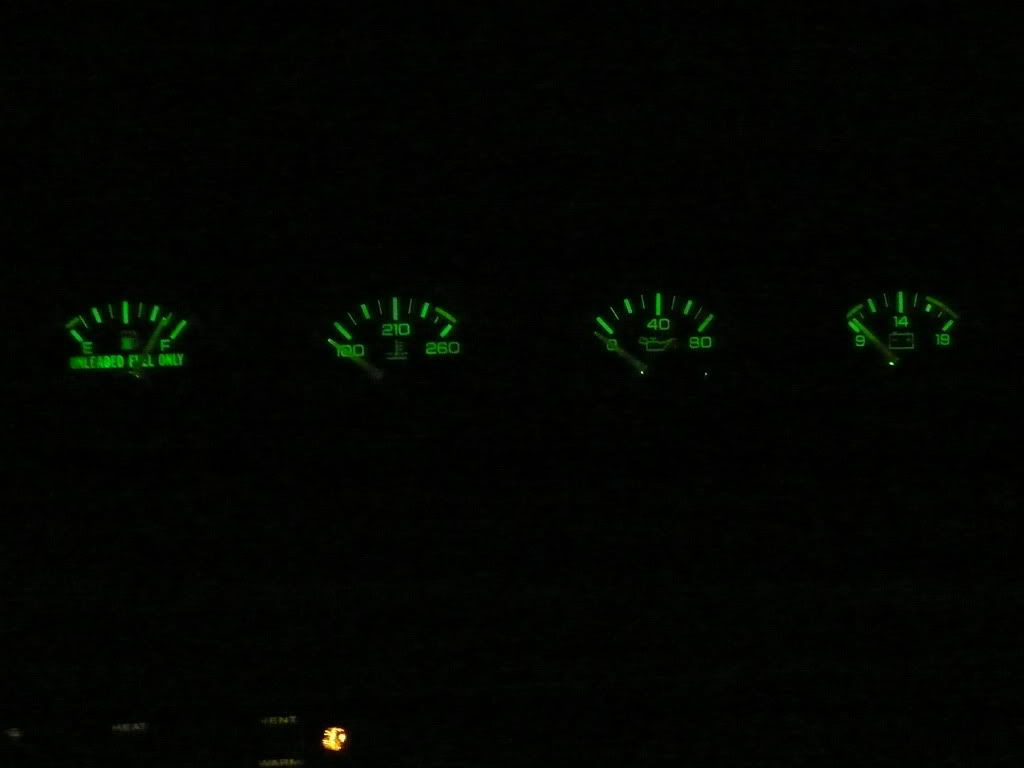

only problem i have with the green is that needle kinda blends in but u can still see it
celticluck713 is offline   Reply With Quote Quick reply to this message
Unread 04-20-2010, 08:20 PM   #26
celticluck713
Registered User
1994 YJ Wrangler

Join Date: Oct 2009
Location: nj
Posts: 167
celticluck713 is offline   Reply With Quote Quick reply to this message
Unread 04-20-2010, 08:21 PM   #27
celticluck713
Registered User
1994 YJ Wrangler

Join Date: Oct 2009
Location: nj
Posts: 167
celticluck713 is offline   Reply With Quote Quick reply to this message
Unread 04-20-2010, 08:26 PM   #28
Yarz
Registered User
1990 YJ Wrangler

Join Date: Jan 2007
Location: Gibsonia, PA
Posts: 254
Glad you got them up
I think it looks good. It kind of gives the Jeep an eerie look I can kind of see what you mean about how the needle blends in though.
If I get the time/motivation, I may look into doing this to mine as well
__________________
"Build a man a fire, and he'll be warm for a day. Set a man on fire, and he'll be warm for the rest of his life."

1990 White YJ TBI350, SM465, NP231, SOA, RE 1.5" SOA springs, Ford 8.8, D30, 4.10's, JBConversions SYE, XJ shaft, Bilstein 5150s, jb4x4 steering, MORE SS brakelines, 35x12.50 15 MT's, '95 YJ Brake Booster, '78 Grand Marquis MC, ZJ Prop. Valve
Yarz is offline   Reply With Quote Quick reply to this message
Unread 04-20-2010, 08:38 PM   #29
celticluck713
Registered User
1994 YJ Wrangler

Join Date: Oct 2009
Location: nj
Posts: 167
yeah but im switching all of them to blue because i have a monster energy theme right now lol and im gonna change it to black white and blue think it will look pretty cool plus headunit is blue and pisses me off they dont match
celticluck713 is offline   Reply With Quote Quick reply to this message
Unread 04-20-2010, 09:39 PM   #30
Area.3.Fiftyone
Registered User
1996 ZJ

Join Date: Sep 2009
Location: Kingston, Pa. 18704, Pennsylvania
Posts: 3,469
I did this on my F250 a couple of years ago and mine were polarized.

I hated it because of the fact that you cannot dim the LED's. It's either full on, or off.
__________________
79' CJ7 - 82' CJ8 - 94' YJ - 96' ZJ
Diagonally parked in a parallel universe.......
Area.3.Fiftyone is offline   Reply With Quote Quick reply to this message
