Installing my winch

In deciding how to install my winch and winch plate I have a quick questions for everyone.

If I align the winch plate with the current holes that are threaded and previously had the tow hooks the winch plate will stick out away from the bumper about 4-5". Looks kind of funny.


I'd like to have the plate and the bumper sith flush so that when I bolt on the roller fairlead it sits flush with the plate and the bumper. However, if I do that, I will end up using the hole closest to the engine only. That bolt will go through the back hole on the frame and the middle hold on the plate. Then I will have to drill a hole through the frame for the second bolt on the plate.



So I will be using the middle hole on the plate which will go through the current back hole of the frame. Then I will have to drill a hole through the frame to use the front hole of the frame. Makes sense?



My question is if I drill a hold through the frame it ends up going through the tube.


I would put a nut inside the tube to connect to. Is this ok? My first thought is it would make it stronger...but unsure if it would structrually mess with the frame?


93 YJ I6, 5spd, Dana300, twin stick, 35's, D44 front and rear, 4:88 gear
98 ZJ I6, 2"BB, 31's, stock
ZJ1998 is offline
Sponsored Links
Advertisement

post #2 of 14 Old 03-10-2013, 02:59 PM
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,368
Stick the plate on top of the bumper and if it looks funny to you then get a proper bumper. It should have come with spacers to level out the rear otherwise some flat washers will suffice.

Luck Favours The Prepared
Anticanman is offline
post #3 of 14 Old 03-10-2013, 03:06 PM Thread Starter
ZJ1998
Registered User

Join Date: Jan 2010
Location: Park City
Posts: 149

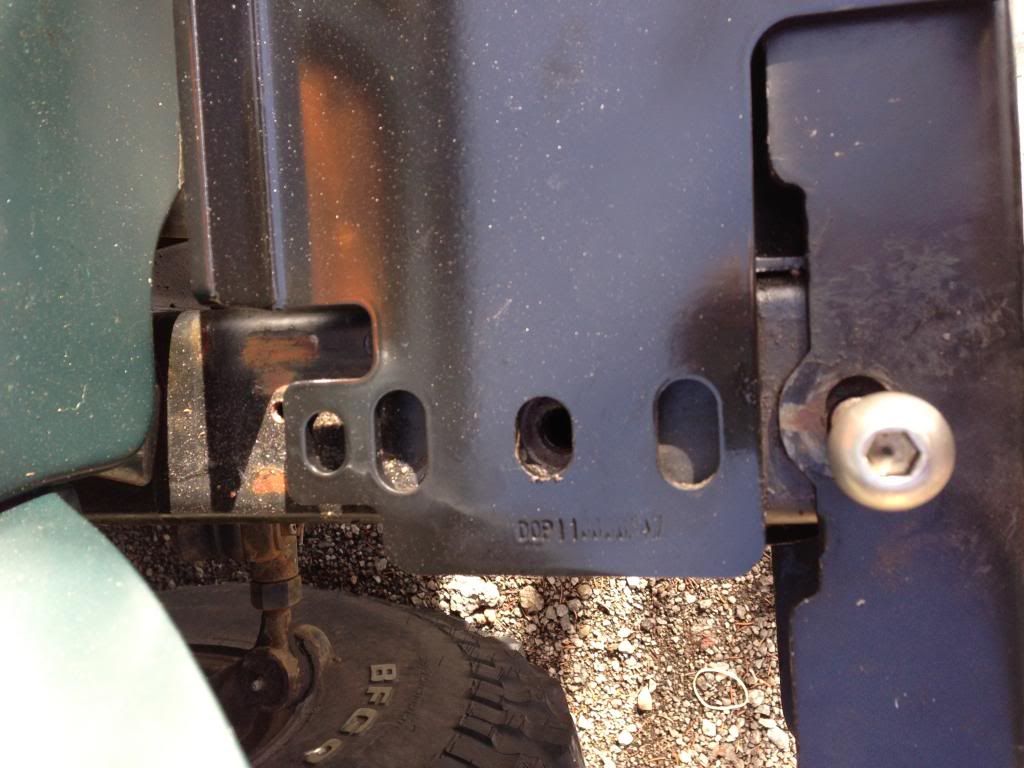

I am speaking in terms of sticking 4-5" out past the bumper..lengthwise not heighth if that is what you mean. The first picture shows how much the plate sticks out...

93 YJ I6, 5spd, Dana300, twin stick, 35's, D44 front and rear, 4:88 gear
98 ZJ I6, 2"BB, 31's, stock
ZJ1998 is offline

post #4 of 14 Old 03-10-2013, 03:20 PM
Cooter92YJ
Member
1992 YJ Wrangler

Join Date: Aug 2008
Location: North Central Wa
Posts: 308
Mount it like your first picture. That's how it is designed.

Quote:
Originally Posted by Luuca
Welcome to the wonderful world of YJs... you'll soon learn how to listen, feel, and smell your way into vehicle diagnostics!
Cooter92YJ is offline
post #5 of 14 Old 03-10-2013, 05:50 PM
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,368
That's a unique plate. Most don't stick out so far.

Luck Favours The Prepared
Anticanman is offline
post #6 of 14 Old 03-10-2013, 06:14 PM
plym49
Registered User
1990 YJ Wrangler

Join Date: Jan 2009
Location: NA
Posts: 1,623
X3. Mount it as intended. Don't drill through the tubular crossmember. Get rid of the bumper or buy/build something else.
plym49 is offline
post #7 of 14 Old 03-10-2013, 09:16 PM Thread Starter
ZJ1998
Registered User

Join Date: Jan 2010
Location: Park City
Posts: 149

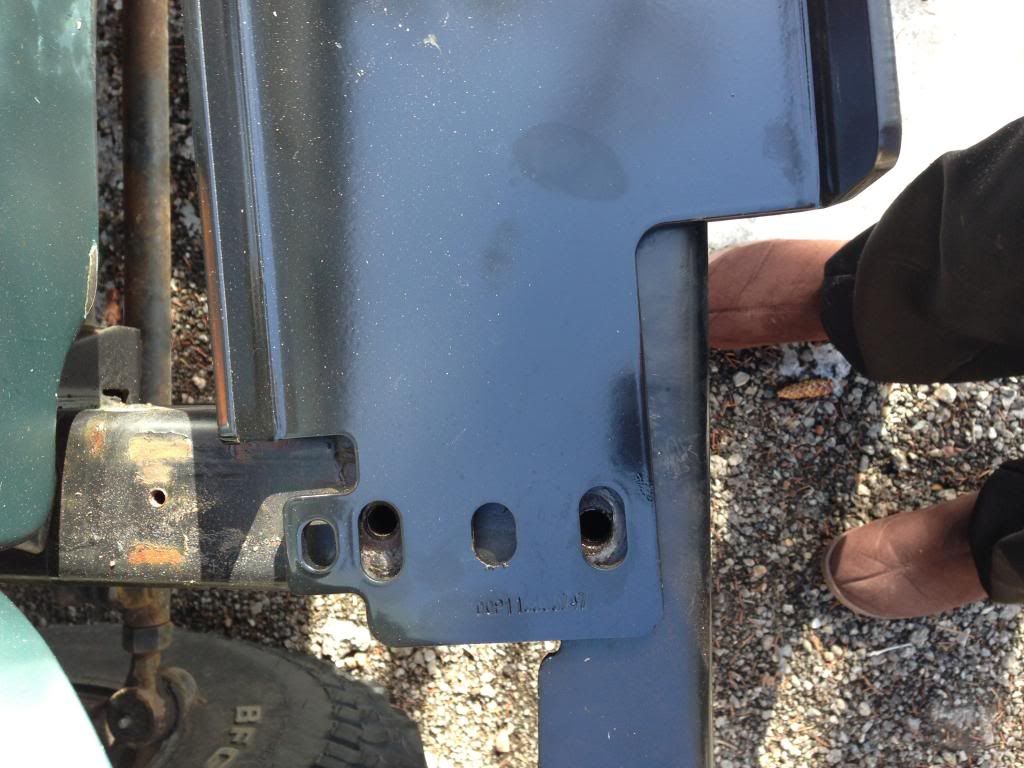

It will look like this...

93 YJ I6, 5spd, Dana300, twin stick, 35's, D44 front and rear, 4:88 gear
98 ZJ I6, 2"BB, 31's, stock
ZJ1998 is offline
post #8 of 14 Old 03-10-2013, 09:18 PM Thread Starter
ZJ1998
Registered User

Join Date: Jan 2010
Location: Park City
Posts: 149

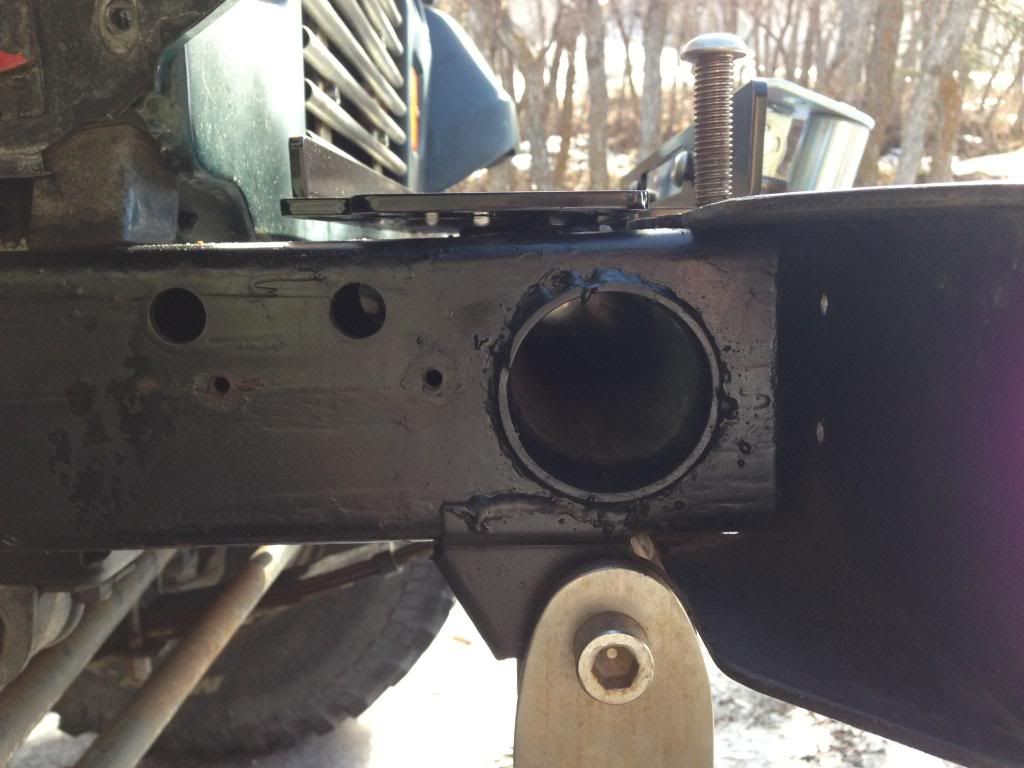

Or I put a hole in the cross member and it looks like this ...
