How to - Detailed 4" LED flush mount tail lights

I know we have all seen the 4" LED write-up, I've done one previously myself. But I'm not so thrilled with that one, and my wife wanted me to install them on her '93 YJ, so I thought I would give documenting this procedure another shot. I bought these grommet mount 4" LED lights at Wal-Mart for about $15.99 each, and I bought an EL-12 electronic flasher at the local Advance Auto Parts for about $11.99, but I ended up not needing it because I replaced her flasher unit previously with a "heavy duty" model which surprisingly worked perfectly.

First I removed the four phillips head screws that attach the factory lenses to the stock housings on each rear tail light and then removed the three 10MM head bolts that attach the housings to the body. Once the housing is unbolted you can disconnect the wiring connector for the tail lights.

I measured through the oval wiring access hole up the the top of the wheel well. There is just enough room vertically to mount these lights. If you cut the hole too high, you will cut into the top of the wheel well. If you cut the hole too low the grommet for mounting the light will interfere with the trim around the gas filler.

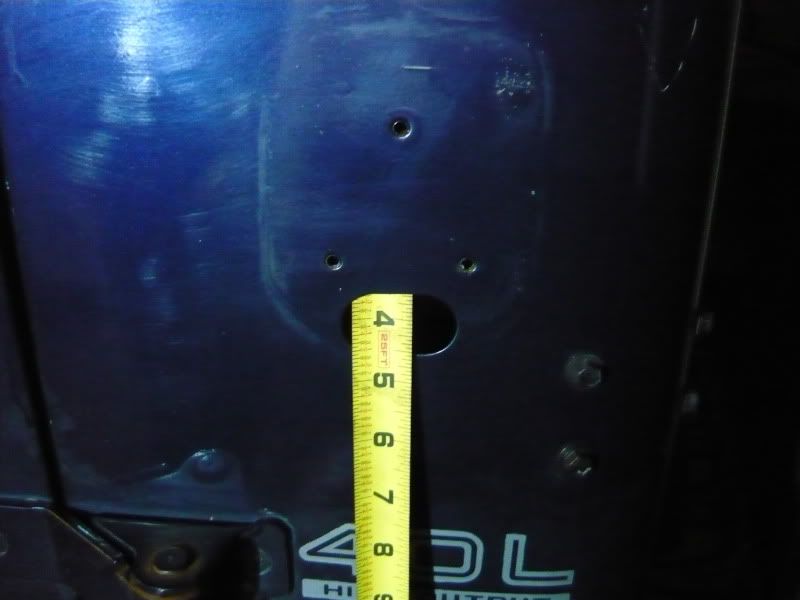

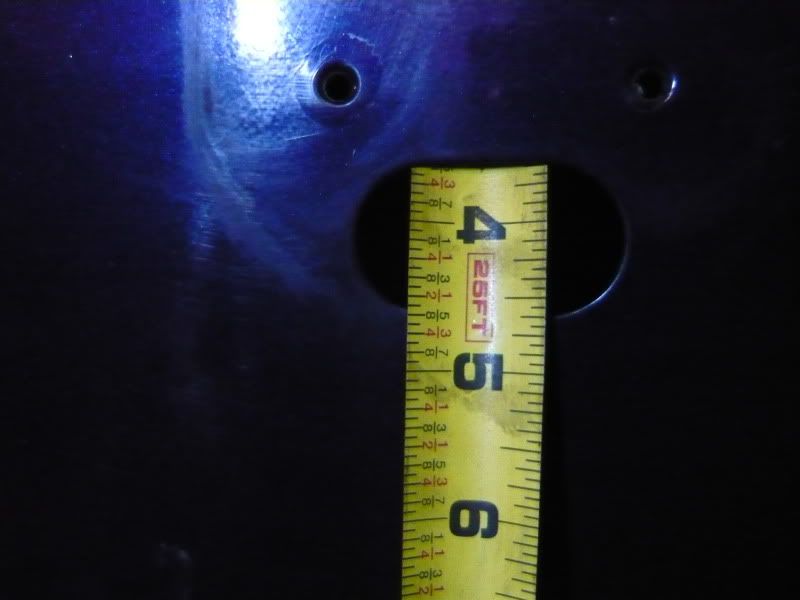

As you can see here, the upper edge of the oval hole is 3-5/8" from the top of the wheel well. I really wanted to make sure that I didn't chop into the top of the wheel, so I used 3-1/2" as my measurement when calculating where to cut.

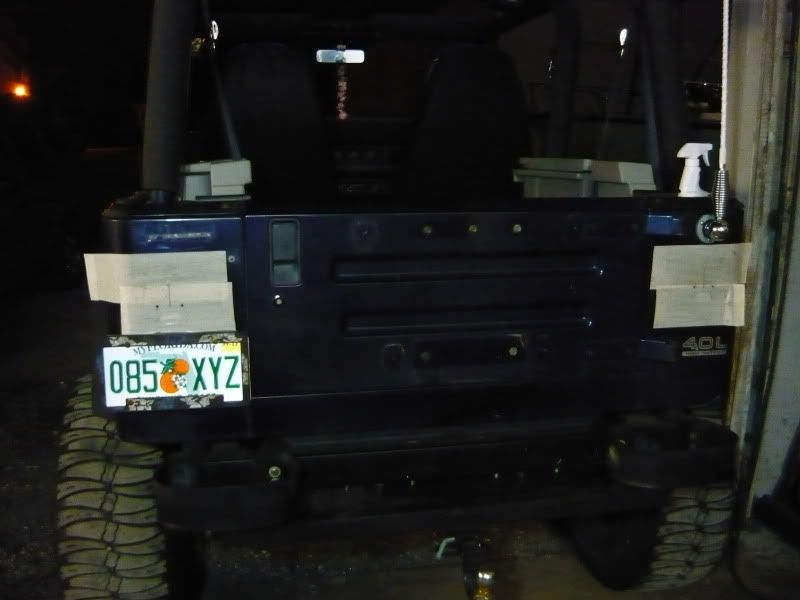

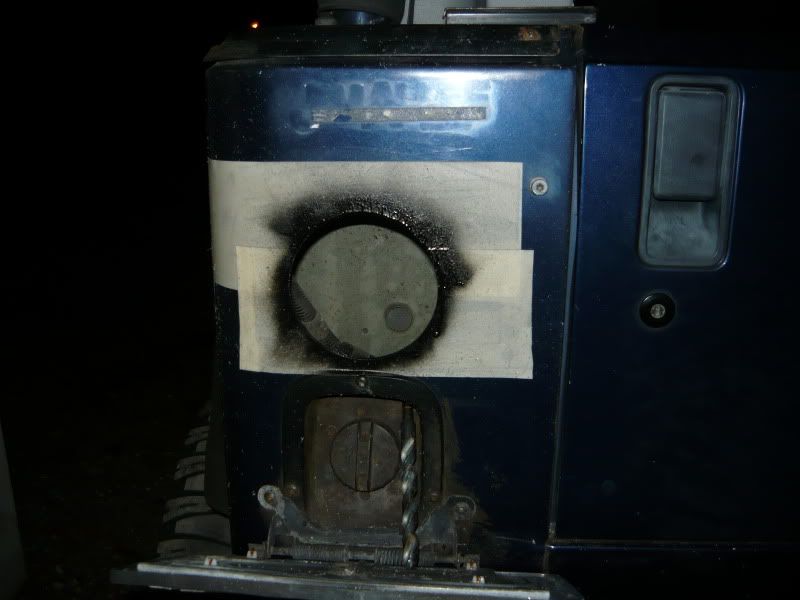

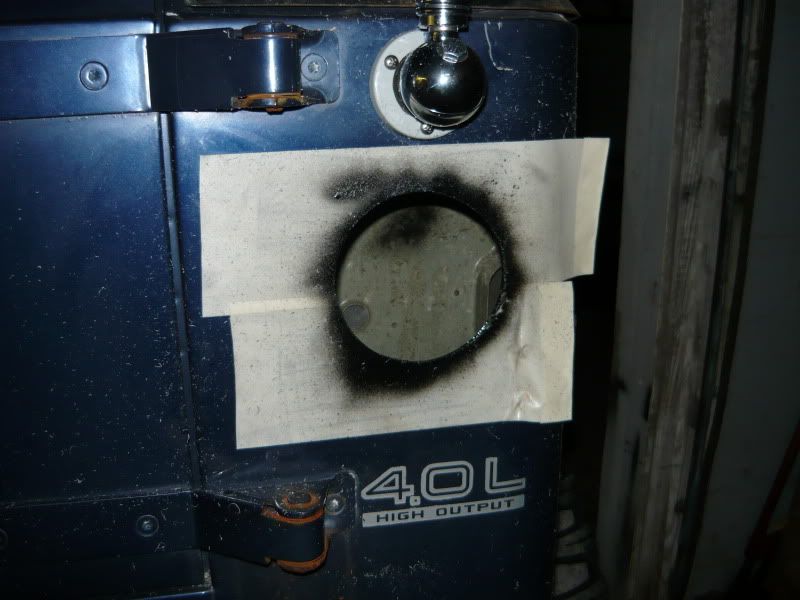

Next I covered the entire area with tape to help control paint chipping/damage during cutting, and to provide a place to make my mark for drilling. I measured the 2 lower bolt holes & found that they are 2" (center to center) apart from each other. I marked the center between the 2 lower holes & then drew a vertical line from that mark to the center of the upper bolt. This will guarantee that the lights are centered L & R exactly the same as the factory lights.

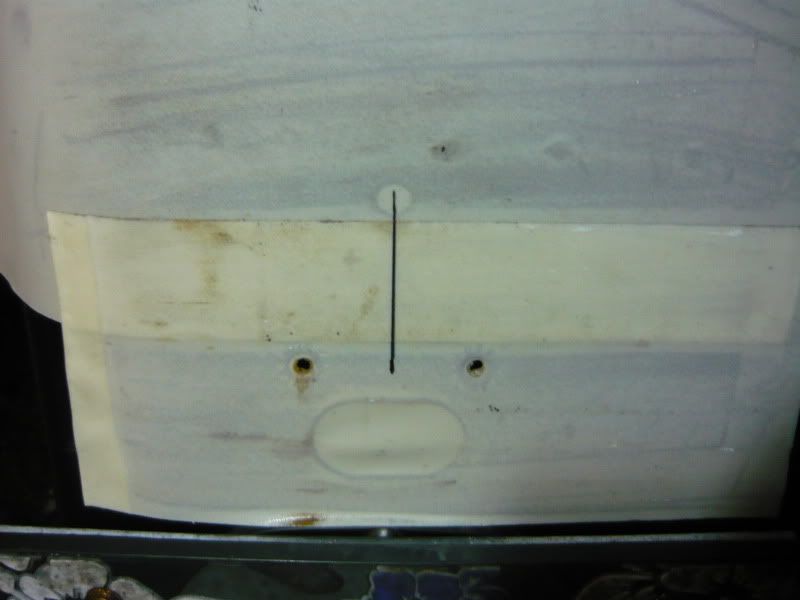

I measured 3-1/2" up from the top of the oval hole & made a mark on the tape to indicate the location of the top of the wheel well and then made a mark on the vertical line 2-1/2" below it. This where I centered my 4.5" hole saw, as called for in the LED light instructions. I used a center punch to make a small hole in the body to prevent my hole saw arbor from veering off course & then cut the 4.5" holes in the body. Leaving the tape in place, I used a round file to smooth the cut & remove any burrs, and then gave the cut edge a quick blast of paint to prevent rust.

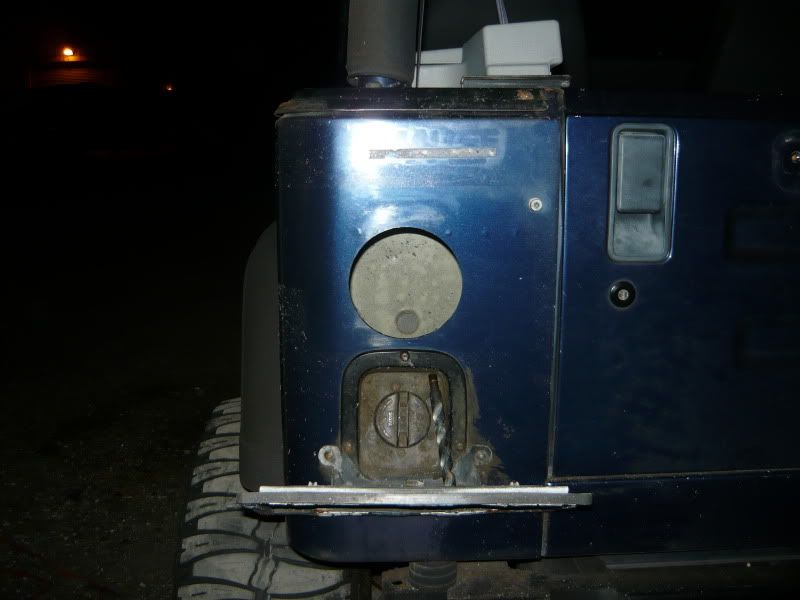

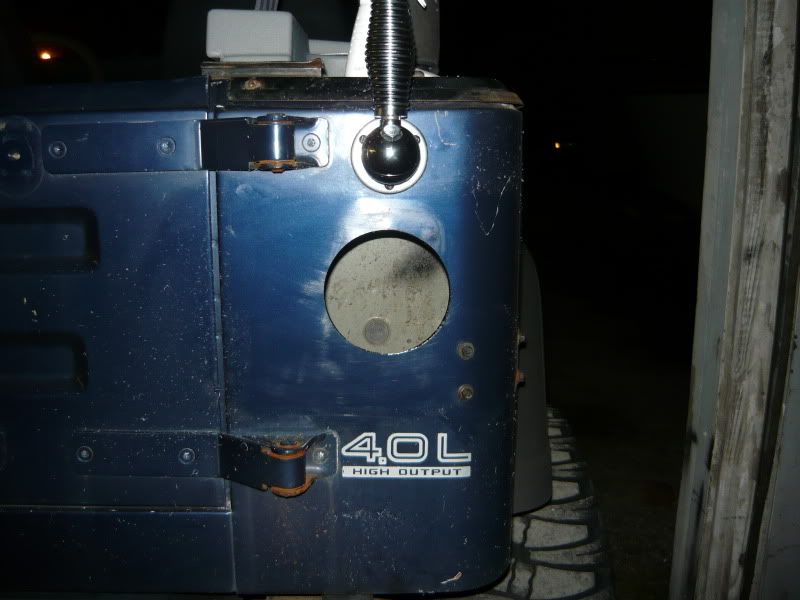

I removed the tape & let the paint dry while I prepared the wiring.






__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote
Unread 02-21-2010, 09:14 PM   #2
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682

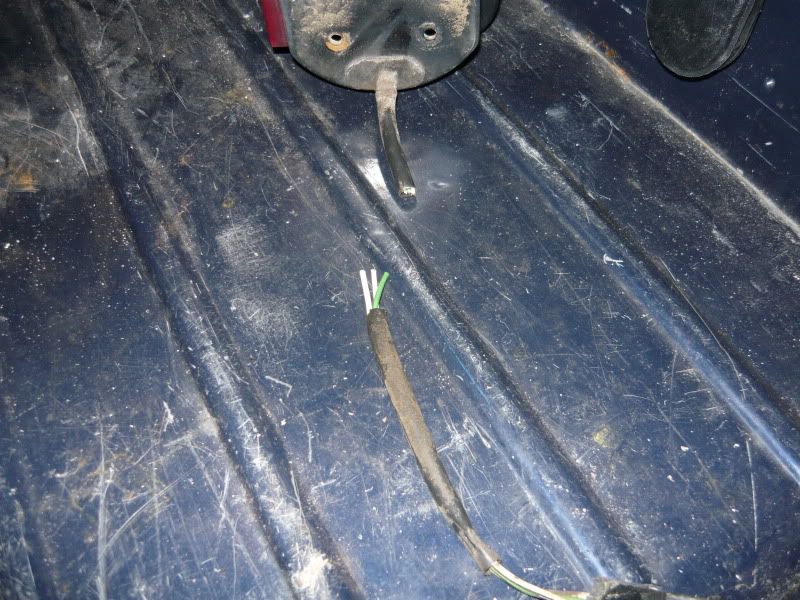

First I cut the pigtails from the factory housings to provide me with a quick disconnect. These housings were in pretty good shape, so I left enough wiring to allow them to be repaired & reused later on if someone needed them.

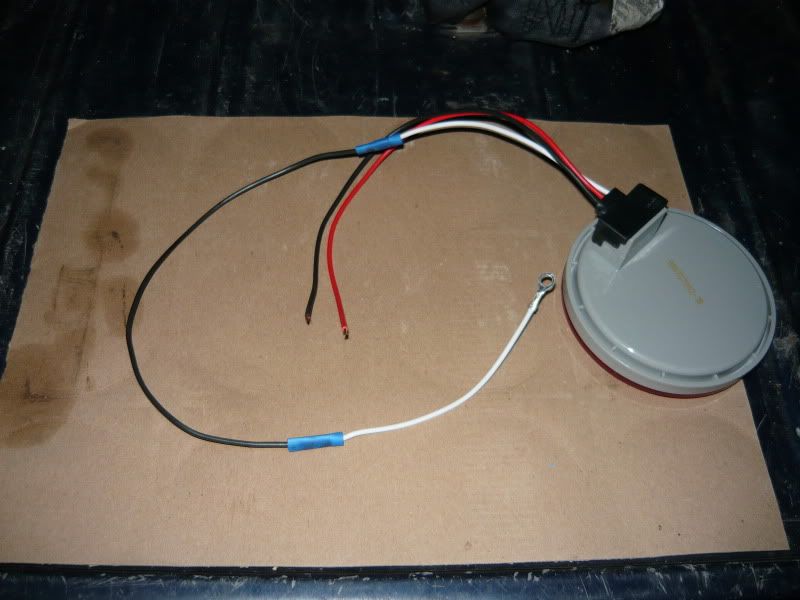

Here are the leads from the new LED lamps. The white wire is the ground & has an eyelet on the end, the red wire is the brake/turn circuit, and the back is the park lamp circuit.

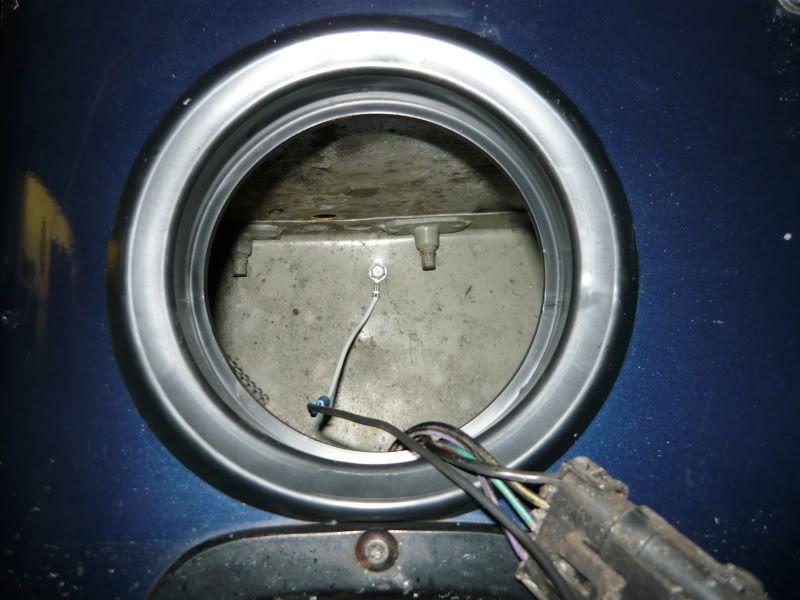

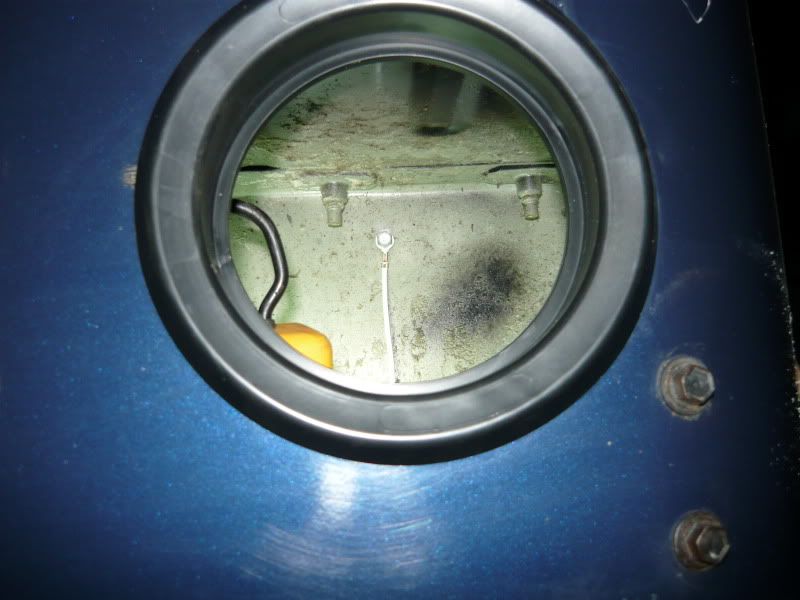

I lengthened the white ground wire by about 12" or so. This is to allow the use of a self-tapping ground screw in an easy to reach location, but still have enough length on the wires to remove the lamp from the grommet with the ground still attached.


I mounted the screw up high (near the top of the wheel well) because it was easy to get to, and to keep the screw from coming through the inner plastic wheel well behind the tire.


Driver side


Passenger side

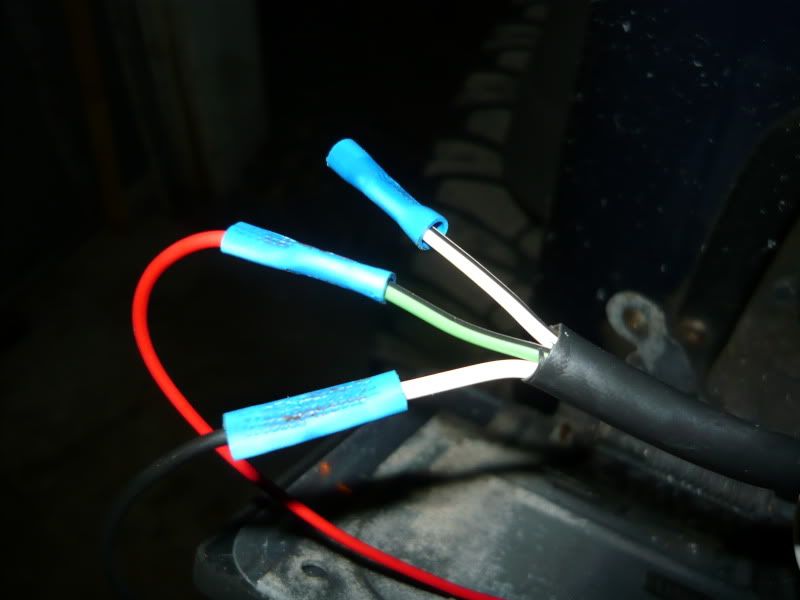

The colors of the light circuits was exactly the same on both sides.

Green with black tracer = brake/turn circuit
Solid white = park lamp circuit
White with black tracer = reverse lamps

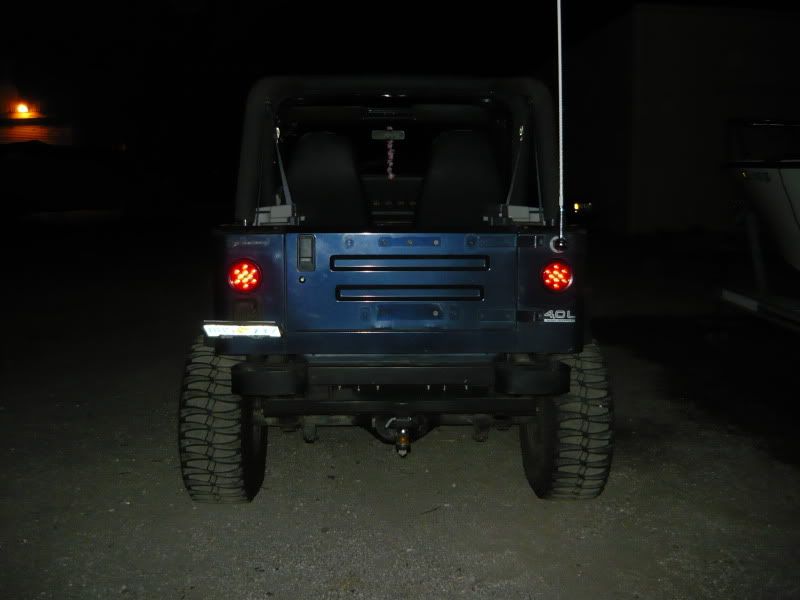

Parking lamps on

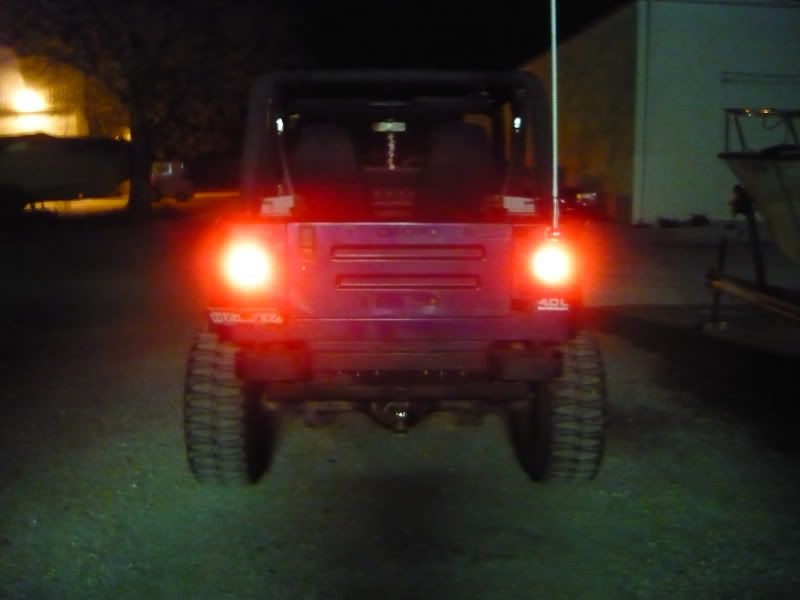

Brake lamps on

Note:
The reverse lamp circuit was capped off & will not be used just yet, as there is a new rear bumper planned that will incorporate reverse lights.

Also, there will be 2" LED side markers added, but I did not have them on hand to install. I will update this thread to include side markers as soon as I can.

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.

Last edited by Mean Max; 02-21-2010 at 09:41 PM..
Mean Max is offline   Reply With Quote
Unread 02-21-2010, 09:15 PM   #3
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,616
POST........




WIll remove this lol. Messing with you.
__________________

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline   Reply With Quote
Unread 02-21-2010, 09:44 PM   #4
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Quote:
Originally Posted by rustywrangler View Post
POST........




WIll remove this lol. Messing with you.
I was rather counting on that!

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote
Unread 02-21-2010, 09:50 PM   #5
Goobersbro
Registered User
2007

Join Date: Oct 2008
Location: Yuba City, California
Posts: 4,138
More amazing write ups from max looking foward to the follow up
__________________
My marshmallow build
http://www.jeepforum.com/forum/f12/m...-build-873442/
Goobersbro is offline   Reply With Quote
Unread 02-21-2010, 10:08 PM   #6
H_Swank
Registered User
1991 YJ Wrangler

Join Date: Dec 2009
Location: VA Beach
Posts: 364
Very detailed, and excellent write up!
__________________
1991 YJ, Powered by a 97 TJ 4.0L AX-15 tranny, NP231 xfer
2005 WK, ALL Stock

"Never trade the thrills of living, for the security of existence" Live and love as if its your last day!!

Life is no fun unless, you take the path with the most resistance. -ME-
H_Swank is offline   Reply With Quote
Unread 03-13-2010, 10:48 PM   #7
southworth
Registered User
1993 YJ Wrangler

Join Date: Oct 2009
Location: Michigan
Posts: 66
This is the thread is was looking for!!! Great write-up! Thanks for the detailed info!
southworth is offline   Reply With Quote
Unread 03-13-2010, 11:14 PM   #8
95jy
Registered User
1995 YJ Wrangler

Join Date: May 2009
Location: illinois
Posts: 166
crawled
12345
95jy is offline   Reply With Quote
Unread 03-14-2010, 10:40 AM   #9
dodger889
Registered User
1989 YJ Wrangler

Join Date: Jan 2009
Location: mi
Posts: 4,162
Just a personal note using butt connectors are not a real good idea. Because they will corrode in time. I would have soldered and shrink tubed the connection. Also use some grease on the plug into the light to keep moisture for corroding there too. Shhh do not ask long distant trucker I deal with those connection and plugs. Not saying that they will not work for a while just looking down the road. Most of the time will fail at most in convenient time......

Cool on how to figure out where to mount them. Thanks
__________________
A 89 yj with a 4.0 aw4 sye out of an 92xj. Now the hard part is done time to get it up in the air just a bit. Working on 8.8 with 3.73 and lsd for the rear. and new D30 hp with 3.73 .
For those who have not figured this out I'm old school but can handle the new too.
Quote:
Originally Posted by bigsquat View Post
im just cheap, and cheap makes you creative.
dodger889 is offline   Reply With Quote
Unread 03-14-2010, 10:54 AM   #10
burnout189
Registered User
1993 YJ Wrangler

Join Date: Mar 2003
Location: Waynesboro PA
Posts: 623
excellent writeup max! i will be using that method to find the center of my hole as soon as i get the time. i already have the wal-mart lights on hand i am always skeptical of cutting holes in my body but this method will give me some piece of mind!
__________________
A full sized Fleet of Jeeps

BARNHART'S AUTO REPAIR
burnout189 is offline   Reply With Quote
Unread 03-14-2010, 12:35 PM   #11
airdevil85
Registered User
1994 YJ Wrangler

Join Date: Oct 2009
Location: Blossburg, Pennsylvania
Posts: 292
You wife drives a YJ as well??? how you get so lucky?? my now ex would give me dirty looks when I said lets take the jeep... lol
__________________
My mom:
- "put your damn wipers down, their bugging me"
- "This thing drives too trucky"
- "Its been a while since something broke on your truck"
airdevil85 is offline   Reply With Quote
Unread 03-14-2010, 12:47 PM   #12
leftlanetruckin
XJ on 37's

leftlanetruckin's Avatar
1998 XJ Cherokee

Join Date: Jul 2006
Location: missouri via blackpool,lancs.
Posts: 10,452
Good job Max, as always
I was going to mention the electronic relay, but saw you mentioned it in the initial posting

Martin
__________________
1998 XJ on 37's.JK Rubi axles with chromo shafts and ctm's, 4:1 transfer case, etc etc etc.The Cherylkee....
2003 Range Rover HSE, 4.4 Quad Cam.
1998 Range Rover 4.6 HSE
2000 4.7 4WD WJ with a rebuilt motor.
4.3/700r4/new frame buildup (YJ)....
http://www.jeepforum.com/forum/f12/swap-offically-underway-324622/

Years to gain the hands on experience, and offer it freely.
Minutes to gain the knowledge from the internet, and quote it just as freely.
Choose wisely!
leftlanetruckin is offline   Reply With Quote
Unread 03-14-2010, 05:25 PM   #13
autoboy454
Registered User
1989 YJ Wrangler

Join Date: Oct 2009
Location: Hatfield, Massachusetts
Posts: 397
just bought these same exact lights for Slibri's 89 YJ. Good to know I'll know exactly how to install them
__________________
[CENTER][SIZE="3"][URL="http://www.masskrawers.com"][FONT="Impact"]www.MassKrawlers.com[/FONT][/URL][/SIZE]
Love to wheel? Live in/around Massachusetts? Check us out! [/CENTER]
autoboy454 is offline   Reply With Quote
Unread 03-14-2010, 06:13 PM   #14
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Quote:
Originally Posted by dodger889 View Post
Just a personal note using butt connectors are not a real good idea. Because they will corrode in time. I would have soldered and shrink tubed the connection. Also use some grease on the plug into the light to keep moisture for corroding there too. Shhh do not ask long distant trucker I deal with those connection and plugs. Not saying that they will not work for a while just looking down the road. Most of the time will fail at most in convenient time......

Cool on how to figure out where to mount them. Thanks
I would rather have soldered connections too, but I am a bit lazy & the Mrs. was ever-so-patiently watching & waiting on me to finish, plus take my pictures along the way.

So as an alternative, I used the butt connectors to save some time. I did however use dielectric grease to fill the connectors first before putting the wires in.

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.

Last edited by Mean Max; 03-14-2010 at 07:33 PM..
Mean Max is offline   Reply With Quote
Unread 03-14-2010, 06:49 PM   #15
dodger889
Registered User
1989 YJ Wrangler

Join Date: Jan 2009
Location: mi
Posts: 4,162
Quote:
Originally Posted by Mean Max View Post
I would rather have soldered connections too, but I am a bit lazy & the Mrs. was ever-so-patiently watching & waiting on me to finish, plus take my pictures along the way.

So as an alternative, I used the butt connectors to saave some time. I did however use dielectric grease to fill the connectors first before putting the wires in.
