HomeBrew YJ Snorkel!

ALERT!(I wrote this at 4am. Please disregard my grammar/spelling/**** )


It all started two weeks ago when my Jeep sucked up a little water and stalled in the middle of a 3ft pond. Luckily my engine didn't hydrolock and after a good 2 minutes of drying the distributor and airbox off with my socks the Jeep fired right up and I went home. Needless to say, it was time for a snorkel!


-I started with an 8ft length cut of 3" 16g galvanized exhaust pipe. However, upon bending it the pipe proved to be too thin walled for the application...


Luckily the shop had some 14g 3" pipe in stock and said that they'd sell it to me and made the bends needed for only $30. Deal!

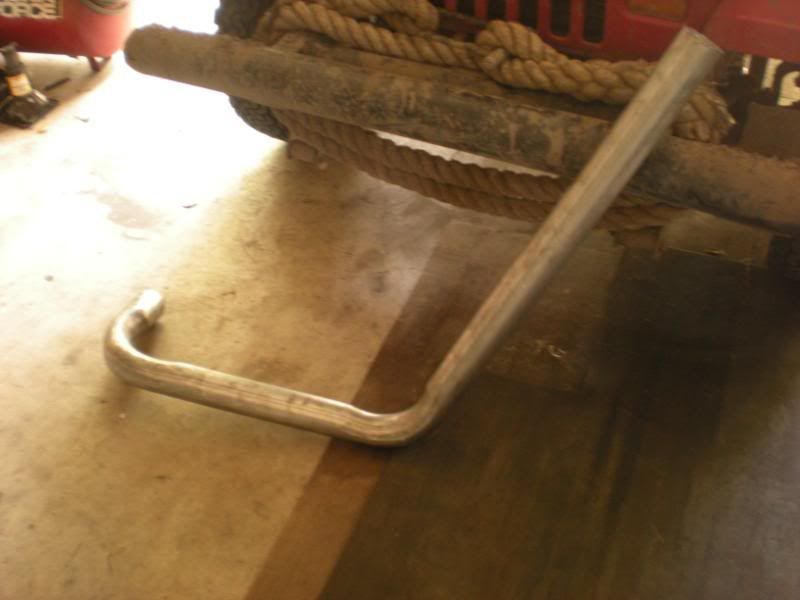

The pipe has a 90 degree bend at the bottom where it turns to enter the engine bay and a gradual bend in the rear. Not sure what the back angle is exactly because Jeep windshield angles vary, not to mention the pipe was later cut and welded back together.


-Now it was time to decide how to attach it to the Jeep. I decided to use a 3" muffler clamp for under the hood and to just make a bracket to be bolted to the existing windshield hinge mount.

For the under the hood clamp I just drilled two small holes into the wheel well to attach it.

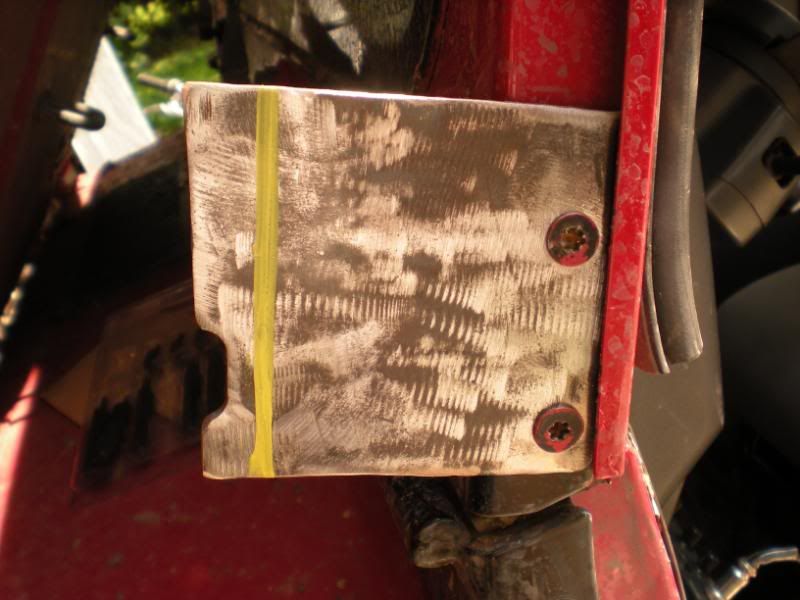

For the windshield bracket, I used some 1/4" sheet metal and drilled holes into it to match the existing ones on the hinge like so. (it would be shortened later, just left it that big incase I needed more to work with)



-I clamped the pipe to the windshield bracket just how I wanted it and tacked it on with the welder. I cut 4" out of the pipe on the bottom because it was too long from the shop where it was bent. A mistake in measuring on my part, you can see the weld in this picture behind the 90 degree angle going into the hood.

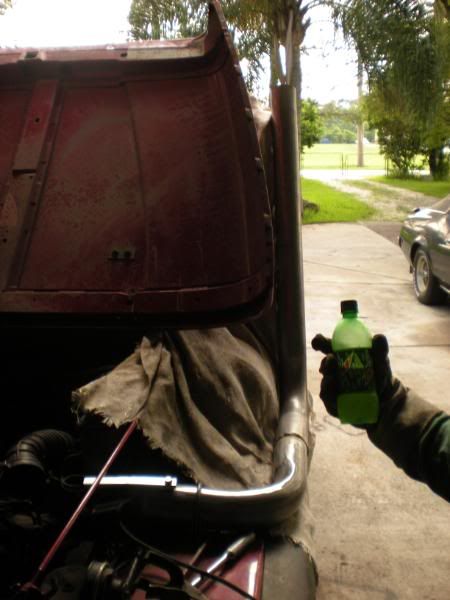

Here it is from the front. (Disregard my Mountaindew wielding welding glove)

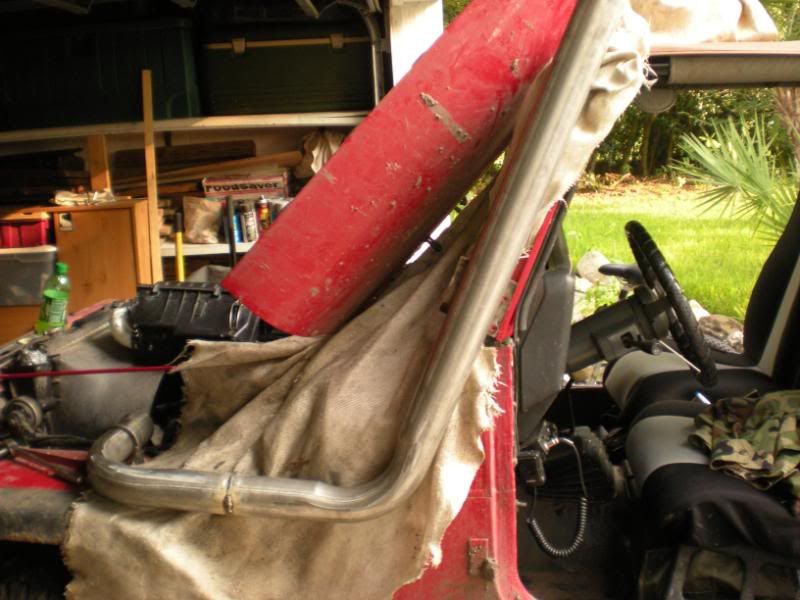

Here it is shut with the hood before it was cut.



-Next was the scary irreversible part. Cutting a hole into the hood for the pipe . After some intense measuring and remeasuring I made the cut with a jigsaw and rounded it off with an air dremel.


Thank Allah it was a perfect fit! I painted the bare metal and put some black door trim around the cut to make it look nicer.




-Next was hooking the snorkel up to the stock airbox. I used a 2 1/2" 90 degree gradual bend PVC elbow and shoved it into the stock intake on the airbox. It was a snug fit but I still put a bead of JB weld around it to help seal it on. Then all that wa sneeded was a 3ft flexible air hose from the auto parts store. It was $20 but worked perfectly with the use of hose clamps! (The hose clamped areas had a bead of JB Weld put around them inside and out as well to seal them.)



I didn't really document the rest but in short...
-The snorkel was primed and painted black.
-I used the intake off of a crane for this project. It had a 4" diameter so I used an adapter from Home Depot. A 2-3" rubber adapter for pipe. That plus a hose clamp to keep the intake top secured to the adapter and the head of the snorkel was finished.

If you don't happen to be a crane operator you can just order an intake top from ( tnjmurray.com ) (I may replace the top of mine with one of these later on if I feel like it)

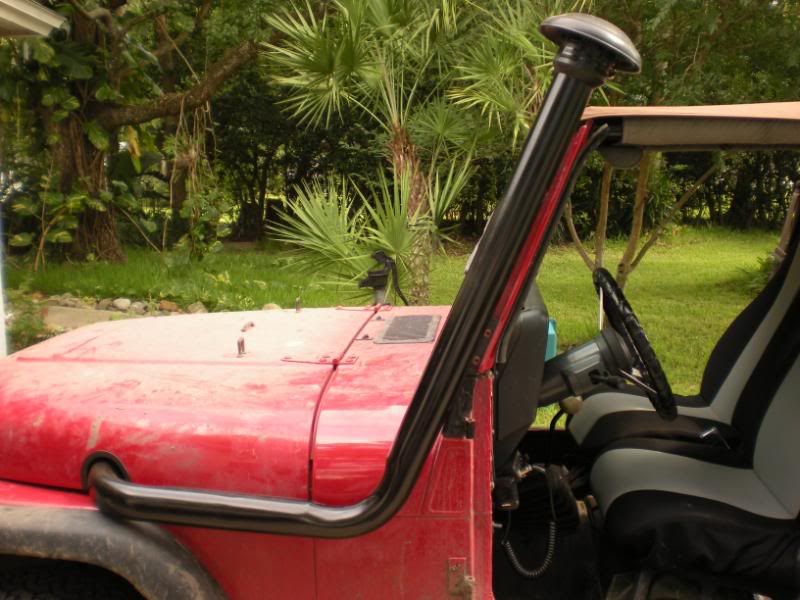

Okay folks, Here are the before and afters!

Before...

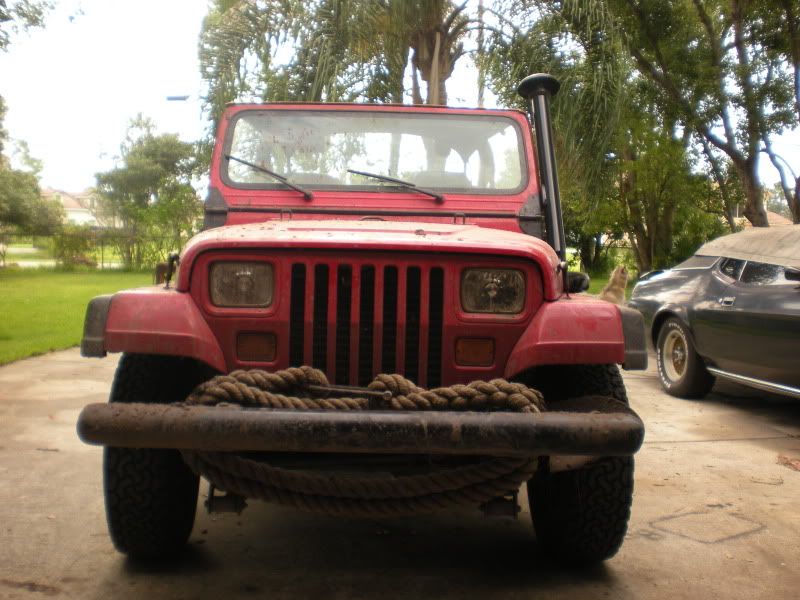

And After!





Any comments or concerns are welcome. I only spent $90ish on the project total. Plastic ARB Jeep snorkels retail for $350-400 online.

__________________
/l , [____],
l---L--[]lllllll[]-_
()_) ()_)==@=)_)

Quote:
Originally Posted by clemsonfan16 View Post
The 4banger only whines because it wants more!
Quote:
Originally Posted by Opihi59 View Post
3 Things to know about the forum: Always PB blaster, Always check the FAQ, Always do a search, and if none of that works, ask Mean Max.
YJake is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 03:28 AM   #2
roccomonte
Registered User
1991 YJ Wrangler

Join Date: Nov 2008
Location: Victorville, Ca
Posts: 232
Nice!
What did you end up doing with your breathers?
roccomonte is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 05:23 AM   #3
jeepwrnglr92
Registered User
2015 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 2,043
looks good.
__________________
2015 Jeep Wrangler JKU "Tank" Sport S
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 07:46 AM   #4
jaywiz1977
Registered User
1995 YJ Wrangler

Join Date: Mar 2009
Location: Port Clinton,Ohio
Posts: 353
This has been done b4,Looks like you pretty much just copied his thread.turned out pretty good though.He bought 90s and cut and welded them together you had one pipe bent.I wondered how it would look bent instead of welded,so i say THANK YOU for filling my curiosity!
__________________
my build

There are alot of different people in the world out of all of them,it's the normal ones that scare me the most!
jaywiz1977 is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 08:21 AM   #5
Bob_R
Registered User
1991 YJ Wrangler

Join Date: Jan 2006
Location: Southern California
Posts: 1,388
I have never been much for snorkels, they just never appealed to me. But yours if different, it looks like it belongs as part of the equipment. Nicely done

One suggestion, and maybe way off base even, but what about a purge valve toward a low point. To manually let dabre out if it was to get inside the long tube.

Again, nicely done.
__________________
[B][COLOR="Yellow"]GROWING OLDER IS MANDATORY, GROWING UP IS OPTIONAL[/COLOR][/B] [COLOR="DarkRed"]TREAD LIGHTLY[/COLOR]
Bob_R is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 09:26 AM   #6
cjlyell2112
Registered User
2002 TJ Wrangler

Join Date: Apr 2009
Location: Indiana
Posts: 38
Nice work!
cjlyell2112 is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 09:39 AM   #7
fyrdriver
Registered User
1992 YJ Wrangler

Join Date: Jun 2008
Location: Lake Worth, FL
Posts: 744
Where/who did you ever get the idea from?
__________________
--------------------------------------------------
Firefighters Jeep Club

http://groups.jeepforum.com/Firefighters_Jeep_Club
fyrdriver is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 09:39 AM   #8
Fische
Registered User
1993 YJ Wrangler

Join Date: Jun 2009
Location: Sanford, Maine
Posts: 17
Why can't I see the pics?
Fische is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 09:46 AM   #9
jaywiz1977
Registered User
1995 YJ Wrangler

Join Date: Mar 2009
Location: Port Clinton,Ohio
Posts: 353
Told ya frydriver was the first,and i think you should at least give him some credit!comeon man up.
__________________
my build

There are alot of different people in the world out of all of them,it's the normal ones that scare me the most!
jaywiz1977 is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 09:50 AM   #10
yjJeff
Registered User
1991 YJ Wrangler

Join Date: Feb 2009
Location: all over the world
Posts: 1,842
i love jeeps.
yjJeff is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 12:38 PM   #11
Bob_R
Registered User
1991 YJ Wrangler

Join Date: Jan 2006
Location: Southern California
Posts: 1,388
I found another thread, that was before yours. Both are great by the way, but I like the top on his better than the Chinese hat on yours.

Check it out.

http://www.jeepforum.com/forum/f12/homemade-jeep-snorkel-w-pics-794294/
__________________
[B][COLOR="Yellow"]GROWING OLDER IS MANDATORY, GROWING UP IS OPTIONAL[/COLOR][/B] [COLOR="DarkRed"]TREAD LIGHTLY[/COLOR]
Bob_R is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 02:22 PM   #12
YJake
Registered User
1991 YJ Wrangler

Join Date: Jun 2008
Location: Orlando, FL
Posts: 2,199
I used Fyres design and said so in his thread.

But with a different top and such.
__________________
/l , [____],
l---L--[]lllllll[]-_
()_) ()_)==@=)_)

Quote:
Originally Posted by clemsonfan16 View Post
The 4banger only whines because it wants more!
Quote:
Originally Posted by Opihi59 View Post
3 Things to know about the forum: Always PB blaster, Always check the FAQ, Always do a search, and if none of that works, ask Mean Max.
YJake is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 02:36 PM   #13
jaywiz1977
Registered User
1995 YJ Wrangler

Join Date: Mar 2009
Location: Port Clinton,Ohio
Posts: 353
Thats all i wanted man,alot of people read your thread and didn't even know about frys.I believe it was an original when he came up with it,and he should be selling these(arb is).It's really hard to come up with something new to do to a jeep and i hate it when someone just copies and takes the credit.
__________________
my build

There are alot of different people in the world out of all of them,it's the normal ones that scare me the most!
jaywiz1977 is offline   Reply With Quote Quick reply to this message
Unread 06-25-2009, 06:01 PM   #14
YJake
Registered User
1991 YJ Wrangler

Join Date: Jun 2008
Location: Orlando, FL
Posts: 2,199
Quote:
Originally Posted by roccomonte View Post
Nice!
What did you end up doing with your breathers?
-My front axle breather is up to the top of the grill and bent over.
-Dist. cap is greased up and the breather has a hose going up to the top of the fire wall and bent over.
-The T-case breather is at the top of the fire wall.
-The rear axle breather is in the stock location behind the driver side wheel well but I lengthened it as far up as it would go and bent it over.

I'm hoping that these measures will help keep the water out better than before. It's not like I try to ford rivers or anything, I just don't want 3ft of water to ruin my Heep.

I'll be testing everything this weekend
__________________
/l , [____],
l---L--[]lllllll[]-_
()_) ()_)==@=)_)

Quote:
Originally Posted by clemsonfan16 View Post
The 4banger only whines because it wants more!
Quote:
Originally Posted by Opihi59 View Post
3 Things to know about the forum: Always PB blaster, Always check the FAQ, Always do a search, and if none of that works, ask Mean Max.
YJake is offline   Reply With Quote Quick reply to this message
Unread 11-09-2009, 06:40 PM   #15
95yj_bstick
Registered User
1995 YJ Wrangler

Join Date: Jun 2009
Location: central pa
Posts: 313
i just realized that your jeep is my comp's background, great job with the snorkel, i've been thinking of doing one myself
correct me if i'm wrong, but is this it?
__________________
"Actually, Jeeps are meant to fly, just not meant to land. Big difference."
95yj_bstick is offline   Reply With Quote Quick reply to this message
