Unread 03-05-2013, 08:11 AM   #16
Flajeeper1
Registered User
1987 YJ Wrangler

Join Date: Oct 2009
Location: Lakeland, FL
Posts: 726
jsawduste, that is the cleanest undercarriage I've ever seen!!!!!! It's beautius!! Do you ever take it out wheeling?

Flajeeper1 is offline   Reply With Quote Quick reply to this message
Unread 03-05-2013, 08:35 AM   #17
jsawduste
Web Wheeler
2006 YJ Wrangler

Join Date: Jul 2006
Posts: 2,985
Quote:
Originally Posted by Flajeeper1 View Post
jsawduste, that is the cleanest undercarriage I've ever seen!!!!!! It's beautius!! Do you ever take it out wheeling?

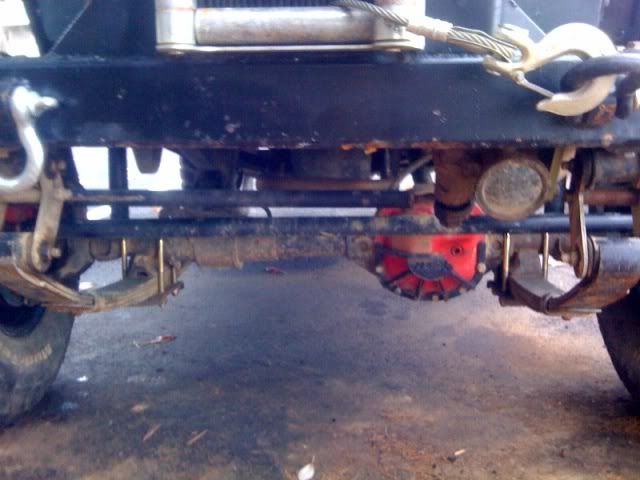

Oh yes, it gets it`s share of wheeling. Took everything apart last fall and rebuilt/refinished the entire firewall forward.

Just don`t ask to see the rear. That`ll get freshened up when the new rear axle goes in. Currie Rock Jock with a Detroit and Super 60 5.38`s.

Not much of a dirty shot but..........
jsawduste is offline   Reply With Quote Quick reply to this message
Unread 03-05-2013, 08:58 AM   #18
Anticanman
Follow me

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon, California
Posts: 19,230
Quote:
Originally Posted by jsawduste View Post
Oh yes, it gets it`s share of wheeling. Took everything apart last fall and rebuilt/refinished the entire firewall forward.

Just don`t ask to see the rear. That`ll get freshened up when the new rear axle goes in. Currie Rock Jock with a Detroit and Super 60 5.38`s.

Not much of a dirty shot but..........
I hate you and your perfect jeep.
__________________
Luck Favours The Prepared
[SIGPIC][/SIGPIC]
Anticanman is offline   Reply With Quote Quick reply to this message
Unread 03-05-2013, 01:20 PM   #19
TSEJEEPERS
Registered User
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 4,968
jsawduste What Hiem are you running on the drag link knuckle side?
That is interesting. Is the grease zerk a different part of part of the hiem?
Have you had any problems with the nuts backing off, without running them in double shear?
I was running a set up like that and could not keep the nuts tight. I know part of my problem is a unbalancable Irok tire in the front.
I unded up going back to tie rod ends.
__________________
93 YJ SOA 2" springs front, XJ springs rear w/main leaf added, High pinon 9 inch rear detroit locker front Dana 44 ARB 4.56 Gears, 36 inch Irok tires too much to list. www.mijc.org
TSEJEEPERS is offline   Reply With Quote Quick reply to this message
Unread 03-05-2013, 02:49 PM   #20
jsawduste
Web Wheeler
2006 YJ Wrangler

Join Date: Jul 2006
Posts: 2,985
Quote:
Originally Posted by TSEJEEPERS View Post
jsawduste What Hiem are you running on the drag link knuckle side?
That is interesting. Is the grease zerk a different part of part of the hiem?
Have you had any problems with the nuts backing off, without running them in double shear?
I was running a set up like that and could not keep the nuts tight. I know part of my problem is a unbalancable Irok tire in the front.
I unded up going back to tie rod ends.

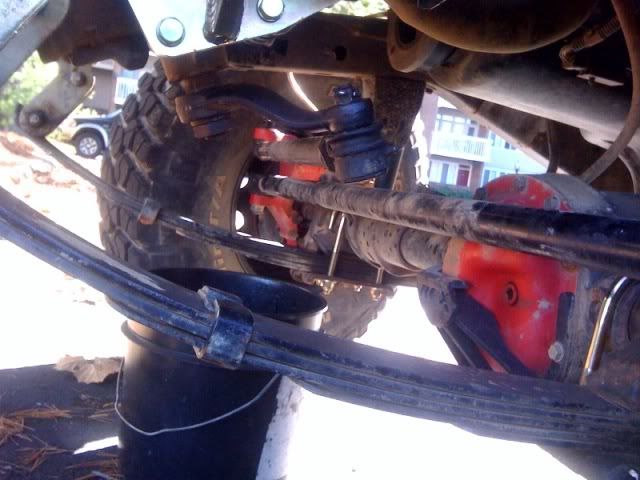

Actually I set it up with TRE`s on the drag link.
http://www.ruffstuffspecialties.com/...g/TREDRAG.html at the pitman arm. As a rule I don`t like the extended shaft cause they can be prone to bending. Dan`s stuff is pretty beefy so it ought to be OK.

http://www.ruffstuffspecialties.com/.../TRESTAND.html at the high steer arm.

Castle nuts with cotter pins will hold it all together. Both the pitman arm and high steer arm were reamed for the TRE taper.

If you go that route pay attention to the obvious left and right hand threads but also the variances in the tube adapters. There is a different thread count (TPI) for TRE`s vs. Heims. I kept screwing up which went where. Left Hand vs Right Hand vs. 14 TPI vs 18 TPI.

Cycling the suspension showed that there was plenty of articulation left in the joints from full droop to full compression. So binding will not be a problem.

I wanted the tie rod above the springs but there simply was no way it was going to clear the springs. At droop it would clear but hit on compression.

If you use a heim on the knuckle arm be sure to place a grade 8 washer between the heim and the softer metal knuckle. Don`t want the harder steel of the heim ball compressing itself into the knuckle.

1.5 x .250 DOM was the material of choice for both links.
jsawduste is offline   Reply With Quote Quick reply to this message
