Harness issues

I just swapped my 4cyl in my 91 for a 95 6cyl. Everything went pretty smooth considering the wiring harness came with it..... exceppttt that the plug in above the transmission hump that goes through the fire wall to my dash. The dash has 10 wires and the new 6cyl wiring harness has 13???
-Also, those were the only wires that were cut on the 6cyl harness so it doesn't have the plug-in on the end so i'm not sure what the plug-in would even looks like.

Maybe i am looking at it wrong i don't know but any help in that area would be greatly appreciated.
Thanks

__________________
Only in a Jeep
NOAKES91yj is offline   Reply With Quote Quick reply to this message
Unread 04-05-2010, 06:15 PM   #2
provinT13
Registered User
1999 TJ Wrangler

Join Date: Oct 2007
Location: Colorado Springs, Colorado
Posts: 4,632
Can you get a picture? I'm confused as to what you're talking about
__________________
2 Hands Working Do More Than 1000 Hands Praying

94 YJ Build

99 TJ Build
provinT13 is offline   Reply With Quote Quick reply to this message
Unread 04-06-2010, 08:02 PM   #3
NOAKES91yj
Registered User
1991 YJ Wrangler

Join Date: Nov 2007
Location: Greenville
Posts: 41
Well i've got them on my computer, i don't know how to load them on the site...??
__________________
Only in a Jeep
NOAKES91yj is offline   Reply With Quote Quick reply to this message
Unread 04-06-2010, 08:51 PM   #4
Mark05059
Registered User
1989 YJ Wrangler

Join Date: Mar 2009
Location: quechee Vermont
Posts: 4,353
upload photos to a free hosting site (such as photobucket)... post the link to the picture (using the IMG tag) and someone will make them click free for you.
__________________
1998 ZJ 5.2 Auto

1989 Wrangler Black Bone Stock 2.5l 5spd
/l , [____],
|---L--[]lllllll[]-
()_) ()_)==O=)_)
Mark05059 is offline   Reply With Quote Quick reply to this message
Unread 04-08-2010, 11:11 AM   #5
NOAKES91yj
Registered User
1991 YJ Wrangler

Join Date: Nov 2007
Location: Greenville
Posts: 41

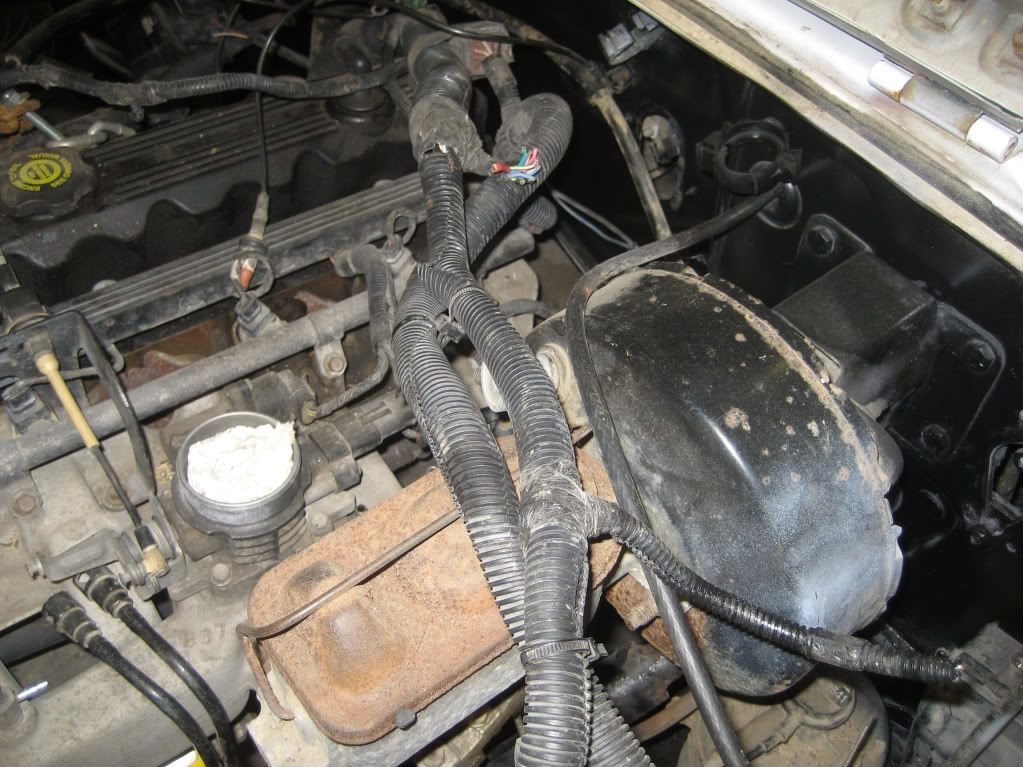

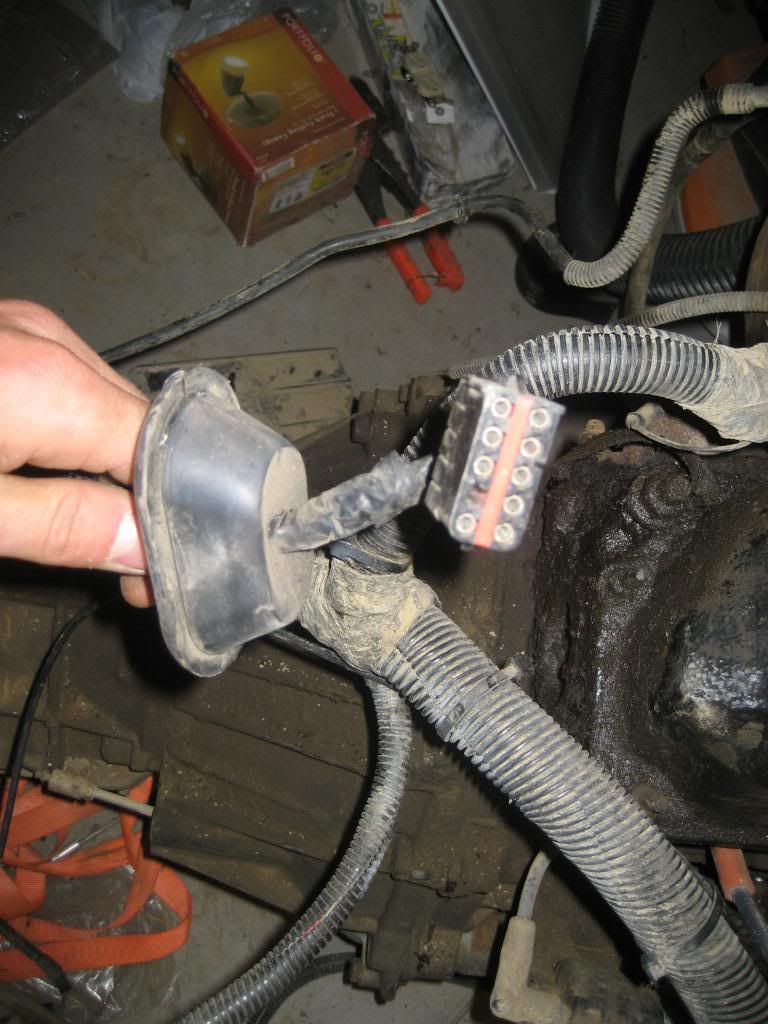

These are the 6cyl wires that went through the fire wall that were cut This is the old 4cyl plug in that went through the fire wall This is were the plug in from the 4cyl motor "shown above" went to under the dash
__________________
Only in a Jeep
NOAKES91yj is offline   Reply With Quote Quick reply to this message
Unread 04-08-2010, 11:12 AM   #6
NOAKES91yj
Registered User
1991 YJ Wrangler

Join Date: Nov 2007
Location: Greenville
Posts: 41
I just dont know what to do with the 6cyl cut wires since there are 13 of them and only 10 on the old 4cyl harness
__________________
Only in a Jeep
NOAKES91yj is offline   Reply With Quote Quick reply to this message
Unread 04-08-2010, 07:13 PM   #7
laybackman
Bikini Bridge Inspector

laybackman's Avatar
1995 YJ Wrangler

Join Date: Dec 2002
Location: Massachusetts
Posts: 6,219
Quote:
Originally Posted by NOAKES91yj View Post
I just swapped my 4cyl in my 91 for a 95 6cyl. Everything went pretty smooth considering the wiring harness came with it..... exceppttt that the plug in above the transmission hump that goes through the fire wall to my dash. The dash has 10 wires and the new 6cyl wiring harness has 13???
-Also, those were the only wires that were cut on the 6cyl harness so it doesn't have the plug-in on the end so i'm not sure what the plug-in would even looks like.

Maybe i am looking at it wrong i don't know but any help in that area would be greatly appreciated.
Thanks
For the '95 YJ the only plug I found so far that has 13 wires is for the headlamps. Look at the bulkhead connector mounted into the firewall. Plugging into that gets your wiring into the cab. I believe that you actually plug two plugs into that bulkhead connector. One for the engine and the other for the headlamps.

Does this list of wire colors match what you have?
BK/YL
BK/WT
TN
LG/WT
DB/WT
WT/OR
LG
LB
RD/OR
RD/GY
BR
DG/RD
VT/WT
__________________
Chicks dig me.....Fish fear me

Getting older, I have developed some special skills. I have the ability to cough, sneeze, fart and pee at the same time.

"If we cannot afford to take care of Veterans, then we should stop making them."
David C. Wilker Jr. USAF (RET)
laybackman is offline   Reply With Quote Quick reply to this message
Unread 04-08-2010, 07:44 PM   #8
NOAKES91yj
Registered User
1991 YJ Wrangler

Join Date: Nov 2007
Location: Greenville
Posts: 41
yes i have both of those plugged in but what am i supposed to plug in there under the dash?? and where do those cut wires go?
__________________
Only in a Jeep
NOAKES91yj is offline   Reply With Quote Quick reply to this message
Unread 04-08-2010, 08:06 PM   #9
laybackman
Bikini Bridge Inspector

laybackman's Avatar
1995 YJ Wrangler

Join Date: Dec 2002
Location: Massachusetts
Posts: 6,219
Quote:
Originally Posted by NOAKES91yj View Post
yes i have both of those plugged in but what am i supposed to plug in there under the dash?? and where do those cut wires go?
OK so that is your instrument panel connector. I can fget you some information on those wires some time soon. I am not at my tower PC which has all my stuff on it but my LT.
__________________
Chicks dig me.....Fish fear me

Getting older, I have developed some special skills. I have the ability to cough, sneeze, fart and pee at the same time.

"If we cannot afford to take care of Veterans, then we should stop making them."
David C. Wilker Jr. USAF (RET)
laybackman is offline   Reply With Quote Quick reply to this message
Unread 04-08-2010, 08:25 PM   #10
laybackman
Bikini Bridge Inspector

laybackman's Avatar
1995 YJ Wrangler

Join Date: Dec 2002
Location: Massachusetts
Posts: 6,219
Ten of those wires will match color for color & pin for pin the wiring in the plug in the firewall. Get them seperated from that stub of wires. What color wires do you have left?
__________________
Chicks dig me.....Fish fear me

Getting older, I have developed some special skills. I have the ability to cough, sneeze, fart and pee at the same time.

"If we cannot afford to take care of Veterans, then we should stop making them."
David C. Wilker Jr. USAF (RET)
laybackman is offline   Reply With Quote Quick reply to this message
Unread 04-09-2010, 06:39 PM   #11
NOAKES91yj
Registered User
1991 YJ Wrangler

Join Date: Nov 2007
Location: Greenville
Posts: 41
Well i tried to match them up with colors and it wasn't happening but the guy that cut the wires on the 6cyl said that they went through the firewall where my old 4cyl wires went..?? I am troubled and confused with this
__________________
Only in a Jeep
NOAKES91yj is offline   Reply With Quote Quick reply to this message
Unread 04-09-2010, 06:57 PM   #12
laybackman
Bikini Bridge Inspector

laybackman's Avatar
1995 YJ Wrangler

Join Date: Dec 2002
Location: Massachusetts
Posts: 6,219
Quote:
Originally Posted by NOAKES91yj View Post
Well i tried to match them up with colors and it wasn't happening but the guy that cut the wires on the 6cyl said that they went through the firewall where my old 4cyl wires went..?? I am troubled and confused with this
We forgot one thing. The harness inside your heep is a '91 harness. The harness you are using is for a '95 engine. You will need a wiring diagram for a 95 harness AND a wiring diagram for a '91 harness and compare them pin # to pin # instead of color
__________________
Chicks dig me.....Fish fear me

Getting older, I have developed some special skills. I have the ability to cough, sneeze, fart and pee at the same time.

"If we cannot afford to take care of Veterans, then we should stop making them."
David C. Wilker Jr. USAF (RET)
laybackman is offline   Reply With Quote Quick reply to this message
Unread 04-09-2010, 07:07 PM   #13
laybackman
Bikini Bridge Inspector

laybackman's Avatar
1995 YJ Wrangler

Join Date: Dec 2002
Location: Massachusetts
Posts: 6,219
Ok here is the plug for the 1995 harness. It show the engine harness plug and the plug under the dash. Using the large red wire as an orientation point you should be able to match the cut wires to the plug under the dash since it only has one way to fit together if it was still there on the engine harness.

__________________
Chicks dig me.....Fish fear me

Getting older, I have developed some special skills. I have the ability to cough, sneeze, fart and pee at the same time.

"If we cannot afford to take care of Veterans, then we should stop making them."
David C. Wilker Jr. USAF (RET)
laybackman is offline   Reply With Quote Quick reply to this message
Unread 04-11-2010, 10:03 AM   #14
NOAKES91yj
Registered User
1991 YJ Wrangler

Join Date: Nov 2007
Location: Greenville
Posts: 41
Well i deffinatly appreciatte the help you are giving me, the wiring harness is in fact a 95 that is on the new 6cyl engine and the 4cyl i took out has the old 4cyl harness.
But the 6cyl does have 13 wires and the diagram you are showing (which is infact the correct one because i ended up finding it in the factory service manual) only has 10...?? i am going to try your theory and for the ones i don't know i'll play the old guess and check game lol.
Once again thanks a lot, hopefully i can get it going cause this weather is killing me not having my jeep running
__________________
Only in a Jeep
NOAKES91yj is offline   Reply With Quote Quick reply to this message
Unread 04-11-2010, 10:27 AM   #15
laybackman
Bikini Bridge Inspector

laybackman's Avatar
1995 YJ Wrangler

Join Date: Dec 2002
Location: Massachusetts
Posts: 6,219
Quote:
Originally Posted by NOAKES91yj View Post
Well i deffinatly appreciatte the help you are giving me, the wiring harness is in fact a 95 that is on the new 6cyl engine and the 4cyl i took out has the old 4cyl harness.
But the 6cyl does have 13 wires and the diagram you are showing (which is infact the correct one because i ended up finding it in the factory service manual) only has 10...?? i am going to try your theory and for the ones i don't know i'll play the old guess and check game lol.
Once again thanks a lot, hopefully i can get it going cause this weather is killing me not having my jeep running
First figure out the where the first ten wires go. Then we can work on what those final three are for. Do you already know which three wires are 'extra'?



The MAP sensor plug (#1 BK/LB sensor ground, #2 DG/RD sensor signal, #3VT/WT 5 volt supply). is in that area.


Like I said sort out what wiring goes to the dash harness plug and then figure out where those final three wires go to be determined by their colors.
__________________
Chicks dig me.....Fish fear me

Getting older, I have developed some special skills. I have the ability to cough, sneeze, fart and pee at the same time.

"If we cannot afford to take care of Veterans, then we should stop making them."
David C. Wilker Jr. USAF (RET)
laybackman is offline   Reply With Quote Quick reply to this message
