Unread 03-25-2013, 08:58 AM   #31
Flajeeper1
Registered User
1987 YJ Wrangler

Join Date: Oct 2009
Location: Lakeland, FL
Posts: 726
Thanks for the pics. Nice work!

Flajeeper1 is offline   Reply With Quote
Unread 03-29-2013, 10:28 PM   #32
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681

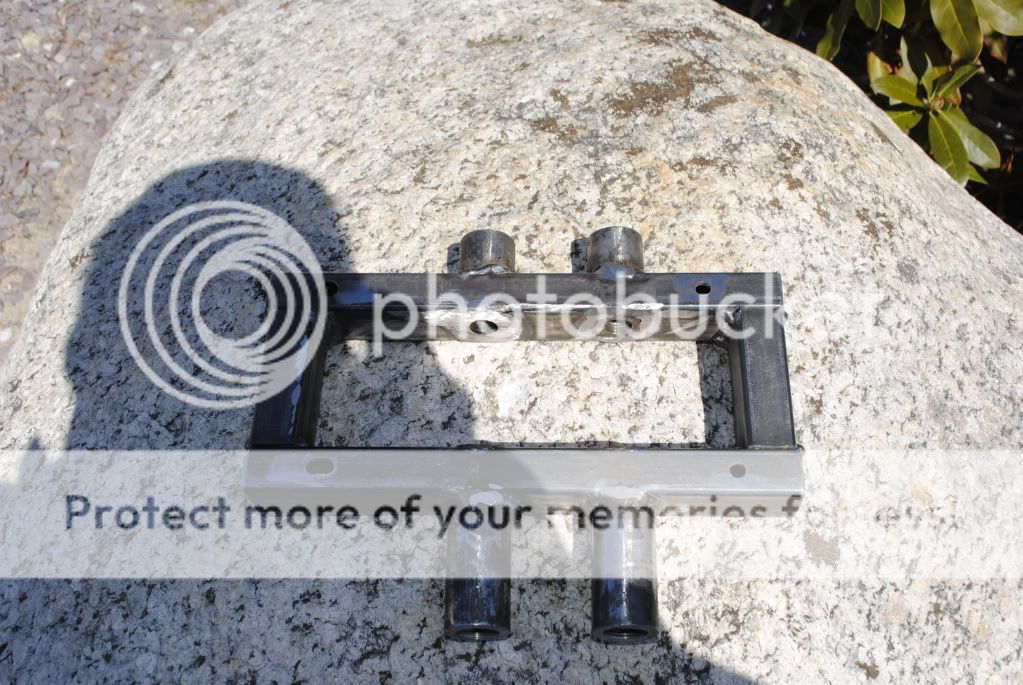

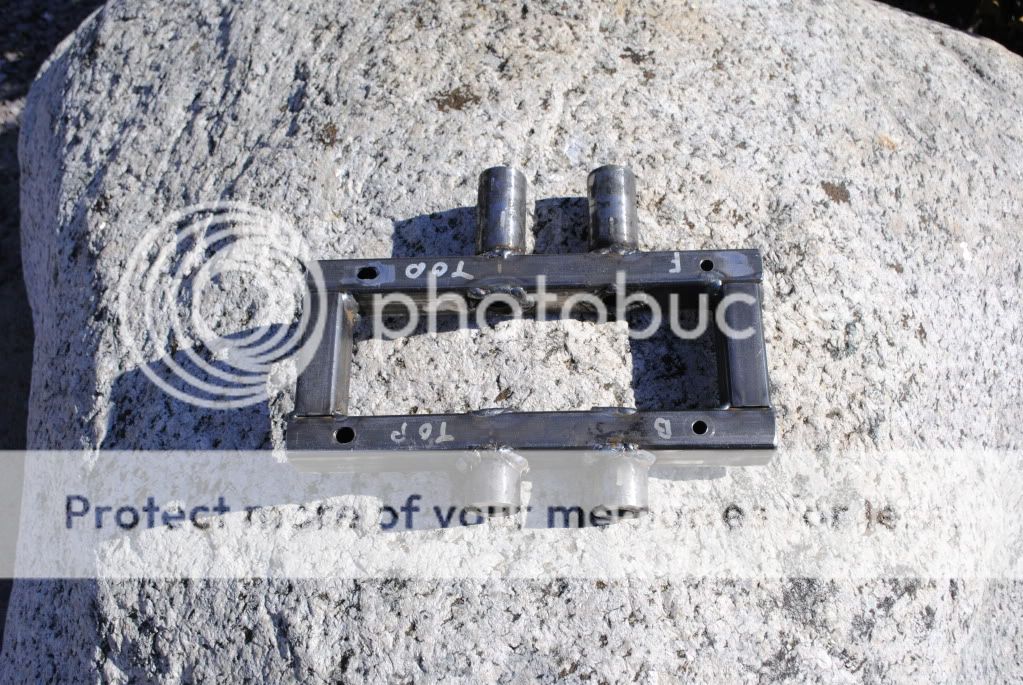

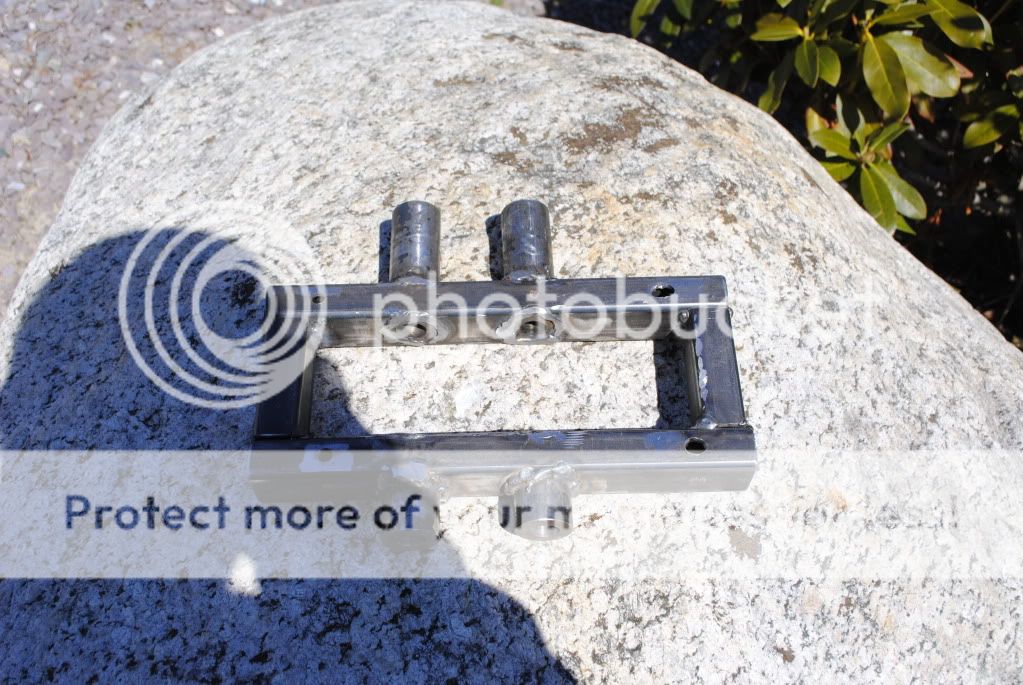

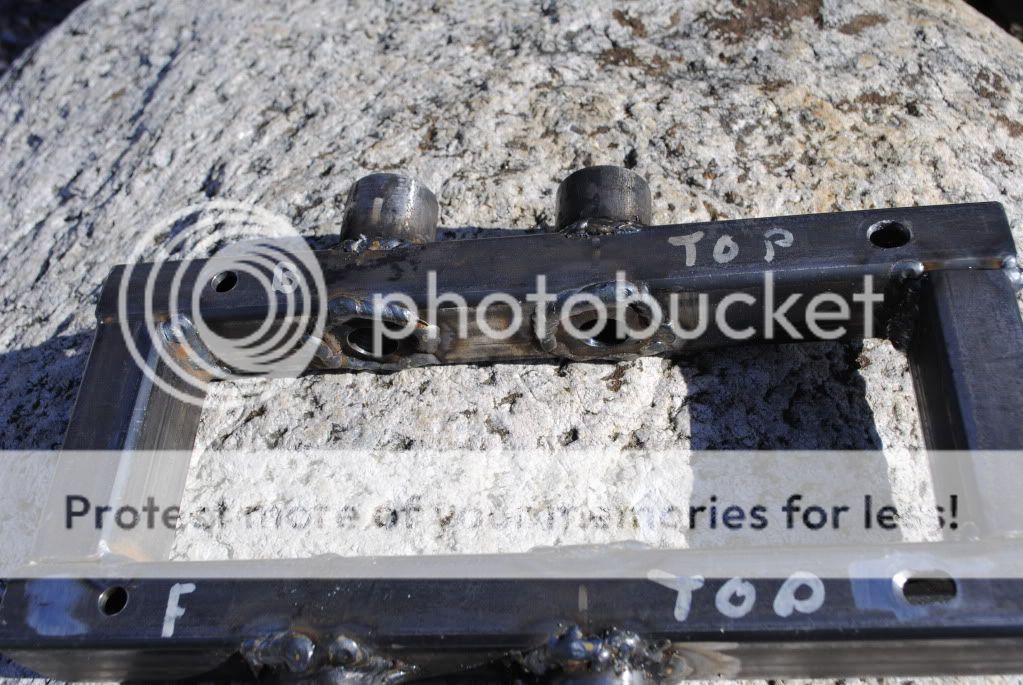

Ok there's Ben a little progress l have cut the last 2 pieces

Then I put the cover on for mockup

Hopefully next week l will get down to my welder and start assembling the top.
My plan is to weld the corners in red.
Then weld the shift rails in blue.
Then I will take off the cover and weld the inside corners.
Then I will weld the inside shift rails in green.

Before I can do this I nead to get some fibreglass welding tape so there will be no spater on the shift rails.
__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 04-04-2013, 12:42 PM   #33
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681

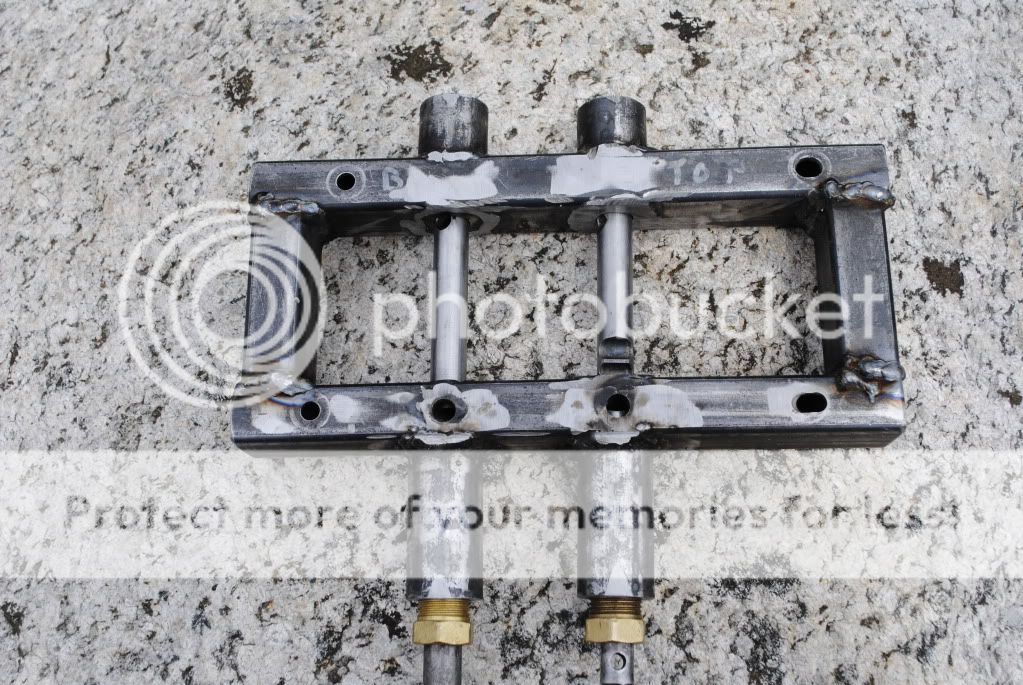

Ok I got and weld most of the shift box .


Then I ground the inside .


Were the big ground spot is low range gear is. Next step is too mark out for indents. Then over drill the top of the shift rails and plug weld. Reground. And redrill for the indent springs. After this I will finish welding the shif rail box.
__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 04-11-2013, 11:23 PM   #34
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681

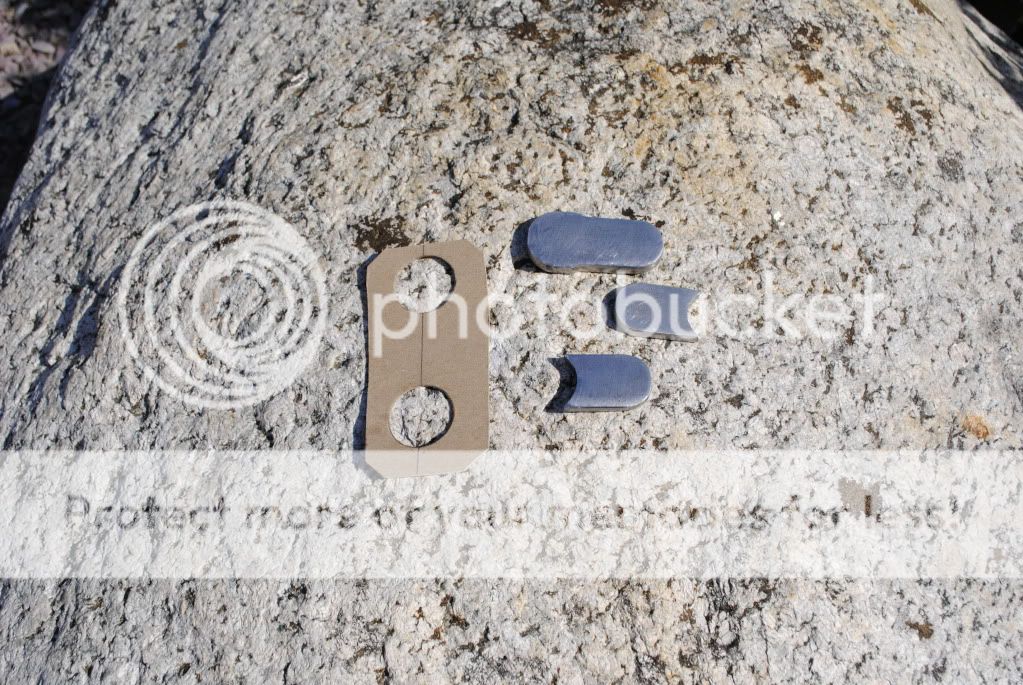

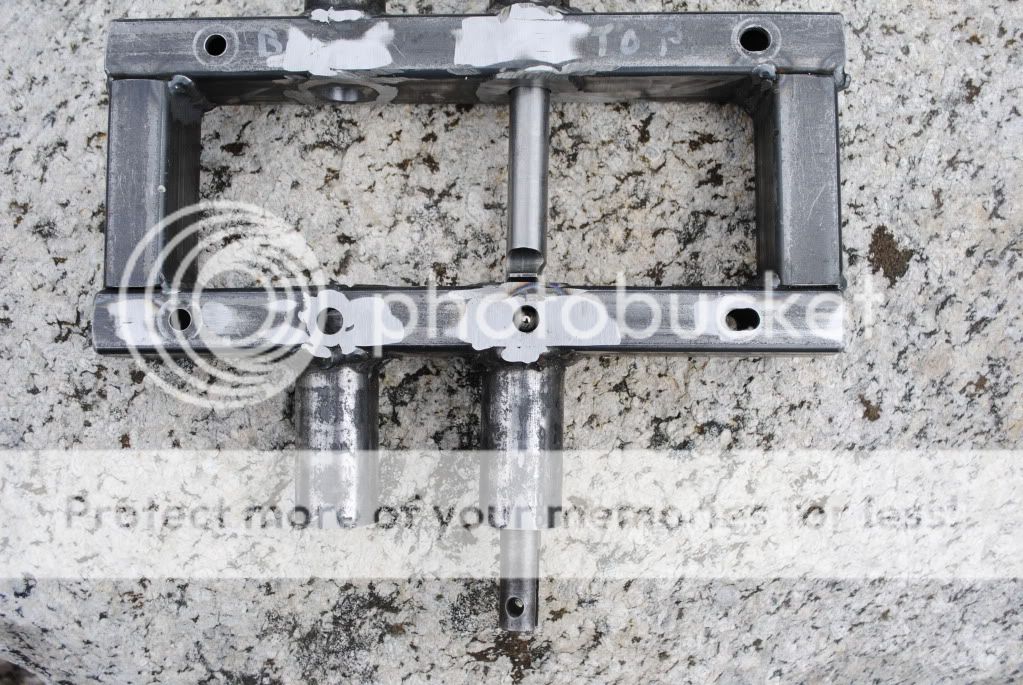

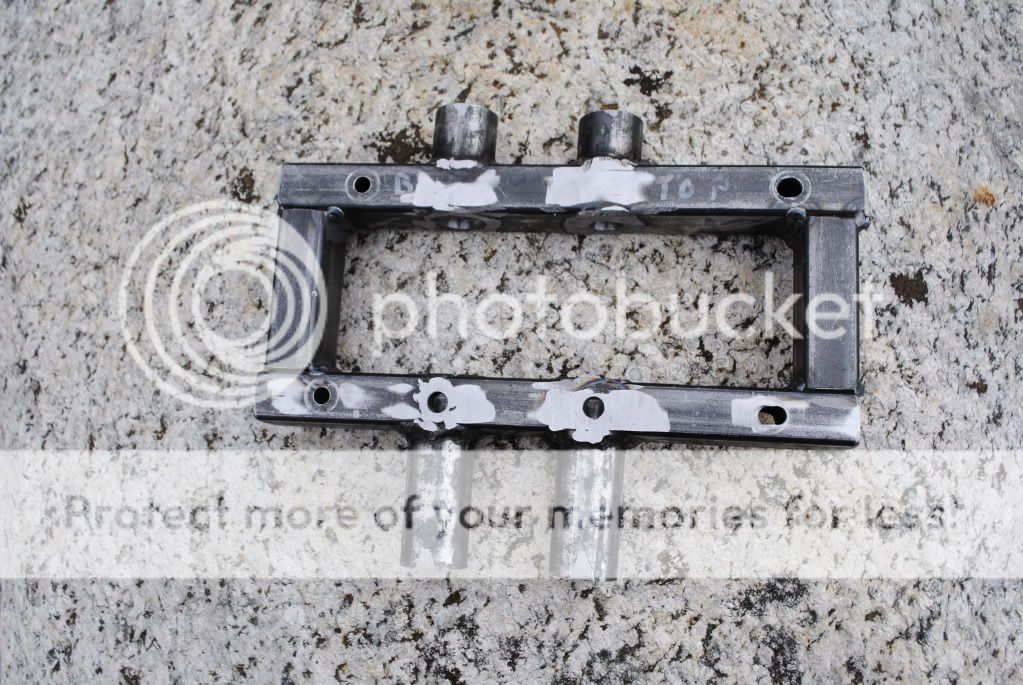

Ok I started to work on shift interlocks in the first pic is the three pices and a templet

In the next two pic is showing the templet being used to locate centers of the interlocks on the shaft


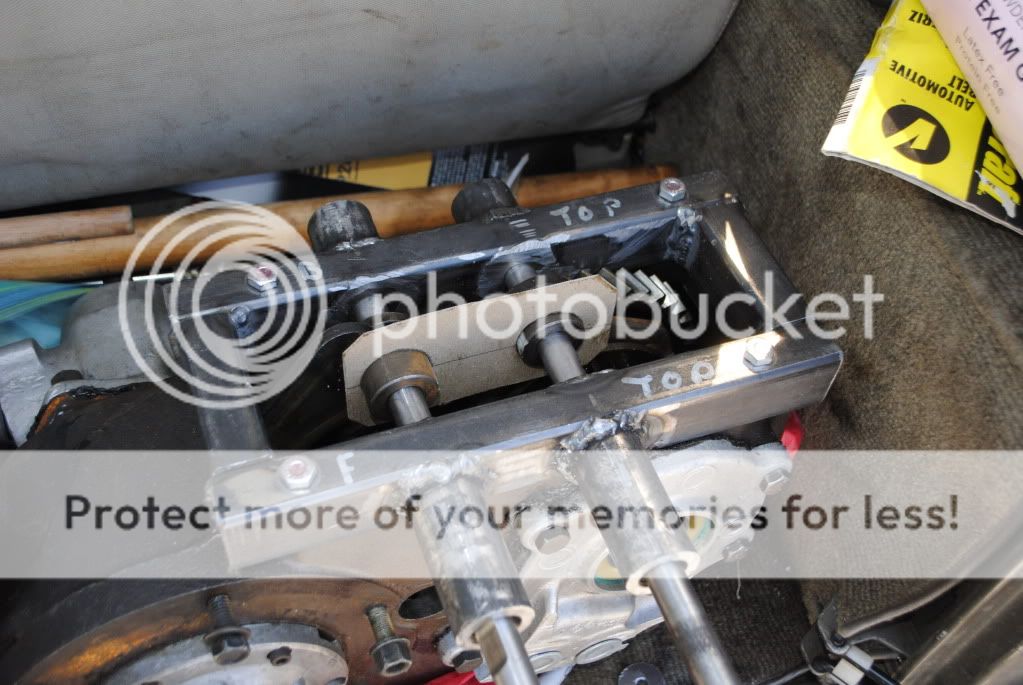

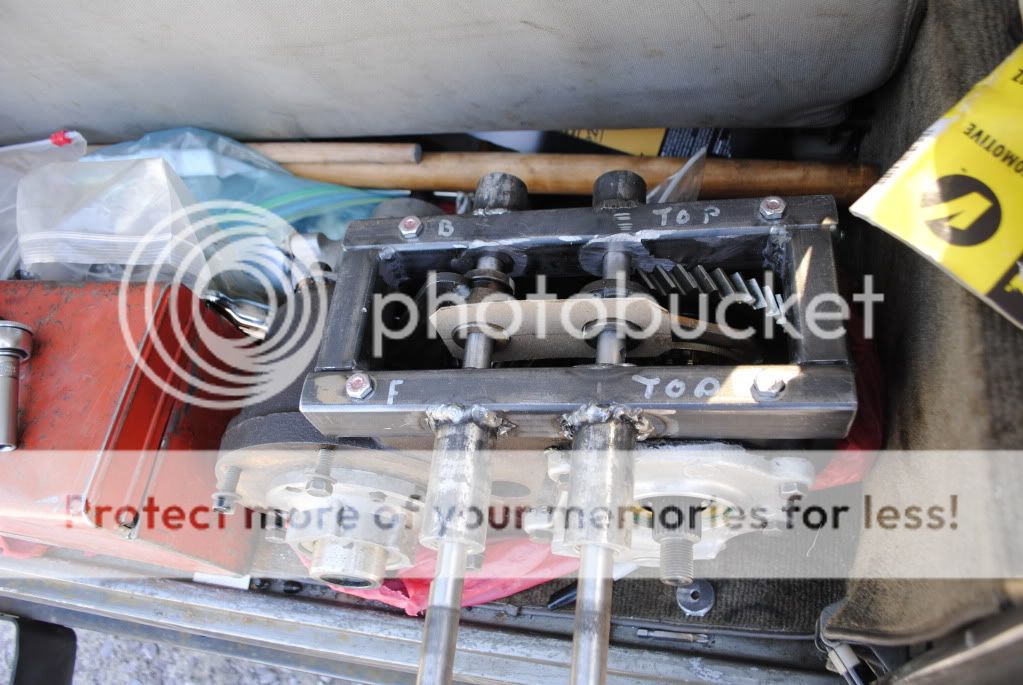

The next pic shows the pices assembled

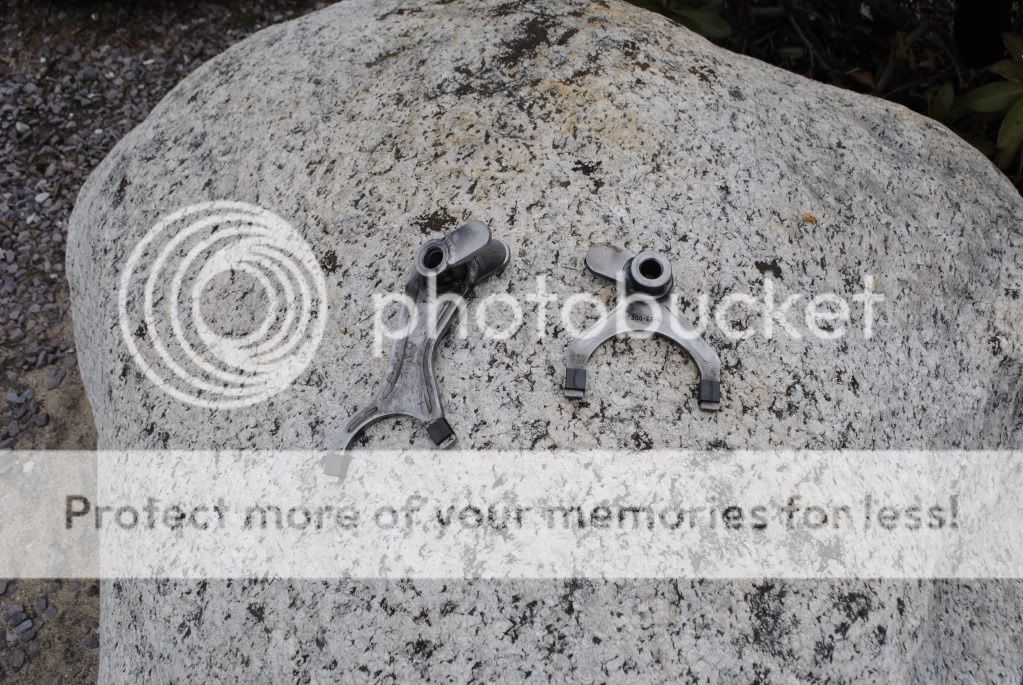

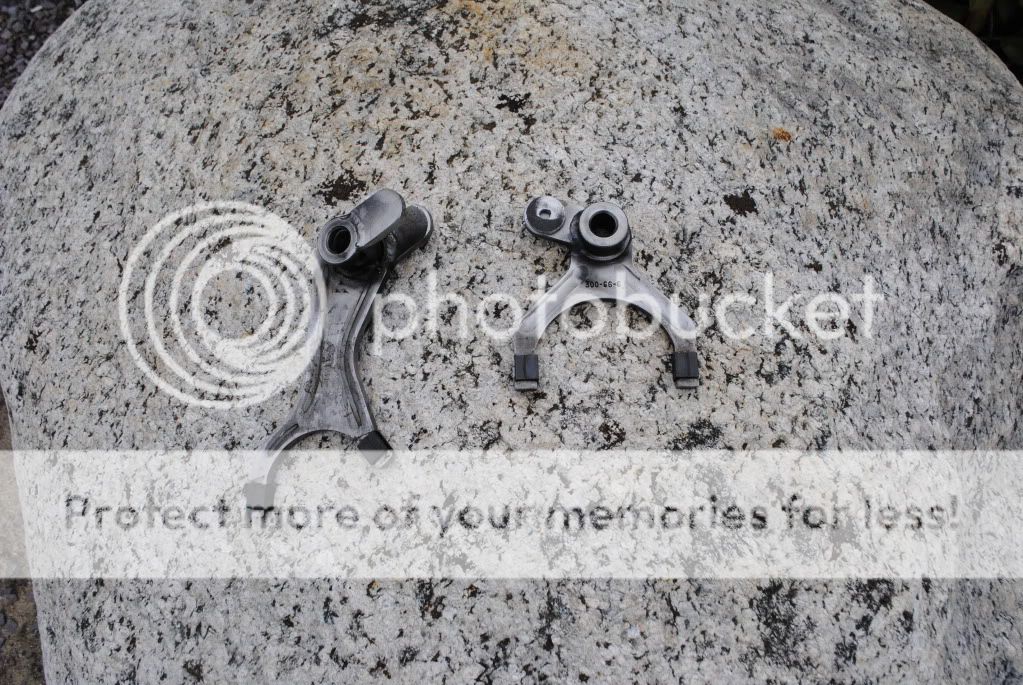

After testing noticed that the one shift fork needed a spacer
[IMG]http://i544.photobucket.com/albums/hh341/lclark2
074/_DSC0075.jpg[/IMG]
__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 04-12-2013, 05:33 AM   #35
Louie4
Powah Injanir

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh, NC
Posts: 9,831
Looking good. I'm curious to see how the final welding goes on the shift rail.
__________________
Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is offline   Reply With Quote
Unread 04-12-2013, 12:33 PM   #36
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681
Quote:
Originally Posted by Louie4 View Post
Looking good. I'm curious to see how the final welding goes on the shift rail.
Hopfuly next week I will get a chanse to finish welding the shift rail frame.

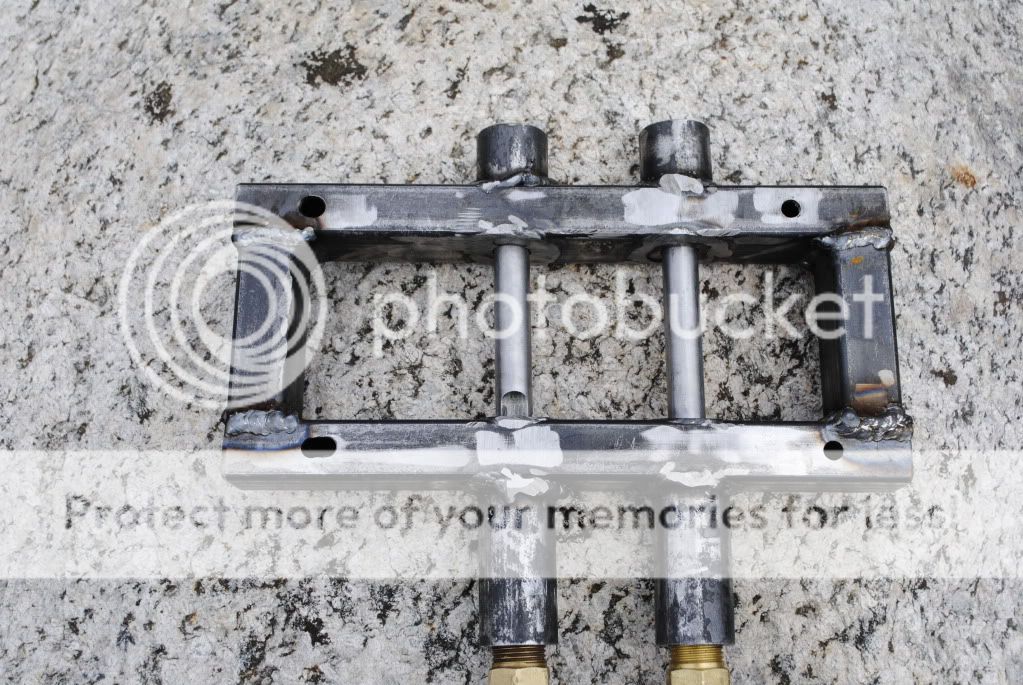

In the next pic I have driled plug welded and redrilled for indents.



Next step is to setup testing the springs on the indents. To figure how thick plate will be.
__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 04-19-2013, 10:51 PM   #37
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681
Ok can anyone tell me what this is for
__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 04-20-2013, 05:51 AM   #38
Louie4
Powah Injanir

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh, NC
Posts: 9,831
Quote:
Originally Posted by lclark2074 View Post
Ok can anyone tell me what this is for
Adjustment?
__________________
Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is offline   Reply With Quote
Unread 04-20-2013, 09:14 AM   #39
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681

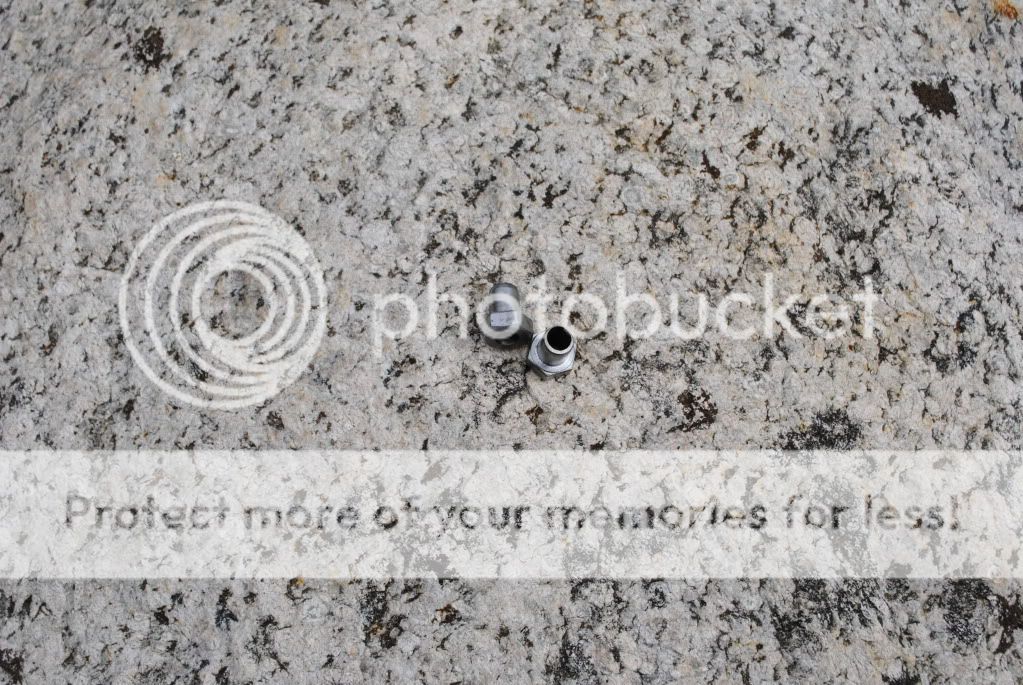

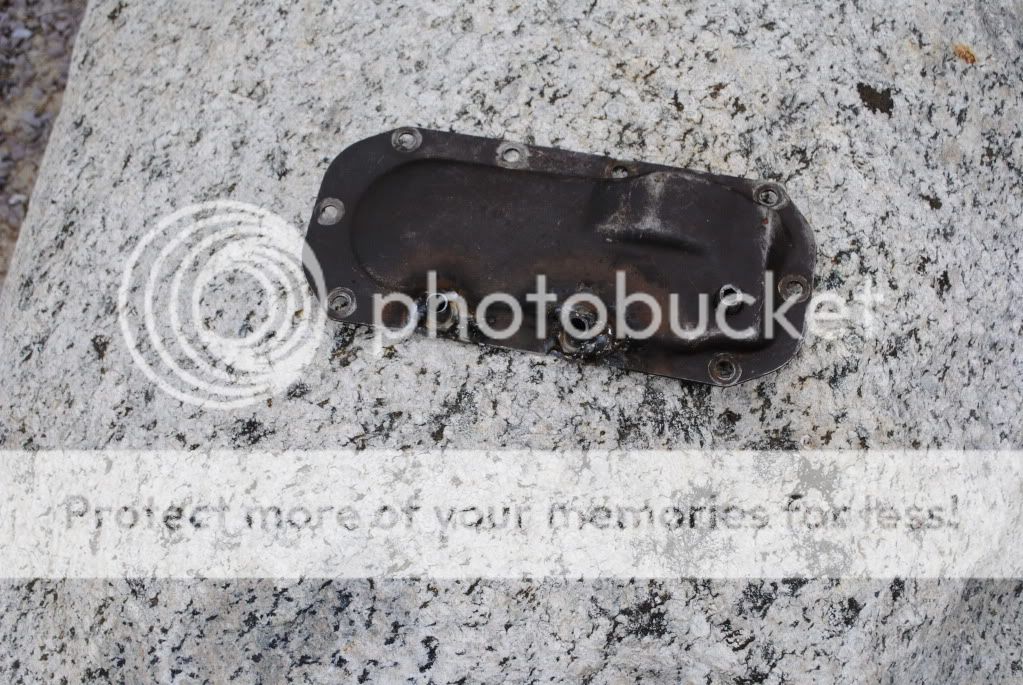

Thy are for the indent springs.here's a pic

The welding looks bad but it works.
I also finished welding the shift rail box
__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 04-20-2013, 09:17 AM   #40
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681

__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 04-29-2013, 12:41 PM   #41
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681
Update plug welded the top of the spring indents and welded one of the shift rail guide end. Drilled and taped the rear shift fork. Then with the allen set screw marked the new shift rail holddown spots. Then driled and burred the spots. After this ground the interlocks for hits.
__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 01-09-2014, 12:16 PM   #42
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681
Ok its Ben a long time but lately I've ben working on the 231parts. And I got pics to start with http://i544.photobucket.com/albums/h...010_130535.jpg
__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 02-19-2014, 09:38 PM   #43
ltrail
Registered User
1984 XJ Cherokee

Join Date: Sep 2010
Location: mesa, AZ
Posts: 1,462
any updates on this setup? Been looking into this. I think some things are made difficult by over thinking the situation . Your setup seems real simple and effective.
__________________
84 xj 350tbi, sm465, 203/205, 60/70. links and other junk.
what size sawzall blades does it take to fit 40's?
ltrail is offline   Reply With Quote
Unread 02-20-2014, 07:29 AM   #44
Norcal_chris
Senior Member

Norcal_chris's Avatar
1995 YJ Wrangler

Join Date: Jan 2012
Location: Sacramento, CA
Posts: 665
Seems like a lot of work. When i was driver drop I just flipped my case and doubled the o rings on the stock setup, plugged the vent off the tailhousing and drilled a new one and ran it. It didnt leak at all.
__________________
2.5/doubler,D60/14bff,104WB,H1s,39.5IROKS
Norcal_chris is offline   Reply With Quote
