post #16 of Old 02-07-2013, 11:50 PM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685

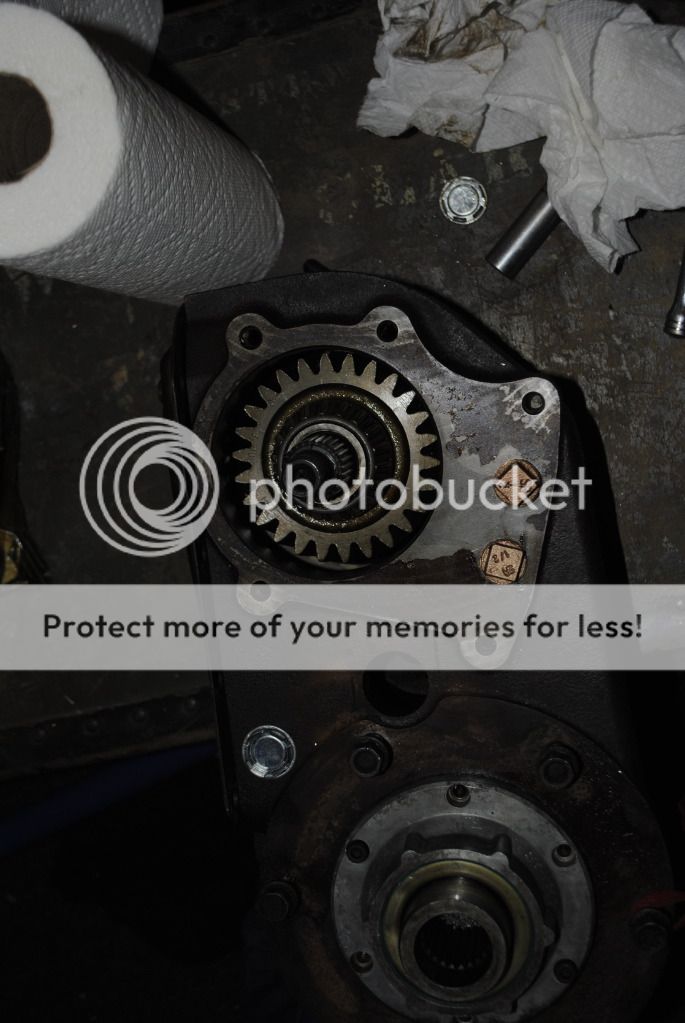

Ok i got a New seal ordered toady. I put the input seal and front output seal in. No pics yet.

lclark2074 is offline
post #17 of Old 02-12-2013, 11:06 PM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685
Ok I got the last output seal today and installed it today. Picked up some rtv gasket maker but I haven't picked up a 23/32 drill bit yet. For the 1/2 in npt tap.
lclark2074 is offline
post #18 of Old 03-04-2013, 12:40 PM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685
Ok its Ben awhile I have drilled and taped the old shift rails and put the 1/2" npt plugs in.
Attached Thumbnails
lclark2074 is offline
post #19 of Old 03-04-2013, 11:42 PM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685

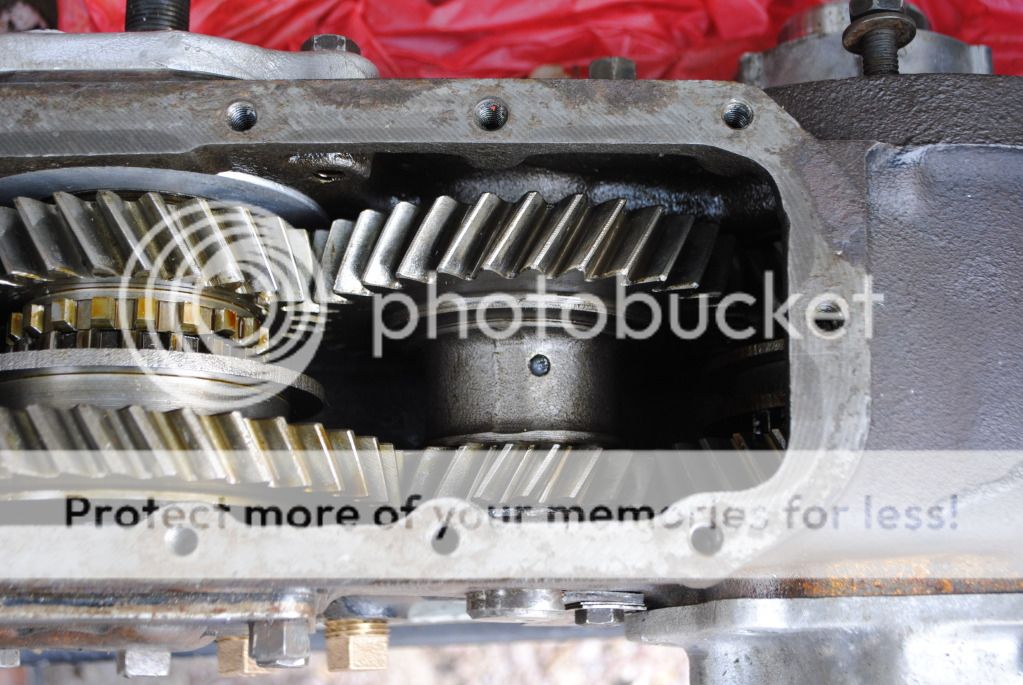

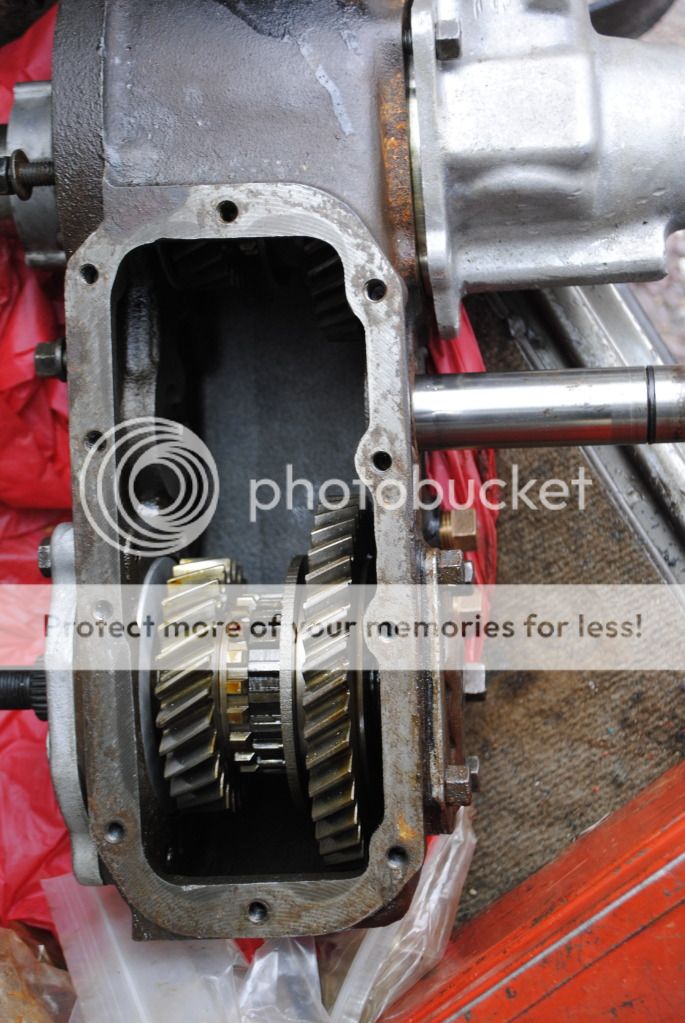

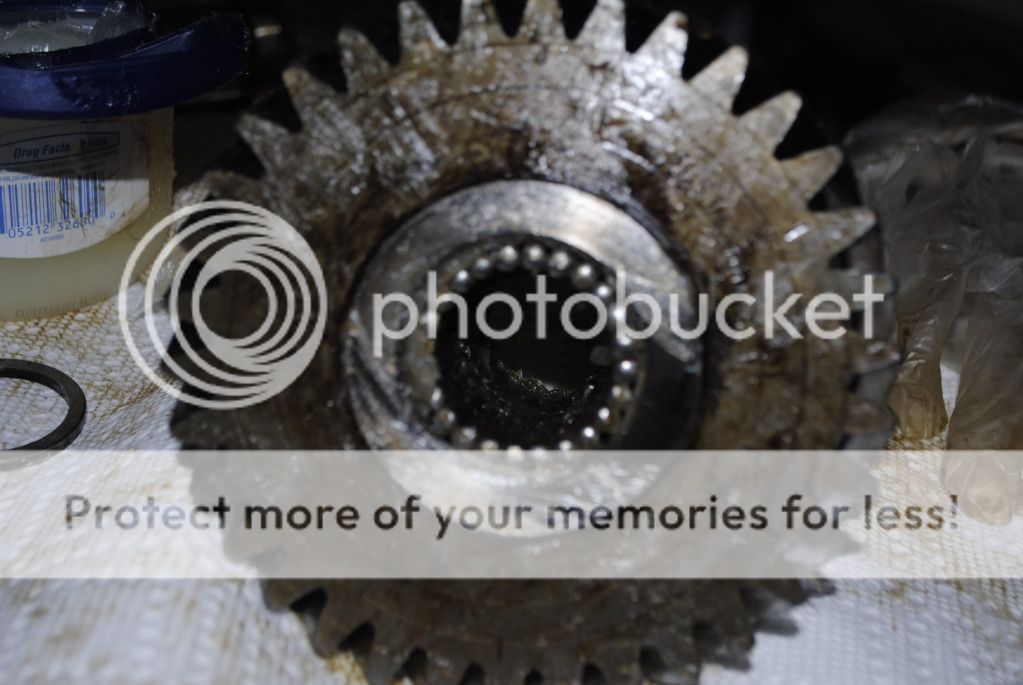

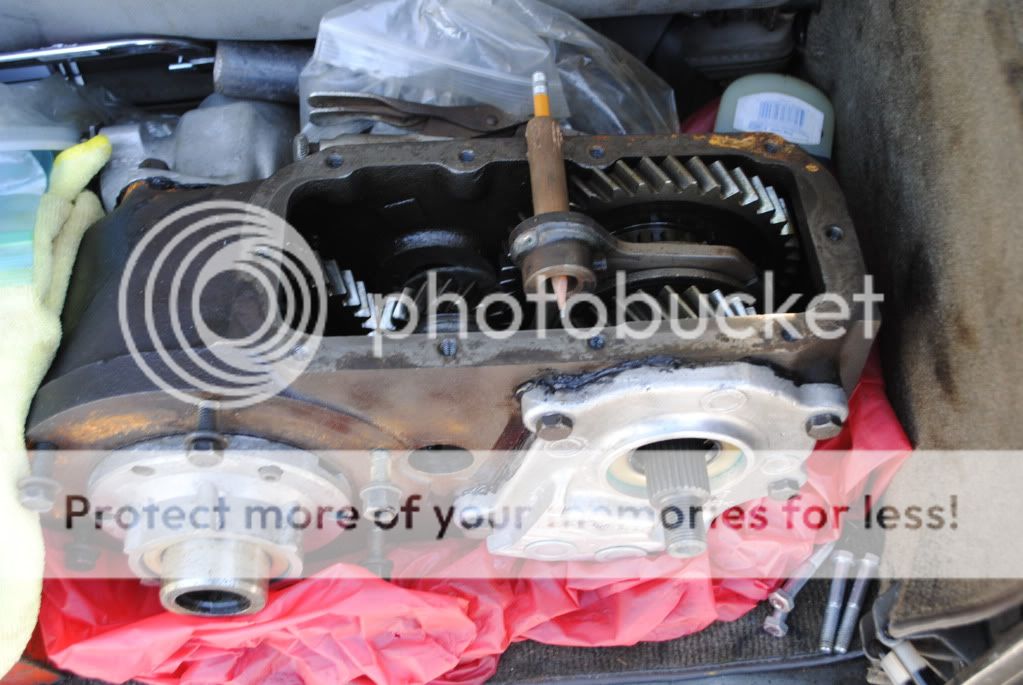

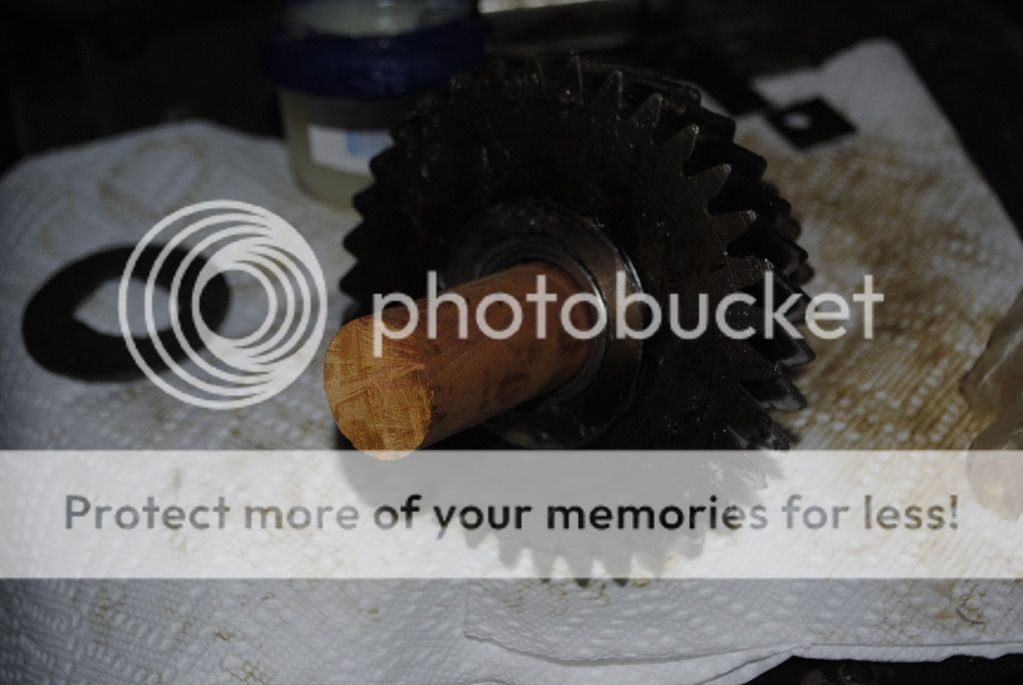

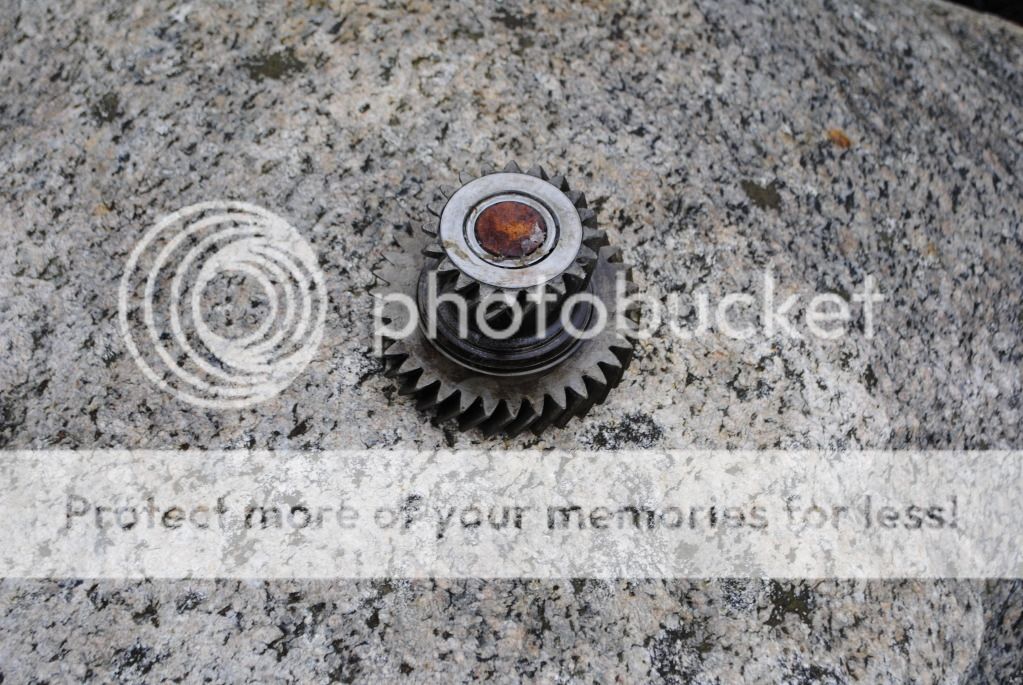

next i put in the intermedit shaft and gear




I got 1 1/2 *1 rectangle tubing and 1 1/4 round stock for the shift rails. take picks soon
lclark2074 is offline
post #20 of Old 03-05-2013, 12:55 PM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,102
Get 'er done.
Joe Dillard is offline
post #21 of Old 03-05-2013, 01:07 PM
TSEJEEPERS
Web Wheeler

TSEJEEPERS's Avatar
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 5,442
Great post.
I have been thinking about doing this for quite some time.
Keep posting some of us are watching!

93 YJ SOA 2" springs front, XJ springs rear w/main leaf added, High pinon 9 inch rear detroit locker front Dana 44 ARB 4.56 Gears, 36 inch Irok tires too much to list. www.mijc.org
TSEJEEPERS is online now
post #22 of Old 03-16-2013, 01:55 PM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685

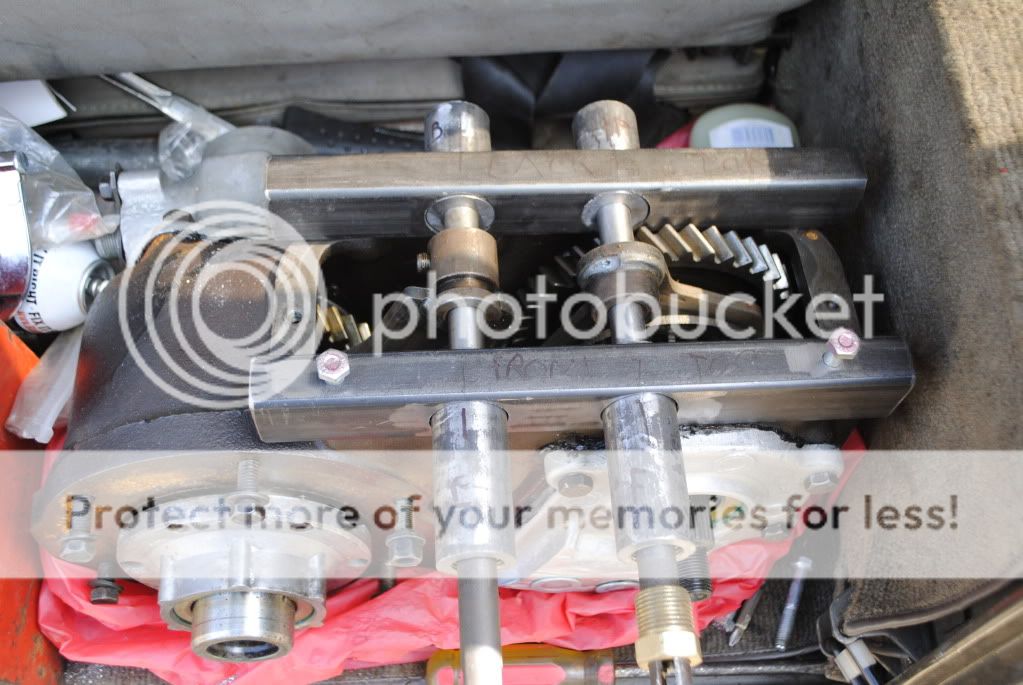

Ok I got to work on dana. Made a jig for locating the shift rod guides. It made of 5/8 Dowell and a pencil.

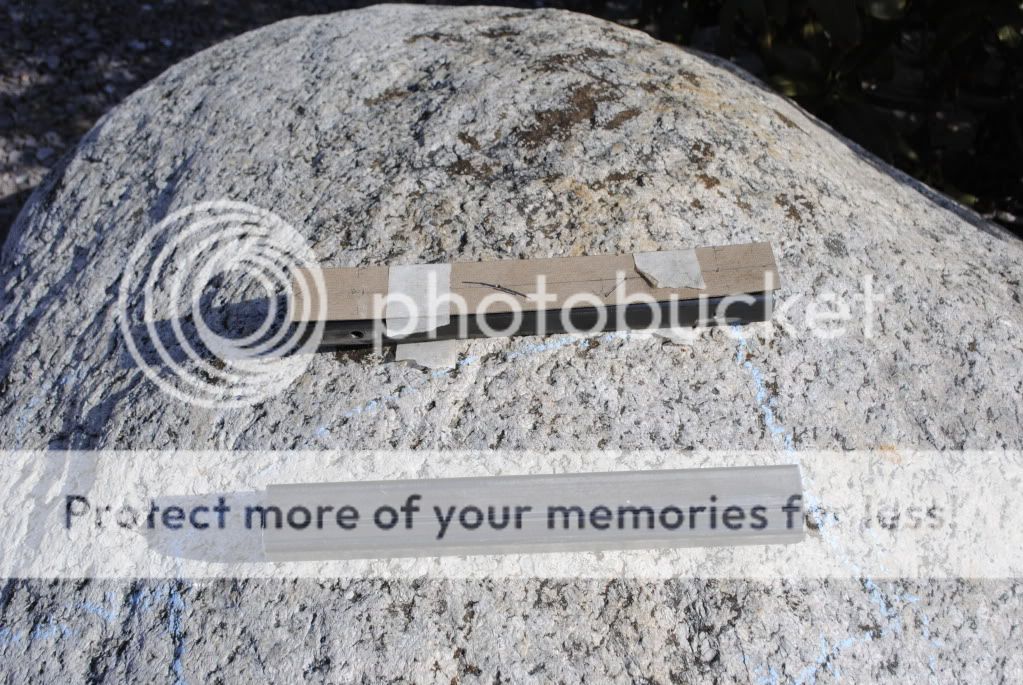

The rectangle tubing is 1" x 1 1/2" with a .120 wall and is 11" long. Next pick is

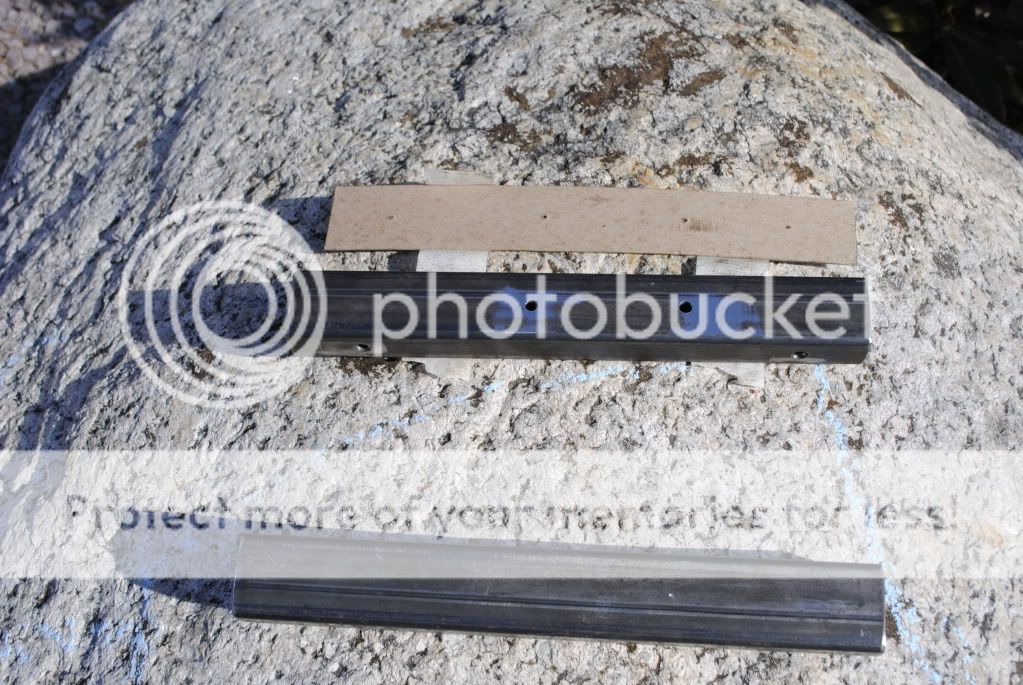

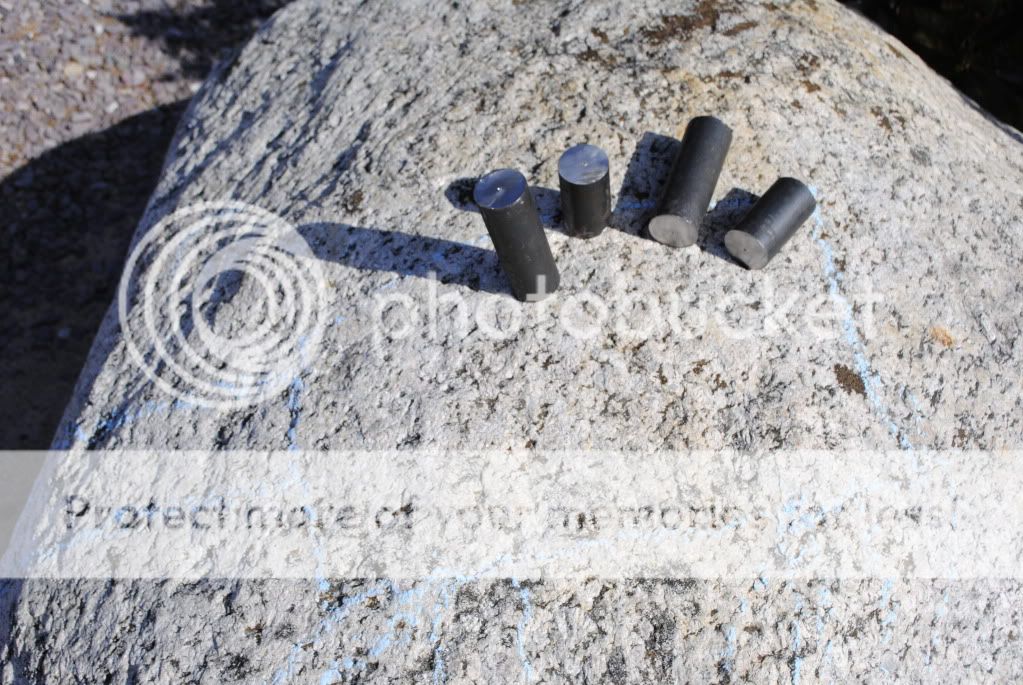

The next pic is the beging of the shift rails tubes. The long ones will have seals put in them.
lclark2074 is offline
post #23 of Old 03-16-2013, 07:30 PM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685
Quote:
Originally Posted by TSEJEEPERS View Post
Great post.
I have been thinking about doing this for quite some time.
Keep posting some of us are watching!
TSEJEEPERS Tanks for your sorport Iam tring to do most of the work myself so it will take a little longer than I want but it will get done.
lclark2074 is offline
post #24 of Old 03-21-2013, 12:31 PM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685
Progress update drilled the shift rail guides to 5/8"
Then I driled the 3 1/2" shift rail guids to 13/16" x 5/8" deep.for the shift rail seals and taped them to 7/8" 14


lclark2074 is offline
post #25 of Old 03-21-2013, 12:40 PM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685

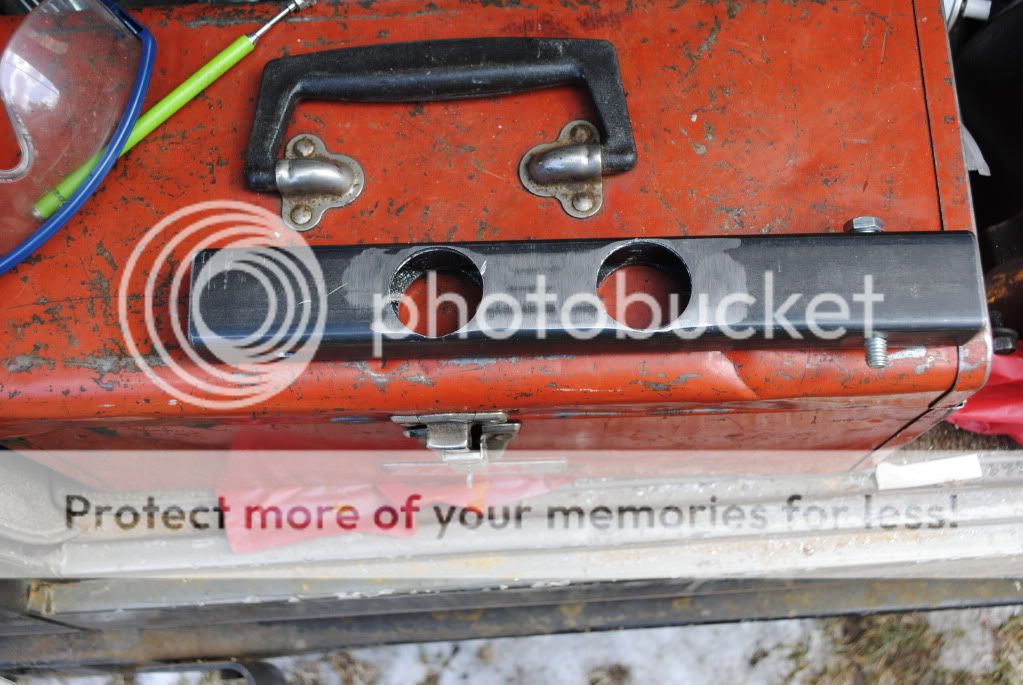

Next step was to drill 1" x 1 1/2" for the shift guides with 1 1/4" hole saw
and hears a pic afterwards
lclark2074 is offline
post #26 of Old 03-21-2013, 06:35 PM
Louie4
Rickety Wrecked Son!

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh
Posts: 10,535
Impressive. I can't wait to see more.

Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is offline
post #27 of Old 03-21-2013, 08:33 PM
Flajeeper1
Registered User
1987 YJ Wrangler

Join Date: Oct 2009
Location: Lakeland, FL
Posts: 732
How do you seal the shifting rods?
Flajeeper1 is offline
post #28 of Old 03-21-2013, 11:56 PM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685
Quote:
Originally Posted by Flajeeper1 View Post
How do you seal the shifting rods?

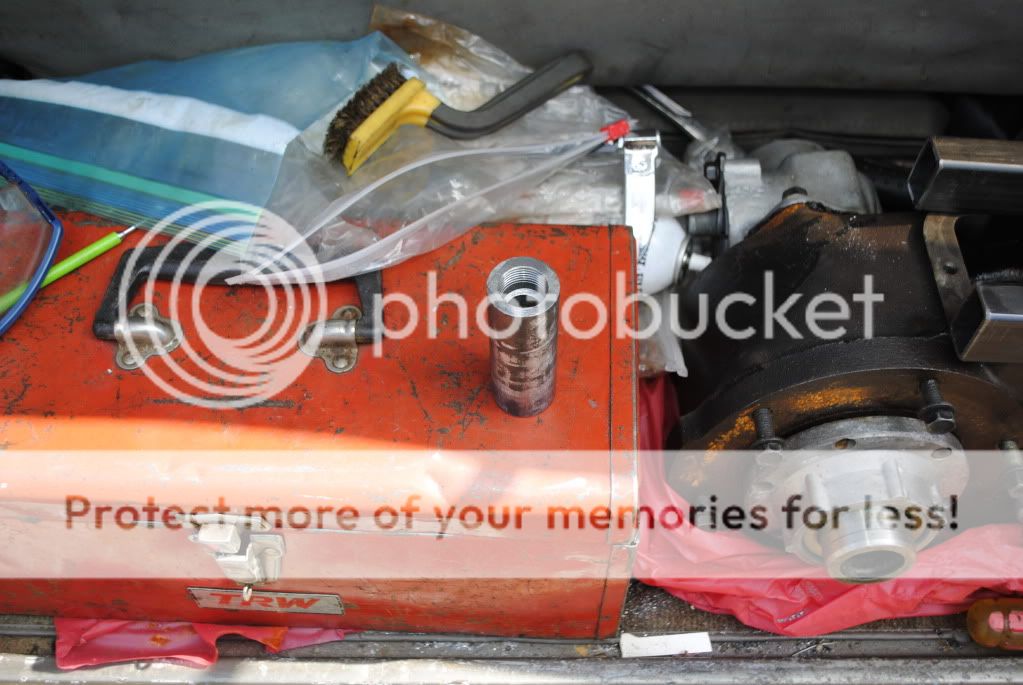

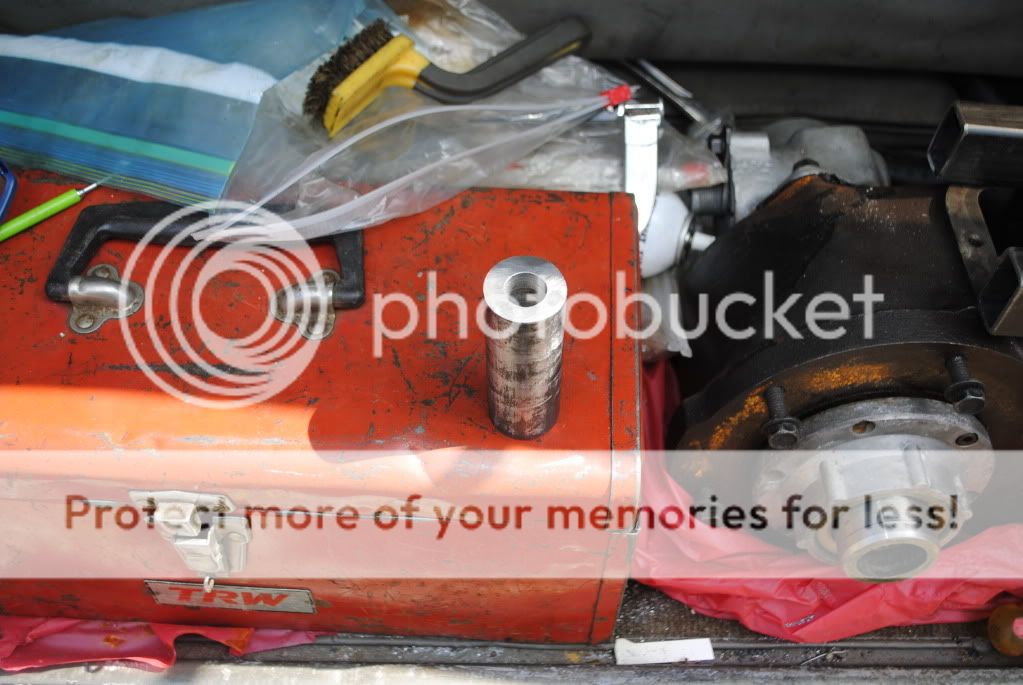

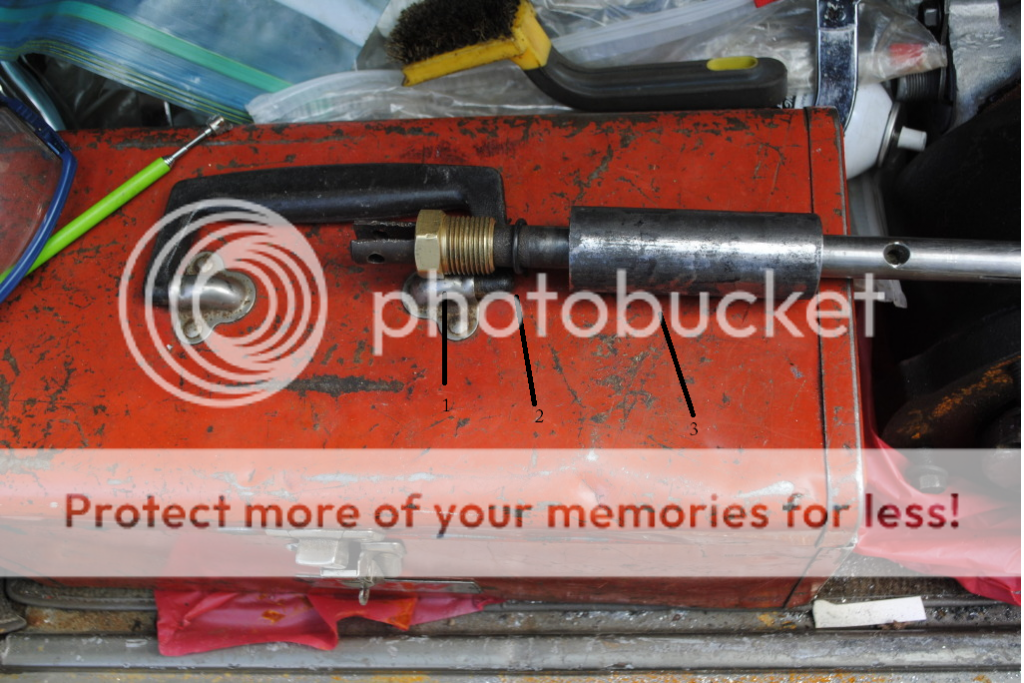

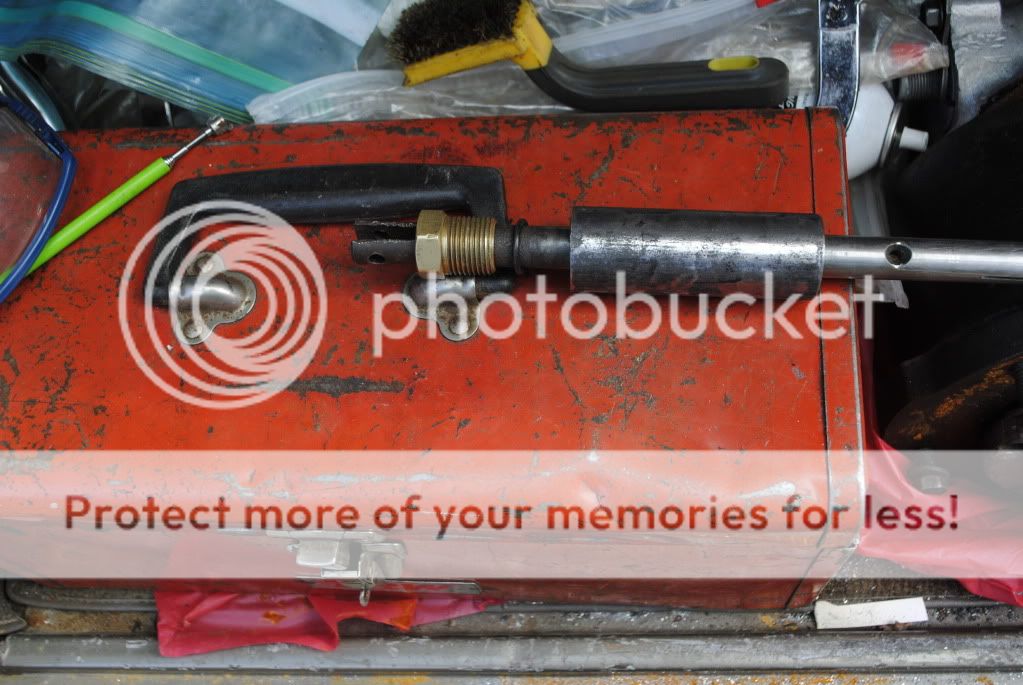

Ok the seal for the shift rods are an O ring seal. In this pic u can see a 1 brass nipple, 2 an O ring, 3 a shift rail tube.


How this works is that u tighten the nipple wich compress the O ring witch makes the seal. You can see ledge for the O ring in this pic
lclark2074 is offline
post #29 of Old 03-23-2013, 06:20 AM
Louie4
Rickety Wrecked Son!

Louie4's Avatar
1993 YJ Wrangler

Join Date: Aug 2008
Location: Raleigh
Posts: 10,535
I like it. I would venture to guess you wouldn't want to tighten it too much so you wouldn't squish the o-ring. Would you need some kind of loctite so the brass fitting doesn't work itself out? Or did you countersink it just enough so it would seal but not bottom out?

Lou

I have a jeep...and it is modified...I win.

YJOTM July 2012
YJOTM February 2014

Louie4's YJ Build
Poison Spyder Fender Install
Warn M8000 Rebuild Adventure
University of Georgia
Louie4 is offline
post #30 of Old 03-23-2013, 08:47 AM Thread Starter
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 685
Quote:
Originally Posted by Louie4 View Post
I like it. I would venture to guess you wouldn't want to tighten it too much so you wouldn't squish the o-ring. Would you need some kind of loctite so the brass fitting doesn't work itself out? Or did you countersink it just enough so it would seal but not bottom out?
Yes your right but before I loctite it I will have to test it for leeks and how much drag.
lclark2074 is offline
