Feetwet's Hand Throttle Install

I got the dreaded 2am phone call. My surf fishing buddy's work truck was out on the point of the Inlet in a sucking wet sand stuck, buried to the frame on a rising tide. When I got there, he had a foot of water 200yds in all directions, wind blowing 25knts and raining sideways. His dad was there in his new, stock Grand Cherokee but had no recovery equipment.

With those conditions there was no time for camera work, much as I'd liked to have taken some pics. We did some fast digging in front of his tires, by now there was 16" of water and small waves slapping us, jammed 4 short 2x12s under them (I came prepared) and linked 150ft of Tow straps to his front hooks, tied my tail to his dad's stock GC and my little YJ winched his sorry butt outa that hole.

The upshot of this whole episode reminded me it was time for a Hand Throttle Install. It would have been a big help to set RPMs and operate the winch from outside the Jeep, where I could better see and communicate during the pull, so I went shopping.

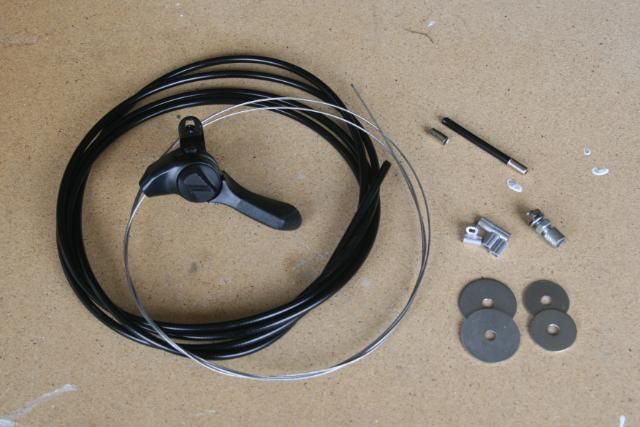

The goods, clockwise from left.
7ft of 1/16" galvanized bike shifter cable with preterminated end and a Shimano Non-indexed shift lever, 7ft of cable sheath, sample sheath with 2 ferrules for end caps, cable adjuster barrel, 1/16" cable double crimp sleeves and stainless fender washers in 2 sizes. Total cost about 18 bucks.


I removed the airbox hose and ccv tube for better access and stuffed the throttle body. My crankcase has all the parts it needs in there already...
the throttle cable bracket has a nice hole all ready for cruise control so I used that.

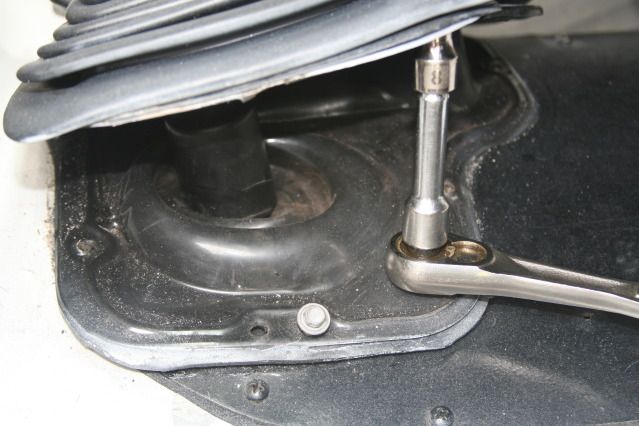

I want the cable to run down the shifter, through the shift boot, through the tunnel and up into the engine bay. An 8mm socket pulled the outer shift boot and I was able to fish the cable sheath through the outer and inner boots and then pull it forward, routing it along the AX5 breather, previously installed (see my sig).



Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline
Sponsored Links
Advertisement

post #2 of 29 Old 06-14-2012, 07:26 AM Thread Starter
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 868

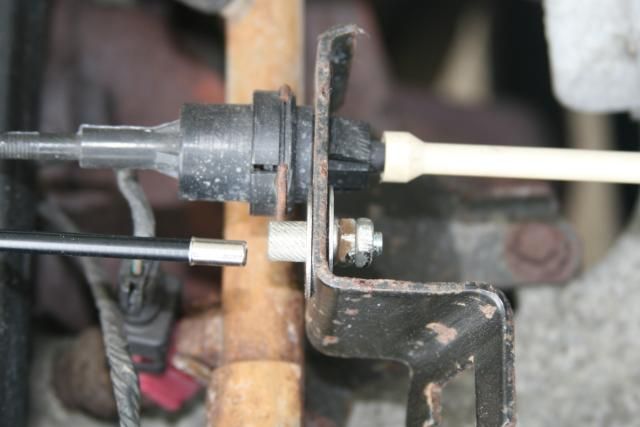

I installed the cable adjuster barrel in the hole in the throttle cable bracket using the smaller fender washers, a lock washer and a jam nut for insurance. I cut the excess cable sheath to length and put an end cap ferrule on to finish off the cable end. I also slid a length of 3/8" fuel hose over the cable sheath before hooking up the forward end of the cable to protect it from heat and chafing. Did I mention I like extra insurance?

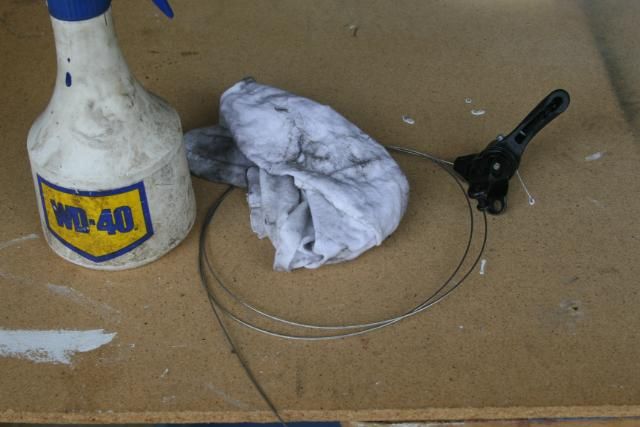

I used some WD-40 to lube the throttle wire and fed it into the sheath from inside the cab.


Just like inserting a catheter, right Doc?....Right!

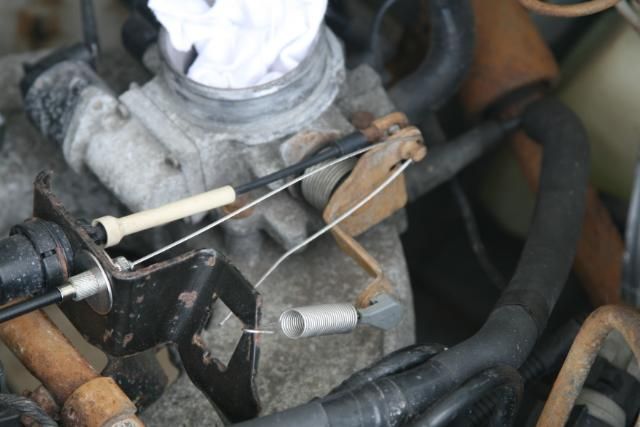

Fished it all the way through, seated the cable end in the adjuster barrel and made a temporary wrap around the open stud on the throttle body spring bracket.

Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline
post #3 of 29 Old 06-14-2012, 07:27 AM Thread Starter
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 868
A little finesse here to get the tension right. Made sure the lever handle was fully retracted, pulled the wire slack forward and held down on the throttle spring while crimping the first sleeve, up close to the stud. Added 2 more crimp sleeves for insurance.

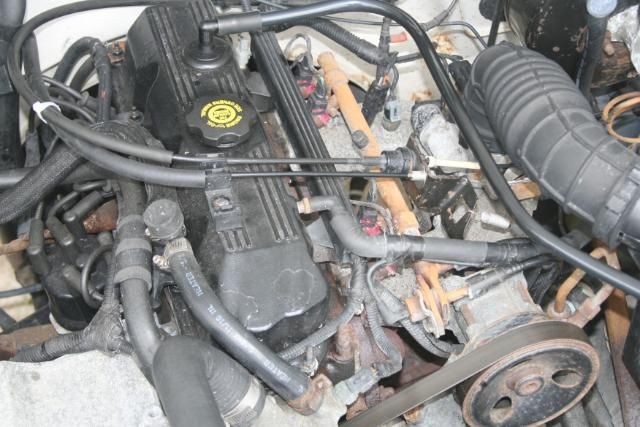

Here's the routing from the cab. Up the firewall and around to the valve cover lead in bracket.

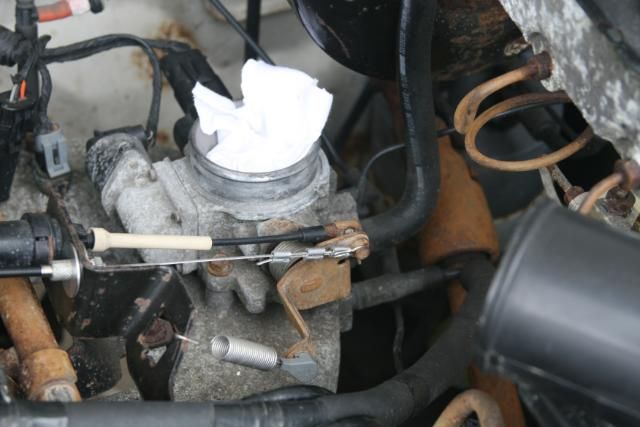

Reinstalled the Airbox hose ( remembering to pull out the rag) and CCv tube. Looks like the new cable has always been there.

Fight Crime...Shoot Back

Friends don't let friends roll over without a negative-G strap

Feetwet's Ford 8.8 Axle Teardown/Rebuild/Install

AX5 Output Shaft Seal Replacement

Hand Throttle Install

AX5 Vent Install
Feetwet is offline
post #4 of 29 Old 06-14-2012, 07:27 AM Thread Starter
Feetwet
Enjoying the Ride

Feetwet's Avatar
1995 YJ Wrangler

Join Date: Mar 2008
Location: South Jersey
Posts: 868

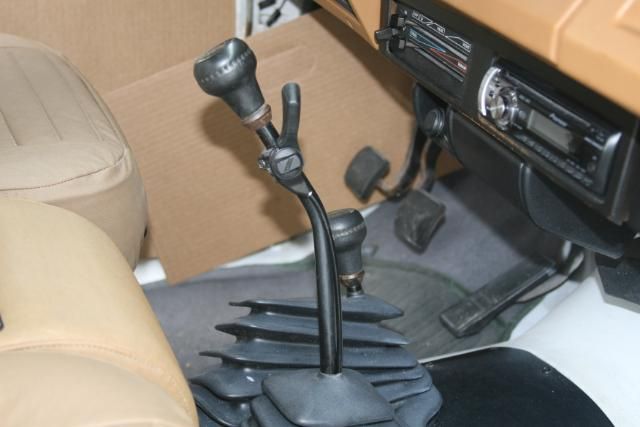

Back in the cab I mounted the lever handle in a comfy spot and refastened the outer shift boot. A little cardboard to smooth out the background for a picture so you can see what's what.
