Exterior Paddle Handles

Hey everyone,

I have searching for a while on this forum about how to attach the outside door handles for full doors. I've read a number of threads and still cant figure out how to get them on their securely. Any kind of simple explanation will definitely help

The picture I've attached is one of the clips. If anyone can use this to explain the process would be extremely helpful.





Thanks a lot!

EDIT: just another picture for reference.

BigLou is offline
Sponsored Links
Advertisement

post #2 of 11 Old 10-18-2009, 04:27 PM
H3RTCH
Live Free or Die.

H3RTCH's Avatar
2004 WJ

Join Date: Jul 2008
Location: Lancaster
Posts: 1,059
Do you have the shims that go in those clips? They look like a miniature hand saw blade. If these are the full (edit: I see they are) doors, its best to do it with the glass out. Use a piece of rod and a hammer, and tap the shims into place. If you need more info let me know, I don't remember how to do it on half doors though.

Brandon

2004 Jeep WJ Grand Cherokee Overland - My DD
1988 Jeep MJ Comanche 4.0L - Dad's
1999 Jeep WJ Grand Cherokee Limited 4.0L - Mom's
H3RTCH is offline
post #3 of 11 Old 10-18-2009, 05:07 PM Thread Starter
BigLou
Registered User
1994 YJ Wrangler

Join Date: Sep 2009
Location: Florida
Posts: 42
Are the shims included with the handle? or are they supposed to be with the door?

This is what i got with the handle:

BigLou is offline
post #4 of 11 Old 10-18-2009, 06:29 PM
H3RTCH
Live Free or Die.

H3RTCH's Avatar
2004 WJ

Join Date: Jul 2008
Location: Lancaster
Posts: 1,059
They should have been with the door. I'm sure you could cut a piece of metal to replace the shim.

Brandon

2004 Jeep WJ Grand Cherokee Overland - My DD
1988 Jeep MJ Comanche 4.0L - Dad's
1999 Jeep WJ Grand Cherokee Limited 4.0L - Mom's
H3RTCH is offline
post #5 of 11 Old 10-18-2009, 07:04 PM Thread Starter
BigLou
Registered User
1994 YJ Wrangler

Join Date: Sep 2009
Location: Florida
Posts: 42
What's the shims purpose? do you happen to have a diagram or anything showing what the shim does or how it goes in?

Thanks a lot
BigLou is offline
post #6 of 11 Old 10-19-2009, 03:49 PM Thread Starter
BigLou
Registered User
1994 YJ Wrangler

Join Date: Sep 2009
Location: Florida
Posts: 42
Did a little looking around online, found these which im guessing are the shims that I need? Place that is selling them says they are for a '81-'89 CJ. Can I use them on my YJ?

BigLou is offline
post #7 of 11 Old 10-19-2009, 04:09 PM
Classicboss1
Registered User
1989 YJ Wrangler

Join Date: Jul 2008
Location: Ithaca
Posts: 133
Quote:
Originally Posted by BigLou View Post
Did a little looking around online, found these which im guessing are the shims that I need? Place that is selling them says they are for a '81-'89 CJ. Can I use them on my YJ?

Yep, those are the shims, you should be able to order them through you auto parts stores, autozone... advanced autos and so fourth. good luck, they are a pain to get in there but doable.
Classicboss1 is offline
post #8 of 11 Old 10-19-2009, 05:01 PM Thread Starter
BigLou
Registered User
1994 YJ Wrangler

Join Date: Sep 2009
Location: Florida
Posts: 42
awesome! thanks a lot!
BigLou is offline
post #9 of 11 Old 10-26-2009, 03:57 PM Thread Starter
BigLou
Registered User
1994 YJ Wrangler

Join Date: Sep 2009
Location: Florida
Posts: 42
Bump!

got the shims and now I'm trying to figure out how they go in. Which way are the teeth supposed to face?
BigLou is offline
post #10 of 11 Old 10-26-2009, 05:23 PM
Alfons
Registered User
1992 YJ Wrangler

Join Date: Jul 2005
Location: Ontario, Canada
Posts: 2,217
You should see the where the shim/wedge slides in on each side of the handle and you should also see a small spring on each side - these small springs are there to "click down" in the notches of the wedge to keep it from sliding back.

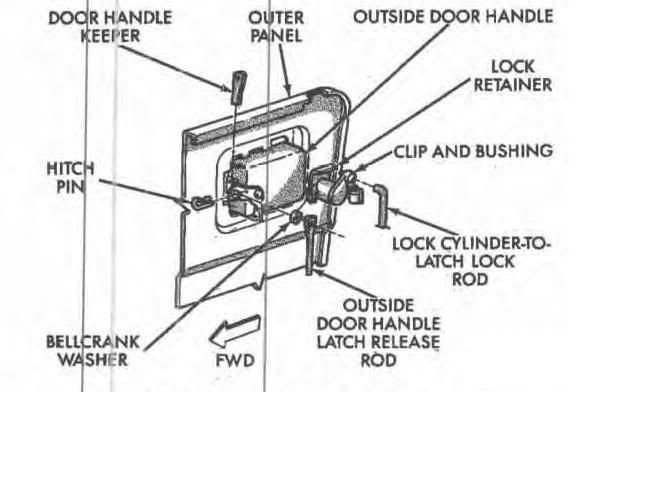

Here's a picture from a manual showing most of the components - this wedge is called a "Door Handle Keeper" in the picture:

Alfons is offline
post #11 of 11 Old 02-14-2010, 06:24 PM
sjwrangler
Registered User
1992 YJ Wrangler

Join Date: Jan 2009
Location: Effort, Pennsylvania
Posts: 236
I noticed that the shims on the parts diagram seem to be inserted upwards. On my doors, they were inserted from the top. From the top sucks. Any comments or experiences of others? I can not paste the parts diagram page here to show others, but the shims are pointing upwards.

His: 92 YJ 2.5, true-track front/&rear, Meyers plow
Hers: 04 Columbia Edition. 6 cyl., 4" lift, 35s
sjwrangler is offline
