Finally made it to home depot again and was helped by a retired plumber there that worked in the plumbing section
We figured out what I needed to make my compressor connection
A compression fiting and a copper pipe from a toilet, or was it a sink,,,Im not sure but I did have to cut the end off so I can slide the air line over it
[IMG][/IMG]
[IMG][/IMG]
Nothing is tight yet in the pictures.
I have to bend the pipe tomorrow when I do the final assembly.
Maybe tomorrow if I dont go snowboarding

__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 12-17-2007, 04:47 PM   #92
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
Woohoo!!!!
but thank goodness for pressure release valves!!!!
I fired up the compressor today and watched the psi guage climb until the release valve kicked into action
I had the psi switch hooked up backwards.
I dont have it hard wired yet but it works!
I air my tire down to less then 20 and filled it to 32 in no time at all. alot quicker then the gas station 50 cents pumps
I still have to get the correct hose that connects to the pump.
The one I have dosent have any barbs so the air line wants to slip off, I now have 4 clamps on it just to keep it from blowing off!
[IMG][/IMG]
This is what happens when you dont have a metal hose at the output connection of the pump, it gets hot and melts!
[IMG][/IMG]
The rear connection
[IMG][/IMG]
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 12-17-2007, 04:52 PM   #93
jeepster93
Registered User
1993 YJ Wrangler

Join Date: Sep 2006
Location: Englewood, CO
Posts: 3,960
Melting a hose...Been there, done that.

That's why I use soft copper tube(3/8 inch dia) to go from the compressor to the tank. And have wound the copper tube into a coil.
It cools the air quite a lot and allows the engine to torque move.

jeepster93 is offline   Reply With Quote Quick reply to this message
Unread 12-17-2007, 05:12 PM   #94
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
Did you use compression fittings on the tube?
What did you use to make the connection to the compresor?
What is that series of fittings going to your compressor?
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 12-17-2007, 05:56 PM   #95
joe's_yj
Registered User
1993 YJ Wrangler

Join Date: Mar 2007
Location: Leesburg,VA
Posts: 1,418
man i need to get going on mine, i just need to find a factory ac unit. where did you get your supplies? and do you have a link or type of hose that you used? thanks alot. looks great!!!
__________________
my build up http://jeepforum.com/forum/showthread.php?t=427353
Quote:
Originally Posted by tawdr77 View Post
The cheapest way to get a significant power increase over a stock 2.5l, would be to pull it out and put in a 5hp briggs & stratton engine.
joe's_yj is offline   Reply With Quote Quick reply to this message
Unread 12-17-2007, 06:09 PM   #96
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
Tank, psi switch, pressure release valve came from various ebay dealers.
Drain valve,air line, gauges and fittings came from home depot, lowes and local hardware store
The hose is a 300psi rated from home depot
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 12-17-2007, 07:21 PM   #97
jeepster93
Registered User
1993 YJ Wrangler

Join Date: Sep 2006
Location: Englewood, CO
Posts: 3,960
Quote:
Originally Posted by jamesx2
Did you use compression fittings on the tube?
What did you use to make the connection to the compresor?
What is that series of fittings going to your compressor?
Yes, standard compression fittings, from the ACE hardware. If you notice...those coils are the same size of one of those plastic round containers that bulk blank CD's come in. I think there is nearly 5 feet of copper in that little coil. It really works for cooling.
My compressor came with nothing more than a plug in the holes to keep them clean, all the fittings, brass and copper, are mine. That particular fitting is a pipe thread.
That bunch of fittings contain a couple parts:
A pressure relief valve set at 185 psi(just in case).
A check valve.
Not in the picture is a filter and water seperator. They are down next to the tank, which is under the batteries.
My compressor does not need constant oiling, so I do not use an oiler or coloessor(sp(oil remover)).
jeepster93 is offline   Reply With Quote Quick reply to this message
Unread 12-17-2007, 08:20 PM   #98
joe's_yj
Registered User
1993 YJ Wrangler

Join Date: Mar 2007
Location: Leesburg,VA
Posts: 1,418
what do the pressure release valve and psi switch do? thanks
__________________
my build up http://jeepforum.com/forum/showthread.php?t=427353
Quote:
Originally Posted by tawdr77 View Post
The cheapest way to get a significant power increase over a stock 2.5l, would be to pull it out and put in a 5hp briggs & stratton engine.
joe's_yj is offline   Reply With Quote Quick reply to this message
Unread 12-17-2007, 09:49 PM   #99
sentinal02
H2 Recovery Team Member

sentinal02's Avatar
1992 YJ Wrangler

Join Date: Feb 2003
Location: New York
Posts: 6,688
Quote:
Originally Posted by joe's_yj
what do the pressure release valve and psi switch do? thanks
the valve is there as a safety measure to keep your system from going over a certain pressure. usually set about 10-20 psi over the working pressure of the system. the switch turns on the compressor by controlling the clutch so the system stays within a certain pressure range. so a 120/150 switch will turn on at 120 psi and turn off when it reaches a 150 psi. with that setup you want a relief valve set for about 160-170 psi.
__________________
RIP: '88 YJ 2.5L Ax-5 NP231
Posi-Loked. Herculined. Optima yellow top. 1" Shackle, 2" BDS. Cragar 397's Aussie front.

92 YJ 4.0L Ax-15 231
5" springs, 1" shackle 31's or 35's depending on my mood
sentinal02 is offline   Reply With Quote Quick reply to this message
Unread 12-30-2007, 06:56 PM   #100
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
I installed the illuminated psiguage/on-off switch from Viair that I ordered from qtech today
It was simple to wire up the illumated guage but now its always on when the jeep is on
I want to only come on when the compressor is turned on by the switch. Can I splice the positive guage lite to the positive compressor wires together?
I screwed up the wireing off the compressor and left the hot and ground together and blew a few fuses, I now understand that I cant leave it as factory and have to seperate the hot and ground
I also had to cut into my air hose and splice in a T so it would go to the guage.
I may finish on new years day
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 01-01-2008, 06:33 PM   #101
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928

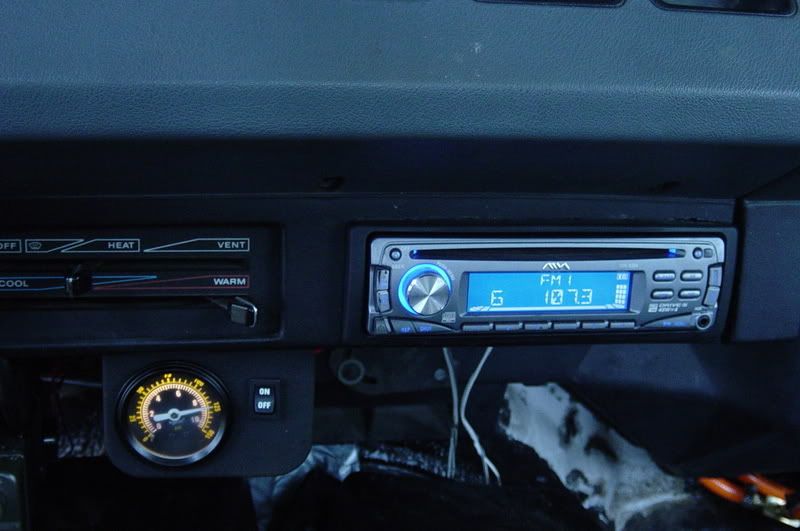

Heres a pic of the working psi guage
[IMG][/IMG]
__________________
Quote:
Originally Posted by Poke View Post
Spring Over is not for you.... yet





My 2.5 to 4.3 swap thread
http://www.jeepforum.com/forum/f12/4...begun-1237704/
YJames90 is offline   Reply With Quote Quick reply to this message
Unread 01-13-2008, 03:12 PM   #102
YJames90
Registered User
1990 YJ Wrangler

Join Date: Jul 2007
Location: Dutchess County, NY
Posts: 6,928
Did some more fine tuning today on the OBA

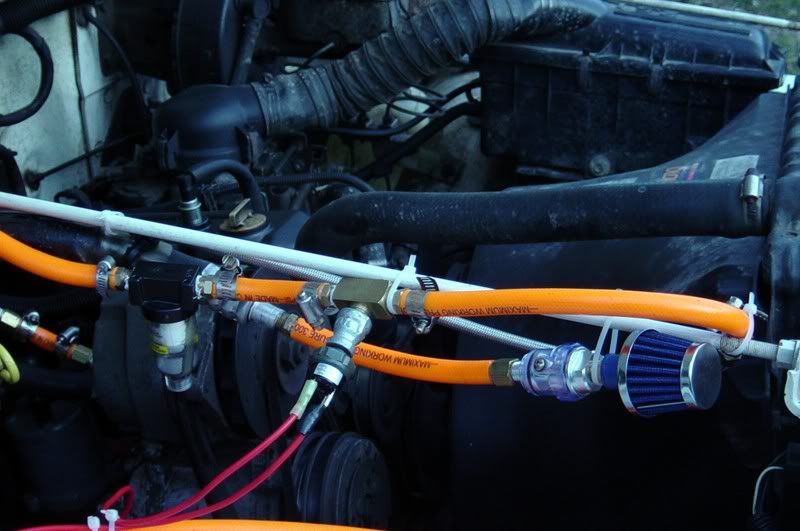

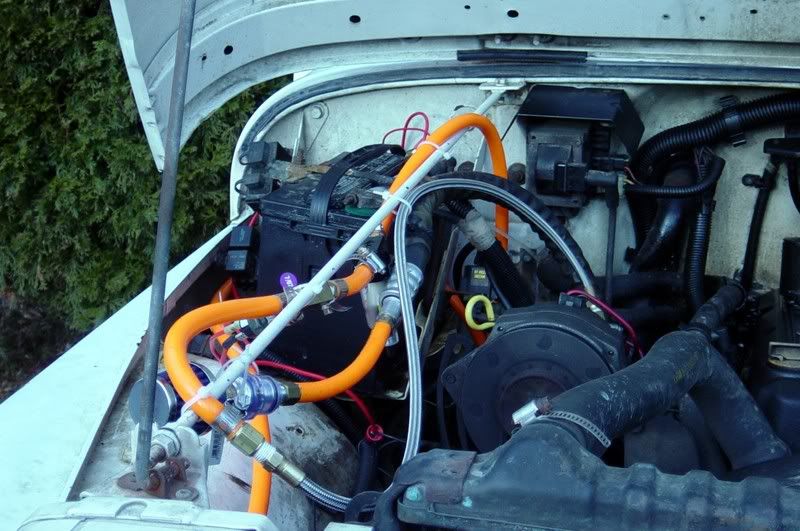

Added a braided hose that comes off the pump to keep things cool and added a air/oil seperator filter
