Engine swap pictures

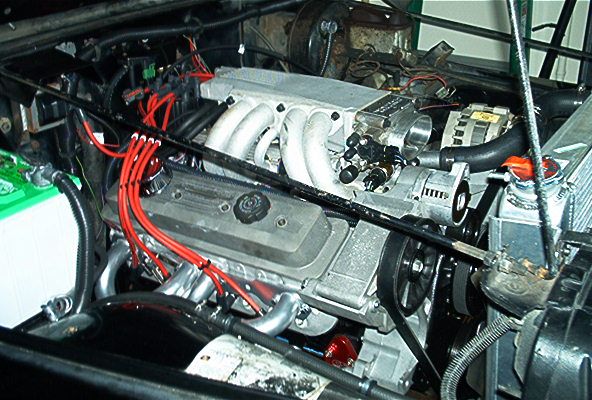

Finally able to post pictures! Here are some pics of my TPI engine in my 87 YJ, nice change from the old 4 cyl.
http://i892.photobucket.com/albums/a...J/IM000974.jpg
http://i892.photobucket.com/albums/a...J/IM000964.jpg
http://i892.photobucket.com/albums/a...J/IM000991.jpg
http://i892.photobucket.com/albums/a...J/IM000989.jpg
http://i892.photobucket.com/albums/a...J/IM001365.jpg
http://i892.photobucket.com/albums/a...J/IM001361.jpg
http://i892.photobucket.com/albums/a...J/IM001367.jpg

5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 03:05 PM   #2
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
OK, I did it wrong, it figures. Here they are.

Last edited by Joe Dillard; 07-15-2009 at 11:49 PM.. Reason: trying to salvage a pic
5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 03:40 PM   #3
shatteredsoul
Registered User
1998 TJ Wrangler

Join Date: Mar 2009
Location: Portland, Tennessee
Posts: 740
Was there alot of welding/fab work to do this or was it pretty much bolt in,plumb,wire etc? Thanks
shatteredsoul is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 03:49 PM   #4
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
No welding, it was a bolt in mount. I wish I would have just bought the weld in mounts so I had more control of engine placement. I was 3/4" shy of using the black magic fan set up for this radiator. Flex fan works great though. I went through the factory wire harness and removed all unused items and used a Painless wire harness for the engine. Plumbing for the fuel, cooling, and trans cooler were normal swap issues.
5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 03:52 PM   #5
shatteredsoul
Registered User
1998 TJ Wrangler

Join Date: Mar 2009
Location: Portland, Tennessee
Posts: 740
Id love to do a simple stock carbed 5.7 in my YJ one day.What tranny you running a 700-R4?
shatteredsoul is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 03:56 PM   #6
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
Yes, 700R4. Fuel injection is not that complicated at all, so much easier to work with in my opinion. I used to be a carb lover building and working on hot rods but after my first Mustang GT, I was hooked on fuel injection.
5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 04:15 PM   #7
firefighter315
Registered User
1994 YJ Wrangler

Join Date: Jun 2008
Location: Kentucky
Posts: 1,827
Are you gonna try and run your air intake to the old location of the factory box, or is the alt. going to be in the way? Looks like there is plenty of room on the pass side for a custom cold air intake....
__________________
My YJ Build Thread http://www.jeepforum.com/forum/f12/f...hread-1181000/
firefighter315 is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 04:20 PM   #8
for-play
Registered User
1991 YJ Wrangler

Join Date: Jun 2009
Location: Fl
Posts: 134
Great job, it looks factory. my first swap will be a carburated 350 w/700r4. I will probably add a megasquirt after I get it sorted out.
for-play is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 04:57 PM   #9
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Looks like you effed up some of the links, the original post had 7 pics, but your 2nd post only had 5.

I fixed them for you!

Max

Quote:
Originally Posted by 5.7YJ View Post
Finally able to post pictures! Here are some pics of my TPI engine in my 87 YJ, nice change from the old 4 cyl.












__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 06:18 PM   #10
dmock
Registered User
1984 CJ8

Join Date: Jan 2007
Location: In my garage in Arizona, Arizona
Posts: 236
Looks awesome... Care to share the details on the crate motor???
dmock is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 09:07 PM   #11
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
Thanks everyone. I am using a K&N cone type filter, I will add more pics later. Not much room to run a cold air kit due to the tensioner on one side and the alternator on the other. The engine is out of an 88 corvette, I rebuilt the engine before I installed it. Thanks Max, I saw what I did after the first post.
5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 09:30 PM   #12
asbury
Registered User
1995 YJ Wrangler

Join Date: Oct 2008
Location: Ballard,WV
Posts: 427
what mount kit did you use , i am swaping in a 4.3 and auto into my 95
__________________
JEEP NAKED !!
asbury is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 09:33 PM   #13
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
Advanced Adapters bolt in crossmember, about $125.00 from Sumitt Racing. Very easy to install.
5.7YJ is offline   Reply With Quote Quick reply to this message
Unread 07-15-2009, 10:05 PM   #14
Jeeeeeeeeeeeeep
Registered User
1991 YJ Wrangler

Join Date: Apr 2008
Location: Michigan
Posts: 816
Nice work, I would loved to put TPI in my Jeep someday, one of the coolest looking motors there is.
__________________
1991 Jeep Wrangler 2.5L, 5 speed
2003 SVT Cobra Supercharged 32V 4.6L, 6 speed
Jeeeeeeeeeeeeep is offline   Reply With Quote Quick reply to this message
Unread 07-16-2009, 07:16 AM   #15
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge, Florida
Posts: 900
Thanks, they do have a good look about them.
5.7YJ is offline   Reply With Quote Quick reply to this message
